Power Set Construction

Power Set Construction is a pivotal algorithm in automata theory, transforming nondeterministic finite automata (NFAs) into deterministic finite automata (DFAs). This conversion is essential for applications like compiler design, where it ensures efficient pattern matching and code translation. The algorithm involves creating DFA states as subsets of NFA states, optimizing to avoid state explosion, and is applied in various software development domains.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Unlike an NFA that permits several state transitions, a DFA ensures a ______ transition for each state and input.

Click to check the answer

single unique

2

Power Set Construction role in automata theory

Click to check the answer

Transforms nondeterministic automata into deterministic for efficient computation.

3

Handling nondeterminism in compilers

Click to check the answer

Compilers use Power Set Construction to manage nondeterministic structures from parsing.

4

Regular expressions and nondeterminism

Click to check the answer

Regular expressions often nondeterministic; made deterministic via Power Set Construction for better pattern matching.

5

In the resulting DFA, states containing any of the NFA's ______ states are marked as accepting.

Click to check the answer

accepting

6

State Explosion Problem

Click to check the answer

Exponential increase in states during Power Set Construction, making DFA complex.

7

Optimized Method Purpose

Click to check the answer

Reduces DFA size by only processing reachable states, avoiding unnecessary ones.

8

Lazy Subset Construction Method

Click to check the answer

Defers exploration of states until necessary, preventing state explosion.

9

In the final DFA, any state containing an NFA ______ state is considered accepting.

Click to check the answer

accepting

10

State explosion problem in DFA construction

Click to check the answer

Occurs when Power Set Construction yields a DFA with too many states to handle practically.

11

Epsilon-transitions handling in DFA optimization

Click to check the answer

Involves managing transitions that occur without input to reduce DFA complexity and resource usage.

12

______ and ______ offer tools for generating power sets, useful in fields like ______ and ______.

Click to check the answer

Python Java e-commerce recommendation systems autonomous vehicles algorithm development

13

Power Set Construction purpose

Click to check the answer

Transforms NFAs into DFAs by utilizing set theory principles.

14

Power Set Construction in automata theory

Click to check the answer

Facilitates state transition analysis, essential for automata operations and formal language processing.

15

Optimization of DFA state complexity

Click to check the answer

Applies techniques to reduce the number of states in the DFA, mitigating exponential growth from Power Set Construction.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

Karnaugh Maps: A Tool for Simplifying Boolean Algebra Expressions

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

Computer Memory

View document

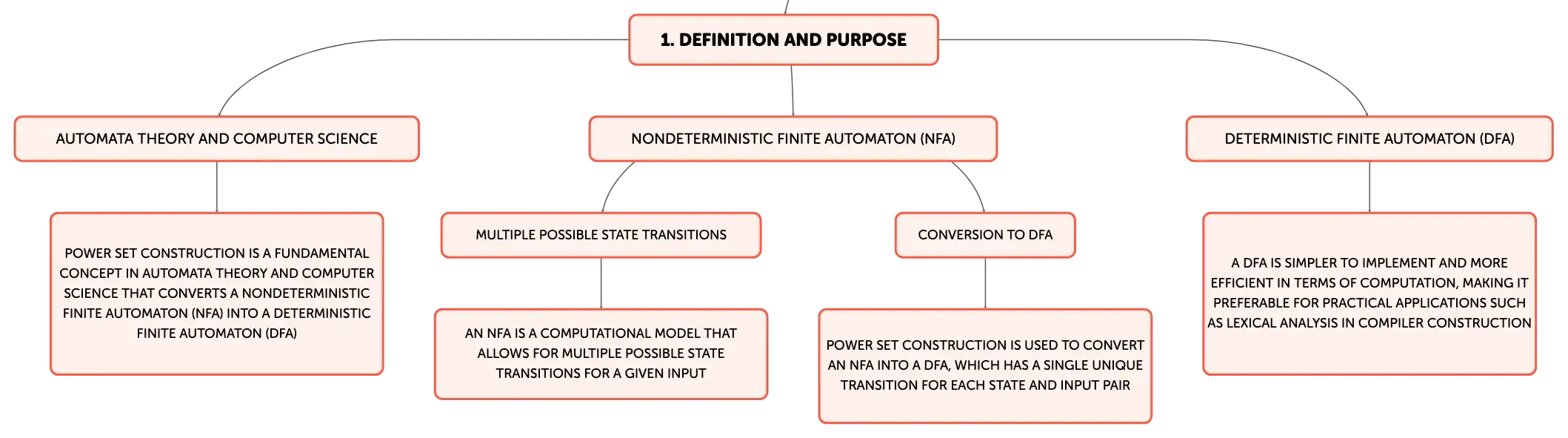

Fundamentals of Power Set Construction in Automata Theory

Power Set Construction, a fundamental concept in automata theory and computer science, is the process of converting a nondeterministic finite automaton (NFA) into a deterministic finite automaton (DFA). An NFA is a computational model that allows for multiple possible state transitions for a given input, while a DFA has a single unique transition for each state and input pair. This conversion is crucial because DFAs are simpler to implement and more efficient in terms of computation, making them preferable for practical applications such as lexical analysis in compiler construction.
Neat workbench with glass beakers containing colored liquids in ascending order, modern computer and green plant.

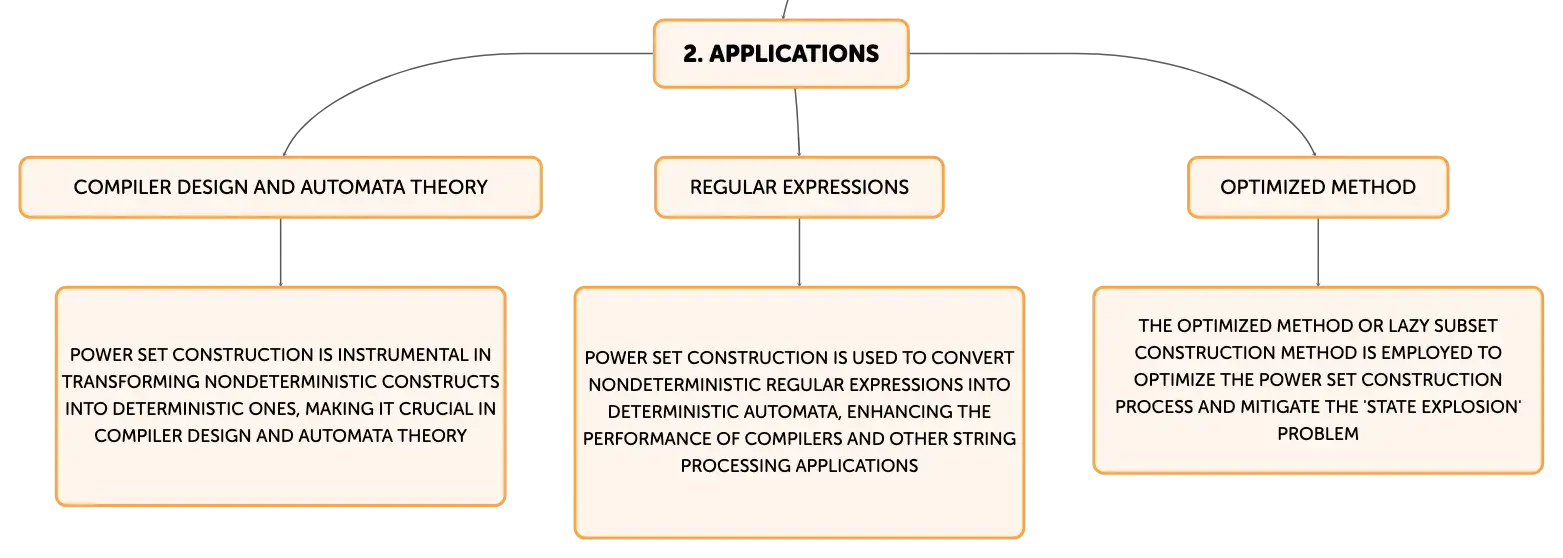

Significance of Power Set Construction in Compiler Design

In compiler design and automata theory, Power Set Construction is instrumental in transforming nondeterministic constructs into deterministic ones. Compilers, which convert code written in high-level programming languages into executable machine code, must handle nondeterministic structures that arise in the parsing process. Regular expressions, which are used for pattern matching in strings, often exhibit nondeterminism. By employing Power Set Construction, these nondeterministic patterns are converted into deterministic automata, facilitating efficient pattern matching and enhancing the performance of compilers and other string processing applications.

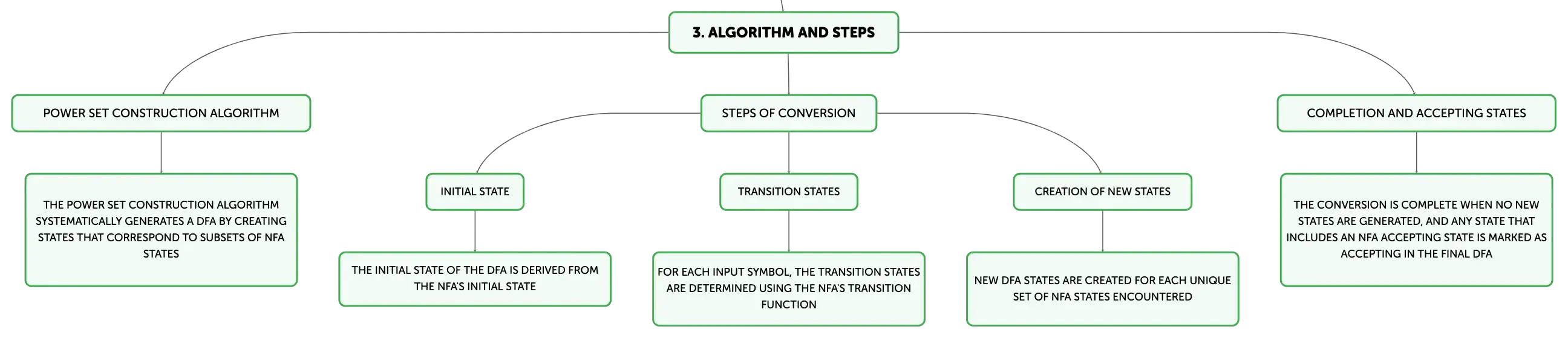

Detailed Explanation of the Power Set Construction Algorithm

The Power Set Construction algorithm systematically generates a DFA by creating states that correspond to subsets of NFA states. The initial state of the DFA is derived from the NFA's initial state, and subsequent states are determined by exploring all possible transitions for each input symbol. This iterative process continues until all reachable states have been explored. States in the DFA that include any of the NFA's accepting states are designated as accepting states. The resulting DFA may have a number of states that is exponential in the number of NFA states, reflecting the power set from which the construction method derives its name.

Optimizing the Power Set Construction Process

The traditional Power Set Construction method can lead to an exponential increase in the number of states, known as the 'state explosion' problem. To optimize this process, the 'Optimized Method' or 'Lazy Subset Construction Method' is employed. This approach only processes states that are reachable from the DFA's current state, deferring the exploration of other states until necessary. This can result in a significantly smaller DFA by excluding unreachable states, thus mitigating the state explosion problem and yielding a more manageable automaton.

Step-by-Step Conversion from NFA to DFA

The conversion from an NFA to a DFA using Power Set Construction involves a sequence of steps. It begins with the NFA's initial state forming the basis for the DFA's initial state. For each input symbol, the transition states are determined using the NFA's transition function. New DFA states are created for each unique set of NFA states encountered, and the process is repeated for these new states. The conversion is complete when no new states are generated. In the final DFA, any state that includes an NFA accepting state is marked as accepting, ensuring that the DFA accurately represents the original NFA's language.

Addressing Challenges in Power Set Construction

Power Set Construction can encounter challenges such as the 'state explosion' problem, where the resulting DFA has an impractically large number of states. To overcome this, techniques like pruning of unreachable states and careful handling of epsilon-transitions (transitions that occur without consuming input) are utilized. These optimization strategies reduce the computational and memory requirements of the DFA, making it more suitable for real-world applications where resources are limited.

Practical Applications of Power Set Construction in Software Development

Beyond theoretical interest, Power Set Construction has tangible applications in software development. It is employed in algorithms for set operations, automata-based pattern matching, and compiler design. For example, in regular expression matching, a deterministic automaton created through Power Set Construction can perform more efficiently than its nondeterministic counterpart. Programming languages such as Python and Java provide utilities for generating power sets, which can be applied in various domains, including e-commerce recommendation systems and the development of algorithms for autonomous vehicles.

Key Insights into Power Set Construction

Power Set Construction is an essential algorithm in the realm of computer science, enabling the transformation of NFAs into DFAs. It is grounded in set theory and has broad applications in automata theory, compiler design, and beyond. While the algorithm can potentially create a DFA with a number of states corresponding to the power set of the NFA's states, optimization techniques are available to manage this complexity. Mastery of Power Set Construction is valuable for enhancing the efficiency and reliability of software systems, databases, and digital circuits, underscoring its importance in computer science education.
