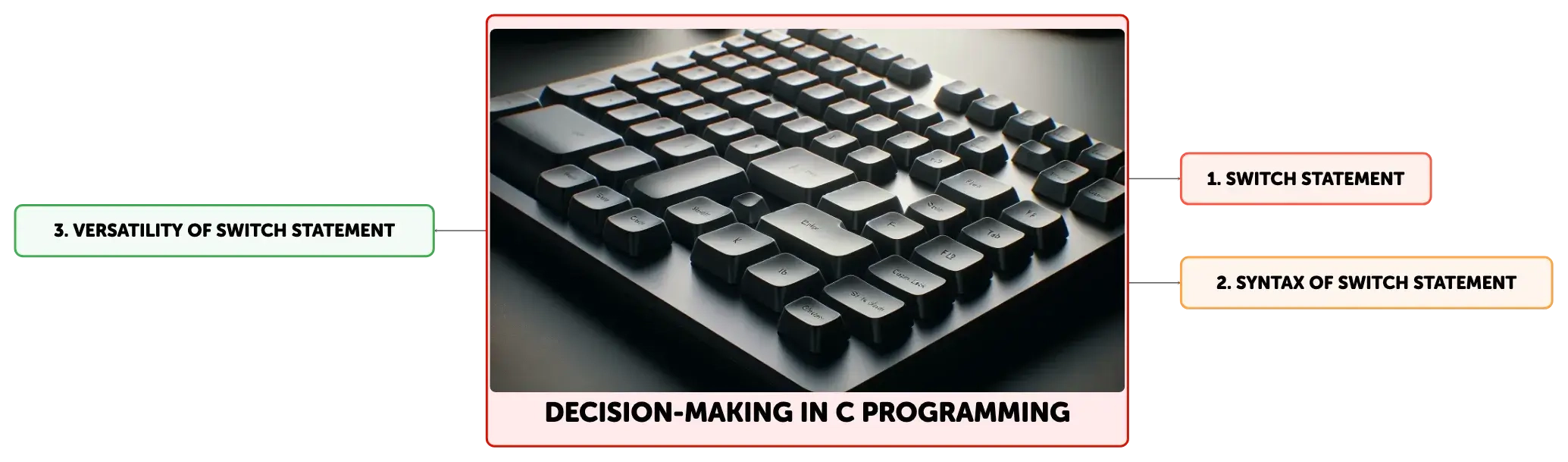

Decision-Making in C Programming

Concept Map

Algorino

Edit available

The switch statement in C programming is a control structure used to execute different parts of code based on the value of a single variable or expression. It simplifies decision-making by comparing against multiple constants, enhancing code efficiency and readability. Practical uses include translating numeric inputs to text and character conversion, and it's ideal for menu-driven programs and calculators.

Summary

Outline

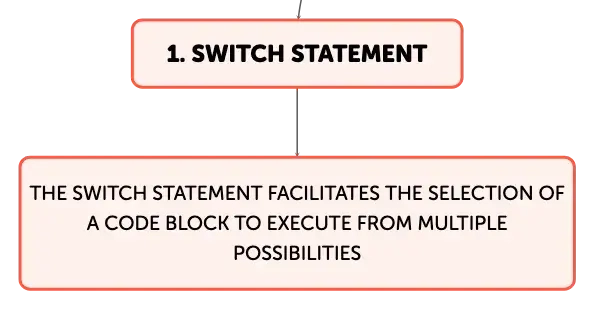

Exploring the Switch Statement in C Programming

The switch statement in C programming is a decision-making construct that facilitates the selection of a code block to execute from multiple possibilities. It is particularly useful when one needs to compare a single variable or expression against a set of distinct constant values. The switch statement begins with the 'switch' keyword, followed by the expression in parentheses, and a code block enclosed in curly braces. Within this block, 'case' labels denote the various conditions, each followed by a colon and the corresponding code to execute. The switch statement is favored for its ability to enhance code readability and maintainability, especially in scenarios with numerous potential outcomes.

Close up of QWERTY keyboard with gray keys, highlighted central 'Enter' key, F1-F12 function keys and blurred office background.

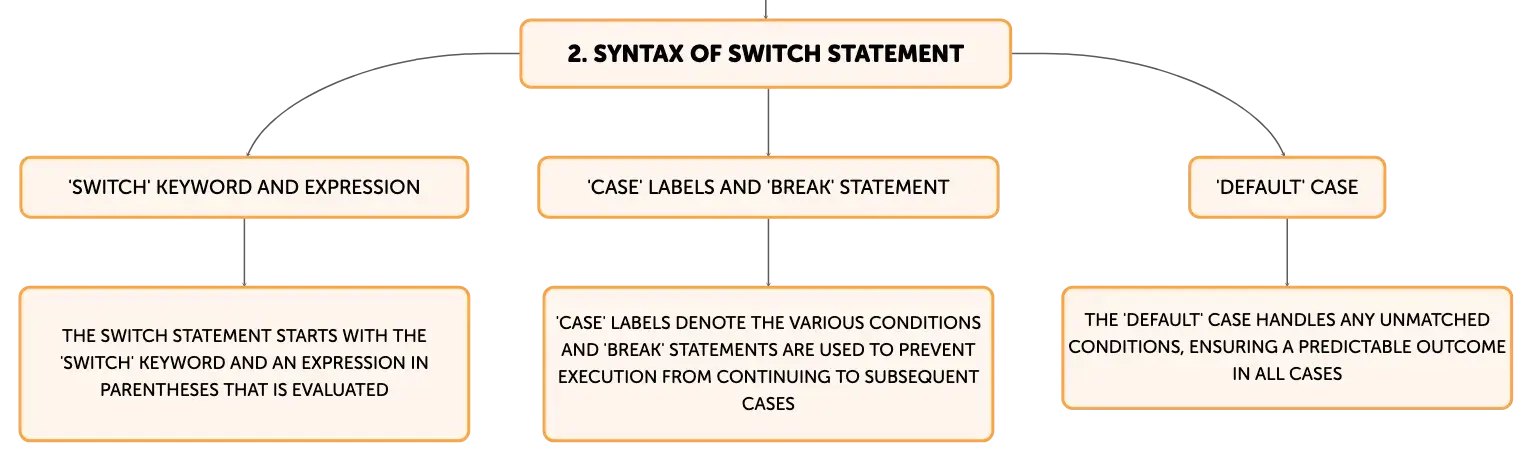

The Syntax and Structure of the Switch Statement

The switch statement's syntax is designed for simplicity and efficiency. It starts with the 'switch' keyword and an expression in parentheses that is evaluated. The following code block, delineated by curly braces, contains 'case' labels with associated constant values. When the evaluated expression matches a 'case' value, the code under that case is executed. To prevent execution from continuing to subsequent cases, a 'break' statement is commonly used at the end of each case's code. An optional 'default' case can be included to handle any unmatched conditions, ensuring that the switch statement has a predictable outcome in all cases.

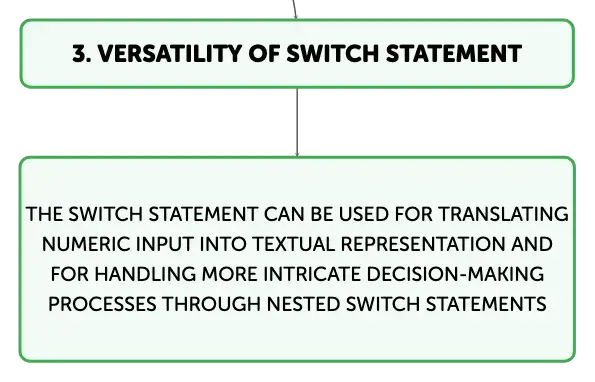

Practical Applications of the Switch Statement

The switch statement is versatile, as demonstrated by a program that translates a numeric input into its textual representation. For instance, inputting the number 1 would result in the output "One", achieved through a switch statement with cases for each number and its word form. Nested switch statements, where one switch is placed inside another, can handle more intricate decision-making processes. An example is a character conversion program that uses a nested switch to determine whether to convert from uppercase to lowercase or vice versa, and then applies the appropriate transformation based on the character provided.

Switch Statements Versus If-Else Constructs

Switch statements and if-else constructs both serve for decision-making but are suited to different situations. The switch statement excels when a single expression is evaluated against numerous constants, offering direct access to the corresponding case without sequentially checking each condition. This can result in more efficient and legible code when numerous conditions are involved. Conversely, if-else constructs may become unwieldy and harder to read with many conditions. Unlike if-else constructs, switch statements necessitate 'break' statements to exit after executing a case, preventing the fall-through to subsequent cases.

The Importance of Break and Default in Switch Statements

The 'break' statement is essential in a switch statement to halt the execution after a case has been processed, avoiding the fall-through to the next case. Omitting 'break' can lead to unintended execution of multiple cases. The 'default' case, while not mandatory, acts as a fallback for when the expression does not match any case, ensuring a definitive action is taken. Typically placed at the end of the switch block, the 'default' case does not require a 'break' statement, but including one is a standard practice for consistency and clarity.

Utilizing Switch Statements in Menu-Driven Programs and Calculators

Switch statements are highly effective in developing menu-driven applications, such as a banking system where each menu option is mapped to a case in the switch statement, enabling straightforward command processing. They are equally beneficial in calculator programs, where different arithmetic operations are assigned to specific cases, allowing for organized and efficient execution of calculations based on user input. In these contexts, the switch statement proves to be an invaluable tool for interpreting user choices and delivering the corresponding functionality in a structured and coherent manner.
