Binary Arithmetic: The Foundation of Digital Systems
Concept Map
Binary arithmetic is the core of digital system operations, performing calculations using only '0' and '1'. It's crucial for data representation, encoding everything from text to multimedia. This arithmetic is fundamental in computing devices, enabling processor functions and efficient data compression through binary arithmetic coding.
Summary
Outline
Fundamentals of Binary Arithmetic
Binary arithmetic is a fundamental aspect of computer science, crucial for the operation of digital systems. It involves performing arithmetic operations—addition, subtraction, multiplication, and division—on binary numbers, which are represented in the base-2 numeral system using only two digits: "0" and "1". This binary system underpins all data representation in computers, where various forms of information are encoded as sequences of these binary digits. The binary system's two-digit simplicity aligns perfectly with the on-off states of digital electronic circuitry, making it integral to the processing and storage of data in computing devices.Basic Operations in Binary Arithmetic
Binary arithmetic operations adhere to unique rules that are distinct from the decimal system. In binary addition, when the sum in a column is "2" (10 in binary), it results in a carry to the next column. For example, adding 1 + 1 yields "10" in binary. Binary subtraction uses a borrowing method; if a column cannot be subtracted due to a smaller minuend, a borrow from the next higher column is required. Multiplication in binary is similar to that in the decimal system, with the product of 1 and 1 being 1, and any multiplication involving 0 resulting in 0. Binary division is performed by repeatedly subtracting the divisor from the dividend and recording the quotient in binary, with '1' indicating a successful subtraction and '0' for an unsuccessful one.Systematic Rules and Examples of Binary Arithmetic
Mastery of binary arithmetic involves understanding its systematic rules. Binary numbers are read from right to left, with each place value representing a power of two. When adding binary numbers, carrying over occurs when a column's sum equals or exceeds "10" in binary. Borrowing during subtraction is similar to the decimal system but occurs in powers of two. Multiplication and division follow the principle that any number multiplied by 1 remains unchanged, and any number divided by 1 is itself. For instance, adding the binary numbers "101" (5 in decimal) and "11" (3 in decimal) results in "1000" (8 in decimal), showcasing the logical structure of binary arithmetic.Practical Applications of Binary Arithmetic in Computing
Binary arithmetic has practical applications in various fields of digital technology. It is essential for data representation, where binary digits encode everything from simple text to complex multimedia. For example, the ASCII standard uses a 7-bit binary code to represent characters, while binary numbers define pixel colors and intensities in image encoding. Binary arithmetic is also vital for processor operations, especially within the Arithmetic Logic Unit (ALU), which performs mathematical computations and logical operations. Furthermore, it is integral to computer networking, graphics, and visual computing, underscoring its indispensability in the realm of computer science.Binary Arithmetic Coding in Data Compression
Binary arithmetic coding is a sophisticated technique in data compression that leverages binary arithmetic to condense data into a more compact bitstream, enhancing storage efficiency and data transmission. It works by assigning binary fraction ranges to symbols according to their frequency of occurrence, with more common symbols receiving larger ranges. This encoding process involves iteratively partitioning an interval and narrowing it to a fraction that represents the entire data sequence. There are two main approaches: static, which uses fixed probability values, and adaptive, which adjusts probabilities based on the data being encoded. Binary arithmetic coding is a key component of many industry-standard data compression algorithms, demonstrating its importance in efficient data representation.The Pervasive Role of Binary Arithmetic in Contemporary Computing
The role of binary arithmetic in modern computing is profound and multifaceted. It ensures data integrity during transmission and storage and facilitates the execution of complex algorithms and software programs. A solid grasp of binary arithmetic is indispensable for those studying computer science, as it lays the groundwork for understanding digital systems and data compression techniques. The development and use of binary arithmetic coding exemplify the effectiveness and innovation of binary systems in addressing the complex demands of data management in today's digital landscape.
Show More

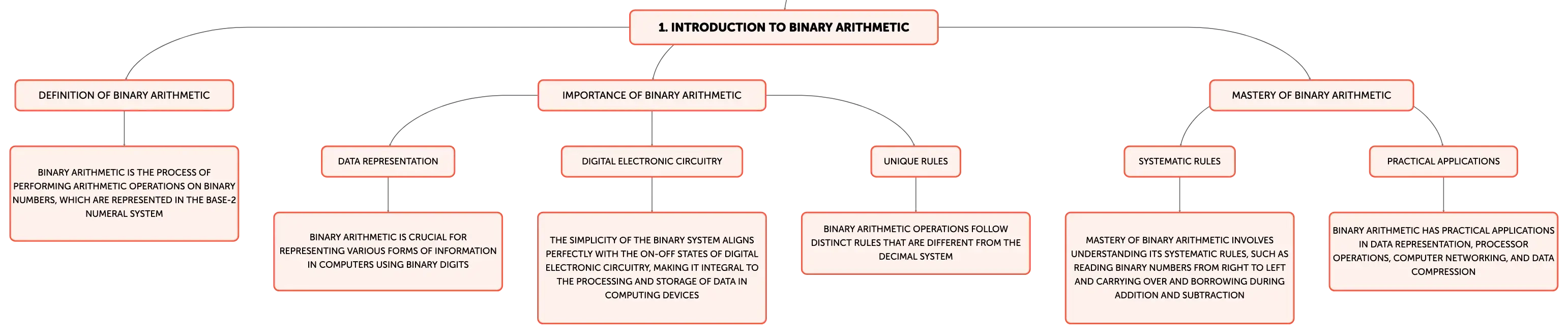

Introduction to Binary Arithmetic
Definition of Binary Arithmetic
Binary arithmetic is the process of performing arithmetic operations on binary numbers, which are represented in the base-2 numeral system
Importance of Binary Arithmetic
Data Representation
Binary arithmetic is crucial for representing various forms of information in computers using binary digits
Digital Electronic Circuitry
The simplicity of the binary system aligns perfectly with the on-off states of digital electronic circuitry, making it integral to the processing and storage of data in computing devices
Unique Rules
Binary arithmetic operations follow distinct rules that are different from the decimal system
Mastery of Binary Arithmetic
Systematic Rules
Mastery of binary arithmetic involves understanding its systematic rules, such as reading binary numbers from right to left and carrying over and borrowing during addition and subtraction
Practical Applications
Binary arithmetic has practical applications in data representation, processor operations, computer networking, and data compression

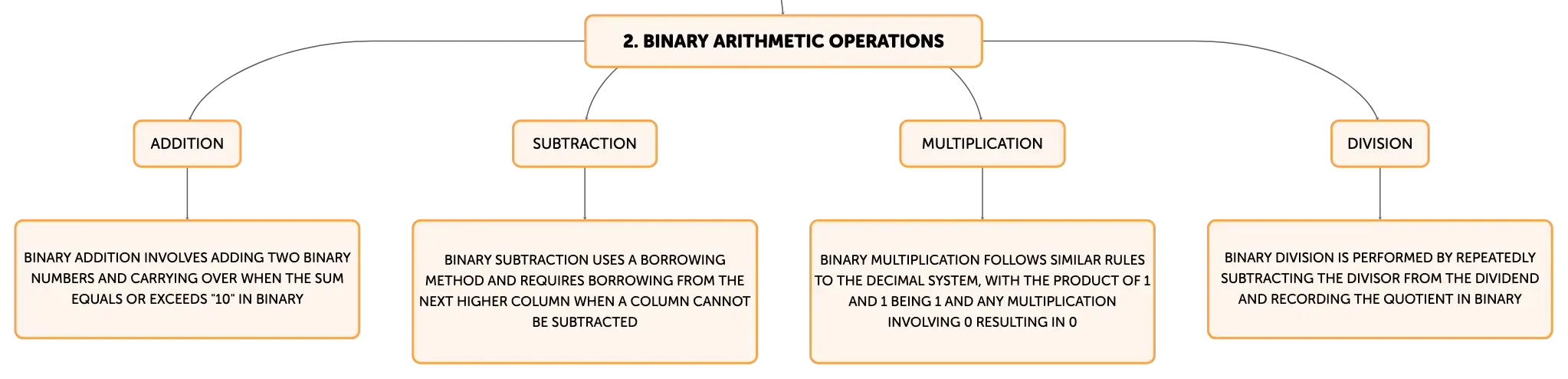

Binary Arithmetic Operations
Addition
Binary addition involves adding two binary numbers and carrying over when the sum equals or exceeds "10" in binary
Subtraction
Binary subtraction uses a borrowing method and requires borrowing from the next higher column when a column cannot be subtracted
Multiplication
Binary multiplication follows similar rules to the decimal system, with the product of 1 and 1 being 1 and any multiplication involving 0 resulting in 0
Division
Binary division is performed by repeatedly subtracting the divisor from the dividend and recording the quotient in binary

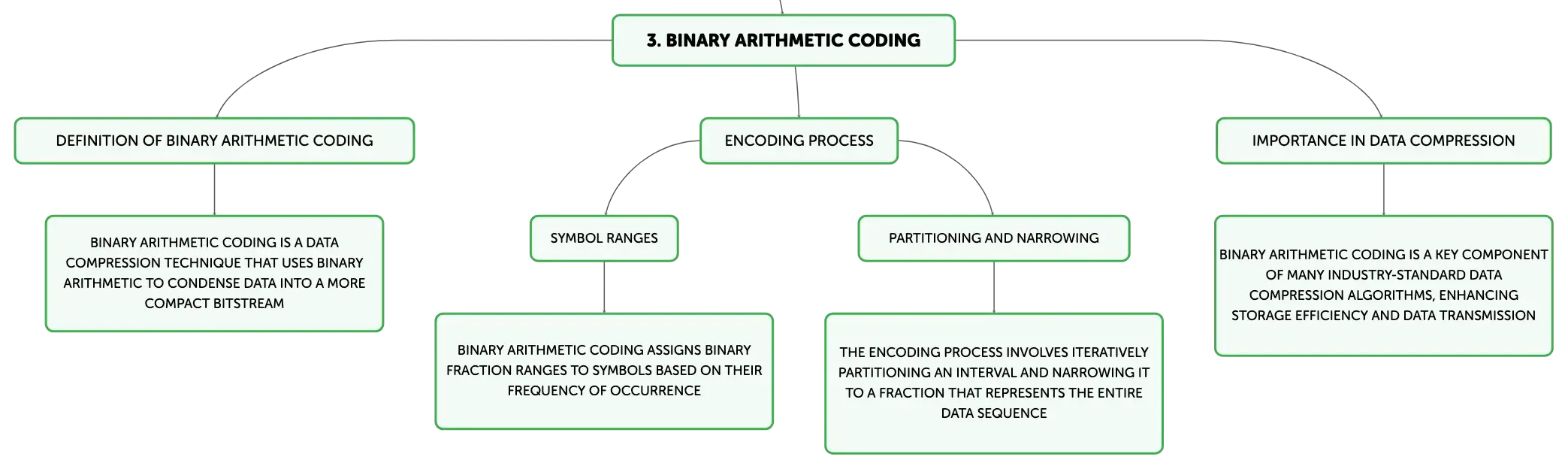

Binary Arithmetic Coding
Definition of Binary Arithmetic Coding
Binary arithmetic coding is a data compression technique that uses binary arithmetic to condense data into a more compact bitstream
Encoding Process
Symbol Ranges
Binary arithmetic coding assigns binary fraction ranges to symbols based on their frequency of occurrence
Partitioning and Narrowing
The encoding process involves iteratively partitioning an interval and narrowing it to a fraction that represents the entire data sequence
Importance in Data Compression
Binary arithmetic coding is a key component of many industry-standard data compression algorithms, enhancing storage efficiency and data transmission

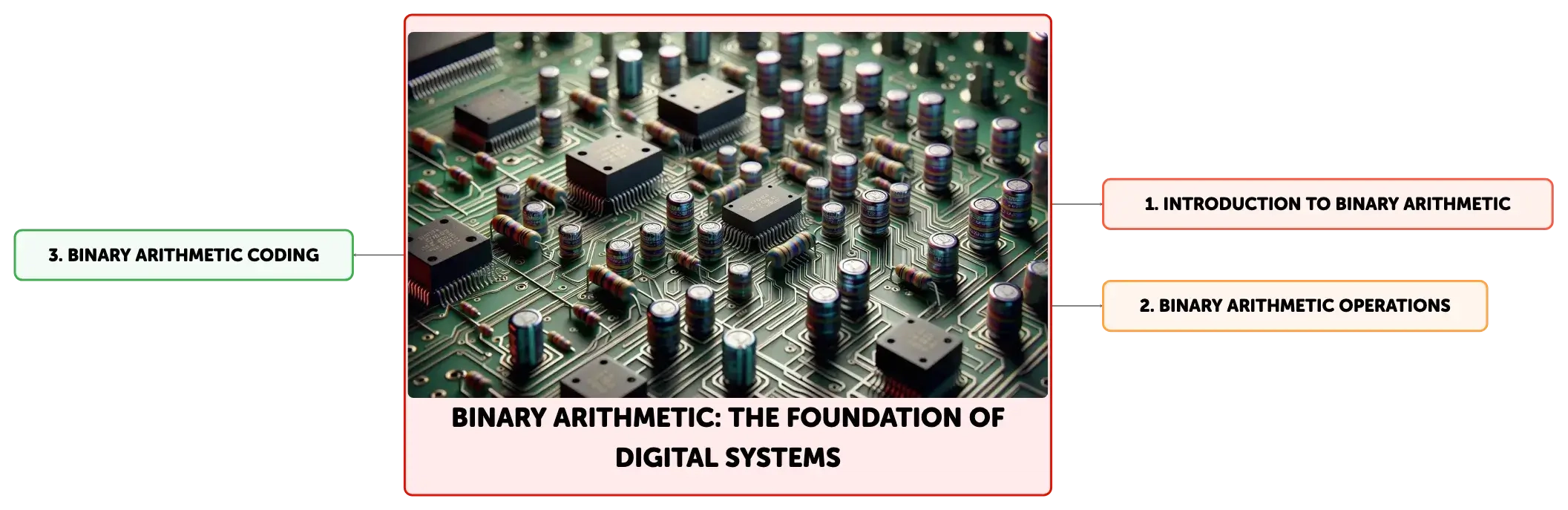

Binary Arithmetic: The Foundation of Digital Systems
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Binary number system basics
Uses two digits, '0' and '1', to represent all numbers in base-2 numeral system.
01
Binary arithmetic operations
Includes addition, subtraction, multiplication, and division performed on binary numbers.
02
Binary system's role in data representation
Encodes all forms of computer data as sequences of binary digits, aligning with digital circuitry.
