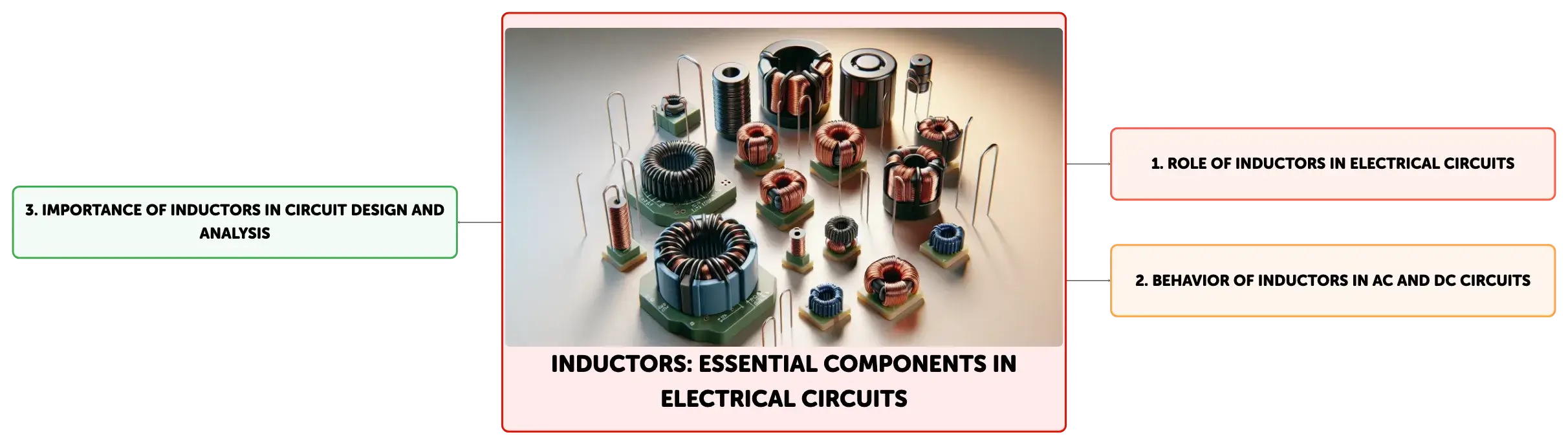

Inductors: Essential Components in Electrical Circuits

Inductors are pivotal components in electrical circuits, storing energy in a magnetic field and opposing changes in current flow. They are used in radio tuning, power systems, electric motors, and more. Understanding inductors is key for designing filters, managing AC and DC currents, and creating resonant LC circuits for electronics.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Inductor Symbol Representation

Click to check the answer

Coiled wire symbol in circuit diagrams.

2

Inductance Measurement Unit

Click to check the answer

Measured in henries (H).

3

Inductive Reactance Role

Click to check the answer

Opposes changes in current, crucial for electronic device function.

4

______ employ inductors to enable the transfer of electrical energy between circuits via ______.

Click to check the answer

Transformers electromagnetic induction

5

Inductive reactance frequency relationship

Click to check the answer

Inductive reactance increases with frequency.

6

Low-pass filter function using inductors

Click to check the answer

Blocks high-frequency signals, allows low frequencies.

7

Importance of low-pass filters in audio systems

Click to check the answer

Controls frequency content, improves signal quality.

8

In an RL circuit, the inductor's initial opposition leads to a ______ rise in voltage across the resistor.

Click to check the answer

gradual

9

Series inductors total inductance calculation

Click to check the answer

Sum of individual inductances

10

Parallel inductors total inductance calculation

Click to check the answer

Reciprocal of sum of reciprocals of individual inductances

11

Purpose of inductors in electronic devices

Click to check the answer

Control current distribution, filter frequencies

12

In audio systems, the RL filters rely on inductance to determine the ______ frequency, influencing the speakers' sound quality.

Click to check the answer

cutoff

13

Applications of variable inductors in radio receivers

Click to check the answer

Used for station selection by tuning to specific frequencies.

14

Role of variable inductors in switch-mode power supplies

Click to check the answer

Facilitate efficient voltage regulation by adjusting inductance.

15

Variable inductors in frequency modulation

Click to check the answer

Modulate oscillator frequency in response to audio input for FM transmission.

16

In electronics, ______ circuits oscillate energy between a magnetic and an electric field, a phenomenon called ______.

Click to check the answer

LC resonance

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Spherical Aberration and its Effects on Optical Systems

View document

Physics

Properties and Applications of Light Waves

View document

Physics

Optical Aberrations

View document

Physics

Wave Equations and Their Applications

View document

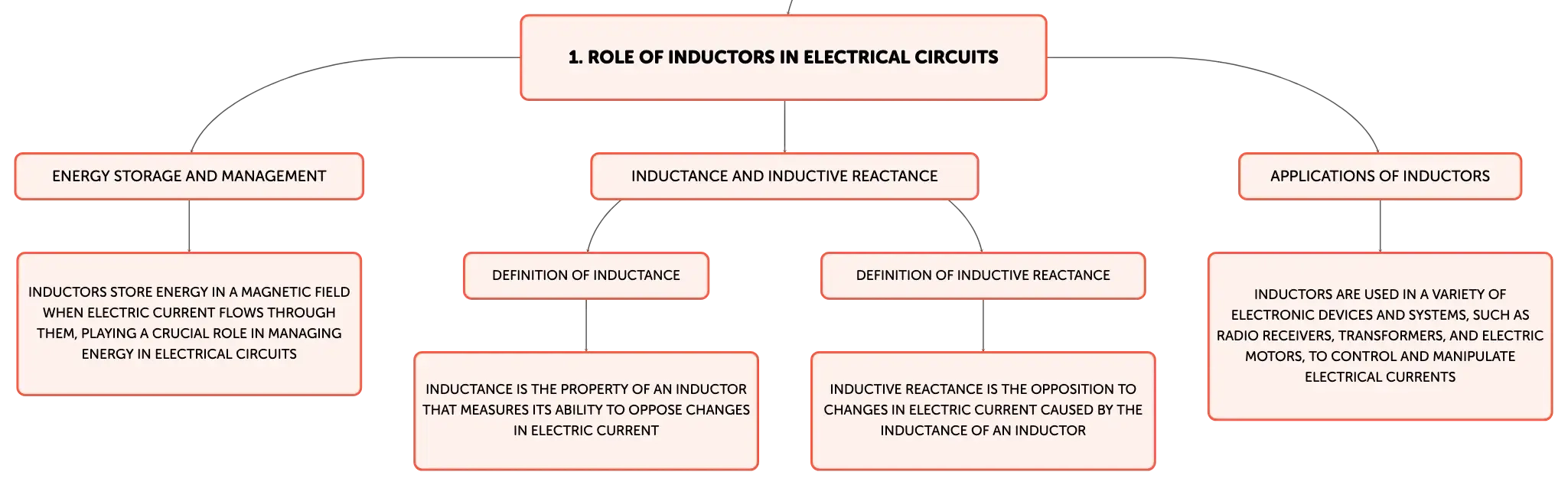

The Fundamentals of Inductors in Electrical Circuits

Inductors are essential components in electrical circuits, playing a significant role in the storage and management of energy. These passive devices store energy in a magnetic field when electric current flows through them. Typically represented by a coiled wire symbol, inductors possess a property called inductance, measured in henries (H), which indicates their ability to oppose changes in the electric current flowing through them. This opposition, known as inductive reactance, is crucial for the functioning of inductors in various electronic devices and systems.

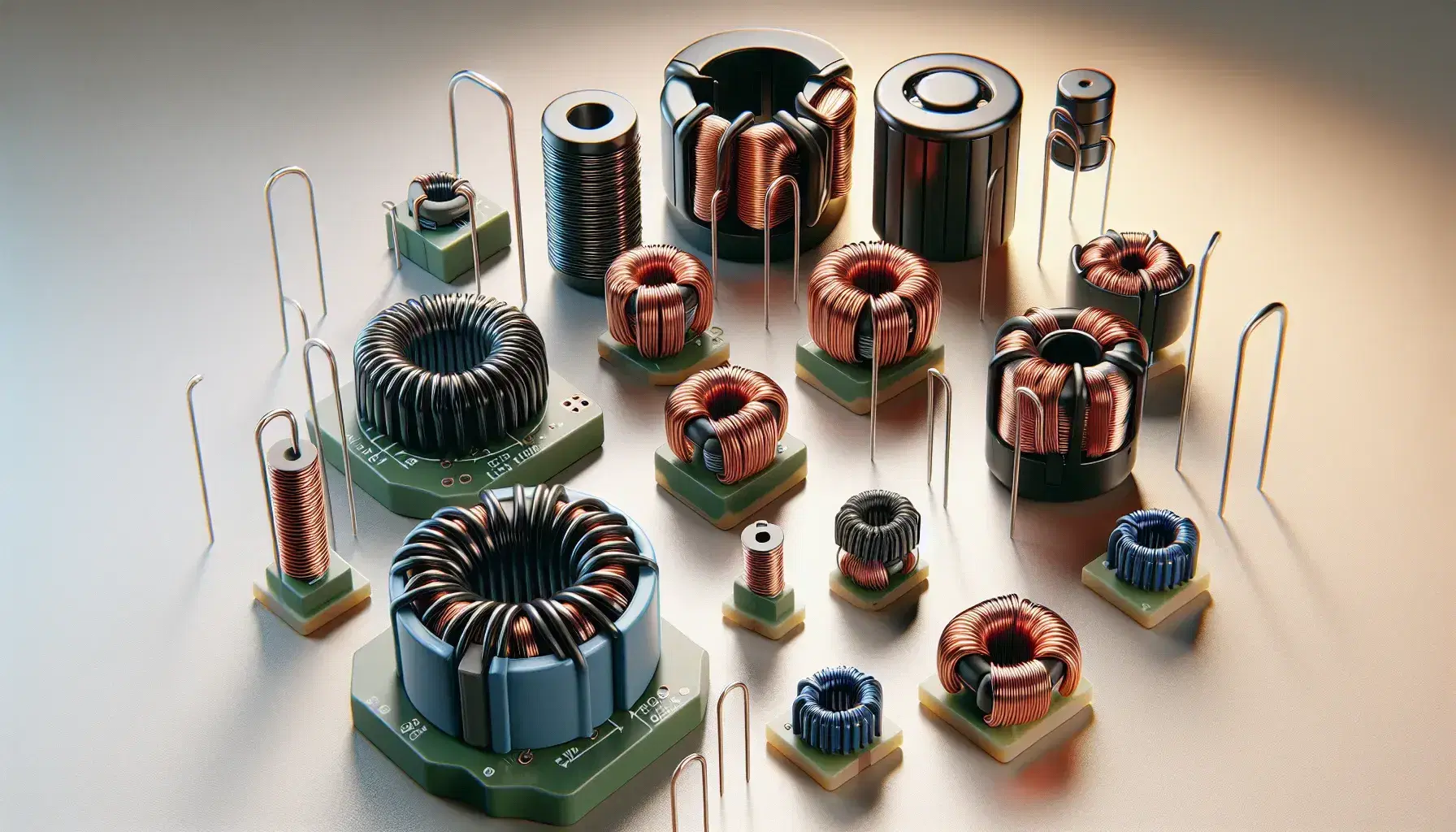

Assorted inductors including a cylindrical, toroidal, drum core, axial, and surface-mount on a light background, highlighting diverse shapes and colors.

Applications and Characteristics of Inductors

Inductors are utilized in a multitude of applications due to their ability to control and manipulate electrical currents. They are integral to the tuning mechanisms in radio receivers, allowing for the selection of specific frequencies. In power systems, transformers use inductors to transfer electrical energy between circuits through electromagnetic induction. Additionally, inductors are a key component in the operation of electric motors, where they facilitate the conversion of electrical energy into mechanical motion. These applications underscore the importance of inductors in modern electrical and electronic technologies.

Inductive Reactance in AC Circuits

In alternating current (AC) circuits, inductors exhibit inductive reactance, which varies with the frequency of the AC signal. This reactance increases proportionally with frequency, presenting a higher impedance to higher-frequency currents. This characteristic is exploited in the design of low-pass filters, which use inductors to block unwanted high-frequency signals while allowing lower frequencies to pass. Such filters are essential in audio systems and various signal processing applications, where control over signal frequency content is necessary.

Inductor Dynamics in DC Circuits

In direct current (DC) circuits, inductors behave differently compared to their role in AC circuits. Upon the initial application of a DC voltage, an inductor resists the change in current, but once a steady state is reached, it acts as a near short circuit, presenting minimal resistance to the flow of DC. This transient behavior is evident in RL circuits, where the inductor's initial resistance causes a gradual rise in voltage across the resistor until the system stabilizes, allowing the full supply voltage to be applied across the resistor.

Configuring Inductors in Series and Parallel

Inductors can be arranged in series or parallel configurations to achieve specific circuit properties. When inductors are connected in series, the total inductance is the sum of all individual inductances. Conversely, when connected in parallel, the total inductance is less than the smallest individual inductance and is calculated using the reciprocal of the sum of the reciprocals of each inductor's inductance. These configurations are strategically employed in electronic devices to tailor current distribution and to filter frequencies, as seen in audio equipment and power supplies.

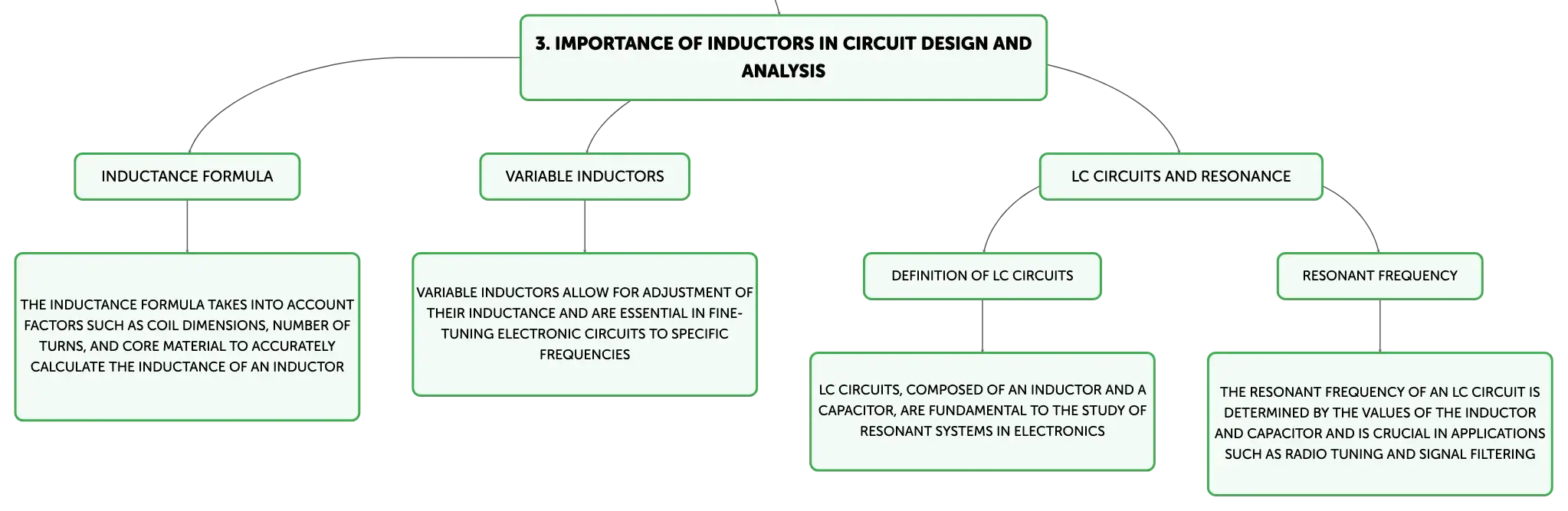

Calculating Inductance: The Inductance Formula

The inductance formula is a fundamental equation used to determine the inductance of an inductor, which is essential for circuit design and analysis. This formula takes into account factors such as the coil's dimensions, the number of turns in the wire, and the core material. Accurate calculation of inductance is vital for designing circuits with precise electrical characteristics, such as the RL filters in audio systems, where the inductance affects the cutoff frequency and the overall sound quality of the speakers.

The Utility of Variable Inductors in Electronic Tuning

Variable inductors, which allow for adjustment of their inductance, are instrumental in fine-tuning electronic circuits to specific frequencies. These adjustable inductors are commonly found in radio receivers for station selection and in switch-mode power supplies for efficient voltage regulation. They also play a role in frequency modulation, where they modulate the frequency of an oscillator in response to audio input, and in impedance matching, which is critical for maximizing power transfer in communication systems.

The Role of LC Circuits in Electronics

LC circuits, composed of an inductor (L) and a capacitor (C), are fundamental to the study of resonant systems in electronics. These circuits oscillate energy between the magnetic field of the inductor and the electric field of the capacitor, a process known as resonance. The resonant frequency of an LC circuit is determined by the values of the inductor and capacitor and is crucial in applications such as radio tuning and signal filtering. LC circuits are also the basis for oscillators that generate waveforms in various electronic devices and for filters that selectively allow certain frequencies to pass while blocking others.
