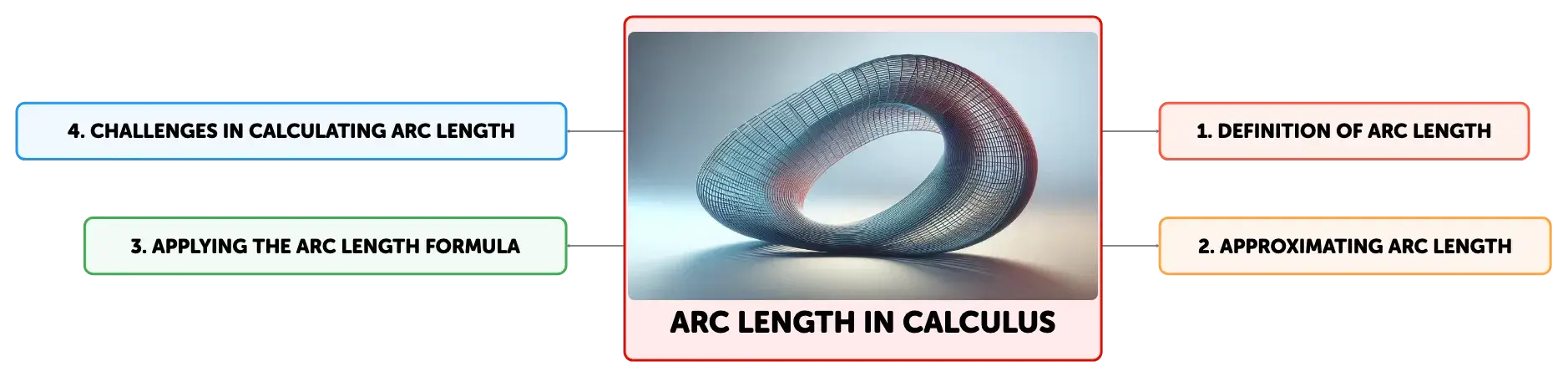

Arc Length in Calculus
Arc length in calculus is a measure of the distance along a curved path, distinct from linear distance. Calculus tackles this by using derivatives and definite integrals, breaking the curve into infinitesimal segments and summing their lengths. The Pythagorean theorem aids in approximating these lengths, while precise calculations involve integrating the square root of 1 plus the square of the function's derivative. Despite the clear theoretical framework, computational challenges arise due to complex integrals, often requiring numerical methods or CAS for accurate determination.
See moreExploring the Concept of Arc Length

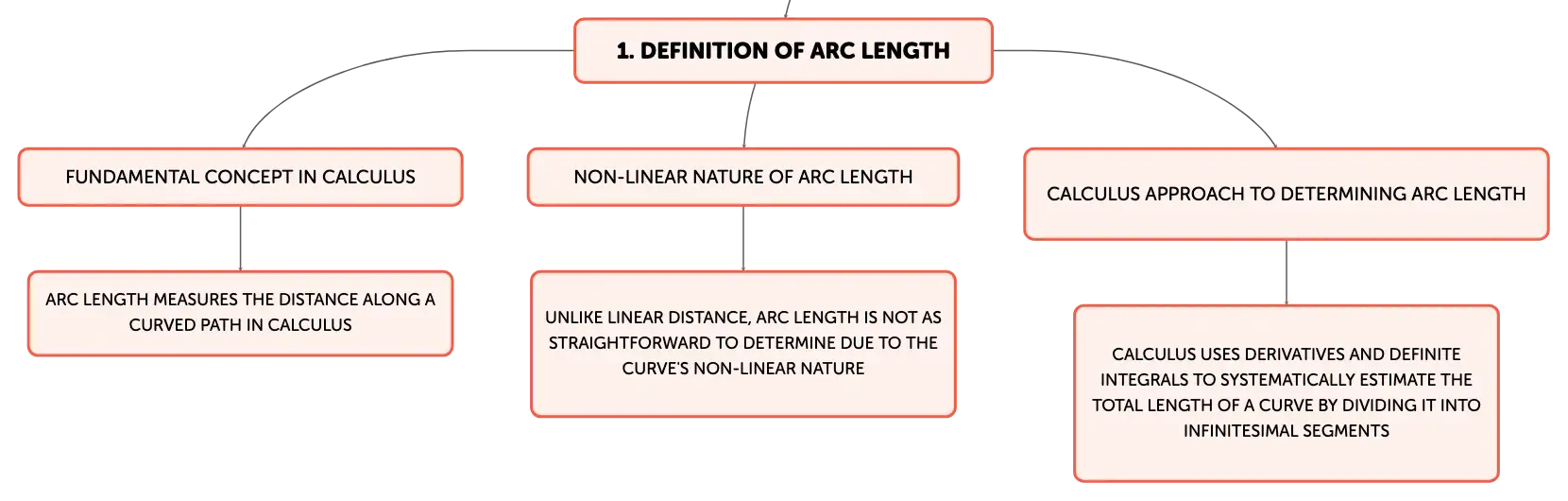

Arc length is a fundamental concept in calculus that measures the distance along a curved path. Unlike linear distance, the arc length of a curve is not as straightforward to determine due to the curve's non-linear nature. Calculus provides a systematic approach to this problem by utilizing derivatives and definite integrals. The curve is conceptually divided into infinitesimal segments, each approximated as a straight line, and the lengths of these segments are summed to estimate the curve's total length. This method is similar to the use of Riemann sums for finding the area under a curve, where the curve is partitioned into subintervals, and the function's value is calculated at specific points within these subintervals.Utilizing the Pythagorean Theorem for Curve Length Approximation

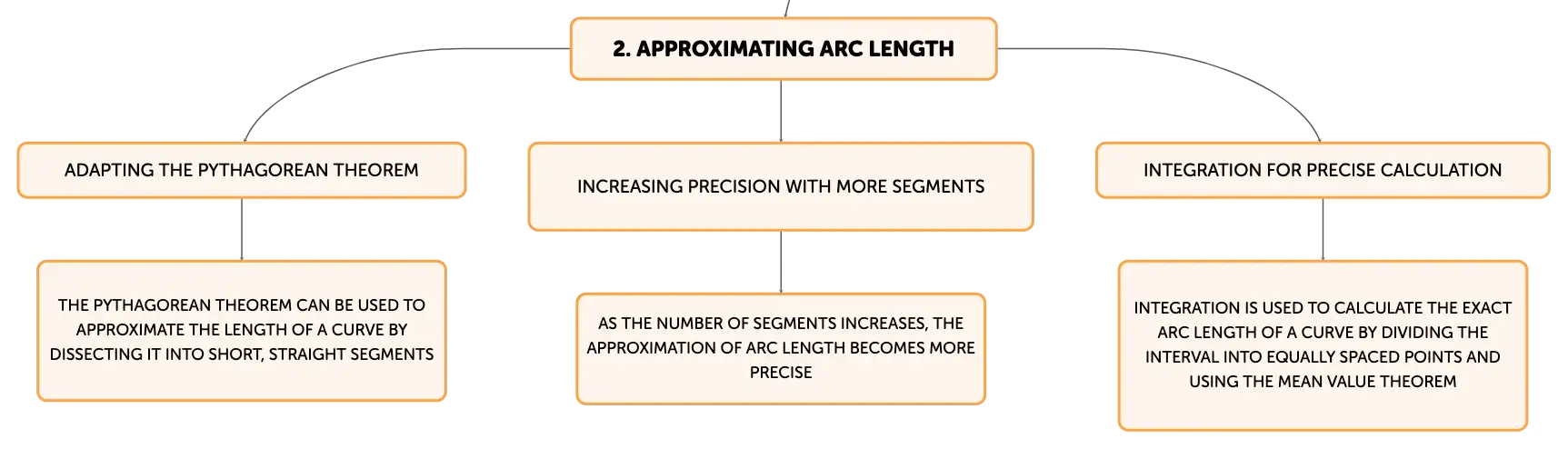

The Pythagorean theorem, a fundamental principle in geometry, can be adapted to approximate the length of a curve. By dissecting the curve into a series of short, straight segments, the length of each can be determined using the theorem, which relates the lengths of the sides in a right triangle to the length of the hypotenuse. The horizontal and vertical distances between the endpoints of each segment serve as the legs of right triangles, and the segment lengths are the hypotenuses. As the number of segments increases, the approximation becomes more precise, providing a closer estimate to the true arc length.Integral Formula for Precise Arc Length Calculation
To calculate the arc length of a curve with precision, integration is employed. The process involves dividing the interval into 'N' equally spaced points and determining the length of the line segments connecting these points. According to the Mean Value Theorem, for each segment, there is at least one point where the function's derivative equals the segment's slope. As 'N' approaches infinity, the sum of these segment lengths converges to the integral of the square root of 1 plus the square of the function's derivative over the interval. This integral, evaluated from point 'a' to point 'b', yields the exact arc length of the curve.Implementing the Arc Length Formula

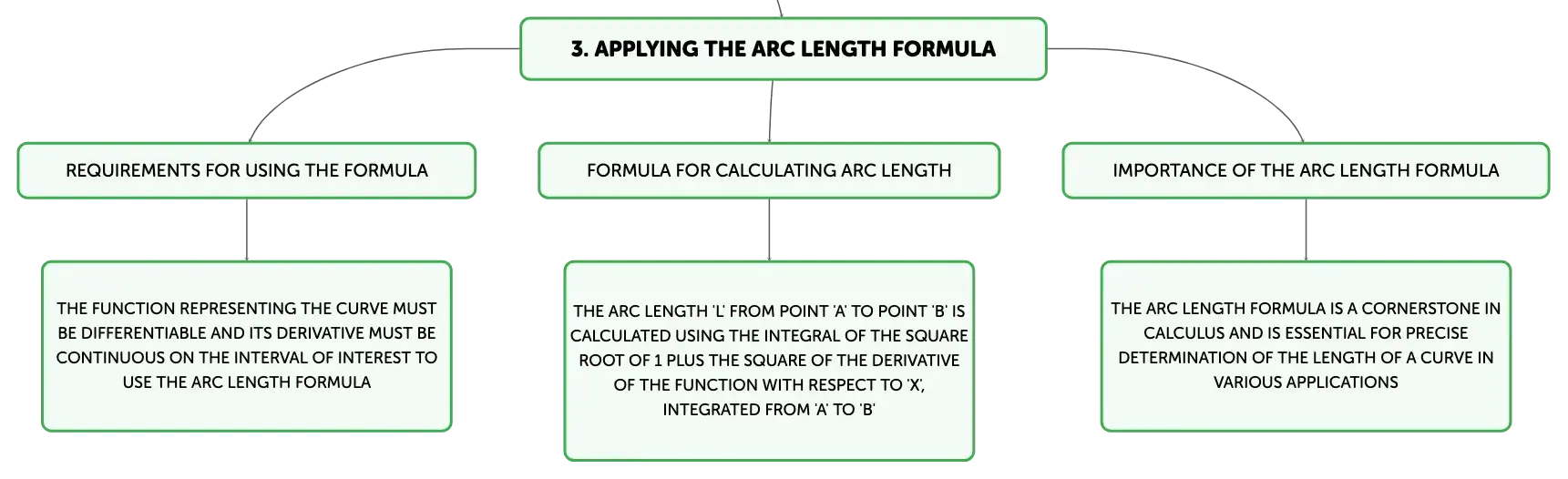

To apply the arc length formula, it is essential that the function representing the curve is differentiable and its derivative is continuous on the interval of interest. The arc length 'L' from point 'a' to point 'b' is calculated using the integral of the square root of 1 plus the square of the derivative of the function with respect to 'x', integrated from 'a' to 'b'. This formula is a cornerstone in the field of calculus, enabling the precise determination of the length of a curve, which is vital in various applications across physics, engineering, and other sciences.Computational Challenges in Determining Arc Length

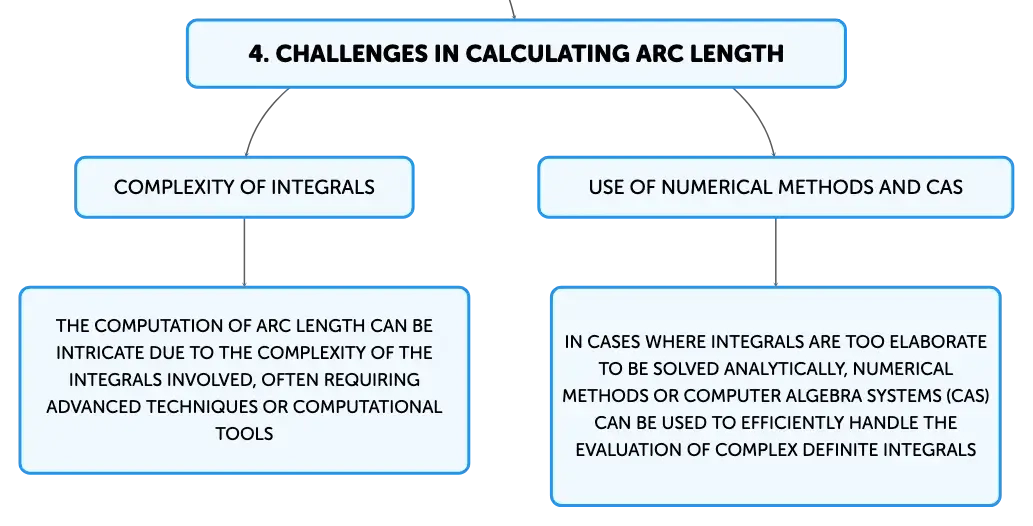

Although the arc length formula is conceptually clear, its computation can be intricate due to the complexity of the integrals involved. These integrals may necessitate advanced techniques such as u-substitution or trigonometric substitution for their evaluation. In many instances, the integrals are too elaborate to be solved analytically, and numerical methods or Computer Algebra Systems (CAS) are employed. These tools can efficiently handle the evaluation of complex definite integrals, providing precise arc length measurements for various curves.Summary of Arc Length in Calculus
In conclusion, the arc length of a curve is a critical measure in calculus, indicative of the distance along a curve. It can be estimated by segmenting the curve into linear pieces and is accurately computed using an integral formula that involves the derivative of the function. The calculation of arc length, while theoretically straightforward, can be computationally demanding and often requires computational tools. Mastery of this concept is essential for calculus students and professionals in fields that involve the analysis of curved paths, such as physics, engineering, and advanced geometry.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In ______, the measure of distance along a curved path is known as ______.
Click to check the answer
2
Pythagorean theorem basic principle
Click to check the answer
3
Curve length approximation method
Click to check the answer
4
Effect of increasing segment number on curve approximation
Click to check the answer
5
For precise arc length calculation, the sum of line segments' lengths approaches the ______ as 'N' increases.
Click to check the answer
6
The exact arc length is obtained by evaluating the integral from point '' to point ''.
Click to check the answer
7
Arc Length 'L' Calculation
Click to check the answer
8
Function Differentiability Importance
Click to check the answer
9
Applications of Arc Length
Click to check the answer
10
The formula for calculating the ______ of a curve is straightforward in theory, but the integrals required can be complex.
Click to check the answer
11
Arc Length Estimation Method
Click to check the answer
12
Arc Length Integral Formula
Click to check the answer
13
Computational Demand of Arc Length
Click to check the answer
