Newton's Method for Finding Roots

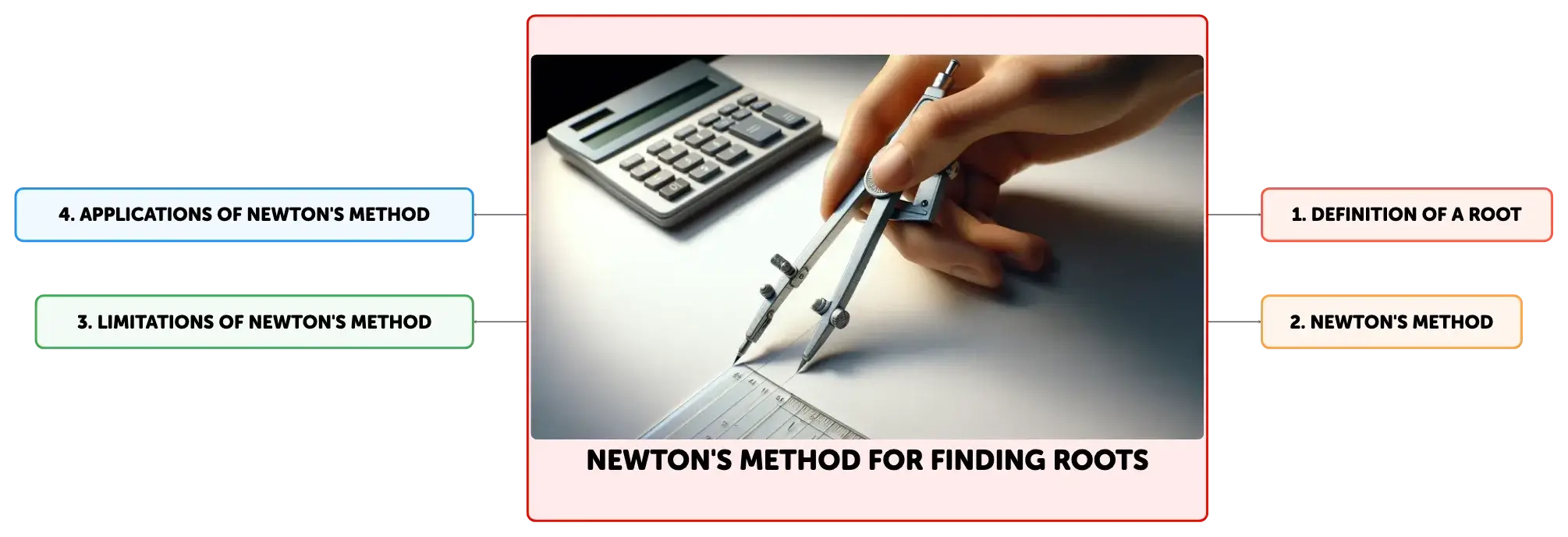

Concept Map
Newton's Method, an iterative numerical technique, is explored for finding roots of higher-order functions. This method is crucial when analytical solutions are infeasible, such as with polynomials and complex functions. The process involves an initial guess and subsequent refinements using calculus, with graphical visualization aiding comprehension. Limitations and specialized applications, like square root calculations, are also discussed.
Summary
Outline
Exploring the Concept of Roots in Higher-Order Functions
In mathematics, the concept of a 'root' of a function refers to a solution of the equation f(x) = 0. While linear and quadratic equations often have straightforward solutions, higher-order polynomials and complex functions, which may include cubic terms, trigonometric functions, or logarithms, present greater challenges. These functions may not have simple algebraic solutions, necessitating numerical methods to estimate their roots. This revised summary delves into Newton's Method, a calculus-based numerical technique, which is particularly effective for approximating the roots of equations that are resistant to analytical solutions.Newton's Method: An Iterative Approach to Finding Roots
Newton's Method, also known as the Newton-Raphson method, is an iterative numerical technique for finding the roots of a real-valued differentiable function. The method is invaluable when analytical methods fall short. The iterative formula is xn+1 = xn - f(xn)/f'(xn), where xn is the current approximation, f(x) is the function whose root is sought, f'(xn) is the derivative of the function at xn, and n denotes the iteration step. Starting from an initial guess x0, which should be close to the actual root, the sequence of approximations xn converges to the root, provided that the function satisfies certain conditions, such as not having a derivative of zero at the root.Visualizing Newton's Method Through Graphs
The process of Newton's Method can be visualized graphically, which aids in understanding the underlying calculus. An initial approximation, x0, is chosen, and a tangent line to the curve of the function at this point is drawn. The x-intercept of this tangent line becomes the next approximation, x1. This iterative process continues, with each new tangent line yielding a progressively more accurate estimate of the root. The graphical representation demonstrates how the method homes in on the root, which is the point where the function crosses the x-axis (f(x) = 0).Recognizing the Limitations of Newton's Method
Despite its utility, Newton's Method has limitations and can fail in certain scenarios. If the tangent line at the initial guess is horizontal (indicating a derivative of zero), or if it does not intersect the x-axis, the method cannot progress. Moreover, if the initial guess is not sufficiently close to the true root, the method may diverge or converge to an incorrect root. For example, when applying Newton's Method to the function f(x) = -1/2 + 1/(1 + x^2) with an initial guess of x=2, the iterations may incorrectly converge to the root at x=-1 instead of the nearer root at x=1.Practical Application of Newton's Method
To demonstrate Newton's Method in practice, consider the function f(x) = -x^4 + 8x^2 + 4. To approximate a root near x=3, one computes the derivative, f'(x) = -4x^3 + 16x. Starting with the initial guess x0 = 3, the Newton's Method formula is applied to obtain subsequent approximations x1, x2, and so on. After a few iterations, the estimated root can be compared to the exact value, if known, to assess the accuracy of the approximation. This method provides a powerful tool for finding roots when direct analytical methods are not applicable.Specializing Newton's Method for Square Root Calculations
Newton's Method can be specialized to approximate square roots with the formula xn+1 = 1/2 * (xn + a/xn), where a is the number whose square root is desired, and xn is the current approximation. An initial guess x0 is chosen, and the formula is applied iteratively to refine the approximation. For instance, to approximate the square root of 2 with an initial guess of x0 = 1, the iterations x1, x2, and so forth are computed, each bringing the estimate closer to the true square root. This specialized version of Newton's Method is not only effective but also more computationally efficient for square root calculations than the general formula.
Show More

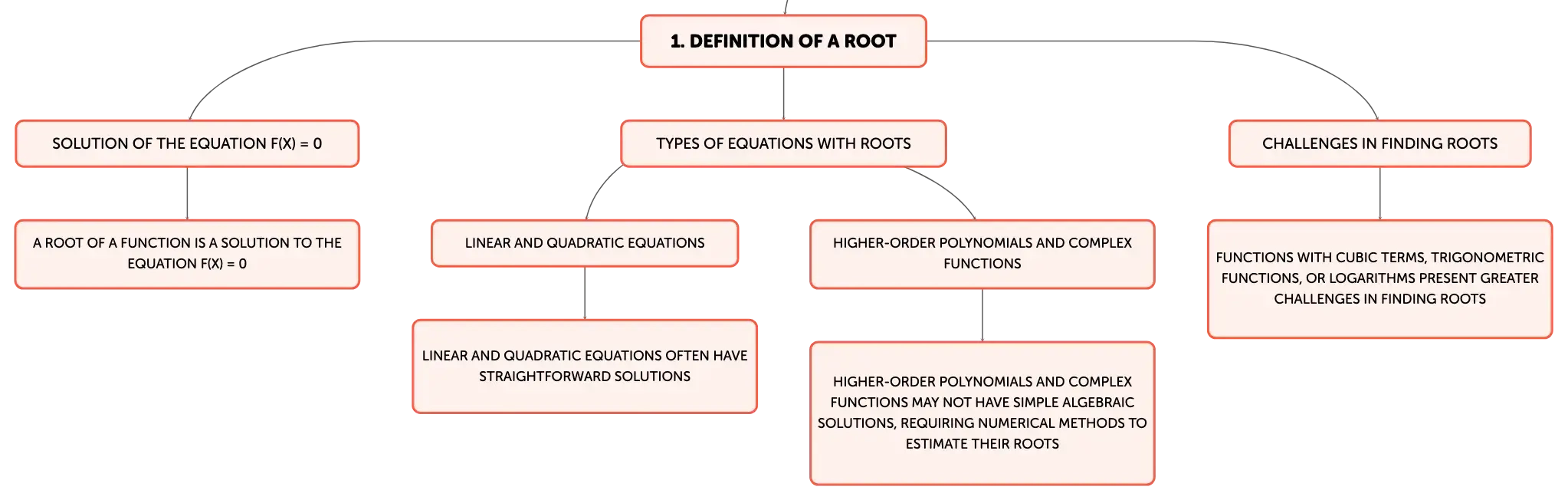

Definition of a Root
Solution of the equation f(x) = 0
A root of a function is a solution to the equation f(x) = 0
Types of equations with roots
Linear and quadratic equations
Linear and quadratic equations often have straightforward solutions
Higher-order polynomials and complex functions
Higher-order polynomials and complex functions may not have simple algebraic solutions, requiring numerical methods to estimate their roots
Challenges in finding roots
Functions with cubic terms, trigonometric functions, or logarithms present greater challenges in finding roots

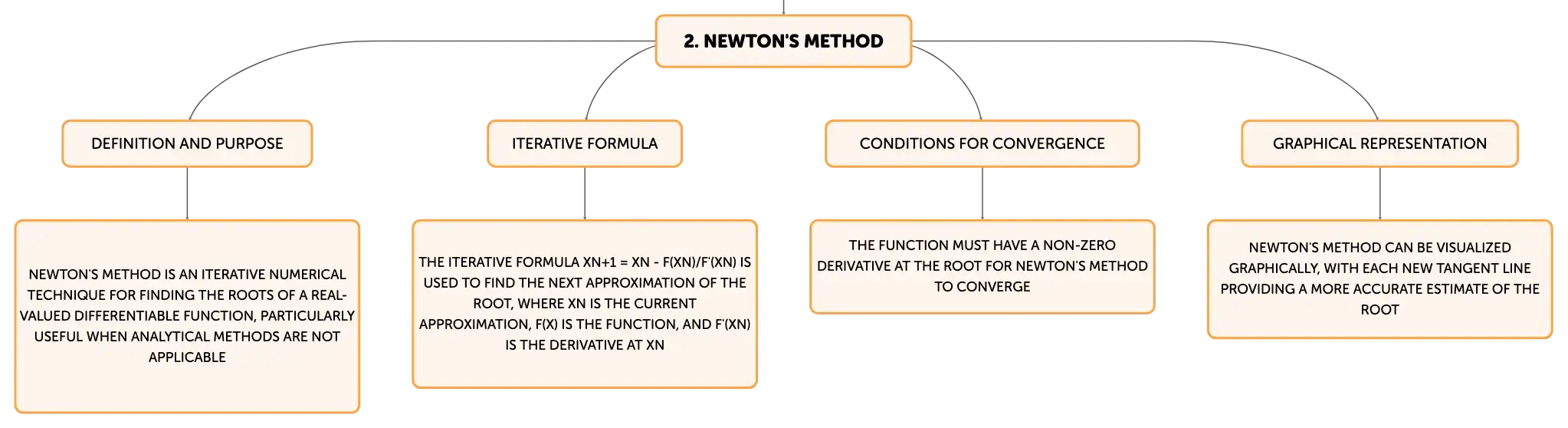

Newton's Method
Definition and purpose
Newton's Method is an iterative numerical technique for finding the roots of a real-valued differentiable function, particularly useful when analytical methods are not applicable
Iterative formula
The iterative formula xn+1 = xn - f(xn)/f'(xn) is used to find the next approximation of the root, where xn is the current approximation, f(x) is the function, and f'(xn) is the derivative at xn
Conditions for convergence
The function must have a non-zero derivative at the root for Newton's Method to converge
Graphical representation
Newton's Method can be visualized graphically, with each new tangent line providing a more accurate estimate of the root

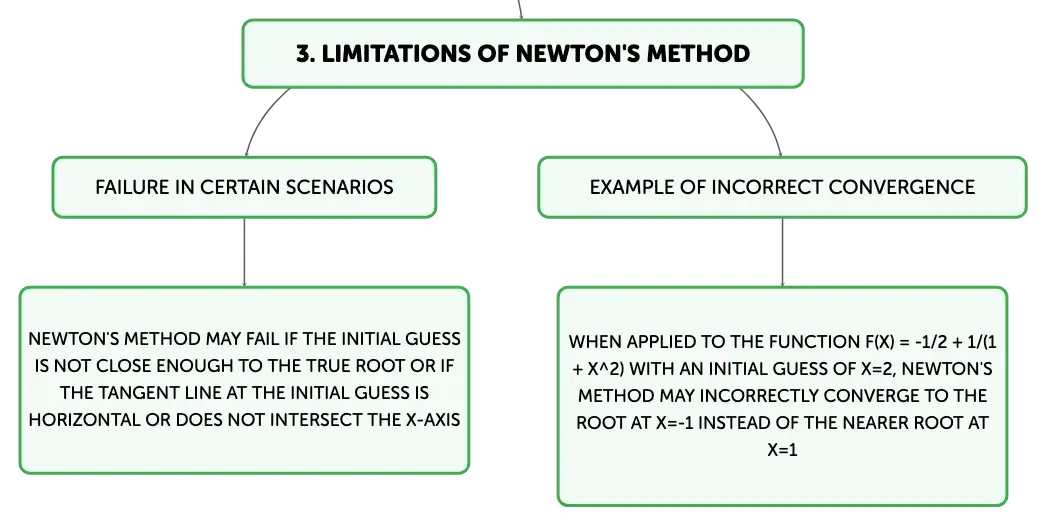

Limitations of Newton's Method
Failure in certain scenarios
Newton's Method may fail if the initial guess is not close enough to the true root or if the tangent line at the initial guess is horizontal or does not intersect the x-axis
Example of incorrect convergence
When applied to the function f(x) = -1/2 + 1/(1 + x^2) with an initial guess of x=2, Newton's Method may incorrectly converge to the root at x=-1 instead of the nearer root at x=1

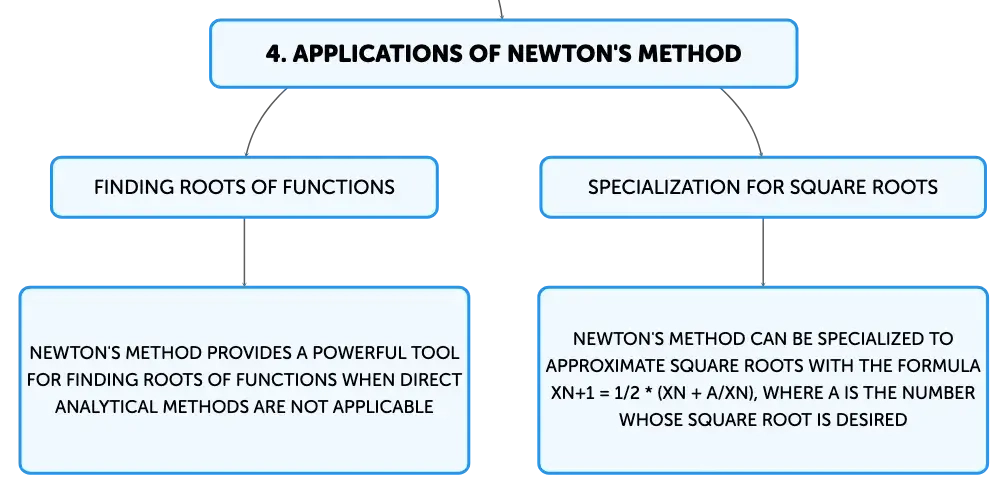

Applications of Newton's Method
Finding roots of functions
Newton's Method provides a powerful tool for finding roots of functions when direct analytical methods are not applicable
Specialization for square roots
Newton's Method can be specialized to approximate square roots with the formula xn+1 = 1/2 * (xn + a/xn), where a is the number whose square root is desired
Newton's Method for Finding Roots
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Newton's Method Purpose
Approximates roots of equations without algebraic solutions using calculus.
01
Challenges with Higher-Order Polynomials
May lack simple solutions, requiring numerical methods for root estimation.
02
Complex Functions in Root Finding
Incorporate cubic terms, trigonometry, logarithms; often resist analytical solutions.
