Calculating the Area Between Two Curves

Understanding the Area Between Two Curves

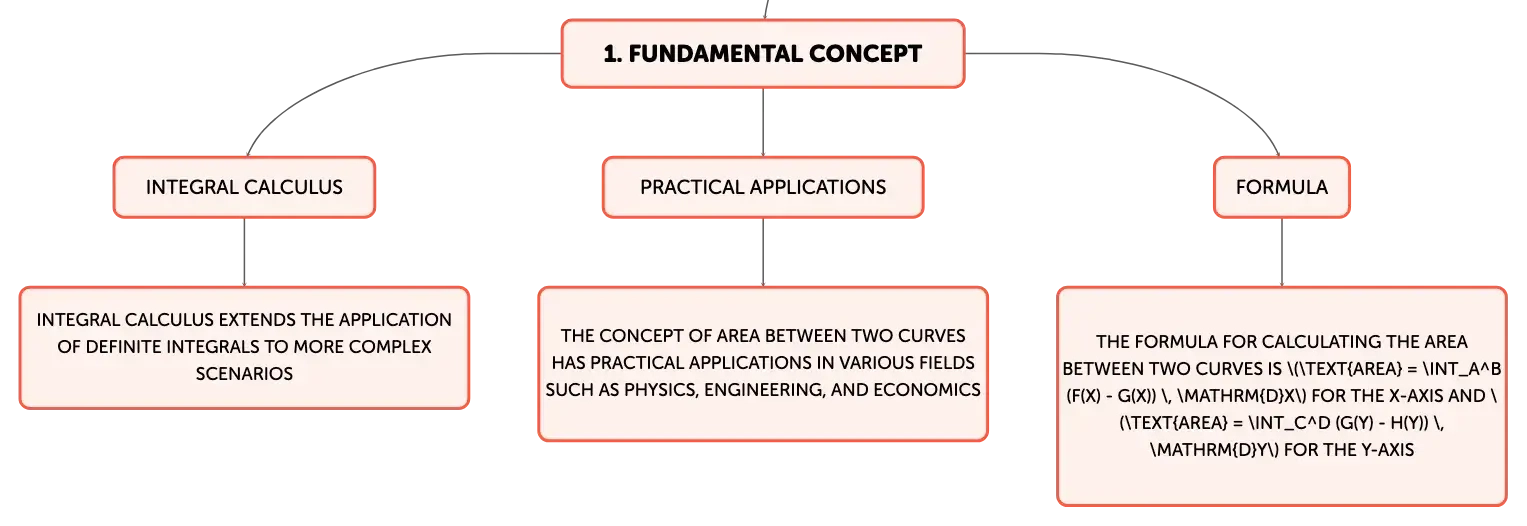

The area between two curves is a fundamental concept in integral calculus, which extends the application of definite integrals to more complex scenarios than finding the area under a single curve. This concept is not only mathematically significant but also has practical applications in various fields such as physics, engineering, and economics. To calculate the area between two curves represented by functions \(f(x)\) and \(g(x)\), where \(f(x) \geq g(x)\) over the interval \([a, b]\), one must integrate the difference between these functions, \(f(x) - g(x)\), over the specified interval.

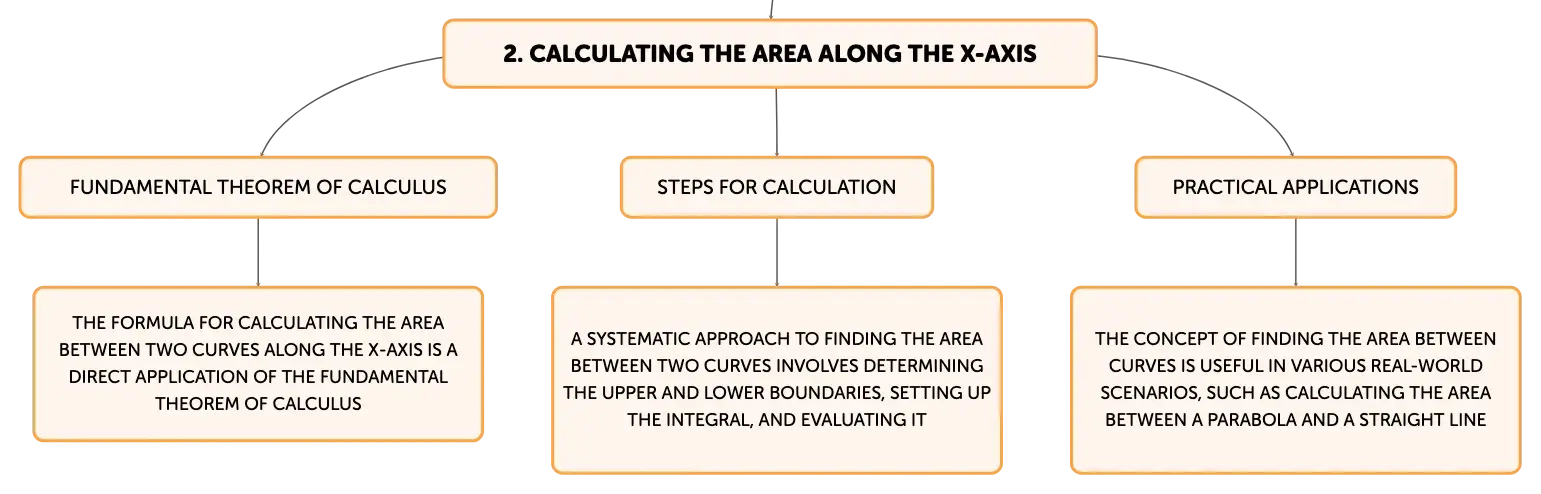

Formula for Area Between Curves Along the X-Axis

The formula for the area between two curves along the x-axis is a direct application of the fundamental theorem of calculus. It involves calculating the definite integral of the difference between the upper and lower functions over a given interval. The formula is \(\text{Area} = \int_a^b (f(x) - g(x)) \, \mathrm{d}x\), where \(f(x)\) is the function graphed above \(g(x)\) for all \(x\) in the interval \([a, b]\). This approach effectively computes the net area by considering the region enclosed between the two curves.

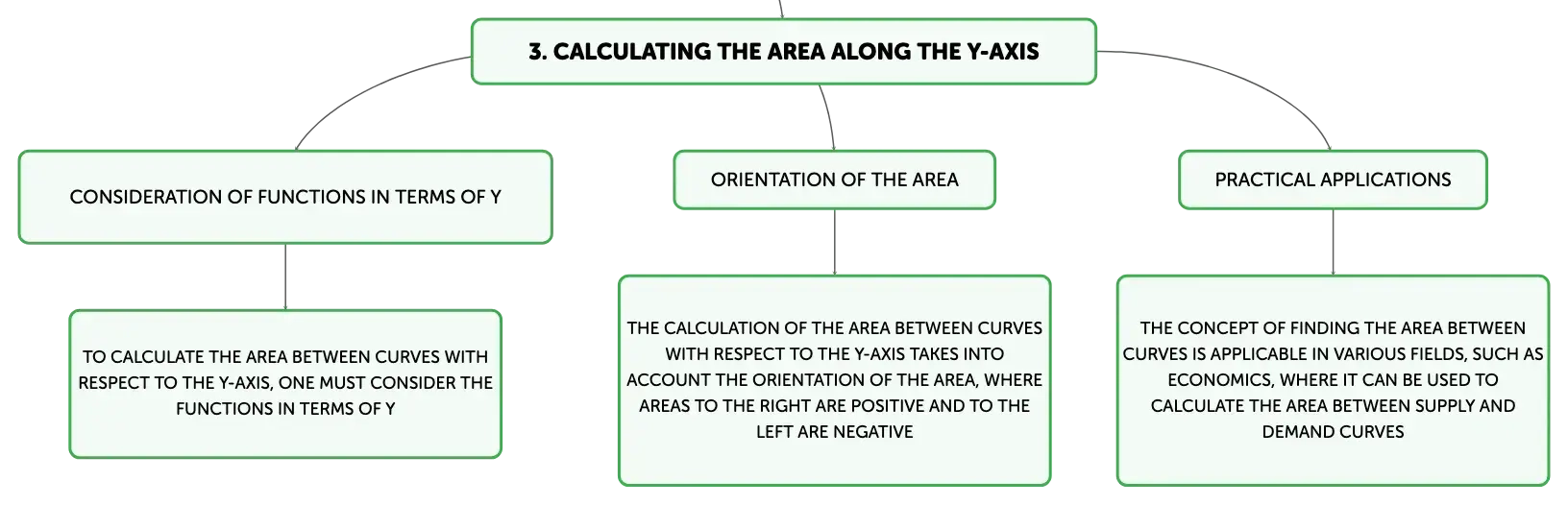

Calculating Area with Respect to the Y-Axis

To calculate the area between curves with respect to the y-axis, one must consider the functions in terms of \(y\). If \(g(y)\) and \(h(y)\) are such that \(g(y) \geq h(y)\) over the interval \([c, d]\), the area is found by integrating the difference \(g(y) - h(y)\) with respect to \(y\). The formula becomes \(\text{Area} = \int_c^d (g(y) - h(y)) \, \mathrm{d}y\). This calculation accounts for the orientation of the area with respect to the y-axis, where areas to the right are positive and to the left are negative.

Step-by-Step Approach to Area Calculation

A systematic approach to finding the area between two curves involves several steps. Initially, one must determine which function is the upper boundary and which is the lower boundary over the interval of interest. This can be done through graphical representation or algebraic comparison. Next, the integral is set up with the correct functions and limits of integration. Finally, the integral is evaluated to find the area. This step-by-step method ensures a thorough understanding and accurate calculation of the area, particularly when the curves intersect or when the interval is not predefined.

Practical Examples of Area Between Curves

Practical applications of finding the area between curves are abundant. For example, consider the functions \(f(x) = x + 5\) and \(g(x) = 1\) over the interval \([1, 5]\). The area between these curves is determined by integrating the difference \(f(x) - g(x)\) from \(x = 1\) to \(x = 5\). If the interval is not given, it must be determined by finding the points where the curves intersect. When curves intersect within the interval, the area calculation may require dividing the region into segments and summing the individual areas. This technique is particularly useful when dealing with the area between a parabola and a straight line.

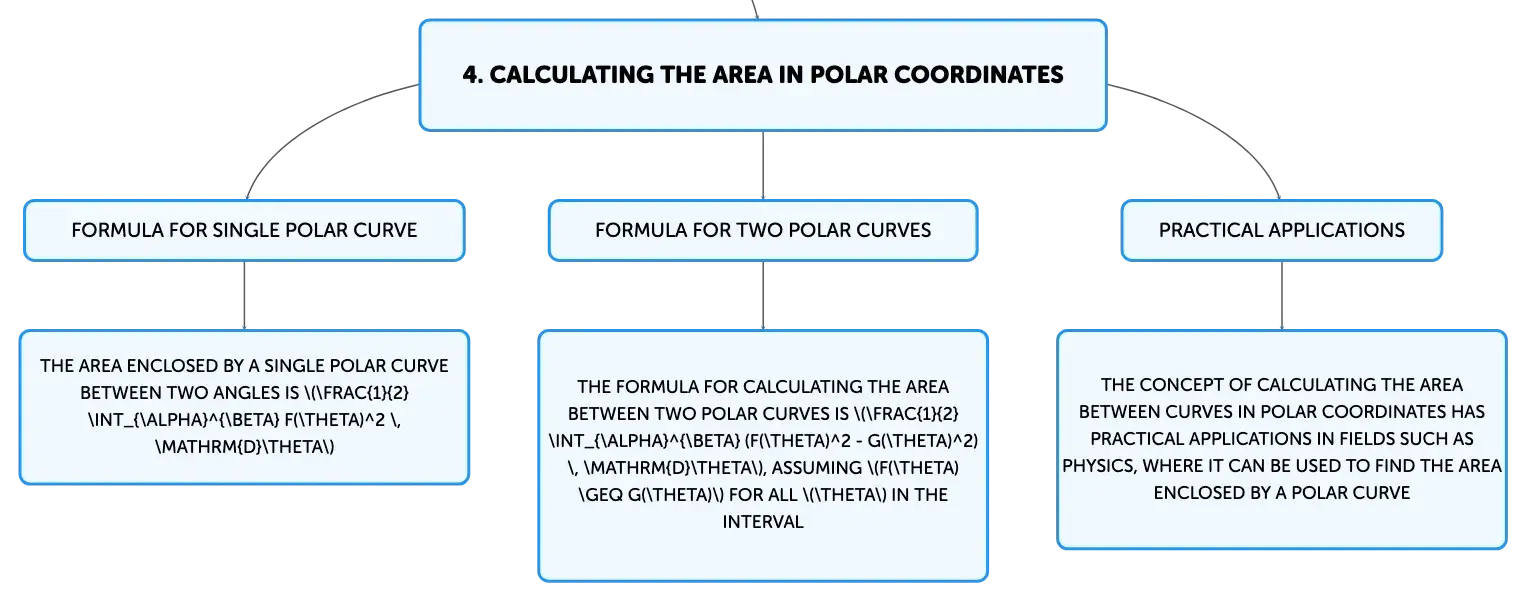

Area Between Polar Curves

The concept of area between curves also applies to polar coordinates. The area enclosed by a single polar curve \(r = f(\theta)\) between two angles \(\theta = \alpha\) and \(\theta = \beta\) is \(\frac{1}{2} \int_{\alpha}^{\beta} f(\theta)^2 \, \mathrm{d}\theta\). For the area between two polar curves, \(r = f(\theta)\) and \(r = g(\theta)\), the formula is modified to \(\frac{1}{2} \int_{\alpha}^{\beta} (f(\theta)^2 - g(\theta)^2) \, \mathrm{d}\theta\), where it is assumed that \(f(\theta) \geq g(\theta)\) for all \(\theta\) in \([\alpha, \beta]\).

Key Takeaways in Calculating Areas Between Curves

In conclusion, calculating the area between two curves is an essential skill in calculus. The area along the x-axis is given by \(\text{Area} = \int_a^b (f(x) - g(x)) \, \mathrm{d}x\) and along the y-axis by \(\text{Area} = \int_c^d (g(y) - h(y)) \, \mathrm{d}y\). It is crucial to correctly identify the upper and lower functions and to determine the interval of integration when it is not explicitly provided. This concept is applicable in both Cartesian and polar coordinate systems, highlighting the broad utility of understanding how to calculate the area between curves for various applications.
