Field Curvature and its Effects on Optical Systems

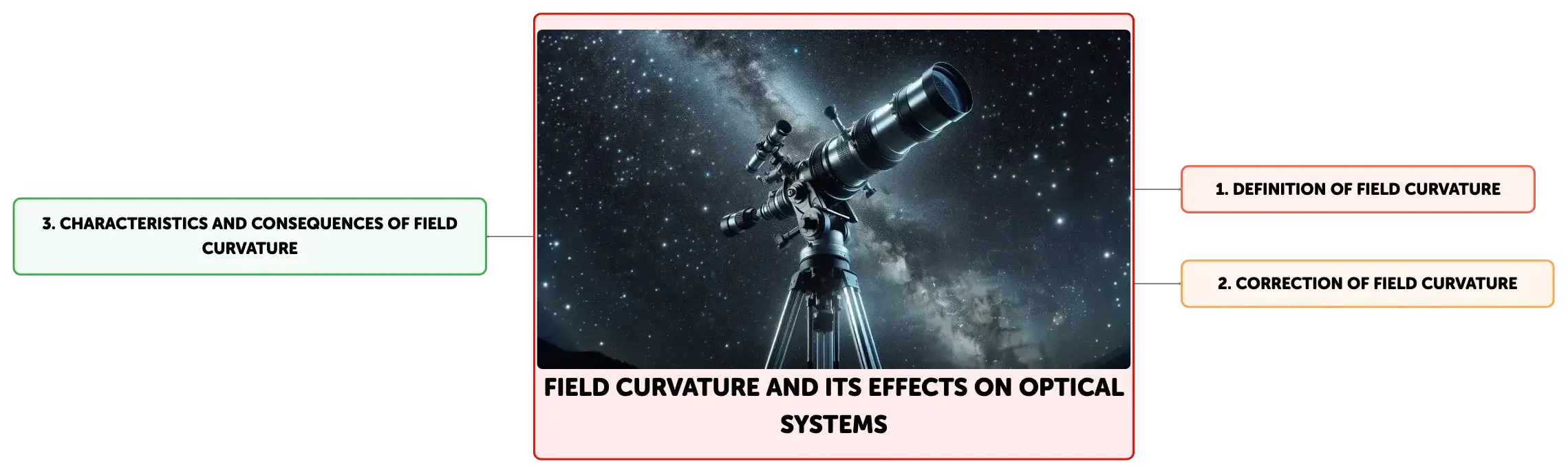

Concept Map
Field curvature is an optical aberration where a lens focuses light onto a curved surface, affecting image sharpness, especially at the edges. This phenomenon is described by the Petzval theorem and can be detrimental or beneficial, depending on the context. Correction strategies include aspheric lenses and field-flattening optics, which are vital in photography, astronomy, and microscopy to ensure optimal image quality.
Summary
Outline
Exploring the Concept of Field Curvature in Optics
Field curvature is an optical aberration that occurs when a lens focuses light onto a curved surface rather than a flat focal plane. This effect is particularly noticeable with wide-angle lenses and can compromise image quality by causing the edges of an image to appear out of focus while the center remains sharp. For example, when photographing a flat surface such as a wall, the center may be in focus, but the sharpness may decrease toward the edges due to the spherical shape of the field curvature.The Optical Principles and Mathematical Description of Field Curvature
Field curvature arises from the spherical nature of lens surfaces, which causes light rays from an object to focus at different distances depending on their angle of incidence. Ideally, all rays would converge at a single flat plane, but the spherical aberration results in a curved focal plane. Mathematically, the Petzval theorem describes this phenomenon, stating that the field curvature (C) is directly related to the lens power (p) and inversely related to the radius of curvature (R) of the image field, with the relationship given by \( C = \frac{p}{R} \).The Role of Field Curvature in Optical Instrumentation
Field curvature can be a significant issue or a beneficial characteristic, depending on its application. In astrophotography, field curvature causes stars at the edge of the field to appear elongated, necessitating field-flattening optics to achieve uniform focus across the image. In contrast, the distortion caused by field curvature is intentionally used in fisheye lenses to produce a distinctive visual effect. Effective management of field curvature is crucial in optical design to ensure the desired image quality is achieved.The Influence of Field Curvature on Image Resolution and Clarity
Field curvature aberration is a critical consideration in lens design, as it affects the resolution and clarity of images, particularly at the periphery. This aberration is more pronounced for light rays that pass through the edges of a lens, leading to a curved field of best focus. While detrimental in some photographic and astronomical applications where edge-to-edge sharpness is paramount, field curvature can be artistically exploited in other contexts, such as portrait photography. Modern lens designs often incorporate elements to reduce field curvature and enhance image quality.Strategies for Correcting Field Curvature in Optical Systems
Addressing field curvature is essential for achieving high-quality optical performance. Correction methods include the use of additional optical elements, such as field-flattening lenses, and the design of aspheric lenses that can mitigate multiple aberrations simultaneously. The Petzval surface is a calculated reference used to assess the extent of field curvature in an optical system, informing the design of corrective strategies. These corrections are particularly important in telescopes for clear celestial imaging, in cameras for consistent image sharpness, and in microscopes for accurate observation of specimens.Understanding Petzval Field Curvature and Its Impact on Optics
Petzval field curvature, named after the mathematician and physicist Joseph Petzval, specifically refers to the curvature of the image field caused by the optical system. The Petzval surface represents the ideal shape for achieving perfect focus across the field, which is inherently curved due to lens geometry. This curvature can lead to reduced sharpness at the image periphery and is a pivotal factor in the design of optical instruments. Achieving a Petzval sum of zero is indicative of a flat field, which is often the objective in high-performance optical design.The Varied Implications of Field Curvature Across Optical Applications
Field curvature's characteristics, such as its radial symmetry and classification as a third-order Seidel aberration, have varied consequences in different optical contexts. In photography, it can influence the sharpness of image edges and contribute to artistic effects like swirly bokeh. In telescopic observations, it may introduce distortions such as coma, and in microscopy, it can limit the field of view and affect the accurate representation of samples. Therefore, compensating for field curvature is essential to optimize the functionality of optical devices in these diverse applications.
Show More

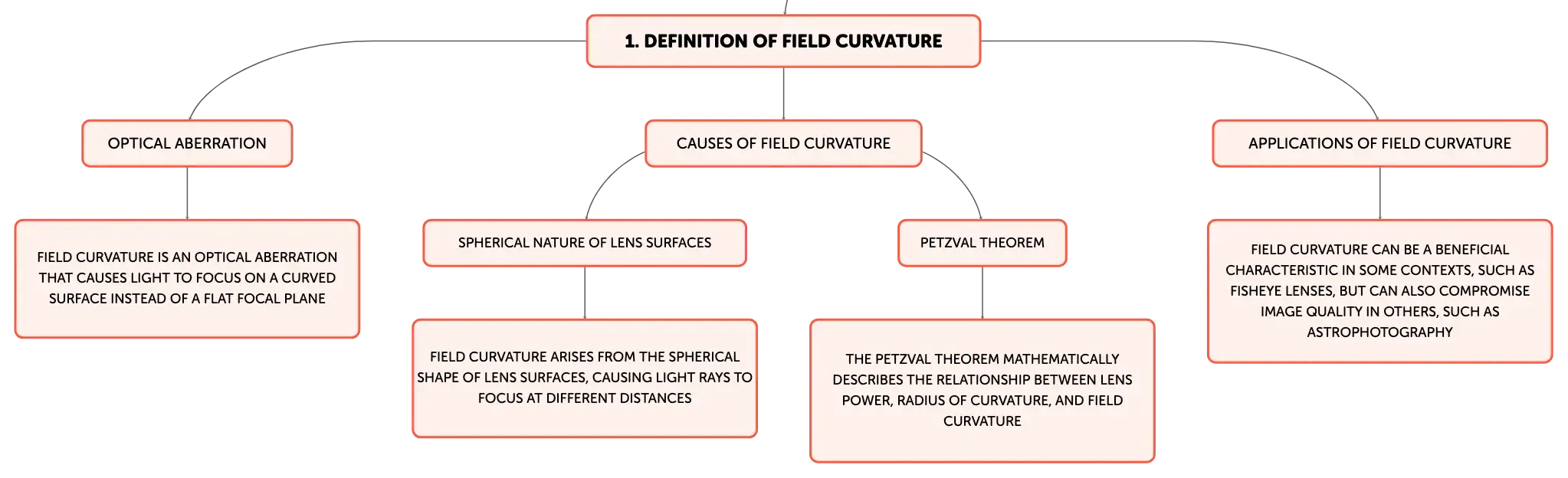

Definition of Field Curvature
Optical Aberration
Field curvature is an optical aberration that causes light to focus on a curved surface instead of a flat focal plane
Causes of Field Curvature
Spherical Nature of Lens Surfaces
Field curvature arises from the spherical shape of lens surfaces, causing light rays to focus at different distances
Petzval Theorem
The Petzval theorem mathematically describes the relationship between lens power, radius of curvature, and field curvature
Applications of Field Curvature
Field curvature can be a beneficial characteristic in some contexts, such as fisheye lenses, but can also compromise image quality in others, such as astrophotography

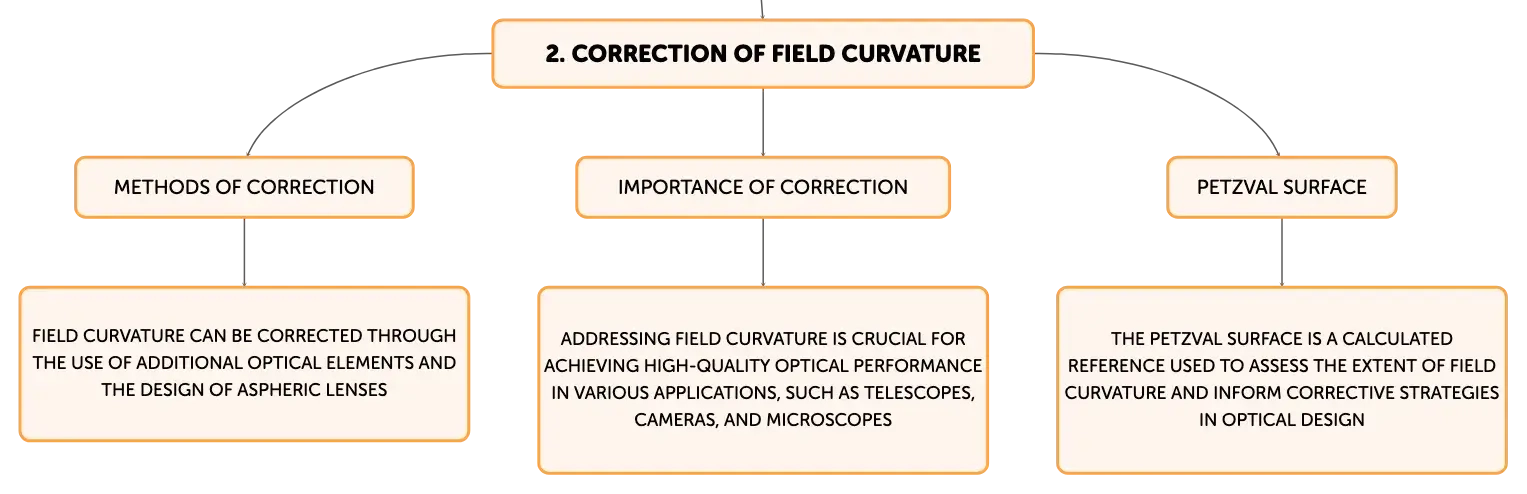

Correction of Field Curvature
Methods of Correction
Field curvature can be corrected through the use of additional optical elements and the design of aspheric lenses
Importance of Correction
Addressing field curvature is crucial for achieving high-quality optical performance in various applications, such as telescopes, cameras, and microscopes
Petzval Surface
The Petzval surface is a calculated reference used to assess the extent of field curvature and inform corrective strategies in optical design

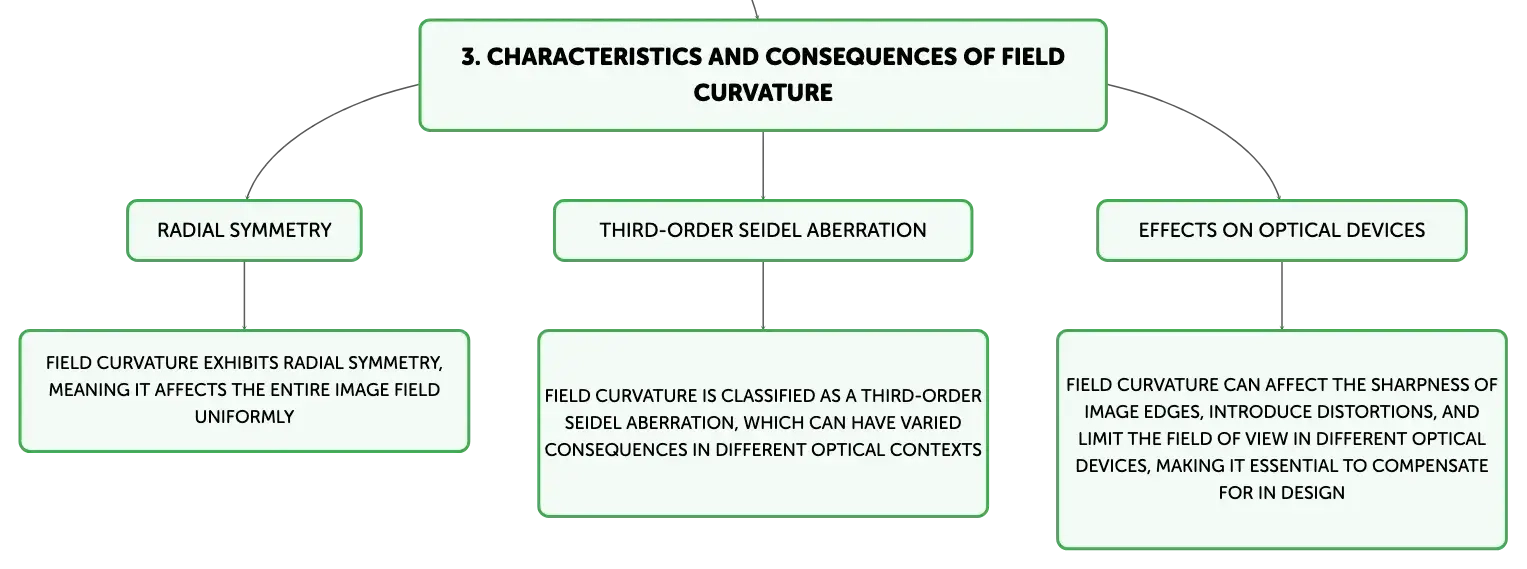

Characteristics and Consequences of Field Curvature
Radial Symmetry
Field curvature exhibits radial symmetry, meaning it affects the entire image field uniformly
Third-Order Seidel Aberration
Field curvature is classified as a third-order Seidel aberration, which can have varied consequences in different optical contexts
Effects on Optical Devices
Field curvature can affect the sharpness of image edges, introduce distortions, and limit the field of view in different optical devices, making it essential to compensate for in design
Field Curvature and its Effects on Optical Systems
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Field curvature relation to lens type
More pronounced in wide-angle lenses, causing edges to blur while center stays sharp.
01
Field curvature impact on flat surface photography
Results in decreased sharpness towards edges when photographing flat surfaces like walls.
02
Field curvature vs. flat focal plane
Field curvature focuses light on a curved surface, unlike ideal lenses that focus on a flat plane.
