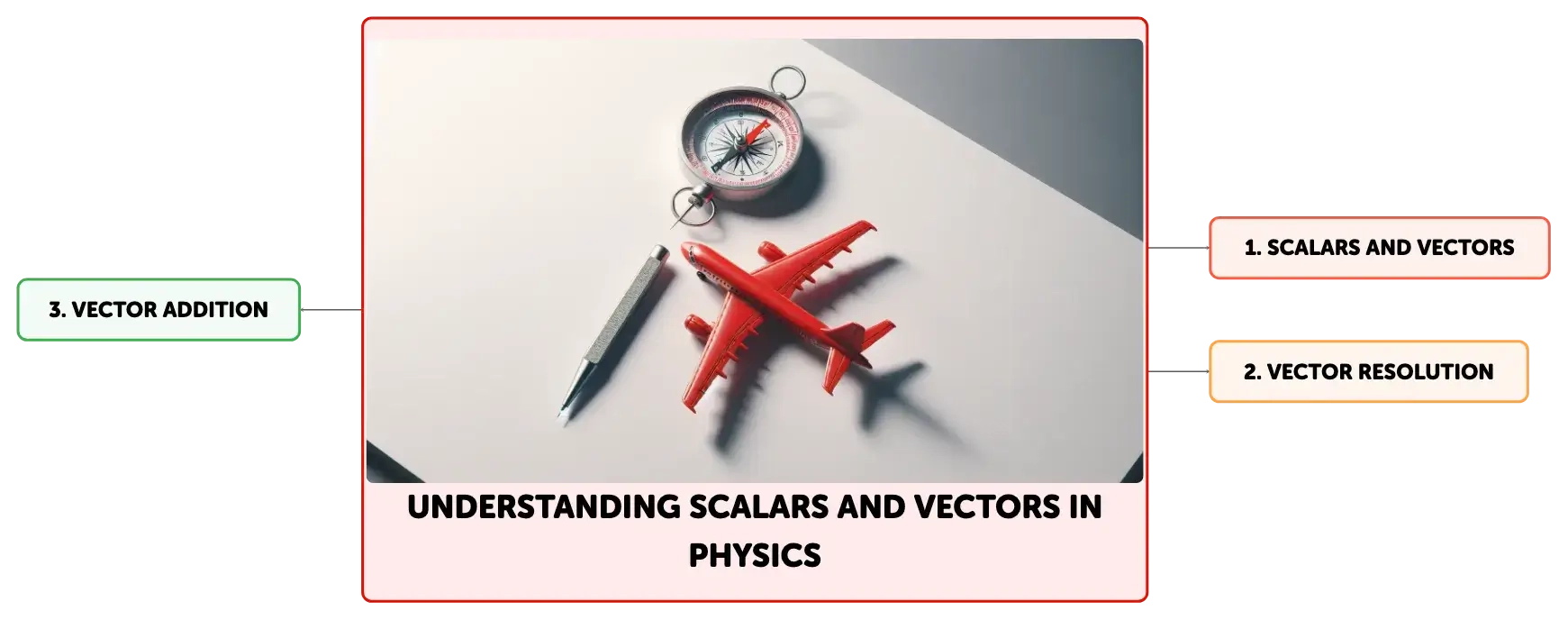

Understanding Scalars and Vectors in Physics
Explore the fundamental concepts of scalars and vectors in physics, which differentiate between quantities with just magnitude and those with both magnitude and direction. Understanding these concepts is crucial for analyzing physical phenomena like force, velocity, and acceleration. The text delves into vector resolution, trigonometric methods for component calculation, vector addition, and the importance of vector analysis in physics.
See moreScalars and Vectors: Fundamental Concepts in Physics

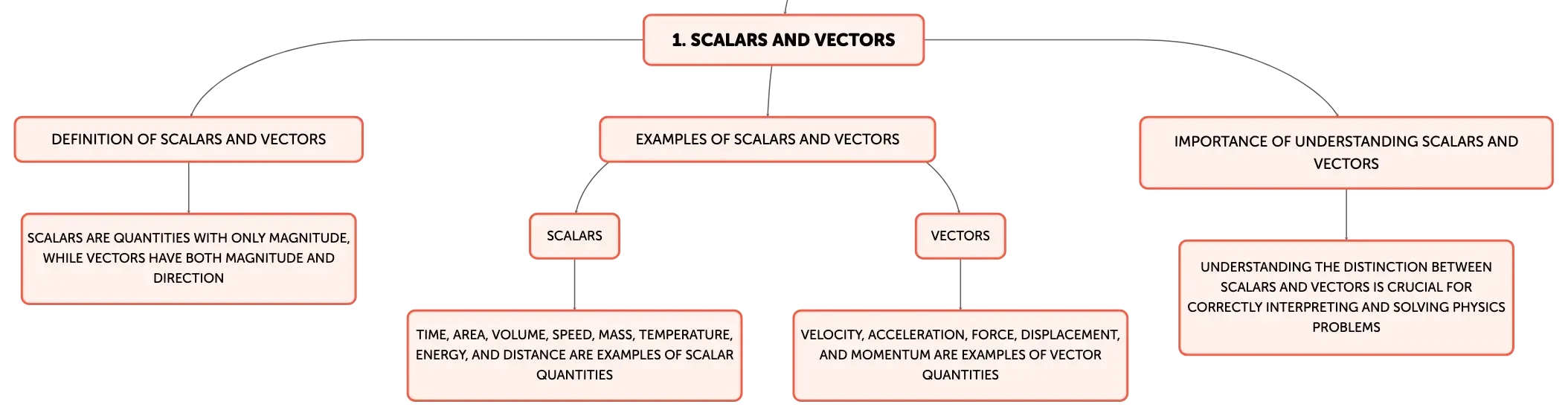

In the realm of physics, understanding the nature of different quantities is essential. Quantities are broadly categorized into scalars and vectors. Scalars are quantities characterized solely by a magnitude, which is a numerical value accompanied by a unit of measurement. Examples of scalar quantities include time, area, volume, speed, mass, temperature, energy, and distance. These quantities do not have a direction associated with them and are thus not influenced by the orientation of the coordinate system. In contrast, vectors are multidimensional quantities that have both magnitude and direction. They are crucial for describing physical phenomena that inherently involve direction, such as velocity, acceleration, force, displacement, and momentum. Grasping the distinction between scalars and vectors is vital for correctly interpreting and solving physics problems that involve directional dependencies.Decomposing Vectors into Components
The analysis of vectors is often facilitated by decomposing them into their constituent components. This technique, known as vector resolution, involves breaking a vector into orthogonal components, usually along the x (horizontal) and y (vertical) axes of a coordinate system. The magnitude of each component is equivalent to the projection of the vector onto the corresponding axis. For instance, a vector with a magnitude of 15 units at an angle of 53 degrees from the horizontal axis would have horizontal and vertical components calculated using the cosine and sine of 53 degrees, respectively. Resolving vectors into components simplifies complex vector operations by allowing the independent consideration of each dimension, which is particularly useful in two-dimensional and three-dimensional vector analysis.Trigonometric Methods for Vector Component Calculation
When the angles and magnitudes of vectors are known, trigonometry provides a systematic approach for resolving vectors into their components. The horizontal component of a vector can be found by multiplying the vector's magnitude by the cosine of its angle with the horizontal axis, while the vertical component is obtained by multiplying the magnitude by the sine of the angle. This method is indispensable when dealing with vectors at non-right angles to the standard axes. It is a fundamental technique in physics for dissecting vectors into more manageable parts, thereby enabling the precise calculation of forces, velocities, and other vector quantities in various directions.Vector Addition and Resultant Determination

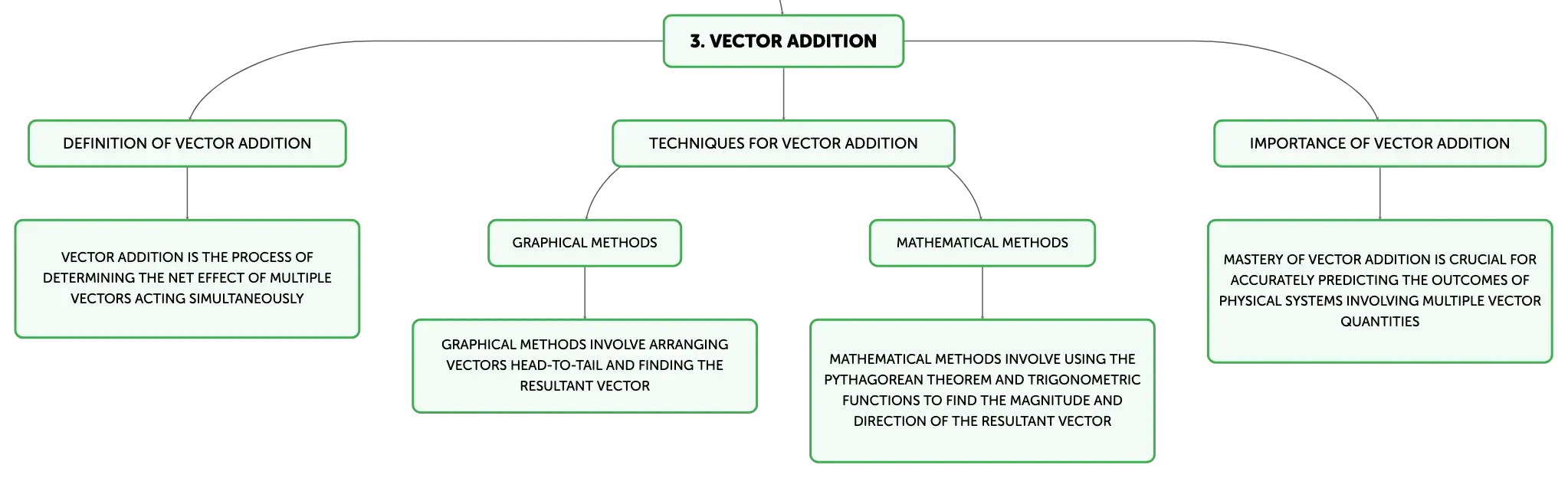

The process of vector addition is crucial for determining the net effect of multiple vectors acting simultaneously. To find the resultant vector, one can employ graphical methods or mathematical techniques. Graphically, vectors are drawn to scale on a coordinate plane, arranged head-to-tail, and the resultant is the vector from the tail of the first vector to the head of the last. Mathematically, when vectors are at right angles to each other, their magnitudes can be added using the Pythagorean theorem to find the magnitude of the resultant, which is the hypotenuse of the right triangle formed by the original vectors. For vectors not at right angles, trigonometric functions and the law of cosines are used to determine the resultant. Mastery of vector addition is essential for accurately predicting the outcomes of physical systems involving multiple vector quantities.Mastery of Vector Analysis in Physics
Vector analysis is a cornerstone of physics, enabling the representation and examination of directional quantities. Proficiency in resolving vectors into components and adding vectors to ascertain resultants is imperative for solving vector-related problems. Mastery of these skills through both graphical and analytical methods is critical for a comprehensive understanding of physical phenomena. The ability to dissect and synthesize vectors is a key competency for students, equipping them to address a broad spectrum of physics challenges, from projectile motion to the equilibrium of forces in statics and dynamics.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Examples of Scalar Quantities
Click to check the answer
2
Examples of Vector Quantities
Click to check the answer
3
Scalar vs Vector in Problem Solving
Click to check the answer
4
The magnitude of a vector's component on an axis is the same as its ______ onto that axis.
Click to check the answer
5
To simplify complex vector operations, vectors are resolved into components, which is especially beneficial in ______ and ______ vector analysis.
Click to check the answer
6
Horizontal component calculation of a vector
Click to check the answer
7
Vertical component calculation of a vector
Click to check the answer
8
Importance of vector components in physics
Click to check the answer
9
To calculate the combined effect of several vectors, one can use ______ or ______ methods.
Click to check the answer
10
For vectors not perpendicular, the ______ and the ______ help in finding the resultant vector.
Click to check the answer
11
Resolving vectors into components
Click to check the answer
12
Adding vectors for resultants
Click to check the answer
13
Graphical vs. Analytical vector methods
Click to check the answer
