Two's Complement in Computing

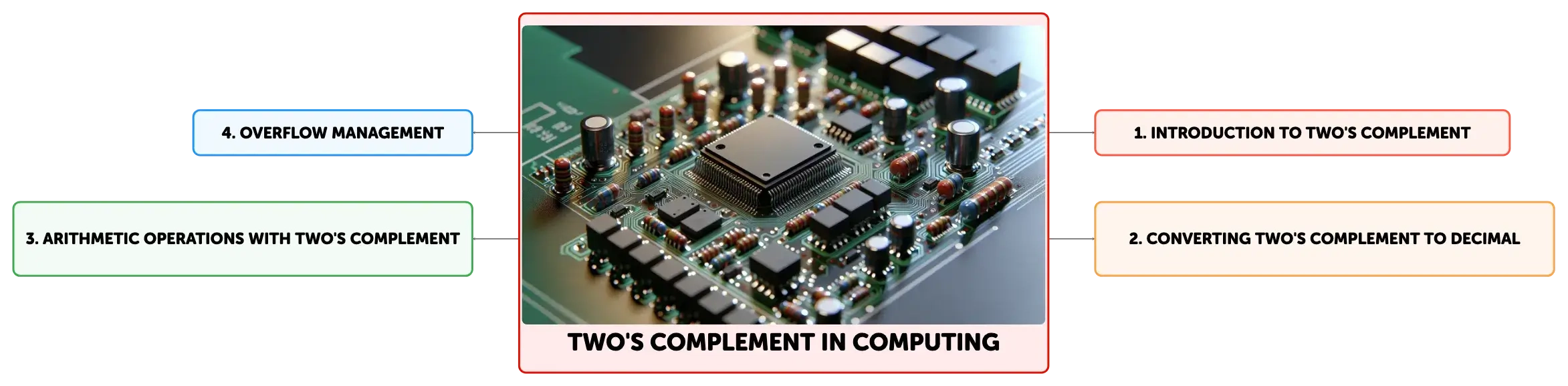

Concept Map
Two's complement is a binary number system crucial for representing signed integers in computing. It allows for the encoding of both positive and negative numbers by inverting the bits and adding one. This method simplifies arithmetic operations, such as addition and subtraction, and provides a unique representation for each integer value. Understanding Two's complement is essential for interpreting binary data and managing overflow in digital systems.
Summary
Outline
Exploring the Fundamentals of Two's Complement in Binary Numbers
Two's complement is a pivotal system in computer science for representing signed integers within binary code. This method involves flipping all the bits of a given binary number and adding one to the least significant bit, thereby enabling the encoding of both positive and negative integers. Its introduction with the EDSAC computer in the 1940s revolutionized computing, allowing for a unified approach to arithmetic operations and overflow management. The elegance and practicality of Two's complement have cemented its role as the de facto standard in digital systems.Converting Two's Complement to Decimal Notation
Converting Two's complement binary numbers to decimal is a critical process in computing, involving an understanding of bit significance and positional values. The most significant bit serves as the sign indicator; a '1' denotes a negative number. For negative values, the weight of the sign bit is \(-2^{(n-1)}\), with 'n' being the bit count. To find the decimal equivalent, one must add the weighted values of all bits set to '1'. This conversion is fundamental for computers to interpret binary data and perform arithmetic as if the numbers were in decimal form.Arithmetic with Two's Complement Numbers
Two's complement facilitates arithmetic operations by using addition for both summation and subtraction in binary form. When adding, bits are combined with carries forwarded as needed. Subtraction is elegantly handled by adding the Two's complement of the subtracted number. This approach negates the need for separate subtraction circuitry, streamlining computational processes. For operations involving large numbers, the carry-out from the most significant bit is discarded, ensuring results remain within the fixed bit-width of the operands.The Significance of Two's Complement in Binary Encoding
Two's complement binary encoding is integral to computing, enabling the representation of signed integers. It overcomes the limitations of previous methods, such as sign-magnitude representation, which suffered from issues like the existence of positive and negative zero. Two's complement eliminates such redundancies by ensuring a unique representation for each integer within the range of \(-2^{(n-1)}\) to \(2^{(n-1)} - 1\) for an n-bit system. This encoding scheme is essential for the efficient processing of integers in computers and digital electronics.Overflow Management in Two's Complement Arithmetic
In binary arithmetic, overflow occurs when a computation's result exceeds the representable range of the number system. Two's complement systems detect overflow by examining the carry into and out of the most significant bit. If these carries are inconsistent, an overflow has occurred. Effective overflow handling is application-dependent, with strategies ranging from error signaling to modular arithmetic. Proper overflow management is vital for maintaining the integrity of computational results.In-Depth Look at Two's Complement Number Representation
Two's complement is more than a mere representation; it embodies a logical framework that enhances arithmetic operations in digital systems. By incorporating negative integers into binary code, it supersedes earlier methods such as sign-bit representation, which were less efficient. The structure of Two's complement defines a precise range of representable integers based on bit count, facilitating straightforward arithmetic operations and contributing to the system's widespread adoption in computing. Its integration into computer architecture underscores its importance in achieving computational accuracy and efficiency.
Show More

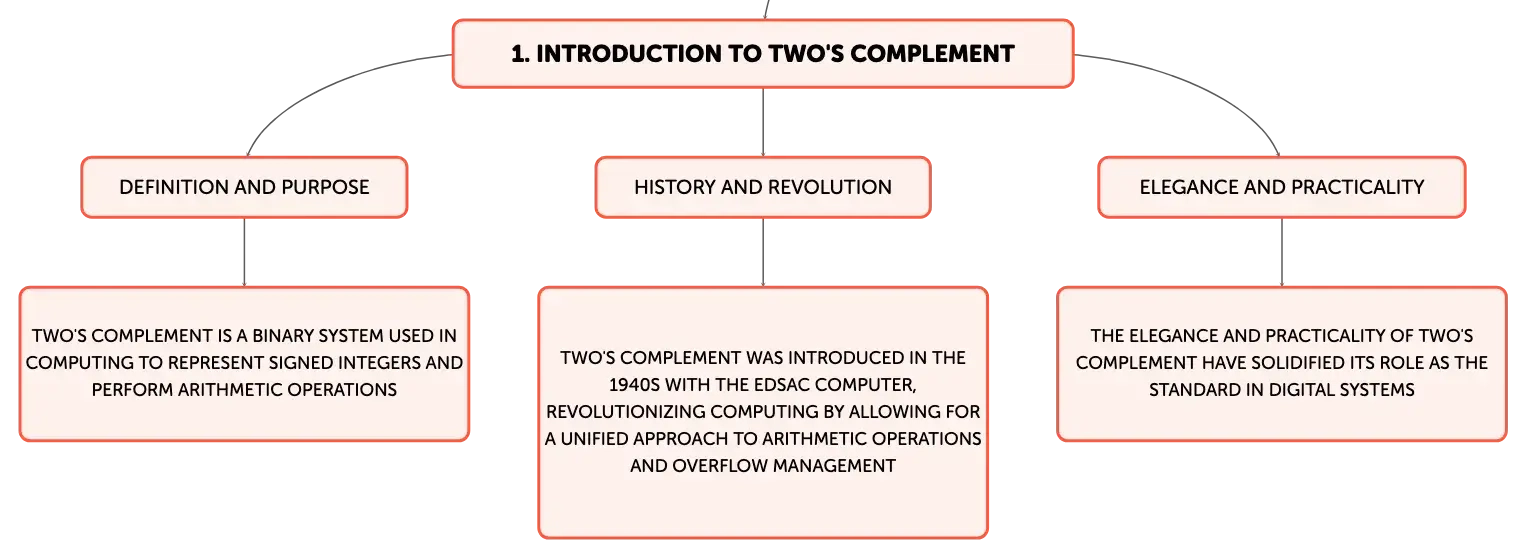

Introduction to Two's Complement
Definition and Purpose
Two's complement is a binary system used in computing to represent signed integers and perform arithmetic operations
History and Revolution
Two's complement was introduced in the 1940s with the EDSAC computer, revolutionizing computing by allowing for a unified approach to arithmetic operations and overflow management
Elegance and Practicality
The elegance and practicality of Two's complement have solidified its role as the standard in digital systems

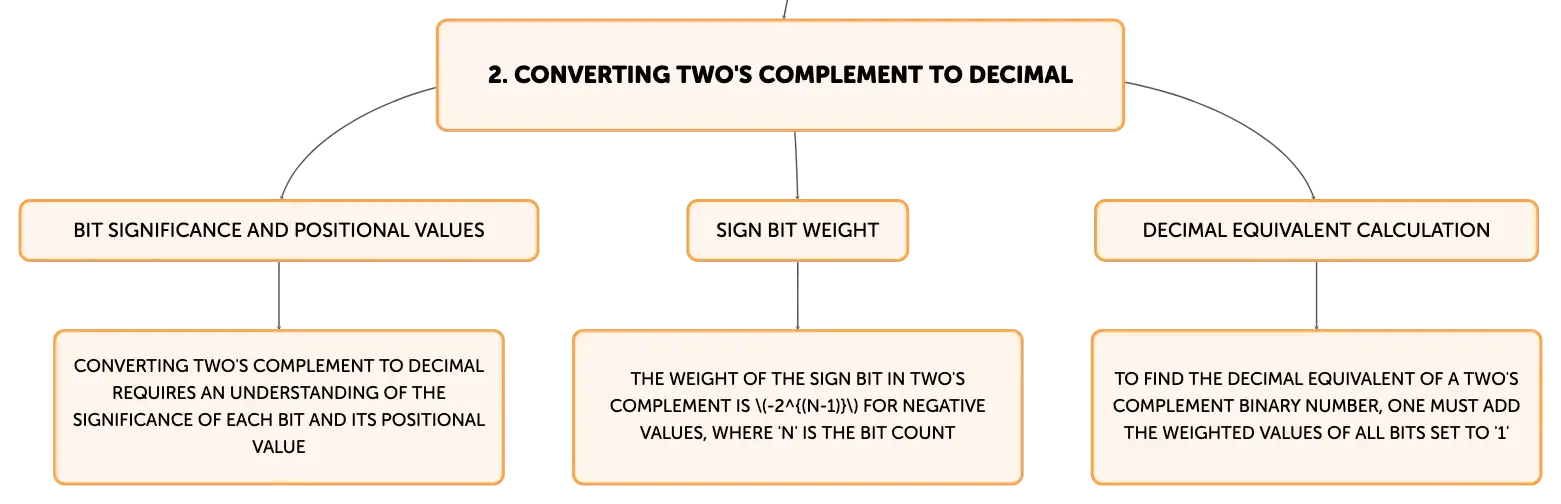

Converting Two's Complement to Decimal
Bit Significance and Positional Values
Converting Two's complement to decimal requires an understanding of the significance of each bit and its positional value
Sign Bit Weight
The weight of the sign bit in Two's complement is \(-2^{(n-1)}\) for negative values, where 'n' is the bit count
Decimal Equivalent Calculation
To find the decimal equivalent of a Two's complement binary number, one must add the weighted values of all bits set to '1'

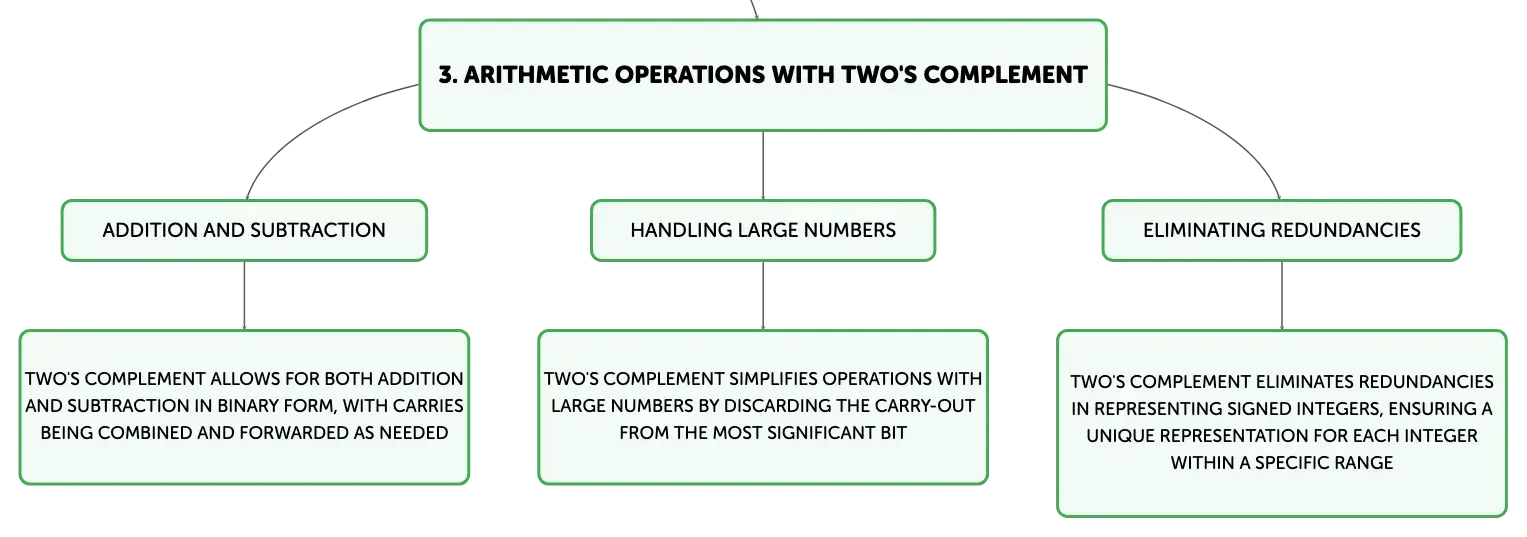

Arithmetic Operations with Two's Complement
Addition and Subtraction
Two's complement allows for both addition and subtraction in binary form, with carries being combined and forwarded as needed
Handling Large Numbers
Two's complement simplifies operations with large numbers by discarding the carry-out from the most significant bit
Eliminating Redundancies
Two's complement eliminates redundancies in representing signed integers, ensuring a unique representation for each integer within a specific range

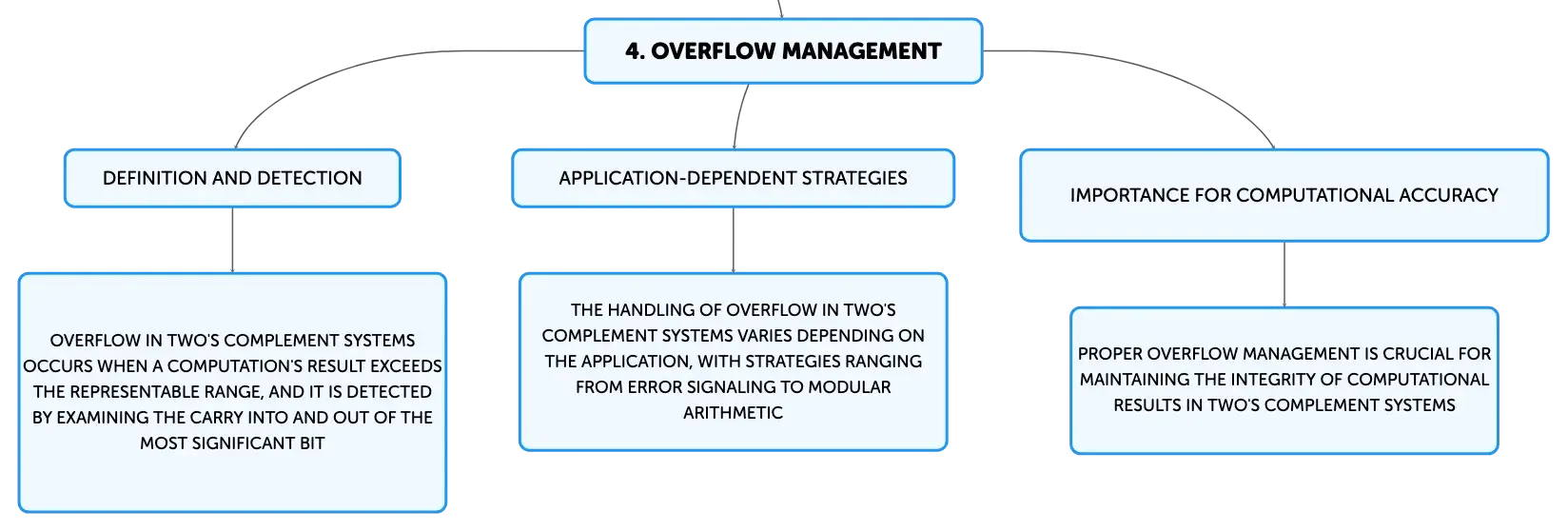

Overflow Management
Definition and Detection
Overflow in Two's complement systems occurs when a computation's result exceeds the representable range, and it is detected by examining the carry into and out of the most significant bit
Application-Dependent Strategies
The handling of overflow in Two's complement systems varies depending on the application, with strategies ranging from error signaling to modular arithmetic
Importance for Computational Accuracy
Proper overflow management is crucial for maintaining the integrity of computational results in Two's complement systems
Two's Complement in Computing
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Two's complement bit flipping process
Invert all bits of binary number before adding one to least significant bit.
01
Historical significance of Two's complement
Introduced with EDSAC in 1940s, standardized arithmetic operations and overflow handling.
02
Two's complement role in digital systems
Established as default method for encoding signed integers in binary.
