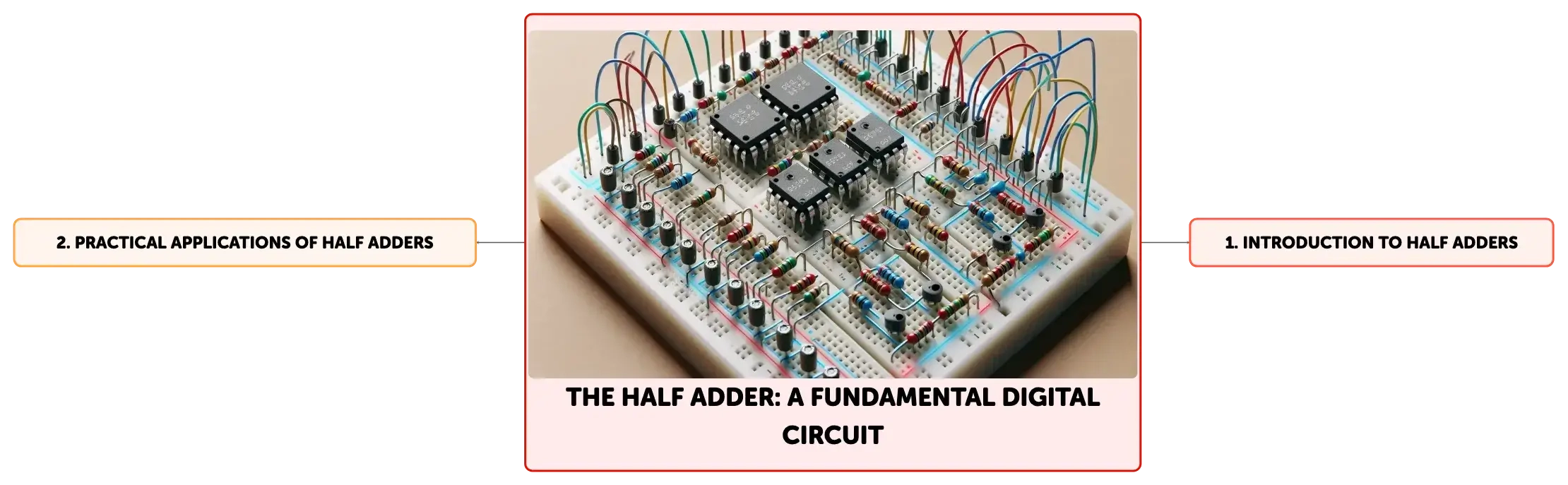

The Half Adder: A Fundamental Digital Circuit
The Half Adder is a fundamental digital circuit used to add two single-bit binary numbers, producing a sum and carry bit. It employs XOR and AND logic gates to facilitate binary arithmetic, crucial for multi-bit adders in ALUs and CPUs. Understanding its design, especially using NAND gates, is key to advancing digital computation and optimizing algorithms for binary arithmetic operations.

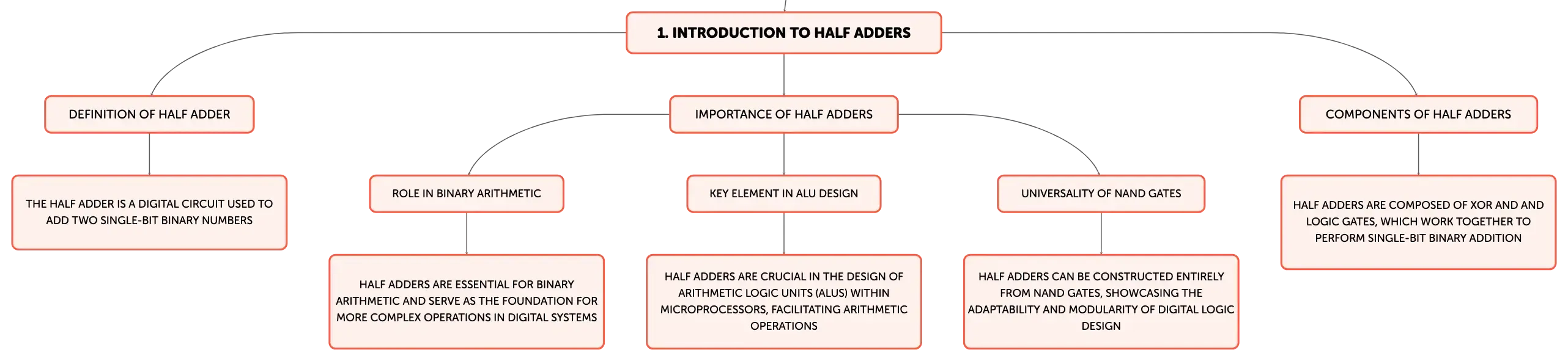

See moreIntroduction to the Half Adder in Digital Systems
The Half Adder is an essential digital circuit in the field of electronics and computer engineering, designed to add two single-bit binary numbers. It is a cornerstone for binary arithmetic, laying the groundwork for more complex operations in digital systems. The Half Adder produces a sum bit and a carry bit, which are pivotal for cascading multiple adders to handle multi-bit addition. This basic computational unit is a key element in the design of Arithmetic Logic Units (ALUs) within microprocessors, where it facilitates the execution of arithmetic operations.The Logic Design of the Half Adder
The Half Adder circuit is elegantly simple, comprising two types of logic gates: an XOR (Exclusive OR) gate for the sum output and an AND gate for the carry output. The XOR gate outputs a high signal (1) if the inputs differ, while the AND gate outputs a high signal only if both inputs are high. The behavior of these gates is summarized in a truth table, which lists all possible input combinations and their corresponding outputs, demonstrating the Half Adder's ability to perform single-bit binary addition.Implementing Half Adders Using NAND Gates
Demonstrating the universality of NAND gates, a Half Adder can be constructed entirely from them. A NAND gate-based Half Adder requires a combination of five NAND gates to replicate the functions of the XOR and AND gates. The NAND gate, which outputs a low signal (0) only when both inputs are high, is a fundamental gate in digital electronics because any other logic function can be derived from it. This alternative construction of the Half Adder using NAND gates underscores the adaptability and modularity of digital logic design.The Function of Logic Gates in Half Adders
Logic gates are the fundamental components of digital circuits, including the Half Adder. The XOR gate in a Half Adder is used to determine the sum of two bits, producing a high output when the number of high inputs is odd. The AND gate generates the carry output, indicating when an overflow has occurred in the addition of the two bits. This combination of gates enables the Half Adder to efficiently perform the basic operation of binary addition, which is integral to more complex digital computations.Real-World Applications of Half Adders
The practical significance of Half Adders extends beyond theoretical concepts, playing a vital role in the architecture of modern computing systems. They are fundamental in constructing multi-bit adders, which are crucial for the arithmetic operations in ALUs. In CPUs, Half Adders contribute to the processing of binary data, enabling the execution of instructions and the manipulation of information. Their implementation in hardware underscores the importance of Half Adders in the seamless operation of computers and other digital devices.Half Adders and Computational Algorithms
In the context of algorithm design, Half Adders are instrumental in optimizing the performance of binary arithmetic operations. They enable algorithms to execute binary addition with minimal hardware resources, contributing to the overall efficiency of computational processes. Algorithms that involve arithmetic calculations, particularly those that operate on binary numbers, often incorporate Half Adders to manage the addition of single bits and to scale up for larger numbers, thereby enhancing the speed and precision of algorithmic solutions.Concluding Insights on the Half Adder
In summary, the Half Adder is a fundamental digital circuit that performs single-bit binary addition through the combined action of XOR and AND logic gates. Its operation is characterized by a truth table that defines the outcomes for all possible input combinations. The Half Adder can also be constructed using NAND gates, showcasing the flexibility of digital logic. Its practical applications are evident in the construction of ALUs and the operation of CPUs, where it underpins the arithmetic capabilities of computing systems. Moreover, Half Adders are integral to the efficiency of algorithms that require binary arithmetic, solidifying their status as a critical component in the field of digital computation.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In microprocessors, the ______ is vital for performing arithmetic operations within the ______.
Click to check the answer
2
XOR gate output condition
Click to check the answer
3
AND gate output condition
Click to check the answer
4
Half Adder function
Click to check the answer
5
To perform the same operations as the XOR and AND gates, a NAND gate-based ______ requires five NAND gates.
Click to check the answer
6
XOR gate function in Half Adder
Click to check the answer
7
AND gate role in Half Adder
Click to check the answer
8
Binary addition in digital computations
Click to check the answer
9
In ______, Half Adders are instrumental for processing ______ data and executing instructions.
Click to check the answer
10
Half Adder Function
Click to check the answer
11
Half Adder Components
Click to check the answer
12
Half Adder in Binary Calculations
Click to check the answer
13
Half Adders play a crucial role in the functionality of ______ and the processing of ______, forming the basis of arithmetic operations in computers.
Click to check the answer
