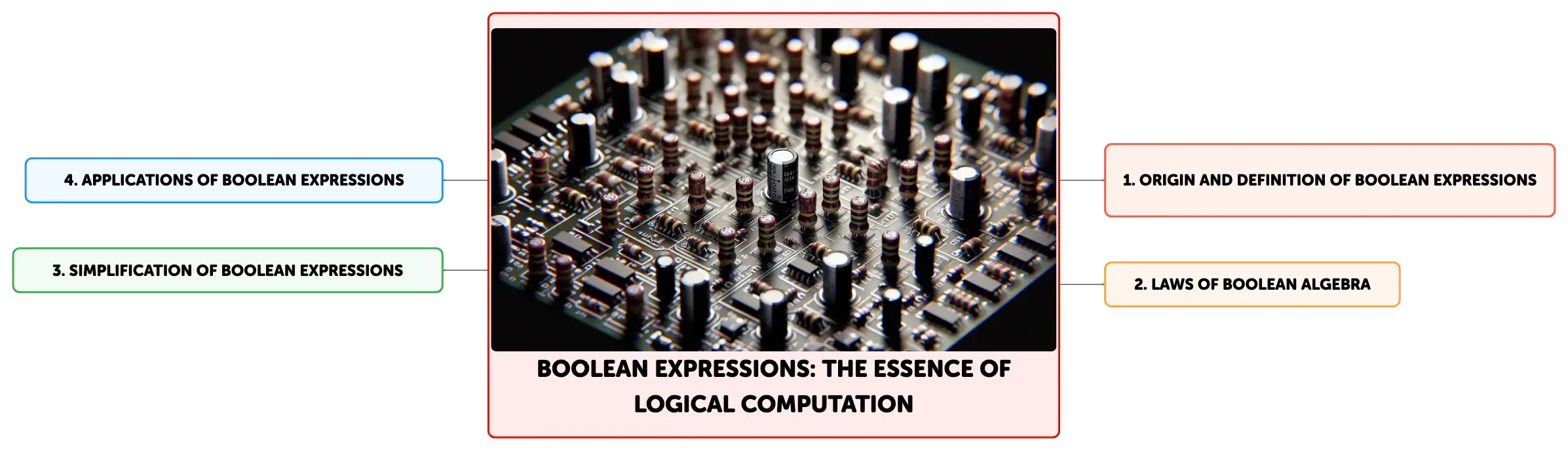

Boolean Expressions: The Essence of Logical Computation
Boolean expressions are fundamental to computing, based on George Boole's 19th-century work. They use binary values and logical operators like AND, OR, and NOT to yield true or false outcomes. Understanding Boolean algebra's laws, such as Commutative, Associative, and De Morgan's, is crucial for simplifying expressions and optimizing algorithms. Boolean logic is also key in database queries, digital electronics, and video game development.
See moreFundamentals of Boolean Expressions in Computing

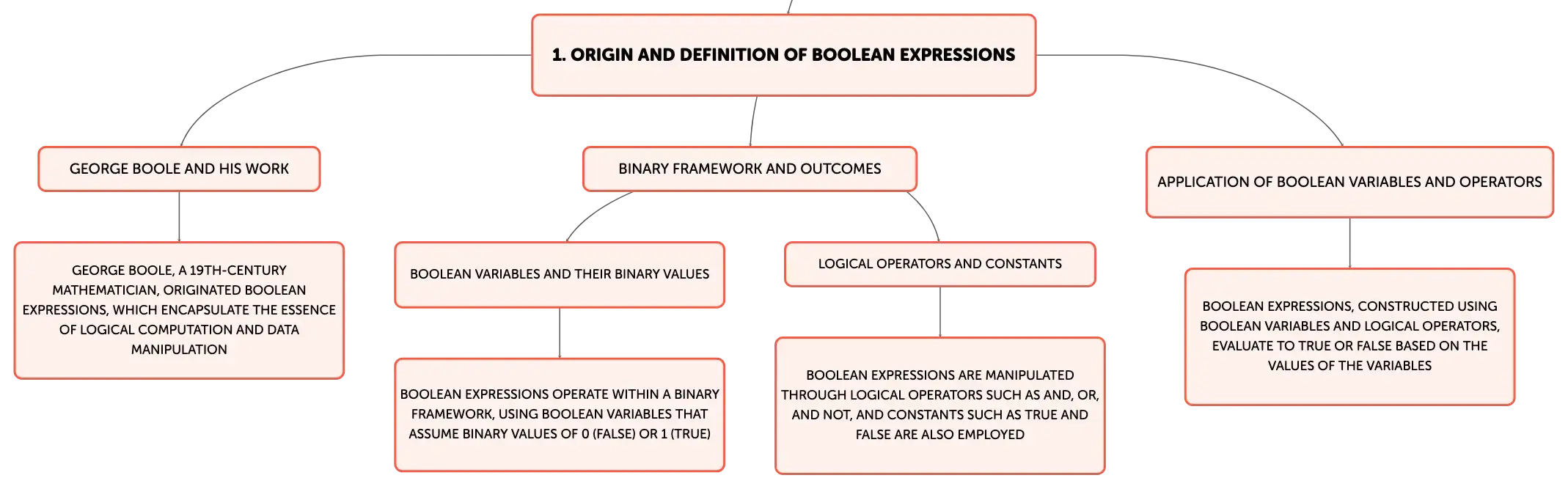

Boolean expressions are a cornerstone of computer science, encapsulating the essence of logical computation and data manipulation. Originating from the work of George Boole, a 19th-century mathematician, these expressions operate within a binary framework, yielding outcomes of either true or false. Boolean expressions are constructed using Boolean variables, which assume binary values of 0 (false) or 1 (true), and are manipulated through logical operators such as AND (conjunction, denoted as ∧), OR (disjunction, denoted as ∨), and NOT (negation, denoted as ¬). Constants such as true (1) and false (0) are also employed. For example, the expression A ∨ B illustrates the application of Boolean variables and the OR operator, where the expression evaluates to true if at least one of A or B is true.Principles of Boolean Algebra

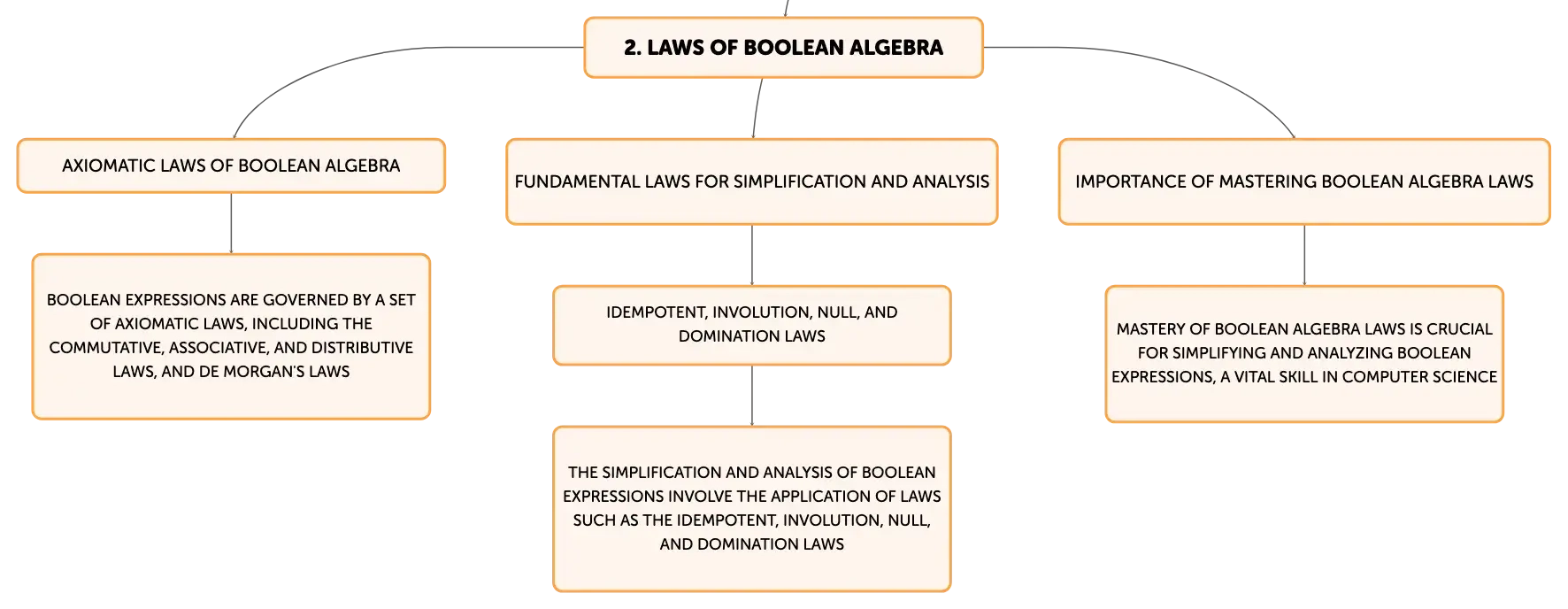

Boolean expressions are governed by a set of axiomatic laws that constitute Boolean algebra. These laws include the Commutative Law, which permits the rearrangement of operands (A ∨ B = B ∨ A; A ∧ B = B ∧ A), the Associative Law, which pertains to the grouping of operands (A ∨ (B ∨ C) = (A ∨ B) ∨ C; A ∧ (B ∧ C) = (A ∧ B) ∧ C), and the Distributive Law, which allows the distribution of one operation over another (A ∧ (B ∨ C) = (A ∧ B) ∨ (A ∧ C)). De Morgan's Laws are also fundamental, enabling the transformation of conjunctions into disjunctions and vice versa through negation (¬(A ∨ B) = ¬A ∧ ¬B; ¬(A ∧ B) = ¬A ∨ ¬B). Mastery of these laws is crucial for the simplification and analysis of Boolean expressions, a vital skill in the field of computer science.Simplifying Boolean Expressions

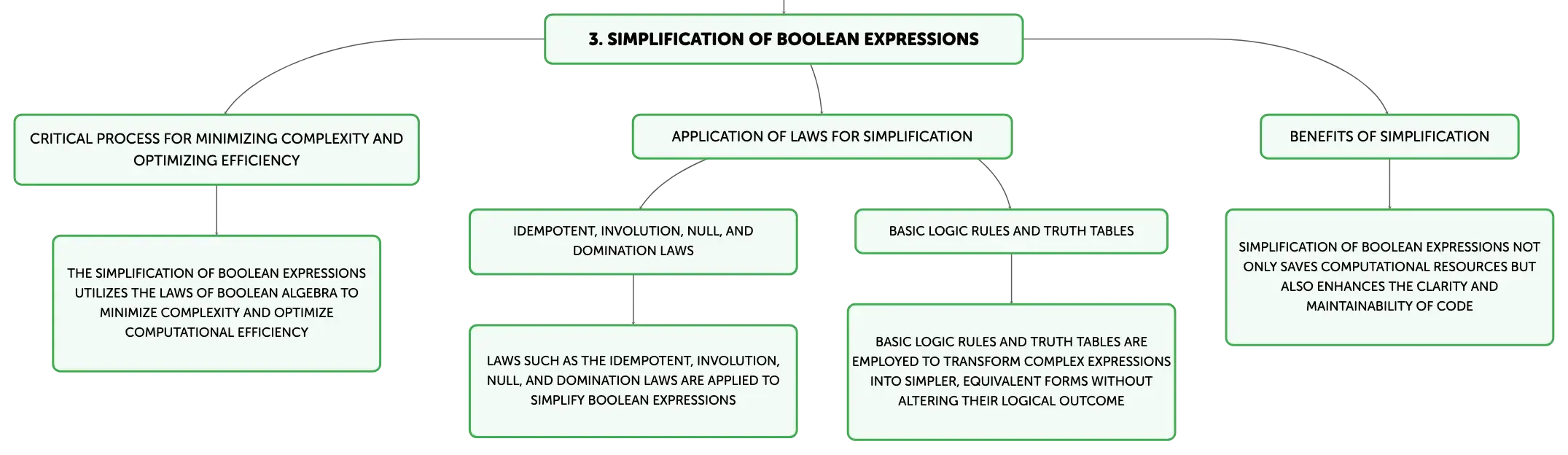

The simplification of Boolean expressions is a critical process that utilizes the laws of Boolean algebra to minimize complexity and optimize computational efficiency. This process involves the application of laws such as the Idempotent Law (A ∧ A = A; A ∨ A = A), the Involution Law (¬(¬A) = A), the Null Law (A ∧ ¬A = 0), and the Domination Law (A ∨ 1 = 1; A ∧ 0 = 0). Simplification not only saves computational resources but also enhances the clarity and maintainability of code. By employing basic logic rules and truth tables—which depict all possible values of Boolean variables—complex expressions can be transformed into simpler, equivalent forms without altering their logical outcome.Utilizing Truth Tables in Boolean Analysis
Truth tables are essential in the realm of computer science for the visualization and examination of Boolean expressions. They enumerate every possible permutation of input variables alongside their consequent outputs, offering a comprehensive view of an expression's logical behavior. To construct a truth table, one must list the outputs for all conceivable combinations of input variables. This methodical approach is especially beneficial for intricate expressions with numerous variables, ensuring that the resulting expression is consistent with the intended logic and functionality.Boolean Logic in Algorithm Development and Optimization

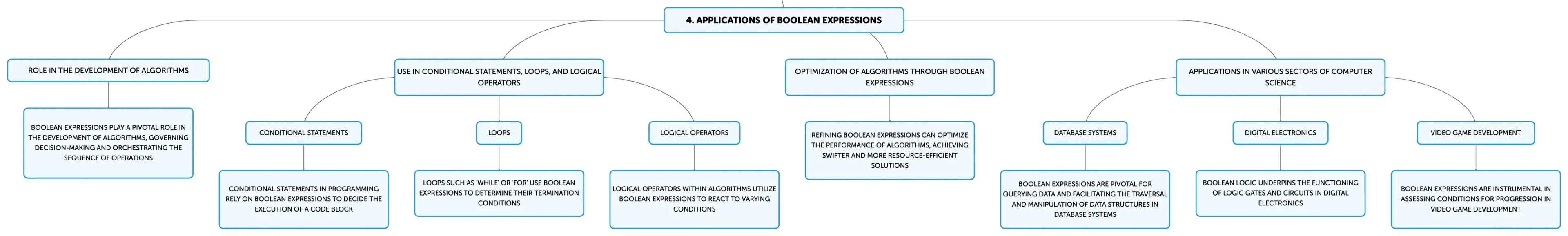

Boolean logic plays a pivotal role in the development of algorithms, where it governs decision-making and orchestrates the sequence of operations. Conditional statements, loops, and logical operators within algorithms utilize Boolean expressions to react to varying conditions. For example, an 'if' statement in programming hinges on a Boolean expression to decide the execution of a code block. Loops such as 'while' or 'for' depend on Boolean expressions to determine their termination conditions. Optimizing the performance of algorithms often involves refining Boolean expressions to lessen the computational burden, thereby achieving swifter and more resource-efficient algorithms. This form of optimization is particularly evident in algorithms for sorting and searching, where the application of Boolean logic can substantially reduce time complexity.Real-world Applications of Boolean Logic
Boolean logic finds extensive application across various sectors of computer science. In database systems, Boolean expressions are pivotal for querying data, enabling the filtration of records based on specified criteria, such as selecting entries with salaries exceeding a certain threshold. They also facilitate the traversal and manipulation of data structures by identifying elements that satisfy particular conditions. In the realm of digital electronics, Boolean logic underpins the functioning of logic gates and circuits, determining their outputs. Moreover, in video game development, Boolean expressions are instrumental in assessing whether players have fulfilled the conditions necessary for progression. Proficiency in interpreting Boolean expressions is indispensable for problem-solving and innovation in diverse areas of computer science.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
______ expressions, named after ______, a mathematician from the ______ century, result in true or false.
Click to check the answer
2
The Boolean expression A ∨ B, employing the ______ operator, is true if either A or B is true.
Click to check the answer
3
Commutative Law in Boolean Algebra
Click to check the answer
4
Associative Law in Boolean Algebra
Click to check the answer
5
De Morgan's Laws in Boolean Algebra
Click to check the answer
6
In reducing complexity of Boolean expressions, the ______ Law (A ∧ ¬A = 0) is used.
Click to check the answer
7
To maintain the logical outcome while simplifying, one can use ______ which show all possible values of Boolean variables.
Click to check the answer
8
Definition of Truth Table
Click to check the answer
9
Purpose of Listing Outputs
Click to check the answer
10
Truth Table Utility for Complex Expressions
Click to check the answer
11
______ statements and loops in programming rely on Boolean expressions to respond to different scenarios.
Click to check the answer
12
To enhance the efficiency of algorithms, especially in ______ and ______ tasks, Boolean expressions are often optimized.
Click to check the answer
13
Boolean Logic in Database Querying
Click to check the answer
14
Boolean Logic in Data Structures
Click to check the answer
15
Boolean Logic in Digital Electronics
Click to check the answer
