Understanding Scalar and Vector Projections

In vector analysis, distinguishing between scalar and vector projections is crucial. The scalar projection of a vector onto another is the length of the component of the first vector that lies in the direction of the second vector. It is a scalar quantity obtained by taking the dot product of the first vector with the unit vector in the direction of the second vector and is denoted as comp_b(a) = a · b̂, where b̂ is the unit vector in the direction of b. For example, if vector A has components (3, 4) in a two-dimensional space, its scalar projection onto the x-axis (horizontal direction) is 3, since the dot product of A with the unit vector î (1, 0) is 3×1 + 4×0, which equals 3.

3D coordinate system with a blue vector extending from the origin, its red perpendicular projection onto a green plane, and intersection marked by a yellow dot.

Vector Projections and Their Properties

Vector projection, in contrast, is the operation of projecting one vector onto another vector, resulting in a vector that is parallel to the second vector. This projection is often visualized as the 'shadow' that one vector casts onto another when an imaginary light source is shining perpendicular to the second vector. Mathematically, the vector projection of a onto b is denoted as proj_b(a) and is given by (a · b̂)b̂, where b̂ is the unit vector in the direction of b. A fundamental property of vector projections is that the vector a - proj_b(a) is orthogonal to b, meaning their dot product is zero. This orthogonality is a key concept in deriving the formula for vector projections.

Deriving the Vector Projection Formula

The formula for vector projection is derived by considering a vector a and a line L defined by a vector v. The projection of a onto L, denoted as proj_L(a), is a vector parallel to v. To find this projection, we set the dot product of a - proj_L(a) with v to zero, which implies that a - proj_L(a) is orthogonal to v. Solving for the scalar multiple, we obtain the formula proj_L(a) = (a · v / v · v) v, where a · v is the dot product of a and v, and v · v is the dot product of v with itself, which is the square of its magnitude. For instance, with vectors a = (6, 2) and v = (7, -6), the projection of a onto v is calculated as proj_v(a) = (a · v / v · v) v = (42 - 12) / (49 + 36) v = (30 / 85) v, which is a vector in the direction of v with a magnitude scaled by the factor 30/85.

Key Takeaways on Projections

To summarize, scalar projection quantifies the extent to which one vector lies in the direction of another and is computed using the dot product with the corresponding unit vector. The scalar projection of vector a onto the direction of vector b is given by comp_b(a) = a · b̂. Vector projection, on the other hand, creates a vector that extends in the direction of another vector, and is calculated using the formula proj_L(a) = (a · v / v · v) v, where L is the line defined by vector v. The resulting vector projection is parallel to v and orthogonal to the vector difference a - proj_L(a). These concepts are fundamental in vector analysis and have wide-ranging applications in physics, engineering, and mathematics.

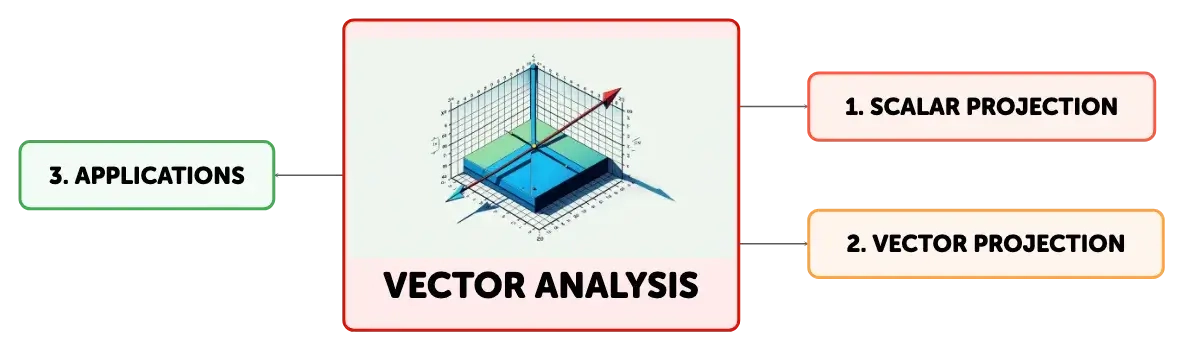

Vector Analysis

Concept Map

Summary

Outline

Vector Analysis

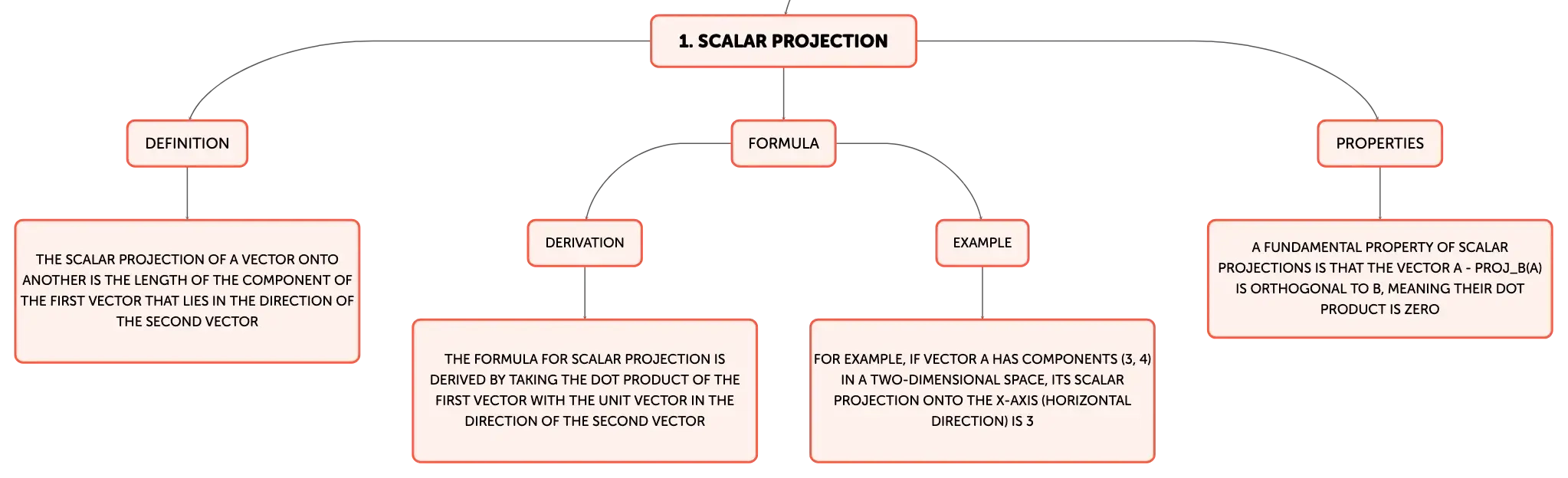

Scalar Projection

Definition

Formula

Properties

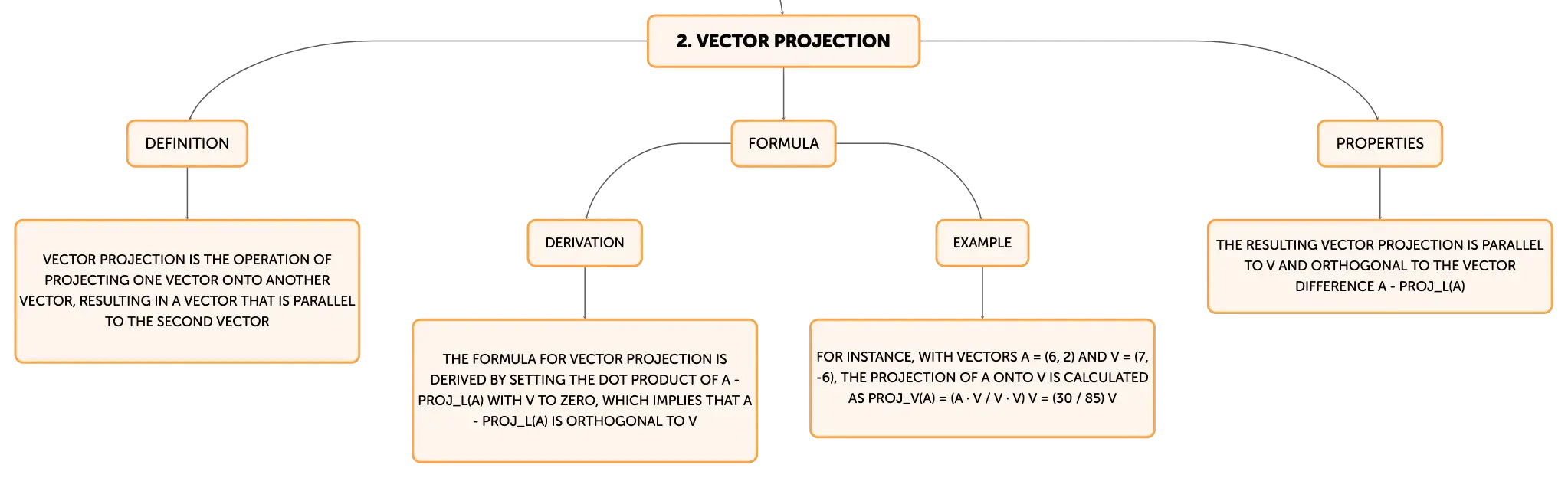

Vector Projection

Definition

Formula

Properties

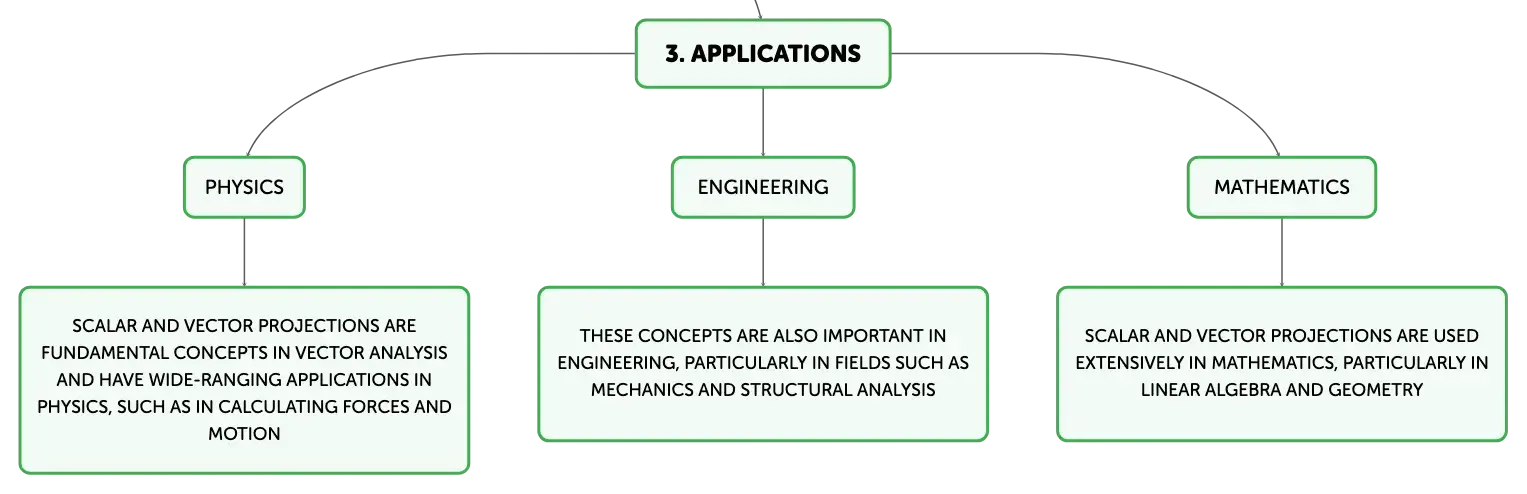

Applications
