Energy Storage Mechanism in Inductors

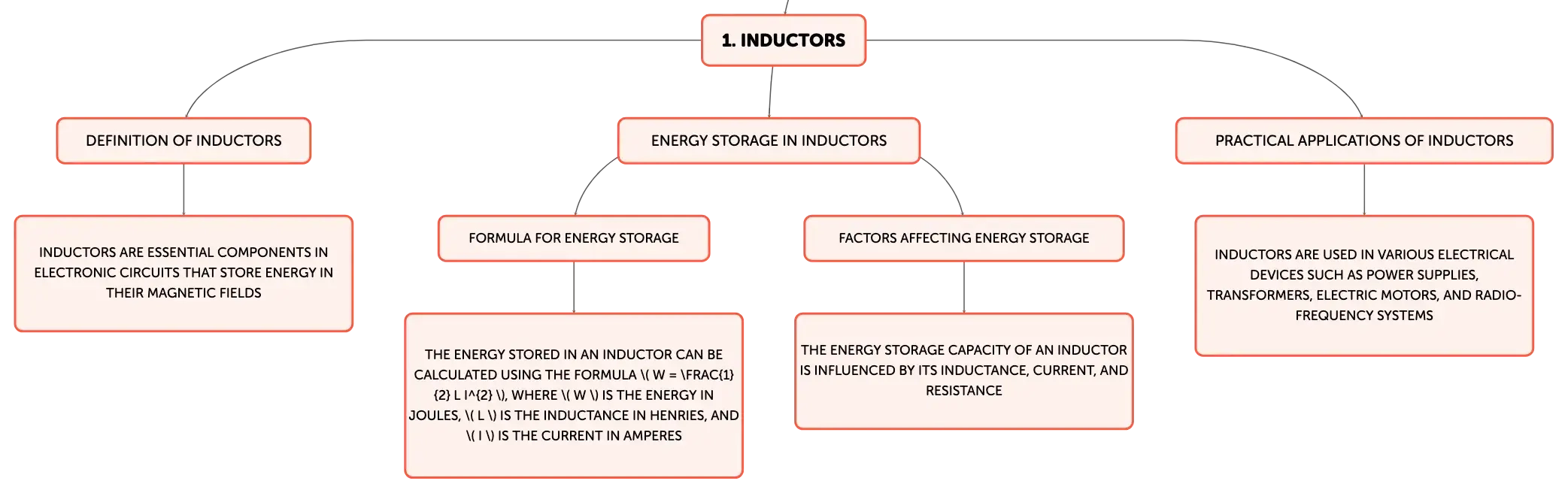

Inductors, essential components in electronic circuits, store energy in the magnetic field created by the electric current flowing through their coiled wire. This energy storage is dynamic, with the magnetic field's intensity changing in direct response to the variations in current. When the current increases, the magnetic field strengthens, and when the current decreases, the field weakens. The energy, stored within this magnetic field, is released back into the circuit when the current ceases. The energy stored in an inductor can be quantified by the formula $ W = \frac{1}{2} L I^{2} $, where $ W $ is the energy in joules, $ L $ is the inductance in henries, and $ I $ is the current in amperes.

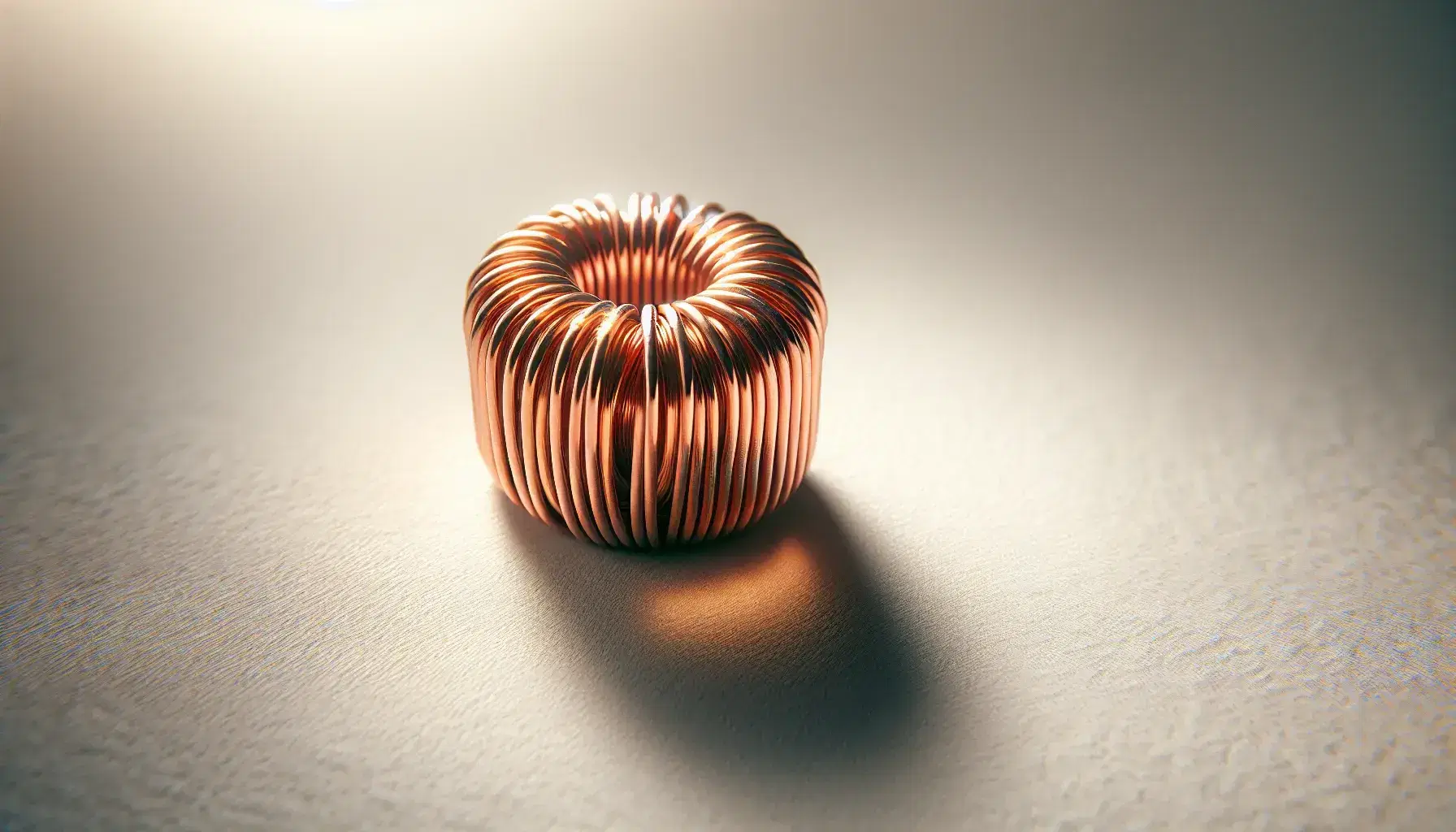

Close-up of a cylindrical copper wire inductor with a tightly wound coil around a central core, casting a soft shadow on a light surface.

Influence of Inductance and Current on Energy Storage

The inductance ($ L $) of an inductor, a measure of its ability to store energy in a magnetic field, is a fundamental property that determines how much opposition the inductor presents to changes in current, thus affecting the induced voltage. The current ($ I $), representing the flow of electric charge, is another critical factor in energy storage. The relationship between energy, inductance, and current is such that the energy stored is proportional to the product of the inductance and the square of the current. Consequently, an increase in current leads to a more significant increase in energy storage, emphasizing the importance of current in the energy storage process.

Determinants of Energy Storage in Inductors

The energy storage capacity of an inductor is influenced by several factors. Primarily, the inductance is directly proportional to the energy stored; a higher inductance means a greater capacity for energy storage. The current is equally significant, with the energy stored increasing with the square of the current. While resistance does not appear in the energy storage formula, it indirectly affects the energy stored by limiting the current that can flow through the inductor. A higher resistance results in a lower current, thereby reducing the potential energy storage.

Computing the Energy Stored in an Inductor

To compute the energy stored in an inductor, one must know both the inductance and the current. The energy can be calculated using the formula $ W = \frac{1}{2} L I^{2} $, yielding the energy in joules. This calculation is crucial for the design and analysis of electronic circuits, as it allows engineers to predict and control the energy storage characteristics of inductors, ensuring they are suitable for their intended applications.

Electromagnetic Theory Underpinning Inductor Energy Storage

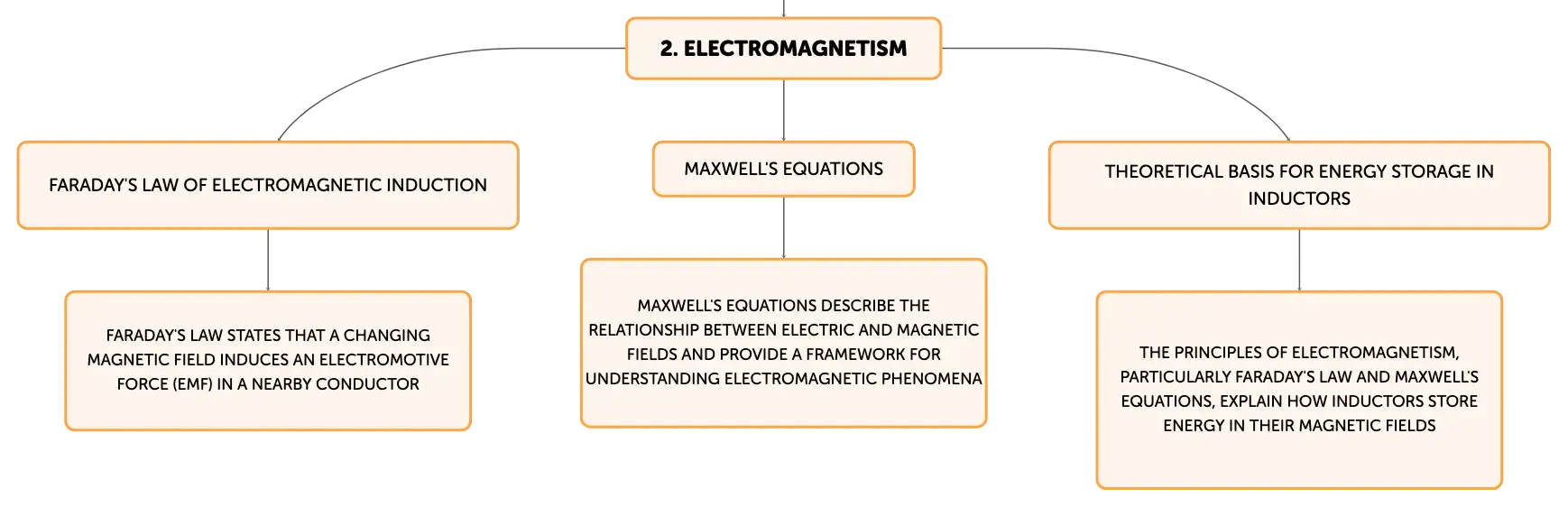

The theoretical basis for energy storage in inductors is founded on the principles of electromagnetism, particularly Faraday's law of electromagnetic induction, which states that a changing magnetic field induces an electromotive force (EMF) in a nearby conductor. An inductor exploits this induced EMF to generate a magnetic field, thereby storing energy. Maxwell's Equations, formulated by James Clerk Maxwell, describe the interplay between electric and magnetic fields and provide a comprehensive framework for understanding the electromagnetic phenomena that enable energy storage in inductors.

Practical Applications of Energy Storage in Inductors

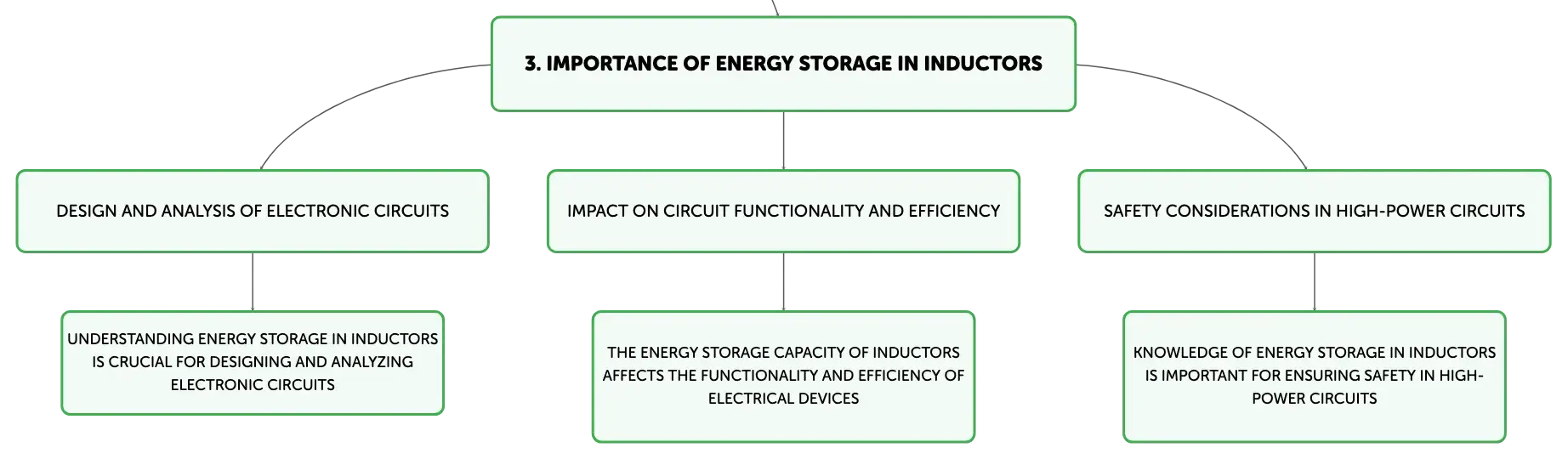

The initial energy stored in inductors has significant practical implications in the field of electromagnetism, affecting the design and functionality of electrical devices such as power supplies, transformers, electric motors, and radio-frequency systems. Understanding this energy storage is crucial for circuit design, particularly in alternating current (AC) circuits where the current and voltage are not constant. Additionally, knowledge of energy storage in inductors is vital for ensuring energy efficiency and safety in high-power circuits, where inductors can maintain a significant amount of energy even when the circuit is inactive.

Summary of Inductor Energy Storage Concepts

In conclusion, inductors store energy in their magnetic fields, with the amount of energy dependent on the inductance and the square of the current flowing through them. The formula $ W = \frac{1}{2} L I^{2} $ encapsulates this dependency, highlighting the substantial influence of current on energy storage. A comprehensive understanding of the factors that affect energy storage, such as inductance, current, and resistance, is essential for the effective use of inductors in electronic and electrical systems. The principles of electromagnetism, including Faraday's law and Maxwell's Equations, provide the theoretical foundation for these concepts, which are integral to the operation of contemporary technological devices.
