Exploring the world of wave phenomena, this overview delves into periodic waves, wave packets, and stationary waves. Periodic waves are continuous, sinusoidal oscillations, while wave packets consist of varying frequencies forming localized pulses. Stationary waves, created by interference within a bounded medium, feature nodes and antinodes without transferring energy. These concepts are pivotal in fields like acoustics and quantum mechanics, influencing technology and music.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Disturbances that move energy through a medium or space are known as ______, and are defined by their wavelength, frequency, and ______.

waves

amplitude

A ______ wave packet consists of various waves with different frequencies that combine to create a localized ______.

Wave

pulse

Definition of stationary waves

Waves with identical frequency/amplitude, fixed in space, formed by interference of two waves traveling in opposite directions.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

$Biconvex lens on white background refracting light into a spectrum, demonstrating light dispersion with a subtle rainbow effect and lens reflection.$

The Thick Lens Formula: A Cornerstone of Optical Science

Laboratory prism dispersing white light into a color spectrum on a table, with optical instruments on a shelf and a gloved hand holding a slide.

Properties and Applications of Light Waves

Laboratory laser apparatus with red coherent beam passing through multiple transparent lenses, demonstrating parallel light propagation in a scientific setting.

Parallel Beams in Physics

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Wave Fundamentals: Periodic Waves and Wave Packets

Waves are disturbances that transfer energy through a medium or space, characterized by their wavelength, frequency, and amplitude. Periodic waves are continuous oscillations that repeat at regular intervals, much like the unending pattern of ocean waves. These waves are described by a sinusoidal function and are infinite in extent. Wave packets, however, are a collection of waves of varying frequencies that superpose to form a localized pulse, resembling a solitary wave in the ocean. While both types of waves can transport energy, periodic waves are typically used to illustrate basic wave properties due to their simpler, repetitive nature.

Serene beach scene with gentle waves, a clear sky, an individual contemplating the sea, and seagulls in flight over the shimmering water.

The Nature of Stationary Waves

Stationary waves, or standing waves, are formed when two waves of identical frequency and amplitude travel in opposite directions and interfere with each other within a bounded medium. The principle of superposition dictates that when these waves overlap, they create a pattern of constructive and destructive interference. Constructive interference leads to areas of maximum amplitude called antinodes, while destructive interference results in points of no displacement known as nodes. Stationary waves are characterized by their fixed nodes and antinodes, and unlike traveling waves, they do not convey energy along the medium.

Progressive Waves and Their Movement

Progressive waves, also known as traveling waves, are disturbances that move through a medium or space, transferring energy from one location to another. Each point on a progressive wave oscillates with the same amplitude over time, and the wavefronts are in phase with each other, separated by whole wavelength multiples. The speed of a progressive wave is determined by the properties of the medium, such as its density and elasticity. These waves are fundamental to understanding phenomena such as sound and light, where energy is transmitted over distances.

Characteristics of Stationary Waves

Stationary waves exhibit distinct features that differentiate them from progressive waves. The amplitude of oscillation varies along the medium, with nodes representing points of no movement and antinodes showing points of maximum movement. The phase difference between oscillations at any two points on the wave is either zero or π radians, depending on whether the points lie on the same side or opposite sides of a node. Importantly, stationary waves do not result in the net transfer of energy across the medium; the energy is instead confined to the region between nodes, where it is continually reflected back and forth.

Applications of Stationary Waves

Stationary waves have practical applications in everyday life and technology. In musical instruments, such as strings and wind instruments, stationary waves are responsible for producing the fundamental tones and harmonics that define the timbre of the music. In microwave ovens, stationary waves are used to heat food efficiently, with the pattern of nodes and antinodes creating hot and cold spots. Additionally, stationary wave patterns are fundamental to the quantum mechanical description of subatomic particles, where they define the probability distributions of electrons around atomic nuclei.

Concluding Insights on Wave Phenomena

In conclusion, waves are a fundamental concept in physics, with periodic and wave packets representing two key types of waveforms. Stationary waves, formed through the interference of two identical waves, are characterized by their nodes and antinodes and do not convey energy longitudinally. Progressive waves, on the other hand, move through a medium, carrying energy and exhibiting a consistent phase relationship between points. Understanding these wave behaviors is crucial for grasping a wide range of scientific principles and technological applications, from acoustics to quantum mechanics.

Waves and Their Properties

Concept Map

Summary

Outline

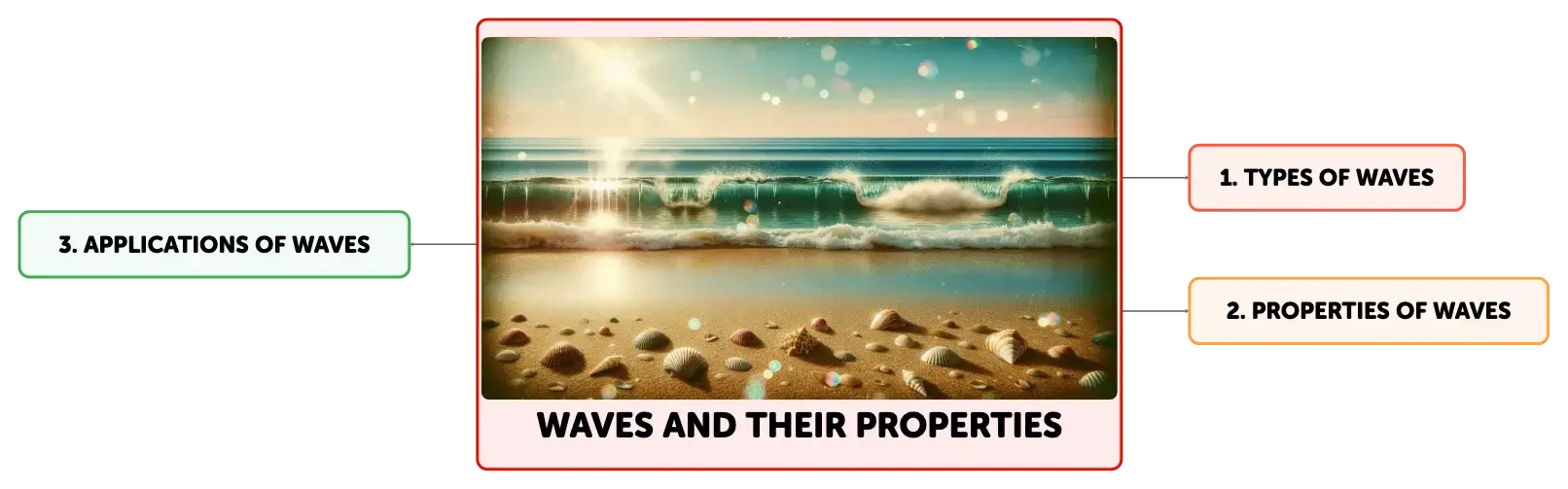

Waves and Their Properties

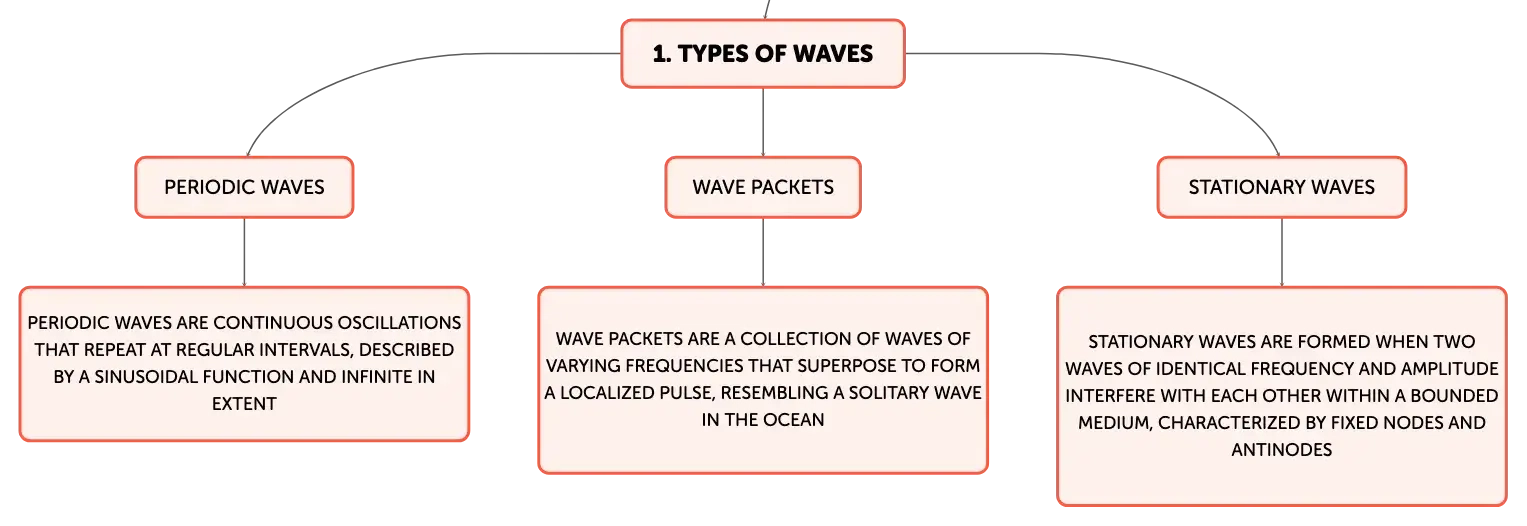

Types of Waves

Periodic Waves

Wave Packets

Stationary Waves

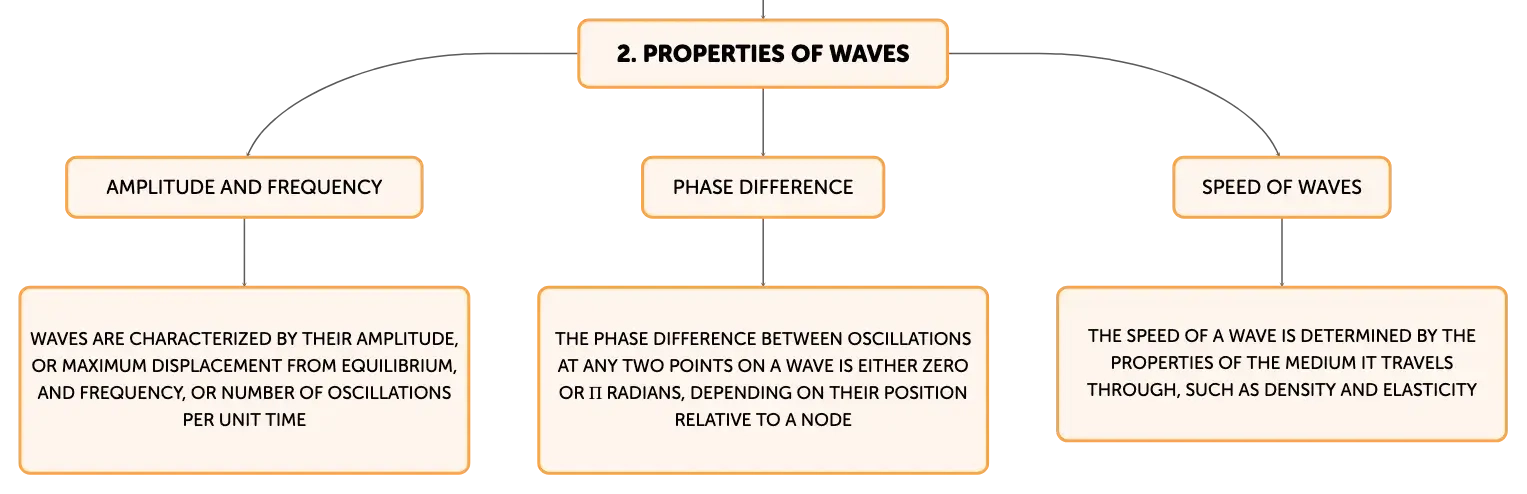

Properties of Waves

Amplitude and Frequency

Phase Difference

Speed of Waves

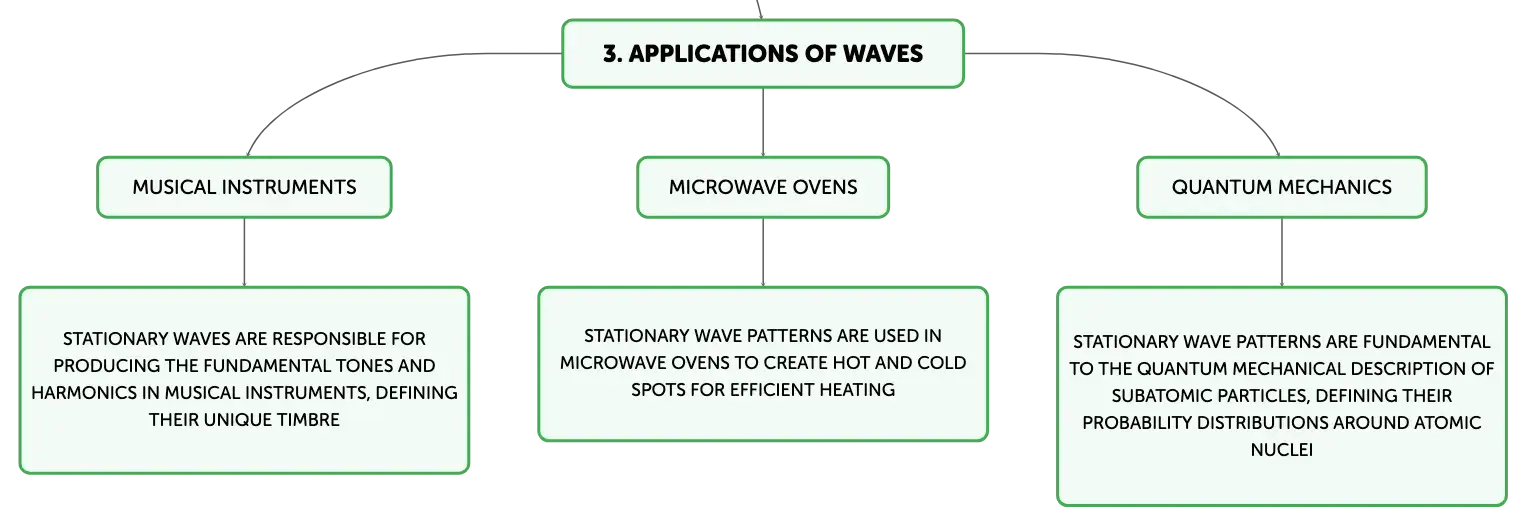

Applications of Waves

Musical Instruments

Microwave Ovens

Quantum Mechanics
