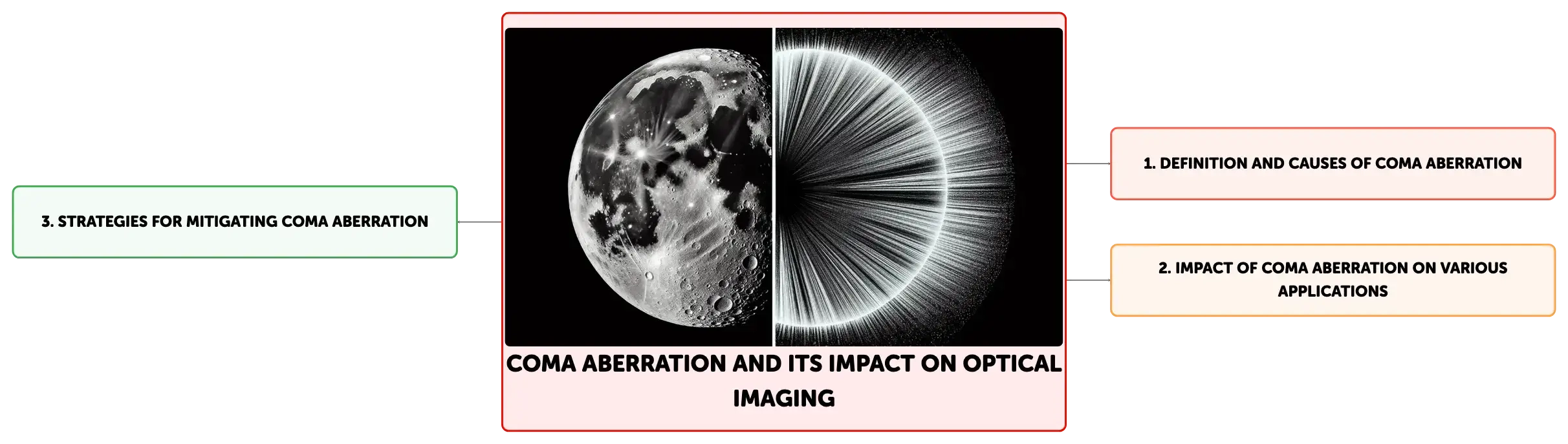

Coma Aberration and its Impact on Optical Imaging
Coma aberration is an optical distortion where off-axis image points appear as comet-like blurs. This text explores its impact on telescopes, cameras, and microscopes, and discusses methods to mitigate its effects, such as using aspherical lenses and adaptive optics. Advances in optical design are improving correction capabilities, enhancing image quality in various applications.
See moreExploring Coma Aberration in Optical Instruments

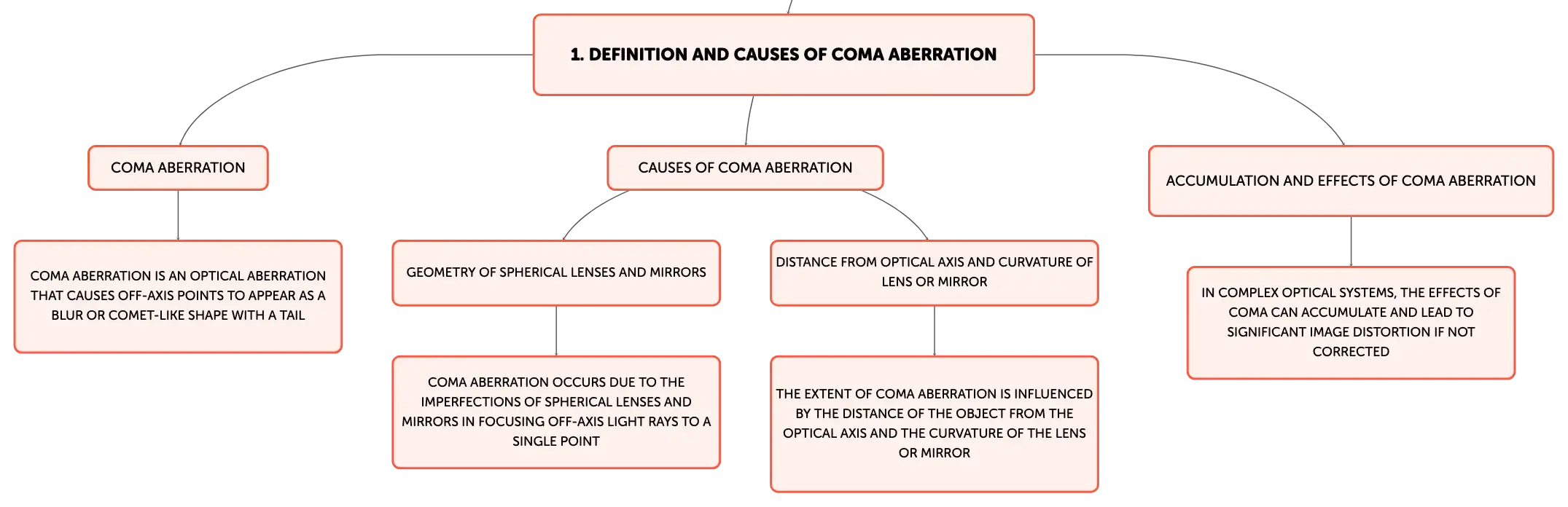

Coma aberration, often referred to simply as coma, is a type of optical aberration where an image point located off the optical axis of an imaging system is projected as a blur or a comet-like shape with a tail. This occurs when light rays from an off-axis point source are refracted by a lens or reflected by a mirror and do not converge at the same focal point. The extent of coma aberration is influenced by the distance of the object from the optical axis and the curvature of the lens or mirror. Coma is a common issue in optical devices such as telescopes, microscopes, and cameras, where it can degrade the quality of the image by causing blur and distortion, especially towards the edges of the field of view.The Physics of Coma Aberration
Coma aberration arises due to the geometry of spherical lenses and mirrors, which are not perfectly suited to focus off-axis light rays to a single point. The degree of coma can be calculated using a formula that considers the refractive index of the lens material, the height of the object point above the axis, and the curvature of the lens or mirror. The aberration is more pronounced for light rays that enter the lens or reflect off the mirror at greater distances from the optical axis. In complex optical systems with multiple elements, the effects of coma can accumulate, leading to significant image distortion if not properly corrected.Coma Aberration's Effect on Astronomical Observations

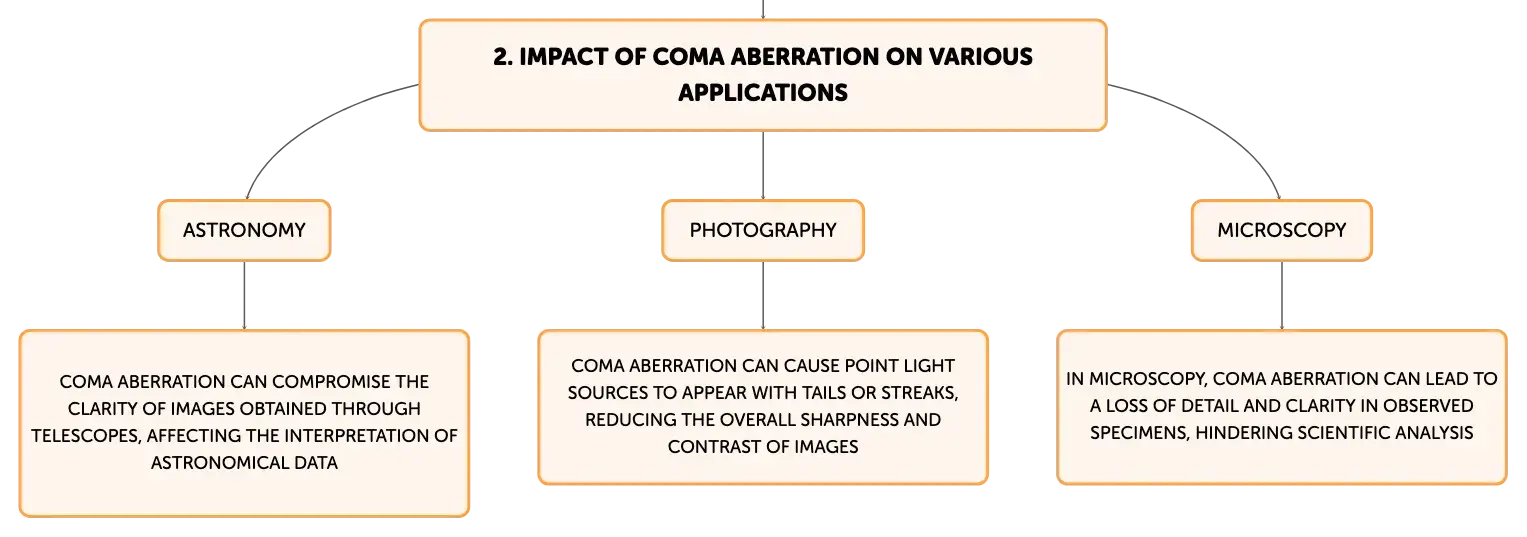

Coma aberration is a critical issue in astronomy, where it can compromise the clarity of images obtained through telescopes. The aberration causes stars and other celestial objects that are not centered in the telescope's field of view to appear distorted, potentially affecting the interpretation of astronomical data. For instance, the Hubble Space Telescope experienced notable levels of coma aberration after its launch, which initially compromised its imaging capabilities. Additionally, atmospheric turbulence can cause similar distortions, known as atmospheric coma or astronomical seeing, which can further challenge ground-based astronomical observations.The Role of Coma Aberration in Photography and Microscopy
In photography, coma aberration is particularly problematic for wide-angle and large aperture lenses, where it can cause point light sources to appear with tails or streaks, thus reducing the overall sharpness and contrast of the image. In microscopy, where high magnification and resolution are essential, coma can lead to a loss of detail and clarity in the specimen being observed. This distortion can hinder scientific analysis by altering the true appearance of microscopic structures, potentially leading to inaccurate conclusions.Strategies for Reducing Coma Aberration

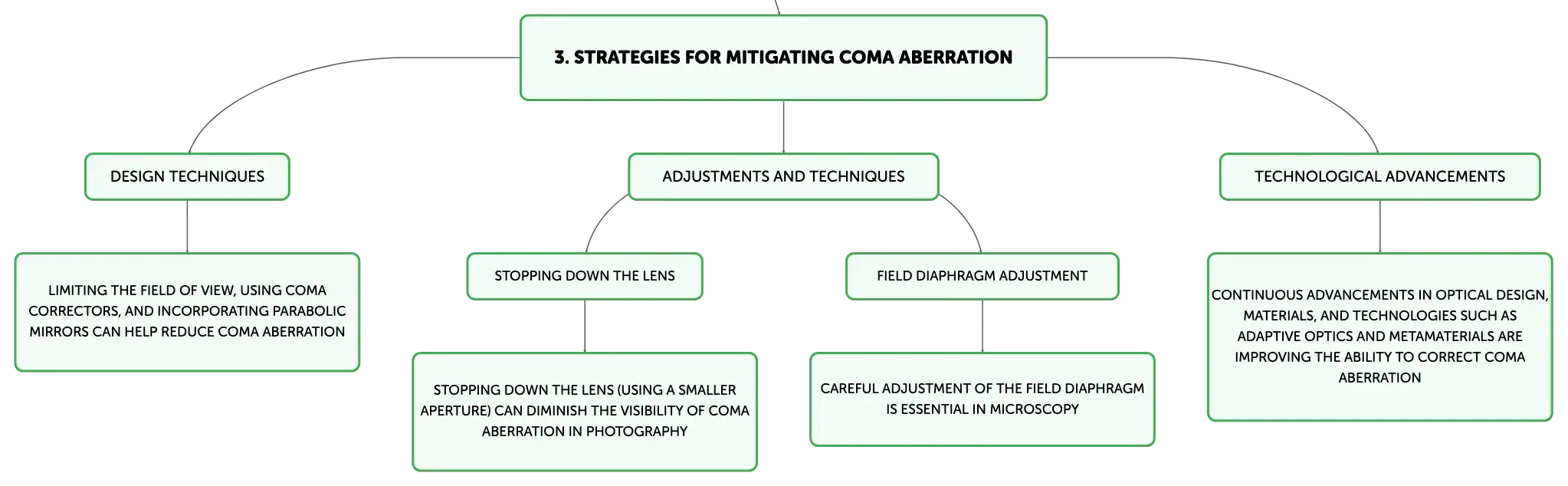

To mitigate the effects of coma aberration, optical engineers employ various strategies. Designing optical systems with a limited field of view, incorporating coma correctors, and using parabolic mirrors instead of spherical ones can all help reduce coma. In photography, stopping down the lens (using a smaller aperture) can diminish the visibility of coma. In microscopy, careful adjustment of the field diaphragm is essential. The use of aspherical lenses, which have surfaces that are not part of a sphere, and apochromatic lenses, which are designed to bring three wavelengths of light into focus in the same plane, can also greatly improve image quality by minimizing aberrations.Advances in Correcting Coma Aberration
Continuous advancements in optical design and material science are leading to more sophisticated methods for correcting coma aberration. Simulation and modeling software enable the optimization of optical systems to reduce coma during the design phase. Innovations in lens materials and coatings enhance the ability to control aberrations. Furthermore, cutting-edge technologies such as adaptive optics, which can adjust the optical system in real-time to compensate for aberrations, and the exploration of metamaterials with unique refractive properties, are paving the way for the next generation of optical instruments with improved aberration correction capabilities. These developments are promising for the future of optical imaging across various applications.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
The severity of ______ aberration in optical devices like telescopes and cameras is affected by the object's distance from the ______ axis and the lens or mirror's curvature.
Click to check the answer
2
Coma aberration definition
Click to check the answer
3
Impact of object point height on coma
Click to check the answer
4
Coma correction in optical systems
Click to check the answer
5
The ______ Space Telescope had significant ______ aberration issues after it was launched.
Click to check the answer
6
Coma Aberration Definition
Click to check the answer
7
Coma Aberration in Wide-Angle Lenses
Click to check the answer
8
Coma Impact on Microscopy
Click to check the answer
9
Optical engineers combat ______ aberration by using ______ mirrors rather than spherical ones.
Click to check the answer
10
In photography, reducing the lens aperture, also known as ______ down, lessens the effect of ______.
Click to check the answer
11
Role of simulation software in optical design
Click to check the answer
12
Impact of lens materials and coatings on aberrations
Click to check the answer
13
Contribution of adaptive optics to aberration correction
Click to check the answer
