Understanding Standing Electromagnetic Waves

Standing electromagnetic waves are a fascinating phenomenon that occurs when two waves of the same frequency and amplitude travel in opposite directions and interfere with each other. This interference creates a pattern of nodes, where the wave amplitude is always zero, and antinodes, where the amplitude reaches its maximum. Unlike traveling waves, which carry energy from one place to another, the energy in standing waves is confined to specific areas, oscillating back and forth at the antinodes.
Microwave cavity resonator with visible standing wave pattern, nodes and antinodes inside a polished cylindrical metallic structure.

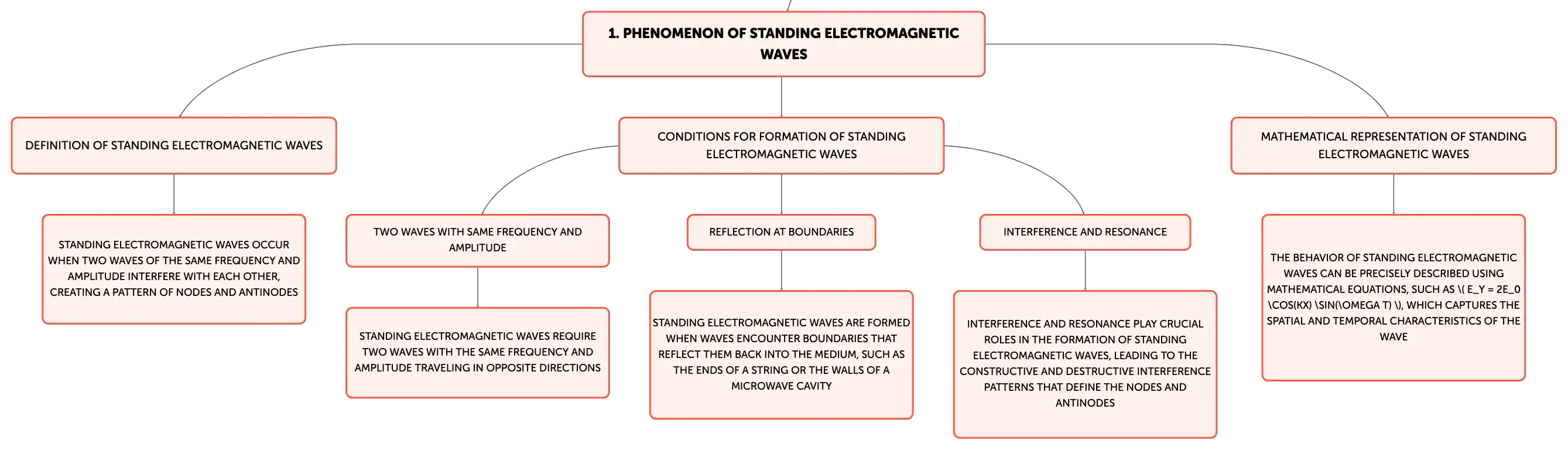

Conditions for the Formation of Standing Electromagnetic Waves

For standing electromagnetic waves to form, certain conditions must be met. Firstly, there must be two waves with the same frequency and amplitude moving in opposite directions. Secondly, these waves must encounter boundaries that reflect them back into the medium, such as the ends of a string or the walls of a microwave cavity. The reflections at these boundaries must also be in phase to maintain the standing wave pattern. Interference and resonance play crucial roles in this process, as they lead to the constructive and destructive interference patterns that define the nodes and antinodes.

Mathematical Description of Standing Electromagnetic Waves

The mathematical representation of standing electromagnetic waves allows for a precise description of their behavior. For a wave oscillating in one dimension, the electric field component can be described by the equation \( E_y = 2E_0 \cos(kx) \sin(\omega t) \), where \(E_y\) is the electric field strength, \(E_0\) is the amplitude, \(k\) is the wave number, \(\omega\) is the angular frequency, \(t\) represents time, and \(x\) denotes position along the medium. This equation captures the spatial and temporal characteristics of the standing wave, showing how the amplitude varies with position and time.

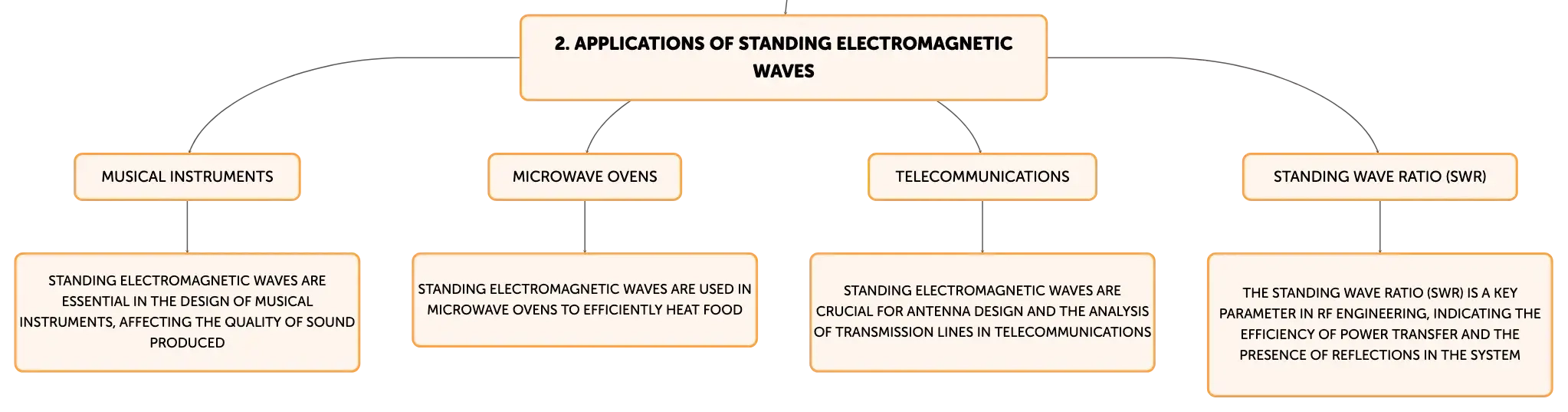

Applications of Standing Electromagnetic Waves

Standing electromagnetic waves have numerous applications in technology and science. They are essential in the design of musical instruments, where they affect the quality of sound produced, as well as in microwave ovens, where they heat food efficiently. In telecommunications, standing wave patterns are crucial for antenna design and the analysis of transmission lines. The standing wave ratio (SWR) is a key parameter in radio frequency (RF) engineering, indicating the efficiency of power transfer and the presence of reflections in the system.

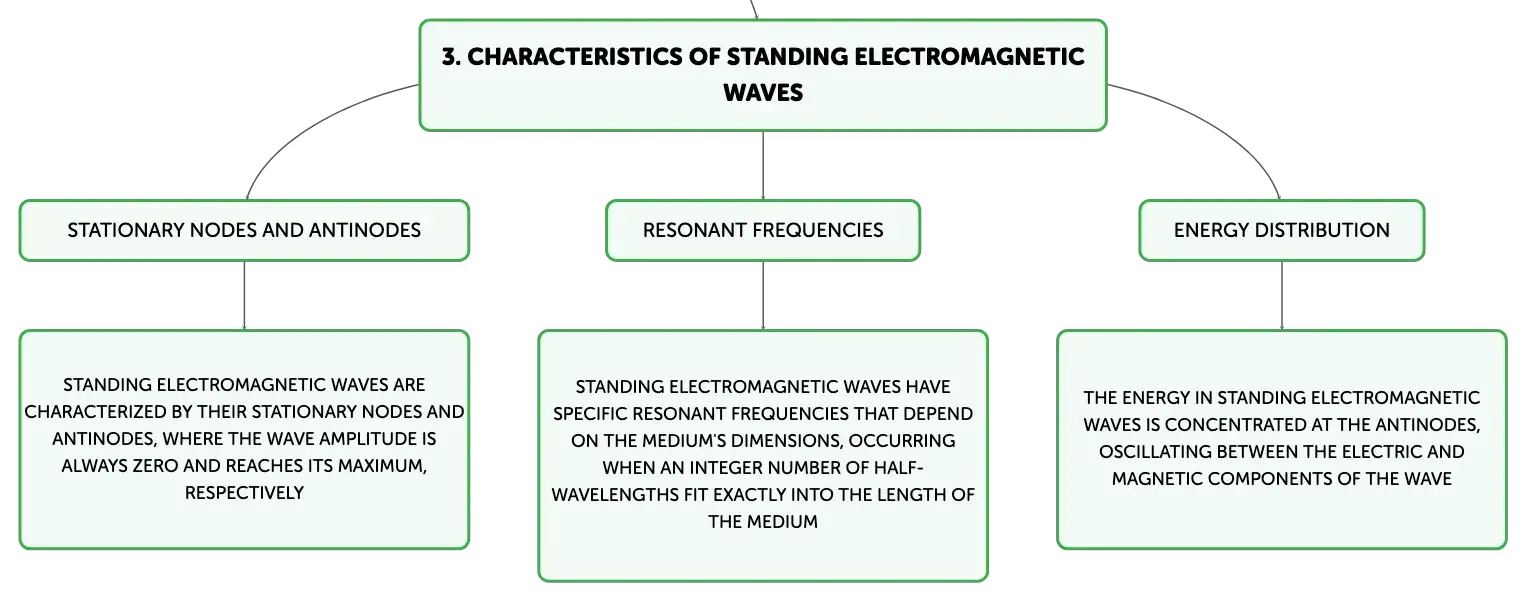

Properties and Resonance of Standing Electromagnetic Waves

Standing electromagnetic waves are characterized by their stationary nodes and antinodes, as well as specific resonant frequencies that depend on the medium's dimensions. These resonant frequencies occur when an integer number of half-wavelengths fit exactly into the length of the medium, leading to enhanced wave amplitude. The formula for these frequencies is \( f_n = n \cdot \frac{v}{2L} \), where \(f_n\) is the nth resonant frequency, \(v\) is the wave velocity, and \(L\) is the length of the medium.

Energy Distribution in Standing Electromagnetic Waves

The energy in standing electromagnetic waves is not evenly distributed but is concentrated at the antinodes where the amplitude is greatest. The energy oscillates between the electric and magnetic components of the wave, with the intensity given by \( I = \frac{1}{2} \epsilon_0 c E_{0}^{2} \), where \(I\) is the intensity, \(\epsilon_0\) is the permittivity of free space, \(c\) is the speed of light, and \(E_0\) is the amplitude. This localized energy is a distinctive feature of standing waves and has implications for their practical applications.

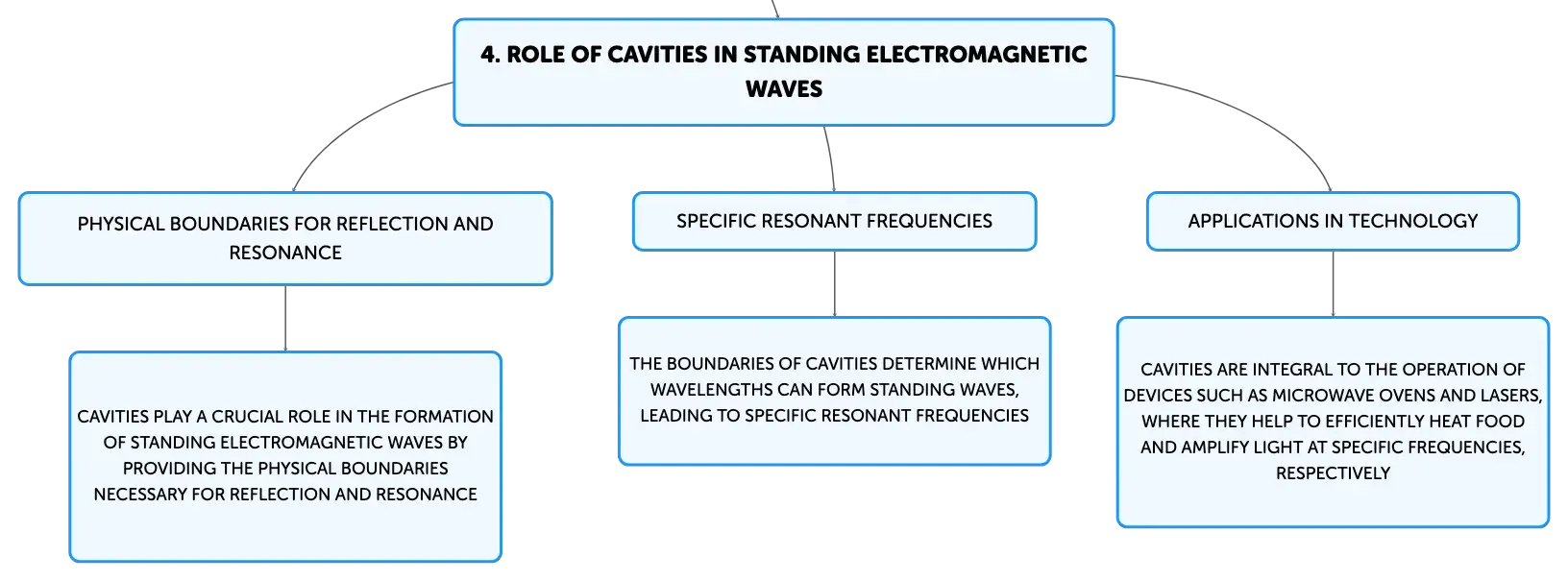

The Importance of Cavities in Standing Wave Formation

Cavities play a crucial role in the formation of standing electromagnetic waves by providing the physical boundaries necessary for reflection and resonance. These boundaries determine which wavelengths can form standing waves, leading to specific resonant frequencies. Cavities are integral to the operation of devices such as microwave ovens, where they help to efficiently heat food, and in lasers, where they are used to amplify light at specific frequencies.

The Impact of Standing Electromagnetic Waves in Science and Technology

Standing electromagnetic waves are a key concept in physics with wide-ranging applications in both theoretical and practical domains. Their unique characteristics, such as the stationary pattern of nodes and antinodes and the localized energy distribution, make them an important area of study. The ability to predict and utilize standing wave phenomena is crucial in fields such as RF engineering, where they affect the transmission and reception of signals, and in the development of technologies like quantum computing, where cavity design is influenced by standing wave patterns.
