Camera Physics
Concept Map
Exploring the intricacies of camera physics, this content delves into the principles of optics that enable image capture. It covers the role of aperture, shutter speed, and sensor sensitivity in photography, the use of cameras in scientific research, and the technological innovations driven by camera physics. The discussion extends to the specifics of microscope camera physics, the science of camera lenses, achieving sharp focus, and the artistic implications of photographic techniques.
Summary
Outline
Understanding Camera Physics Fundamentals
Camera physics is the branch of optics that deals with the capture of images by cameras. A camera functions by recording light from its surroundings, which is focused to form an image. The fundamental principles that govern this process include the rectilinear propagation of light, which states that light travels in straight lines, and the laws of refraction and reflection as they pertain to lenses. The main components influencing image capture are the aperture, which adjusts the lens's opening to control light entry; the shutter speed, which sets the time frame for light exposure on the camera's sensor; and the sensor's sensitivity, which is responsible for converting the incoming light into an electrical signal that can be processed into an image.The Role of Optical Instruments in Physics
Optical instruments like cameras are indispensable in various scientific and educational contexts. In educational environments, they are used to illustrate optical phenomena such as image formation and the properties of lenses. In research, cameras are crucial for recording experimental data in fields like optics, spectroscopy, and astronomy. Technological advancements have expanded the use of cameras into areas such as high-resolution imaging, security systems, and medical diagnostics, highlighting their importance as multifaceted tools in both science and industry.Delving into Microscope Camera Physics
Microscope cameras are specialized devices that apply the principles of wave optics, including the study of light waves, interference patterns, and diffraction effects. These cameras are designed to magnify minute specimens and capture their images on a digital sensor, facilitating in-depth scientific examination. As light passes through a specimen, it is diffracted and subsequently focused by the microscope's objective lens to form an enlarged image. This magnification is essential for the study of microscopic structures, such as cells and microorganisms, enabling researchers to observe details that are imperceptible to the unaided eye.The Science Behind Camera Lenses
The lens is a critical element in a camera's ability to form images, relying on the principles of geometrical optics. When light transitions between different media, it undergoes refraction, which causes the light to bend. Camera lenses are designed to refract and focus light rays onto a specific point on the sensor, resulting in a sharp image. A thorough understanding of how lenses manipulate light is fundamental to improving camera technology and photographic techniques.Achieving Sharp Focus in Photography
Precise focusing is crucial for producing clear, detailed photographs. The process of focusing a camera involves adjusting the lens so that light is directed accurately onto the sensor. This is akin to positioning a magnifying glass to concentrate sunlight onto a single point. By altering the lens's distance from the sensor, the camera can ensure that light rays converge properly, which is vital for photographing subjects at different distances and achieving a crisp image.The Dynamics of Camera Shutter Operation
The camera shutter is a vital component that regulates the amount of light reaching the sensor, directly affecting the image's exposure. Shutter speed refers to the length of time the shutter remains open, and it is a key factor in capturing motion. A fast shutter speed can freeze fast-moving subjects, resulting in a still image, while a slow shutter speed allows for motion blur, which can convey movement. Mastery of shutter operation is essential for photographers to control exposure effectively and produce images that match their creative vision.The Influence of Camera Physics on Photographic Artistry
The principles of camera physics significantly impact the art of photography, influencing aspects such as image sharpness and the emotional tone of a photo. The refraction of light by the lens is critical for focusing light correctly on the sensor, which affects image resolution. The physics of light also determines the exposure and depth of a photograph, while the interplay between aperture size and depth of field enables photographers to manipulate the range of focus within a scene. Understanding these principles is key for photographers to elevate the visual and emotional quality of their images.Cameras in Contemporary Physics and Technological Innovation
Cameras are instrumental in contemporary physics, facilitating the observation and documentation of various phenomena. High-speed cameras capture rapid events, providing valuable data in disciplines such as fluid dynamics and particle physics. In the medical field, cameras are essential for diagnostic procedures, with devices like endoscopes using camera technology to offer minimally invasive internal views. In photonics, camera principles underpin cutting-edge developments such as LiDAR and Fourier transform optics, which have led to breakthroughs like lensless cameras and digital holography. These diverse applications underscore the critical role of camera physics in scientific discovery and technological progress.
Show More

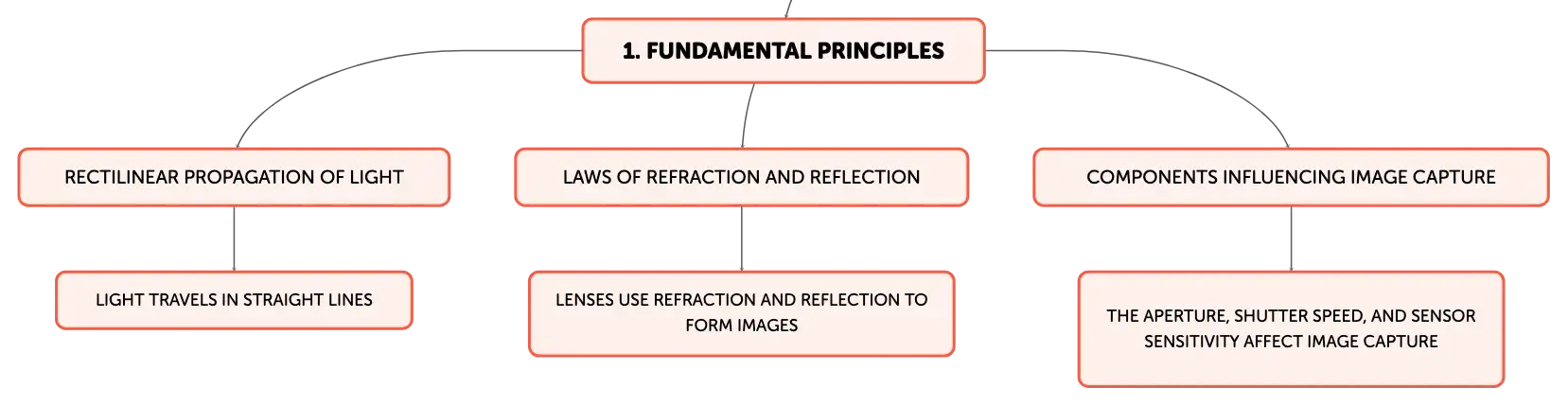

Fundamental Principles
Rectilinear Propagation of Light
Light travels in straight lines
Laws of Refraction and Reflection
Lenses use refraction and reflection to form images
Components Influencing Image Capture
The aperture, shutter speed, and sensor sensitivity affect image capture

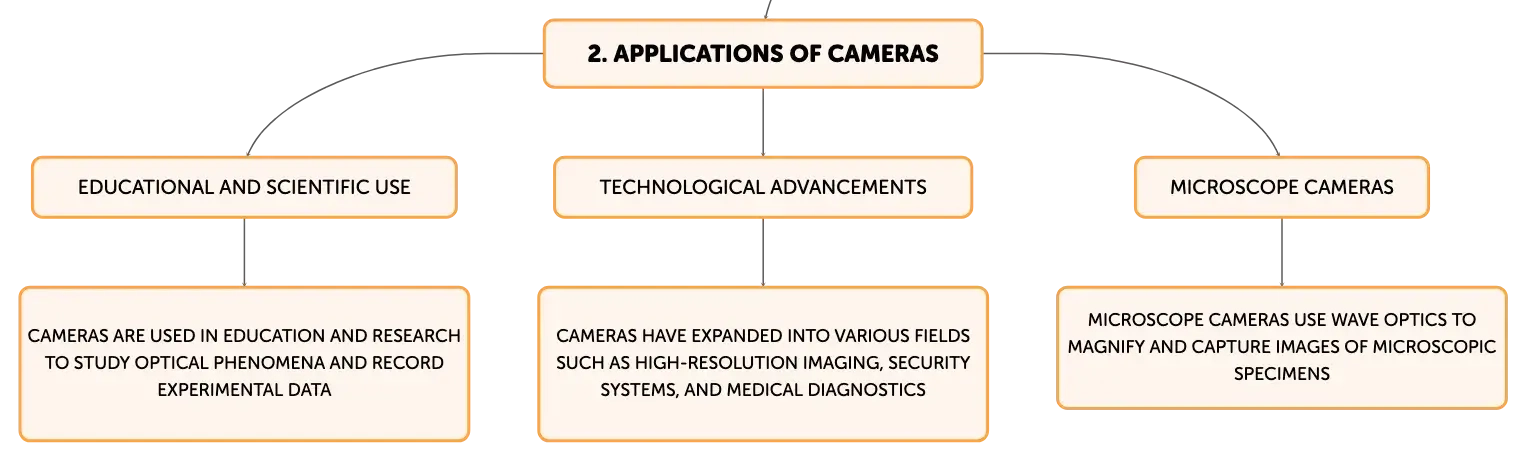

Applications of Cameras
Educational and Scientific Use
Cameras are used in education and research to study optical phenomena and record experimental data
Technological Advancements
Cameras have expanded into various fields such as high-resolution imaging, security systems, and medical diagnostics
Microscope Cameras
Microscope cameras use wave optics to magnify and capture images of microscopic specimens

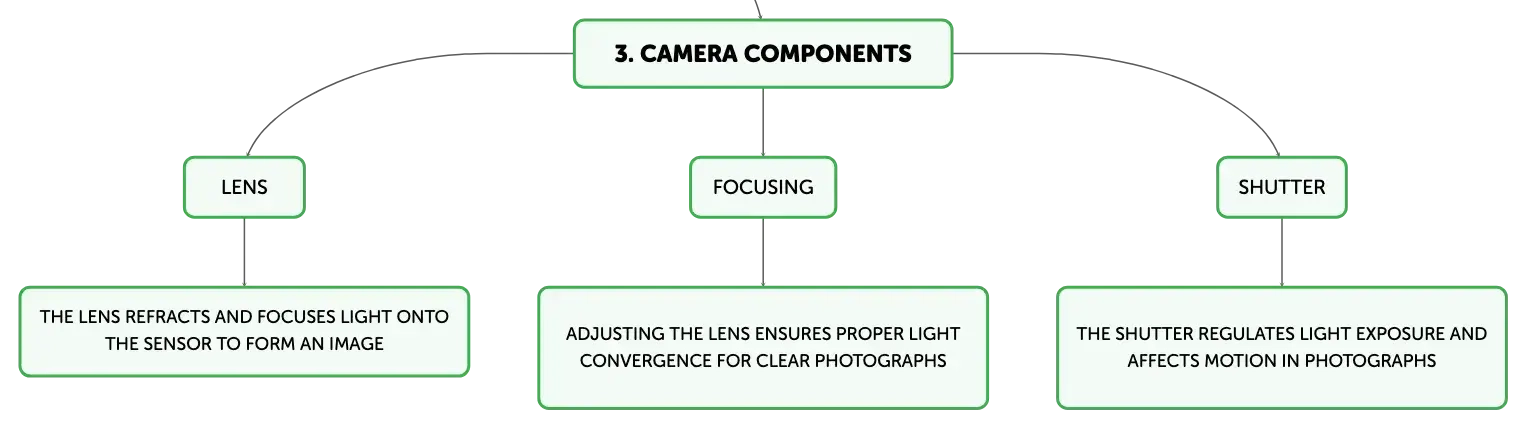

Camera Components
Lens
The lens refracts and focuses light onto the sensor to form an image
Focusing
Adjusting the lens ensures proper light convergence for clear photographs
Shutter
The shutter regulates light exposure and affects motion in photographs

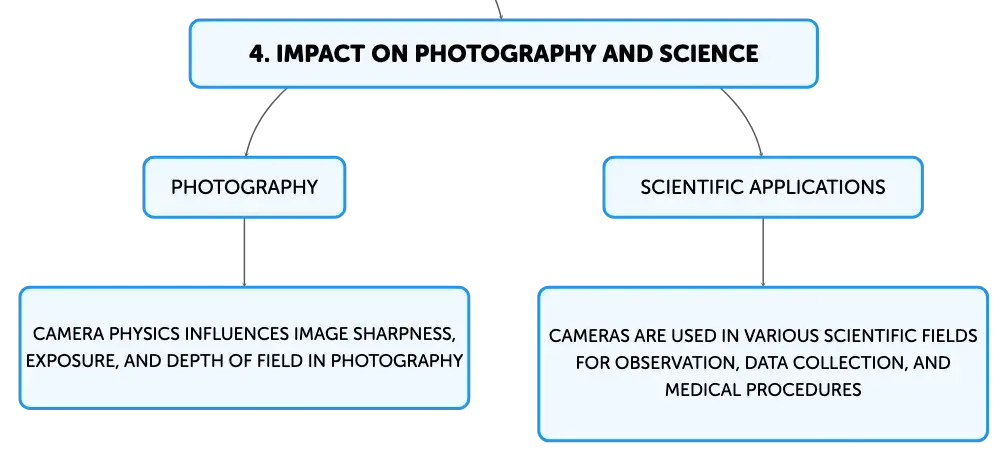

Impact on Photography and Science
Photography
Camera physics influences image sharpness, exposure, and depth of field in photography
Scientific Applications
Cameras are used in various scientific fields for observation, data collection, and medical procedures
Camera Physics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The study of ______ in cameras is a subfield of ______ focusing on how images are captured.
camera physics
optics
01
In camera physics, ______ and ______ are key principles affecting how light is manipulated to form images.
rectilinear propagation of light
laws of refraction and reflection
02
Role of cameras in illustrating optical phenomena
Used in education to demonstrate image formation, lens properties.
