Capacitors: Components for Storing and Releasing Electrical Energy

Understanding Capacitors and Their Function in Circuits

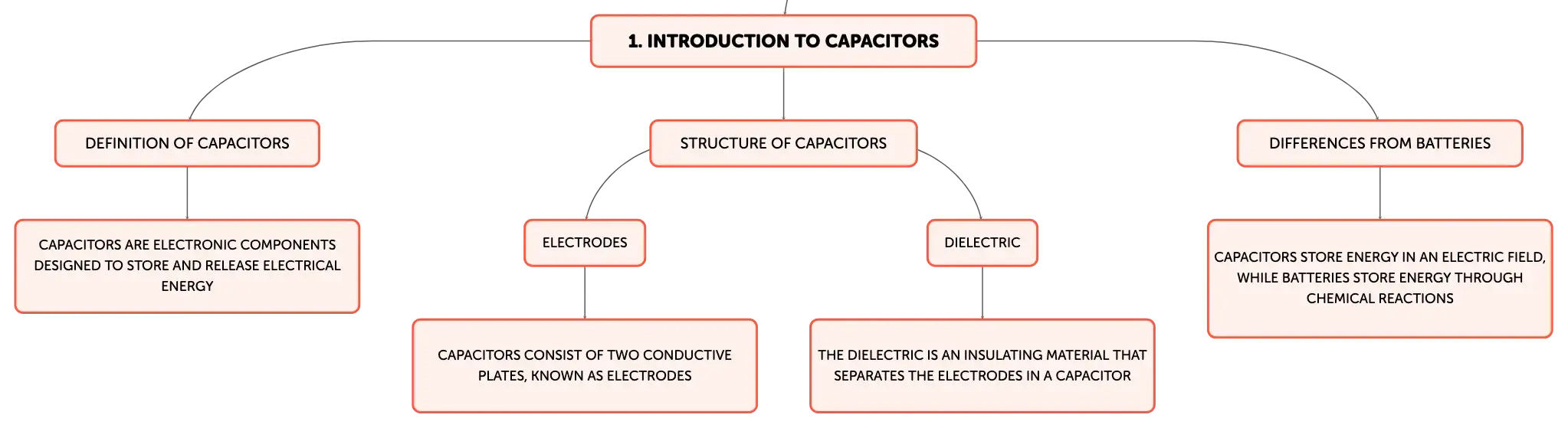

Capacitors are fundamental components in electronic circuits, designed to store and release electrical energy. They consist of two conductive plates, known as electrodes, separated by an insulating material called a dielectric. When a voltage is applied, an electric field develops across the dielectric, causing the capacitor to store energy in the form of an electrostatic charge. Capacitors differ from batteries in that they store energy in an electric field rather than through chemical reactions, enabling them to charge and discharge at much faster rates. However, capacitors generally have lower energy density and higher self-discharge rates than batteries, limiting their ability to store charge over extended periods. Their rapid charge and discharge capabilities make them indispensable for applications such as filtering, buffering, and energy storage in electronic devices.

The Role of Dielectrics and Polarization in Capacitors

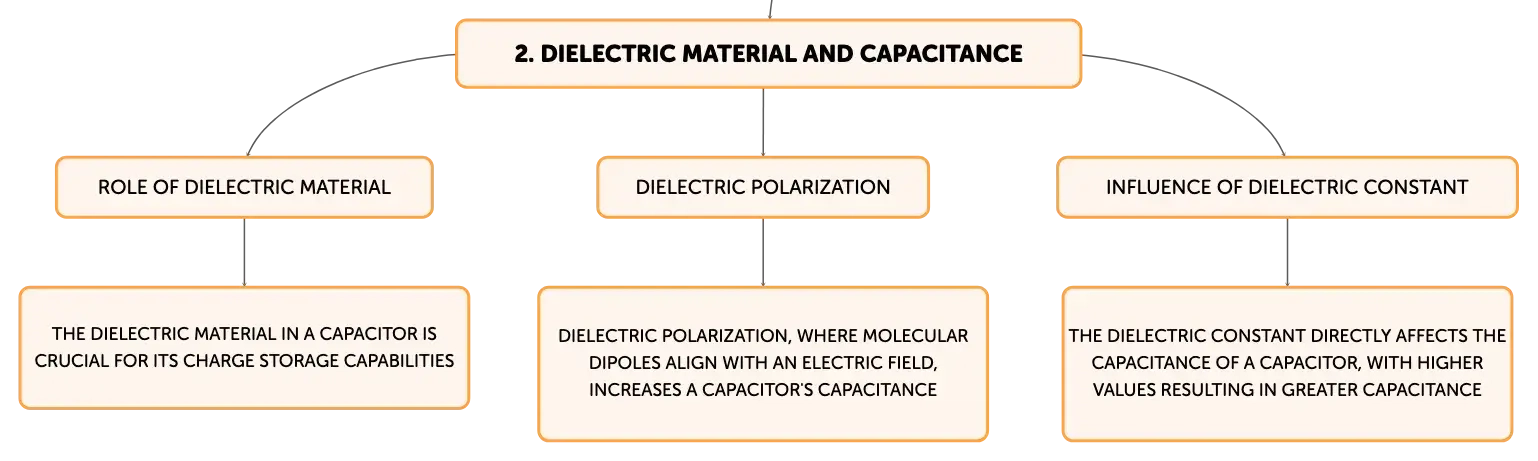

The dielectric material within a capacitor is crucial for its charge storage capabilities. It is typically made of a polarizable substance, which under normal conditions has randomly oriented molecular dipoles. When an electric field is present due to the applied voltage, these dipoles align with the field, creating an opposing electric field that effectively reduces the electric field within the dielectric. This phenomenon, known as dielectric polarization, increases the capacitor's capacitance by allowing it to store more charge at a given voltage. The dielectric constant, a measure of a material's ability to be polarized, directly influences the capacitance; materials with higher dielectric constants yield capacitors with greater capacitance.

Charging and Discharging a Capacitor

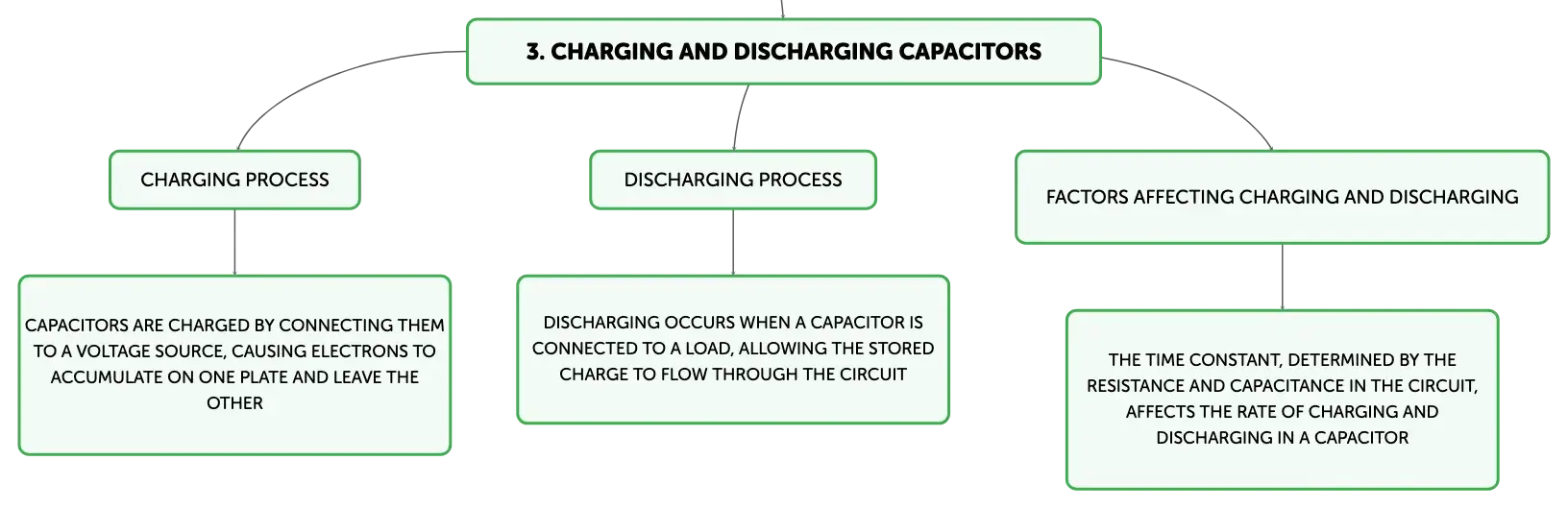

Charging a capacitor involves connecting it to a voltage source, such as a battery, which causes electrons to accumulate on one plate and leave the other, creating a potential difference across the plates. The charging process continues until the voltage across the capacitor matches the voltage of the source. Discharging occurs when the capacitor is connected to a load, allowing the stored charge to flow through the circuit, providing energy to the load. The rate at which a capacitor charges or discharges depends on the resistance and capacitance in the circuit, described by the time constant τ (tau), where τ = R × C, with R being the resistance and C the capacitance.

Capacitor Specifications: Voltage and Capacitance

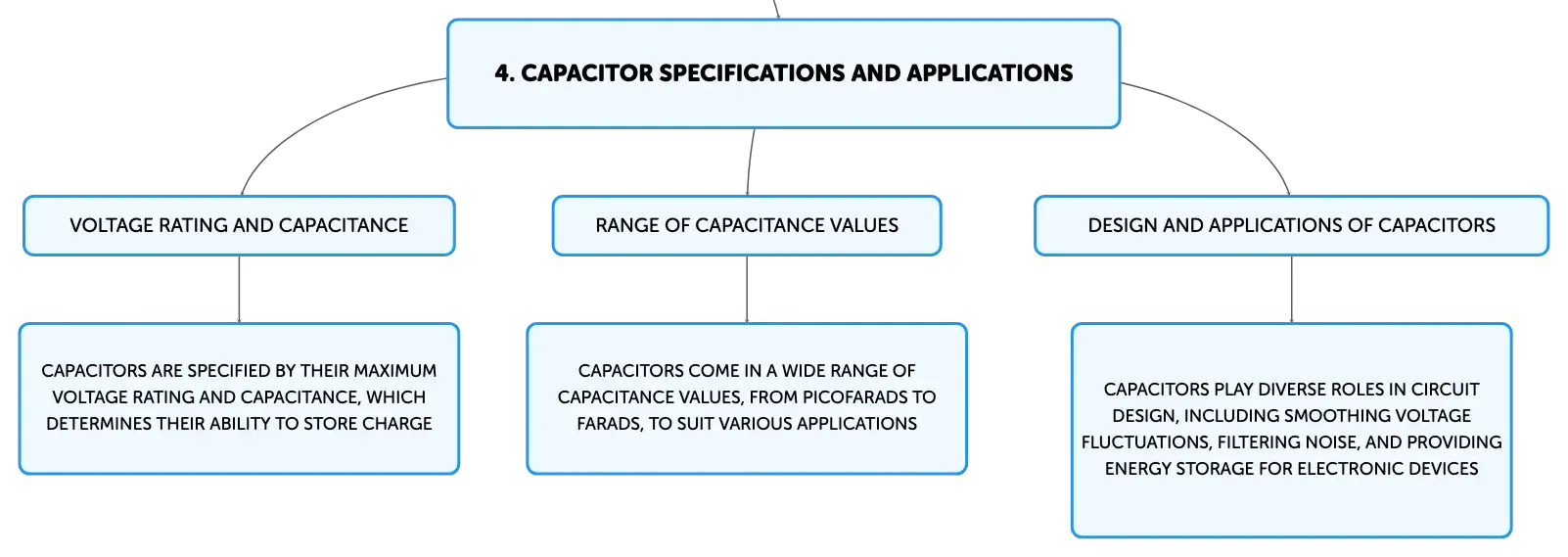

Capacitors are specified by their voltage rating and capacitance. The voltage rating indicates the maximum continuous voltage the capacitor can withstand without risk of damage or failure. Exceeding this rating can cause dielectric breakdown, leading to permanent damage or catastrophic failure. Capacitance, measured in farads (F), quantifies the amount of charge a capacitor can store per unit voltage. It is defined by the equation Q = C × V, where Q is the charge in coulombs, C is the capacitance, and V is the voltage. Capacitors come in a wide range of capacitance values, from picofarads (pF) to farads, to suit various applications.

Calculating Capacitance and Understanding Its Factors

The capacitance of a capacitor is determined by the equation C = ε_r × ε_0 × A / d, where C is the capacitance, ε_r is the relative permittivity (dielectric constant) of the dielectric material, ε_0 is the permittivity of free space (approximately 8.854 × 10⁻¹² F/m), A is the area of the plates, and d is the separation between the plates. Capacitance is directly proportional to the plate area and the dielectric constant, and inversely proportional to the separation between the plates. For example, a parallel plate capacitor with a plate area of 1 m², a plate separation of 1 mm, and a dielectric constant of 1, would have a capacitance of approximately 8.854 pF. This relationship allows for the design of capacitors with specific capacitance values by adjusting the physical dimensions and materials used.

Capacitors in Circuit Design and Their Practical Applications

Capacitors play diverse roles in circuit design, including smoothing out voltage fluctuations, filtering noise from signals, and providing energy storage for transient loads. They are used in timing circuits, where the time constant τ determines the rate of charging and discharging, affecting the timing intervals. In power supply circuits, capacitors stabilize voltage and power flow, while in signal processing, they couple or decouple audio and radio frequencies. The design of capacitors, which strategically places conductive plates around a dielectric, maximizes their charge storage capacity. The unit of capacitance, the farad, is a large unit; therefore, most practical capacitors are rated in microfarads (μF), nanofarads (nF), or picofarads (pF), reflecting their role in storing and managing charge in electronic systems.
