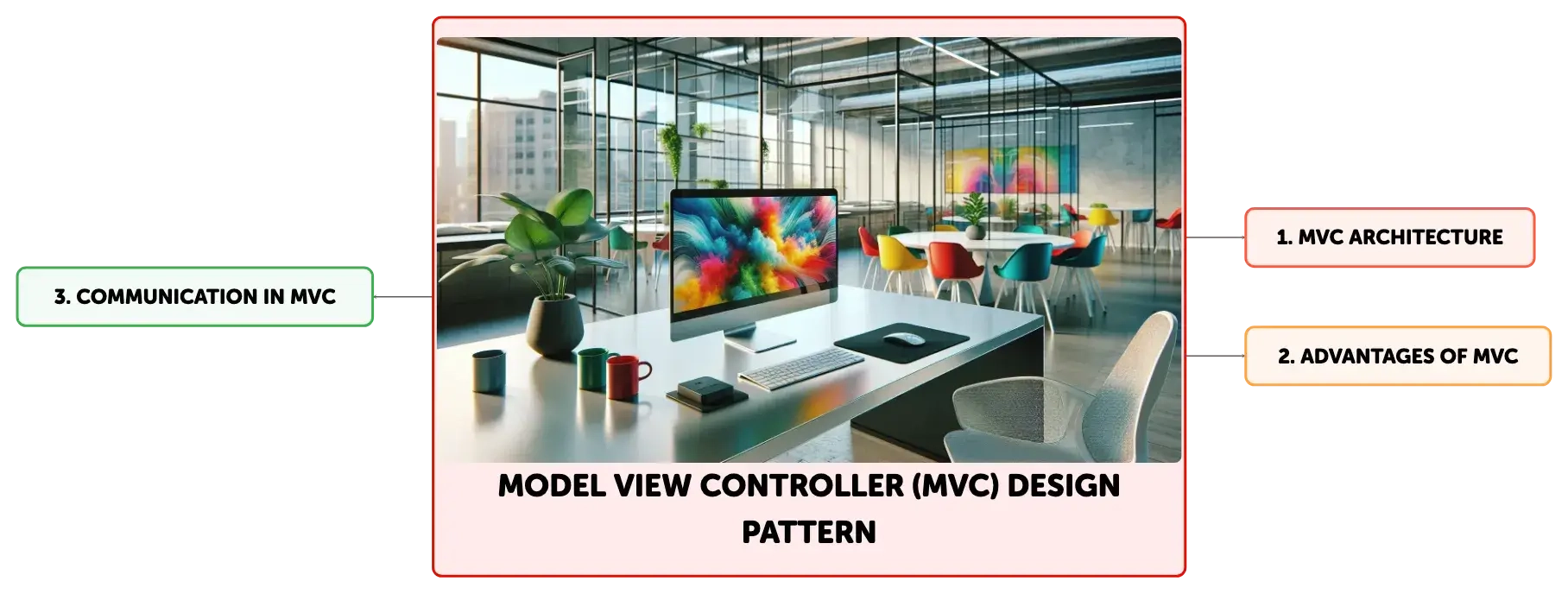

Model View Controller (MVC) Design Pattern

The Model View Controller (MVC) design pattern is a cornerstone in software engineering, separating an application into Model, View, and Controller for efficient data management, user interface presentation, and interaction handling. This pattern enhances code quality, facilitates concurrent component development, and improves maintainability and scalability in complex applications.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In the MVC design pattern, the ______ holds the application's data and logic, while the ______ displays the data, and the ______ manages the interaction between the two.

Click to check the answer

Model View Controller

2

Model Responsibilities in MVC

Click to check the answer

Handles data management, retrieval, validation, manipulation, persistence; ensures business rule integrity and data consistency.

3

View Function in MVC

Click to check the answer

Displays data to users through the graphical user interface; responsible for the look and feel of the application.

4

Controller Role in MVC

Click to check the answer

Manages communication between Model and View; processes user input and responds by selecting the appropriate view and model.

5

MVC stands for a ______ design pattern that aids in organizing the development process by dividing duties into separate parts.

Click to check the answer

structural

6

MVC Design Pattern: Code Structure Benefit

Click to check the answer

Provides blueprint for organized code, delineating clear structure for code placement.

7

MVC Impact on Feature Additions

Click to check the answer

Streamlines feature additions by defining specific locations for model, view, and controller code.

8

MVC and Debugging Efficiency

Click to check the answer

Facilitates debugging by simplifying change identification, reducing modification time and error introduction.

9

In computer science, ______ is particularly effective for developing complex, enterprise-level applications.

Click to check the answer

MVC

10

While ______ ensures a single instance of a class, ______ deals with object creation, and ______ manages object and class interactions.

Click to check the answer

Singleton Factory MVC

11

MVC: Does the Model directly update the View?

Click to check the answer

No, the Model informs the Controller of changes, and the Controller updates the View.

12

MVC: Purpose of separation of concerns?

Click to check the answer

To maintain modularity and integrity of the architecture, preventing direct Model-View communication.

13

Using the MVC design, system alterations and expansions become ______, and it promotes code ______ across various projects.

Click to check the answer

simplified reuse

14

MVC Pattern Role: Model

Click to check the answer

Handles data retrieval, logic, and management in MVC architecture.

15

MVC Pattern Role: View

Click to check the answer

Presents data to user; receives from Controller after Model populates.

16

MVC Pattern Benefits: Code Management

Click to check the answer

Facilitates organized, scalable code; streamlines enhancements.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Bitwise Shift Operations in Computer Science

View document

Computer Science

The Significance of Terabytes in Digital Storage

View document

Computer Science

Secondary Storage in Computer Systems

View document

Computer Science

The Importance of Bits in the Digital World

View document

Exploring the Model View Controller (MVC) Design Pattern

The Model View Controller (MVC) design pattern is a pivotal architectural paradigm in software engineering, essential for the systematic design and management of complex software applications. It delineates an application into three synergistic components: the Model, which encapsulates the application's data and business logic; the View, which renders the data for user interaction; and the Controller, which mediates between the Model and the View, orchestrating the flow of data and responses to user inputs. This pattern is widely adopted in web development and across various programming languages, offering a structured approach to code organization that enhances manageability and scalability.
Modern open-space office with white desk, computer, black keyboard and green plant, separated from relaxation area with colored chairs and matching cups.

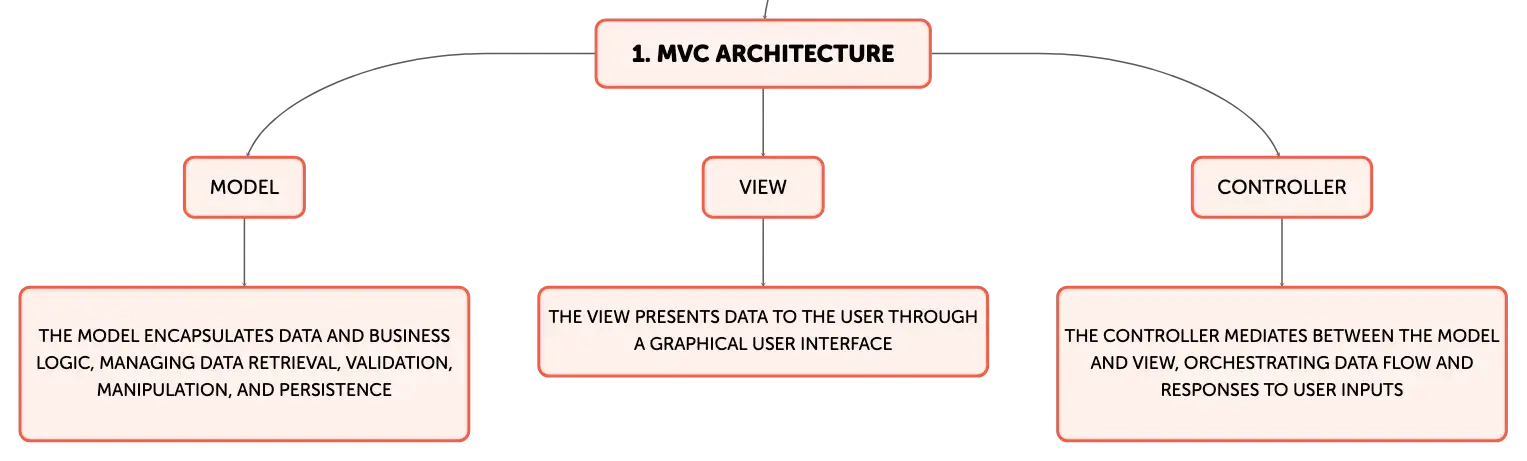

Defining the Roles of MVC Components

In the MVC architecture, each component serves a specific function that contributes to the application's overall operation. The Model is tasked with data management, encompassing data retrieval, validation, manipulation, and persistence, while upholding the integrity of business rules and data consistency. The View is the graphical user interface that presents data to the user, and the Controller acts as the communication hub, directing interactions between the Model and the View in response to user actions.

MVC as a Structural Design Pattern

MVC is a structural design pattern that facilitates the development process by segregating responsibilities into distinct sections. This separation of concerns is particularly advantageous for large-scale applications, promoting modularity and enabling the independent development, testing, and maintenance of each component. It fosters adaptability to changing requirements and simplifies the debugging process, as the code is organized into clear, manageable segments.

Enhancing Development with MVC

The MVC design pattern significantly enhances the development process by providing a blueprint for clean, organized code. It delineates a clear structure for code placement, streamlining feature additions and debugging efforts. By defining specific locations for different types of code, developers can more easily identify where to make changes, reducing the time required for modifications and decreasing the likelihood of introducing new errors, thereby leading to a more efficient and manageable development workflow.

Comparing MVC to Other Design Patterns

MVC stands out among various design patterns in computer science, such as Singleton, Factory, and Observer, due to its structural nature, which is well-suited for the development of complex, enterprise-level applications. While Singleton ensures a class only has one instance and Factory is concerned with object creation, MVC organizes the interaction between objects and classes. Nevertheless, MVC can be complemented by these patterns, for instance, employing Singleton for a consistent database connection or Observer to update the View when the Model changes.

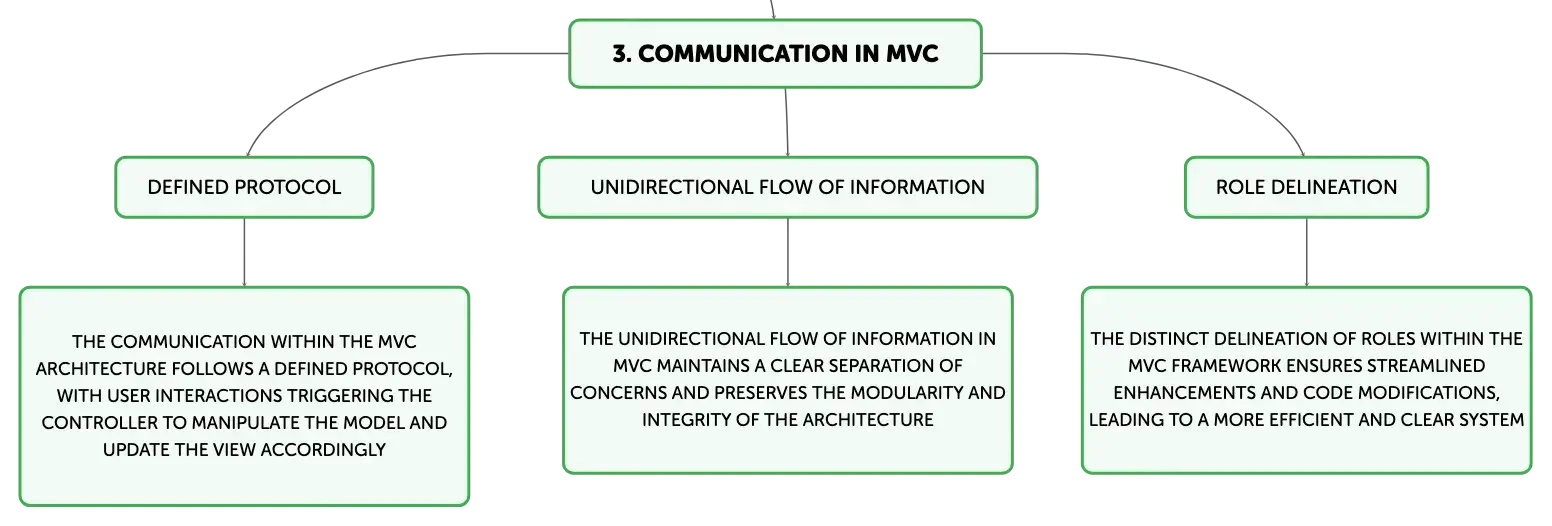

MVC Communication Flow

The communication within the MVC architecture follows a defined protocol. User interactions with the View trigger the Controller to manipulate the Model accordingly. Subsequently, the Model informs the Controller of any changes, which then updates the View. This unidirectional flow of information maintains a clear separation of concerns, ensuring that the Model and the View do not directly communicate, which preserves the modularity and integrity of the architecture.

Benefits of MVC Architecture

Adopting the MVC architecture confers numerous benefits, such as improved code quality and enhanced developer productivity. It supports concurrent development of components, simplifies system modifications and extensions, and augments maintainability and testability through its modular codebase. The independence of components also encourages code reuse within the application or across different projects, leading to more efficient development practices.

Practical Applications of MVC

The MVC pattern is extensively applied in real-world software development. For instance, in Java web applications, the Controller interprets user requests, invokes the Model for data retrieval, and then populates the View with the data for user presentation. This application of MVC underscores its utility in structuring application functionality, facilitating improved code management and scalability. The distinct delineation of roles within the MVC framework ensures that enhancements and code modifications are streamlined, bolstering the system's clarity and operational efficiency.
