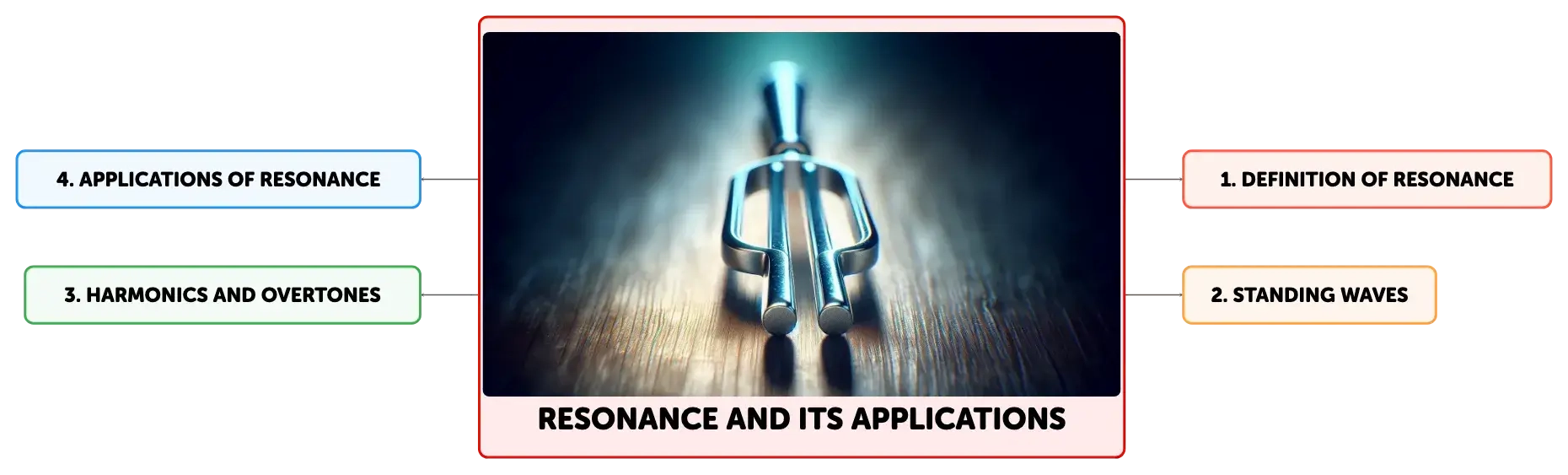

Resonance and Its Applications

Resonance in acoustics is a phenomenon where objects vibrate with increased amplitude at their natural frequency when exposed to external sound waves. This principle is essential in the design of musical instruments like guitars and pipe organs, where it determines the notes produced. Understanding resonance involves concepts like standing waves, fundamental frequencies, and harmonics, which are crucial for predicting the behavior of resonant systems and crafting the timbre of sounds.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Resonance definition

Click to check the answer

Phenomenon where object vibrates at increased amplitude when external force matches natural frequency.

2

Resonance application

Click to check the answer

Used in acoustics to explain intensified oscillation of objects due to sound waves.

3

Natural frequency importance

Click to check the answer

Determines at which frequency an object will resonate and potentially amplify vibrations.

4

When an object is not influenced by ______ forces, it vibrates at its own preferred ______ frequencies.

Click to check the answer

external natural

5

Definition of Nodes

Click to check the answer

Nodes are points in a standing wave where there is no vibration; they remain stationary.

6

Definition of Antinodes

Click to check the answer

Antinodes are points in a standing wave with maximum vibration; they fluctuate with greatest amplitude.

7

Resonant Frequencies in Instruments

Click to check the answer

Resonant frequencies are specific frequencies at which standing waves are supported in musical instruments, determining the notes produced.

8

In a ______, the resonant frequencies are influenced by the ______ length, ______, and ______.

Click to check the answer

guitar string tension mass

9

String Resonance Formula Variables

Click to check the answer

n = harmonic number, L = string length, T = tension, μ = linear mass density.

10

Closed Pipe Resonance Formula Variables

Click to check the answer

n = odd harmonic number, v = speed of sound, L = pipe length.

11

Harmonic Number Significance

Click to check the answer

Determines frequency of nth resonant mode; higher n, higher frequency.

12

Frequencies above the fundamental are known as ______ or ______, and they play a crucial role in determining the sound's timbre produced by an instrument.

Click to check the answer

harmonics overtones

13

Definition of Resonance in Acoustics

Click to check the answer

Phenomenon where external forces at specific frequencies amplify an object's vibrations.

14

Role of Resonance in Musical Instruments

Click to check the answer

Resonance and standing waves determine the sounds and notes musical instruments produce.

15

Resonance in Vibration Control

Click to check the answer

Understanding resonance is essential for controlling vibrations in engineering and architecture.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Optical Aberrations

View document

Physics

The Thick Lens Formula: A Cornerstone of Optical Science

View document

Physics

Spherical Aberration and its Effects on Optical Systems

View document

Physics

Properties and Applications of Light Waves

View document

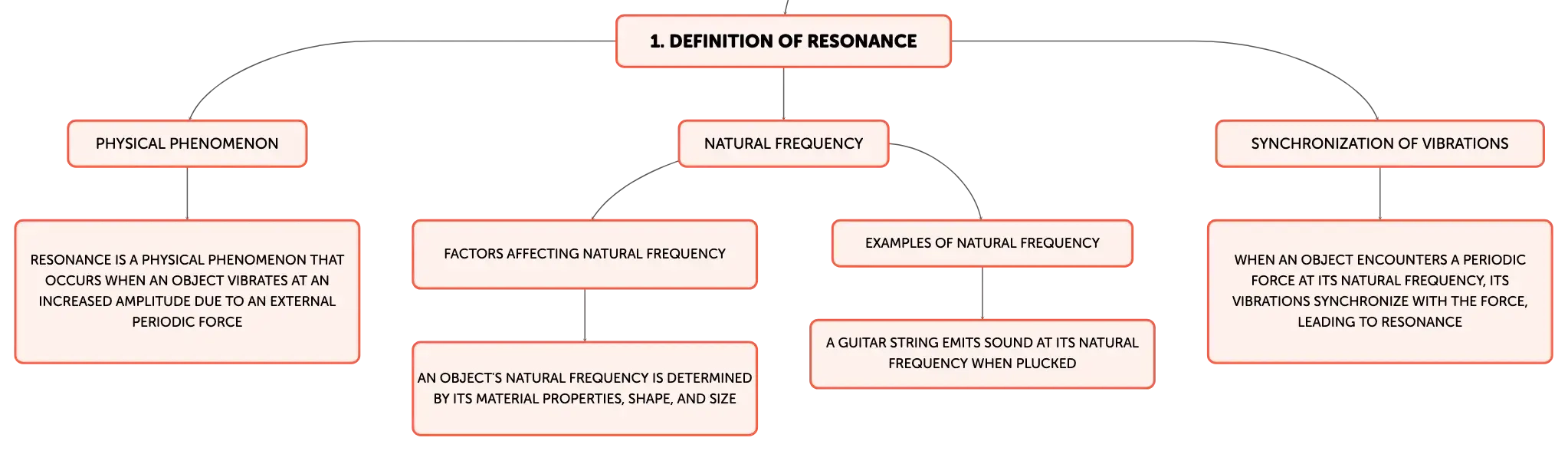

The Phenomenon of Resonance in Acoustics

Resonance is a physical phenomenon that occurs when an object vibrates at an increased amplitude due to the application of an external periodic force at a frequency that matches the object's natural frequency. This concept is crucial in acoustics, where it explains how sound waves can cause objects to oscillate more vigorously. A well-known example of resonance is when a singer's voice, at the right pitch, can induce a glass to vibrate and potentially shatter by matching the glass's resonant frequency, thereby amplifying its vibrational amplitude.

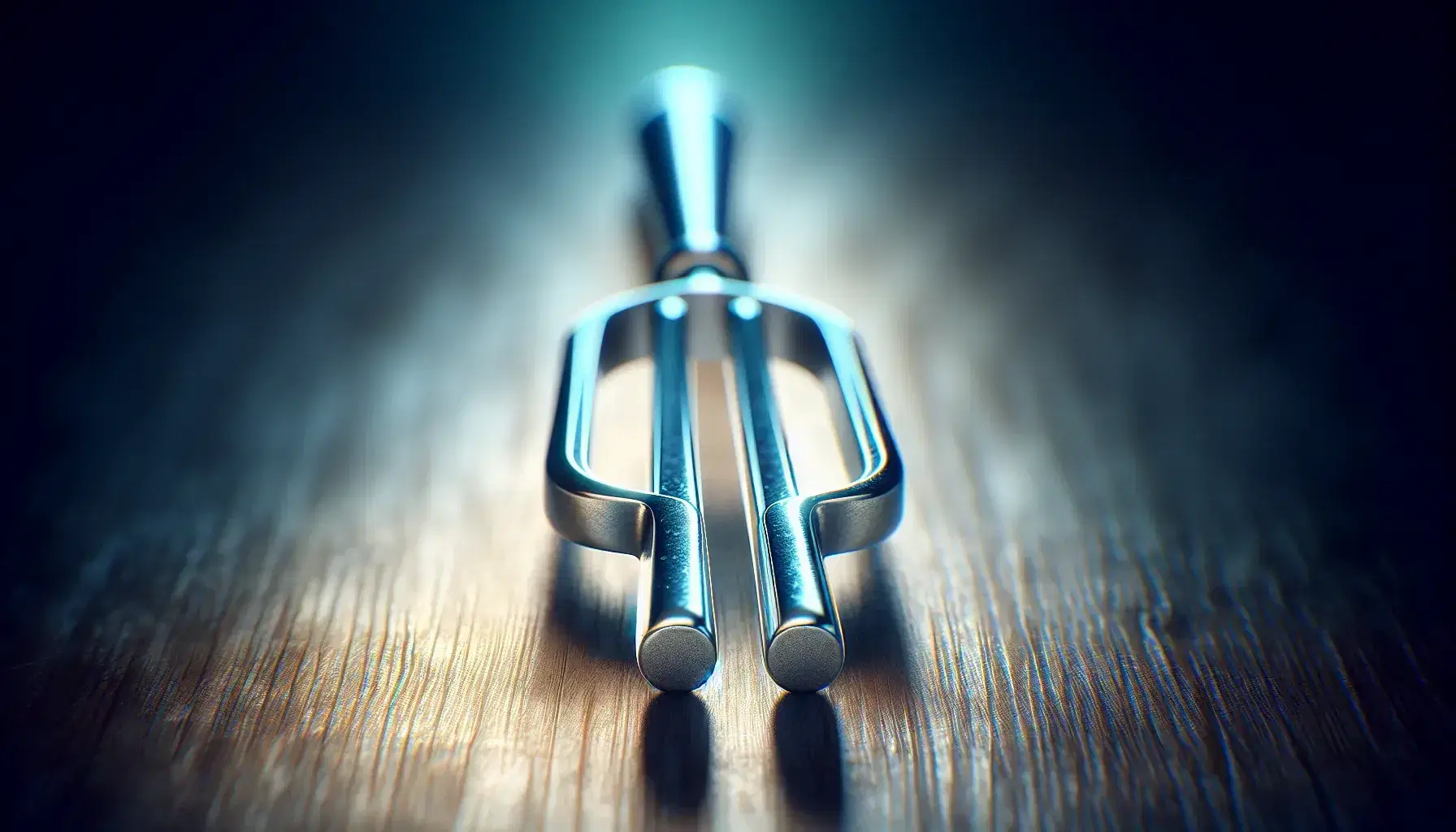

Polished metal tuning fork with slender prongs and cylindrical handle against a soft blue and green blurred background, reflecting light.

Natural Frequencies and the Onset of Resonance

Objects possess natural frequencies at which they prefer to vibrate when undisturbed by external forces. These frequencies are intrinsic to the object's material properties, shape, and size. When an object encounters a periodic force, such as a sound wave, that has a frequency coinciding with its natural frequency, the object's vibrations synchronize with the force, leading to resonance. For example, a guitar string emits sound at its natural frequency when plucked. If another string is tuned to the same frequency, it will resonate and begin to vibrate sympathetically, even without being directly plucked.

The Role of Standing Waves in Resonance

Standing waves are a key concept in understanding resonance. They form when two waves of identical frequency and amplitude travel in opposite directions and intersect, creating a pattern of fixed nodes (points of no vibration) and antinodes (points of maximum vibration). Musical instruments, such as guitars and pipe organs, rely on standing waves to produce sound. The strings in a guitar or the air columns in organ pipes support standing waves at specific frequencies, which correspond to the instruments' resonant frequencies and ultimately define the notes they produce.

Resonance in the Design of Musical Instruments

The design of musical instruments like guitars and pipe organs incorporates the principles of resonance to create desired sounds. In a guitar, factors such as string length, tension, and mass determine the string's resonant frequencies. When a string is plucked, it vibrates to form a standing wave at one of these frequencies. Similarly, the length of a pipe organ and the speed of sound through the air within it set the resonant frequencies, which are manifested as the musical notes played by the instrument.

Calculating Resonance Frequencies

The resonant frequencies of a string or an air column can be mathematically determined. For a string fixed at both ends, the nth resonant frequency is calculated using the formula \(f_n=\frac{n}{2L}\sqrt{\frac{T}{\mu}}\), where \(n\) is the harmonic number, \(L\) is the string's length, \(T\) is the tension, and \(\mu\) is the linear mass density. For a pipe closed at one end, the resonant frequencies are given by \(f_n=\frac{(2n-1)v}{4L}\), where \(n\) is the odd harmonic number, \(v\) is the speed of sound in the pipe, and \(L\) is the pipe's length. These formulas are essential for understanding and predicting the behavior of resonant systems.

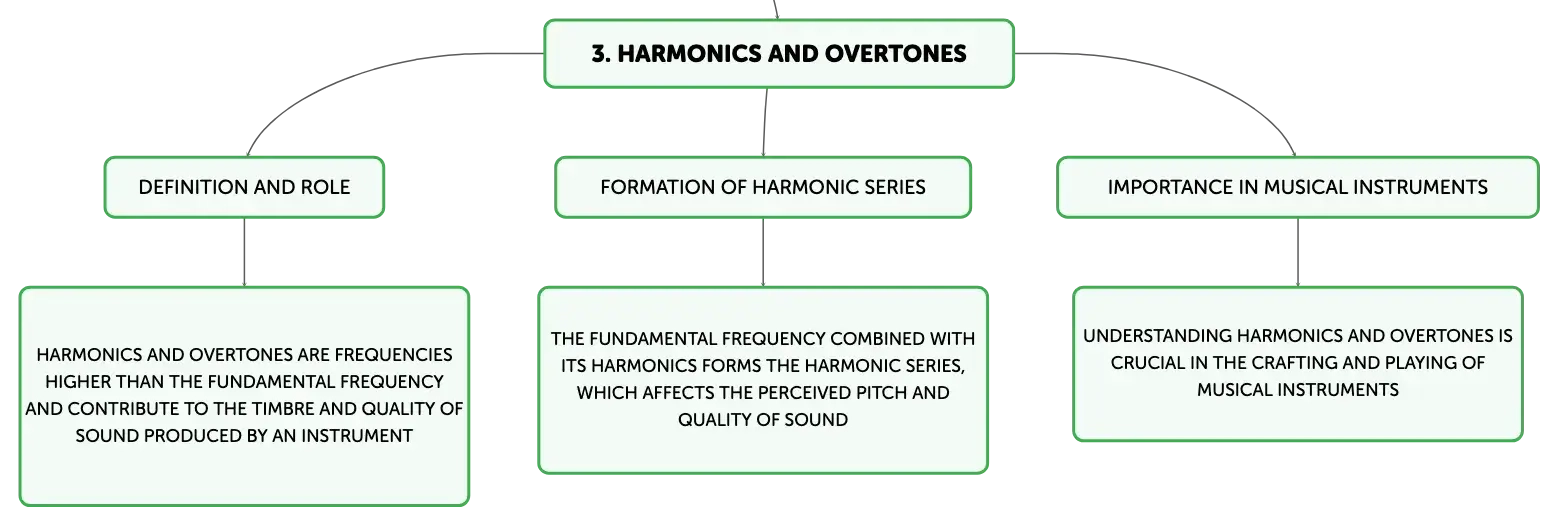

Fundamental Frequency and Harmonics

The fundamental frequency is the lowest resonant frequency of a system and is the frequency at which the system naturally oscillates with the least external energy. Frequencies higher than the fundamental are called harmonics or overtones and are integral to the timbre or color of the sound produced by an instrument. The fundamental frequency combined with its harmonics forms the harmonic series, which contributes to the perceived pitch and quality of sound from musical instruments.

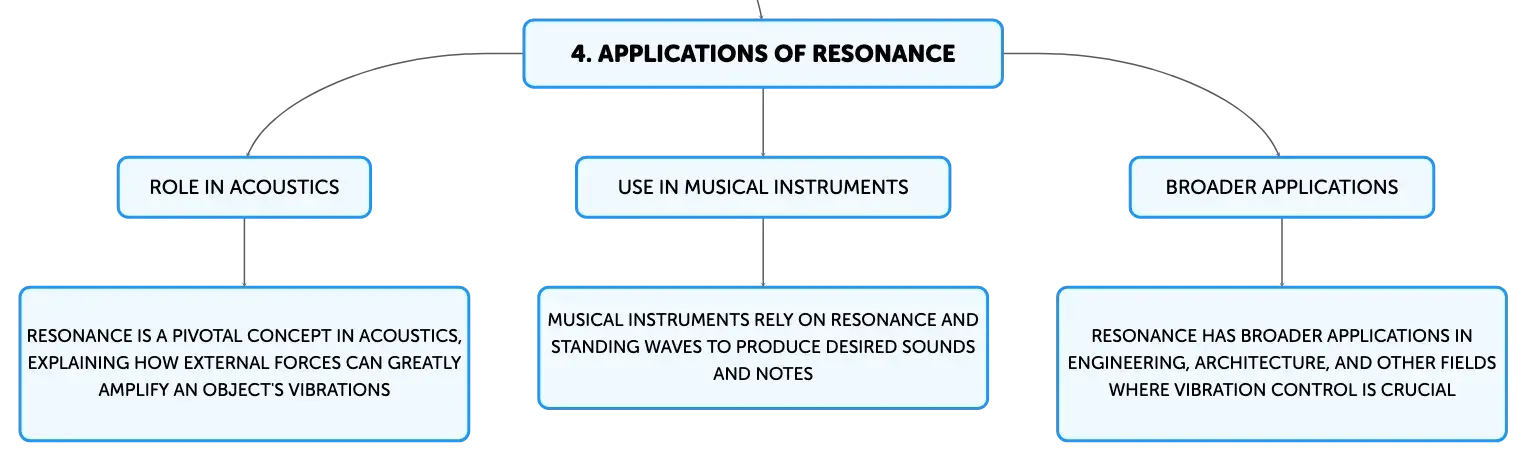

Concluding Insights on Resonance in Sound Waves

Resonance is a pivotal concept in acoustics, illustrating how external forces at certain frequencies can greatly amplify an object's vibrations. This principle is central to the functioning of musical instruments, where resonance and standing waves determine the sounds and notes produced. A comprehensive understanding of resonance is not only vital for the crafting and playing of musical instruments but also has broader applications in engineering, architecture, and various fields where vibration control is crucial.
