The Domain Name System (DNS) is a critical internet component that translates domain names into IP addresses, enabling user-friendly web navigation. It involves a hierarchical structure with subdomains and requires precise configuration. DNSSEC plays a key role in securing DNS by preventing spoofing and ensuring data authenticity. Understanding and implementing DNS and DNSSEC is vital for maintaining a secure and efficient online presence.

Summary

Outline

Exploring the Domain Name System (DNS)

The Domain Name System (DNS) is a foundational component of the internet, acting as a global directory that matches human-friendly domain names to the numerical IP addresses that computers use to communicate. When a user types a web address like 'www.example.com' into their browser, the DNS translates this to a numerical IP address such as '192.0.2.1', enabling the browser to load the desired webpage. This process is essential for the user-friendly navigation of the internet, much like how a phone book allows people to find phone numbers based on someone's name.

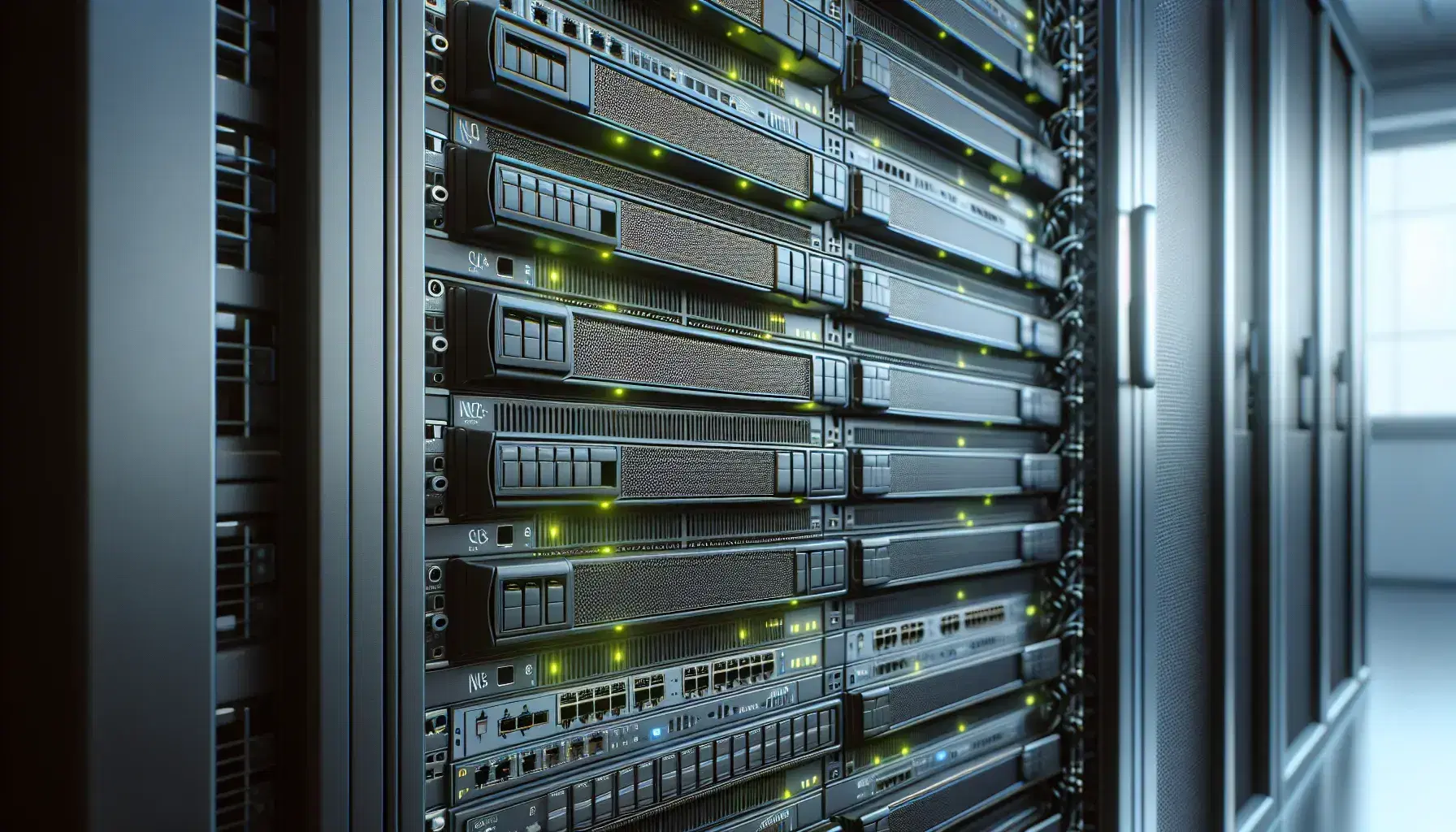

Server rack cabinet in a data center with network switches in the foreground, LEDs lit with no visible cables, modern technology environment.

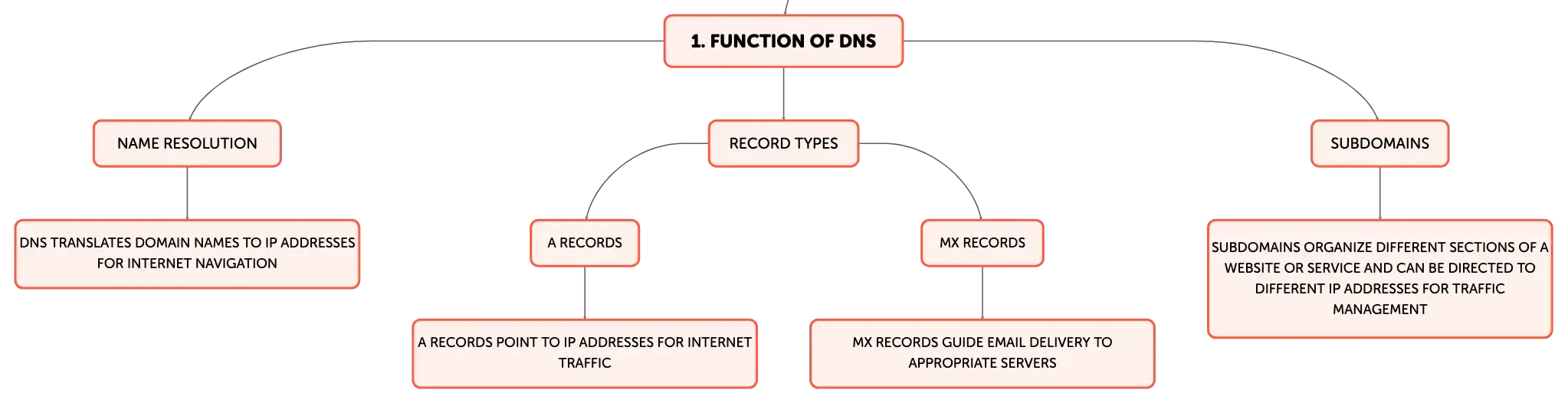

The Essential Functions of DNS

The DNS is crucial for internet connectivity, primarily facilitating the translation of domain names to IP addresses, known as name resolution. This allows users to locate computers and services online using memorable domain names instead of numerical IP addresses. DNS supports various types of records, such as A records for IP addresses and MX records for email services, which guide the flow of internet traffic and email delivery by pointing to the appropriate servers.

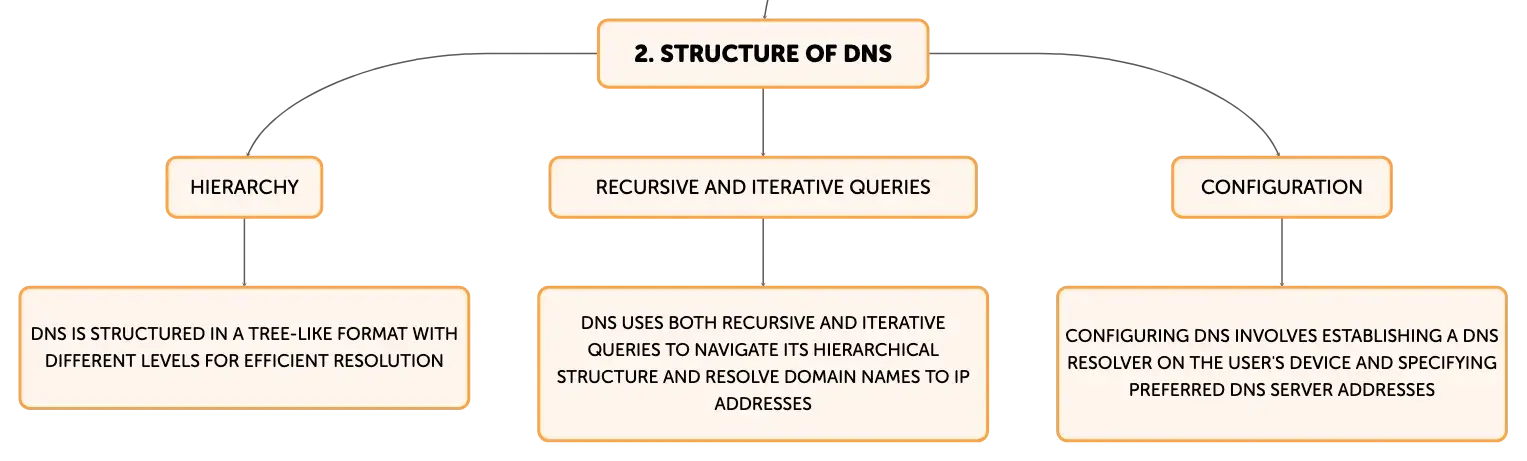

DNS Hierarchy and Subdomains

Subdomains are subdivisions of a primary domain, providing a way to organize different sections of a website or service, like 'shop.example.com' for a shopping section or 'support.example.com' for customer support. These subdomains can be directed to different IP addresses, aiding in content organization and traffic management. The DNS hierarchy is structured in a tree-like format with different levels, and it utilizes both recursive and iterative queries to navigate this structure and resolve domain names to IP addresses.

Setting Up DNS

Configuring DNS involves establishing a DNS resolver on the user's device, which is a necessary part of the domain name resolution process. While DNS server addresses are typically provided by an Internet Service Provider (ISP), users have the option to manually configure their devices to use alternative DNS servers for reasons such as enhanced privacy or speed. This configuration includes specifying preferred DNS server addresses in the device's network settings.

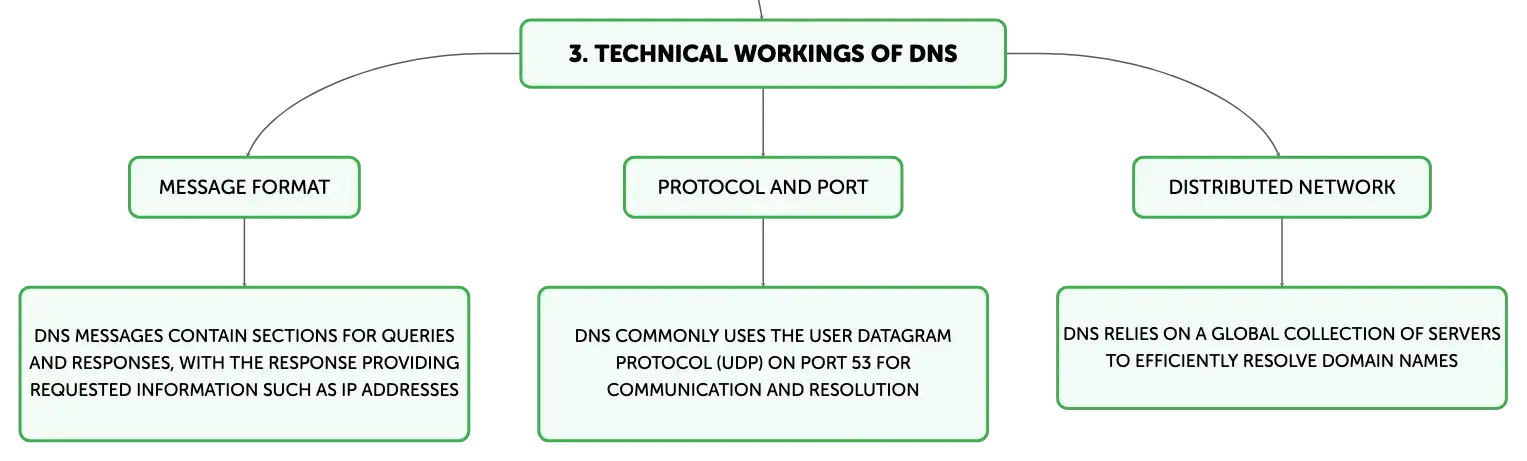

Technical Details of DNS Operations

The technical workings of DNS involve a specific message format that includes sections for the query and the response, with the response containing information such as the requested IP address. DNS commonly uses the User Datagram Protocol (UDP) for communication and operates on port 53, which must be accessible for DNS queries to be processed. The DNS infrastructure is a distributed network, relying on a global collection of servers to perform the necessary resolutions efficiently.

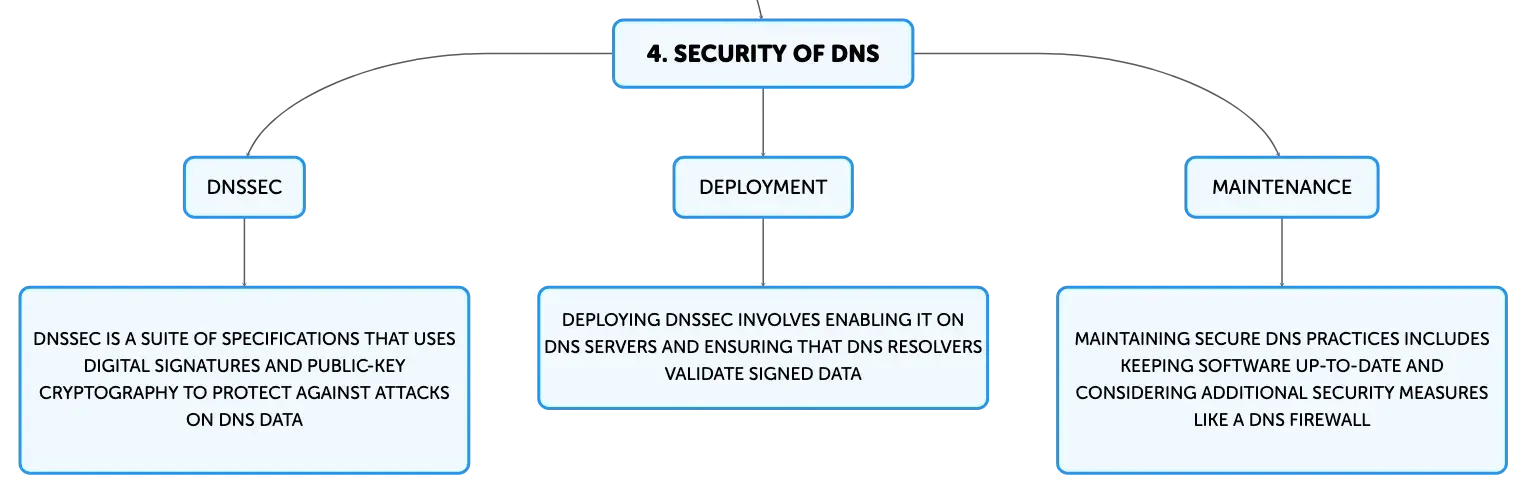

Securing DNS with DNSSEC

The security of DNS is critical due to its central role in internet operations. DNSSEC, or Domain Name System Security Extensions, is a suite of specifications designed to protect against attacks like DNS spoofing and cache poisoning by verifying the authenticity of DNS data with digital signatures and public-key cryptography. DNSSEC employs cryptographic keys, such as the Zone Signing Key (ZSK) and the Key Signing Key (KSK), and adds new types of DNS records to the system to enhance security measures.

Deploying DNSSEC and Maintaining Secure DNS Practices

Deploying DNSSEC requires enabling it on DNS servers and ensuring that DNS resolvers validate the signed data to prevent tampering. This may involve modifying server configuration files and activating DNSSEC-specific settings. Maintaining secure DNS practices is also vital, which includes keeping DNS software up-to-date with security patches and considering the use of a DNS Firewall. While DNSSEC secures the authenticity of DNS data, it does not encrypt it, so additional measures should be taken to ensure data confidentiality.

Concluding Insights on DNS

The Domain Name System is a pivotal element of the internet, translating user-friendly domain names into the IP addresses required for web navigation. It incorporates a hierarchical structure with subdomains for better organization, demands precise configuration, and relies on a distributed network for resolving domain name queries. Implementing security protocols like DNSSEC is indispensable for safeguarding DNS integrity. A secure DNS environment is maintained through diligent configuration, regular updates, and complementary security measures.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

When entering 'www.example.com', the DNS converts it to an IP like '______', allowing the webpage to load.

192.0.2.1

DNS Name Resolution

DNS translates domain names to IP addresses, enabling users to access websites using easy-to-remember names.

DNS Record Types: A and MX

A records map domain names to IP addresses for locating computers, MX records direct email to correct servers.
