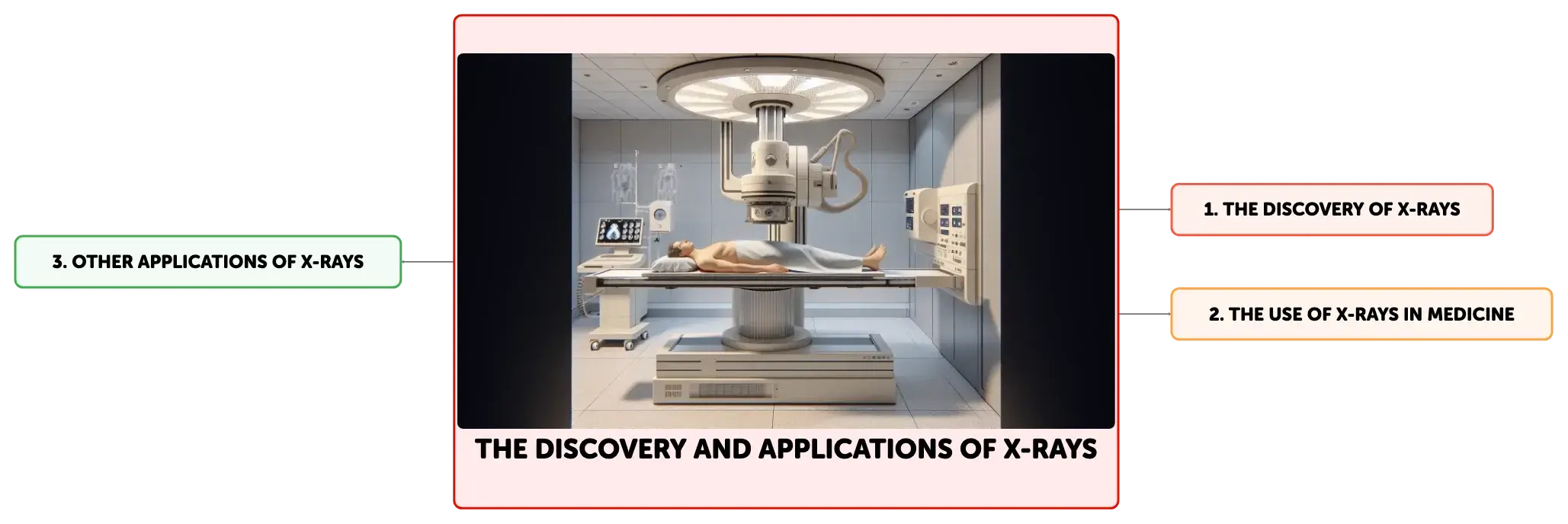

The Discovery and Applications of X-Rays
The discovery of X-rays by Wilhelm Roentgen revolutionized medical diagnostics and treatment. These electromagnetic waves, with their ability to penetrate materials, are used in radiography, CT scans, fluoroscopy, and mammography. While beneficial, X-rays pose health risks due to their ionizing nature, necessitating protective measures to minimize exposure and potential cellular damage.
See moreThe Discovery of X-Rays by Wilhelm Roentgen

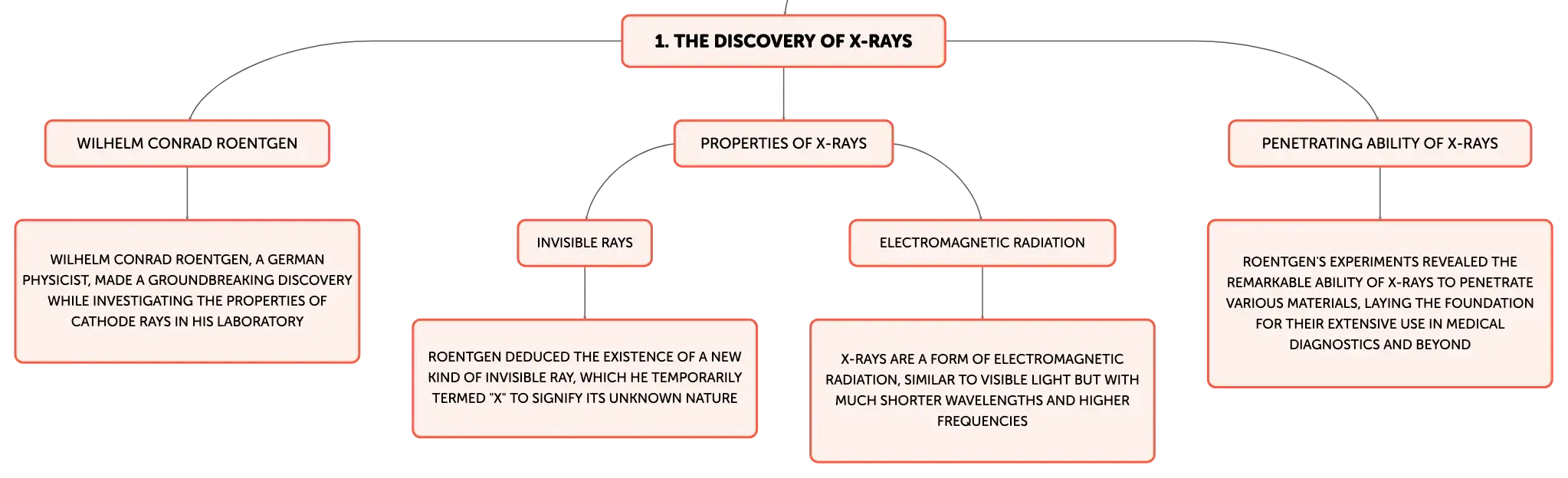

In 1895, Wilhelm Conrad Roentgen, a German physicist, made a groundbreaking discovery while investigating the properties of cathode rays in his laboratory. He observed that a barium platinocyanide screen emitted a fluorescent glow even though it was shielded from direct cathode ray exposure by a cardboard covering. Intrigued by this phenomenon, Roentgen deduced the existence of a new kind of invisible ray, which he temporarily termed "X" to signify its unknown nature. His further experiments, including the production of the first X-ray photograph of his wife's hand, revealed the remarkable ability of these rays to penetrate various materials, laying the foundation for their extensive use in medical diagnostics and beyond.The Nature and Properties of X-Rays
X-rays are a form of electromagnetic radiation, similar to visible light but with much shorter wavelengths and higher frequencies, typically ranging from 0.01 to 10 nanometers (3×10^16 Hz to 3×10^19 Hz). Due to their high energy, X-rays belong to the category of ionizing radiation, which has enough energy to dislodge electrons from atoms, potentially causing damage to living tissue. The ability of X-rays to penetrate materials depends on the density and thickness of the substance as well as the energy of the X-rays. This characteristic enables them to produce images of the body's internal structures, as denser materials, such as bones, absorb more X-rays and appear lighter on radiographic films.Sources of X-Rays: Natural and Man-Made
X-rays occur naturally in the environment, originating from various celestial sources, including stars, pulsars, and black holes, as well as from terrestrial sources like radioactive elements in the Earth's crust. The Earth's atmosphere absorbs cosmic X-rays, protecting life on the surface, but natural radioactive elements such as radon can be health hazards. Artificially, X-rays are produced in X-ray tubes, where electrons are accelerated and collide with a metal anode, releasing X-rays. This controlled production of X-rays is essential for their application in medical imaging, industrial inspection, and scientific research.X-Rays in Medical Diagnosis

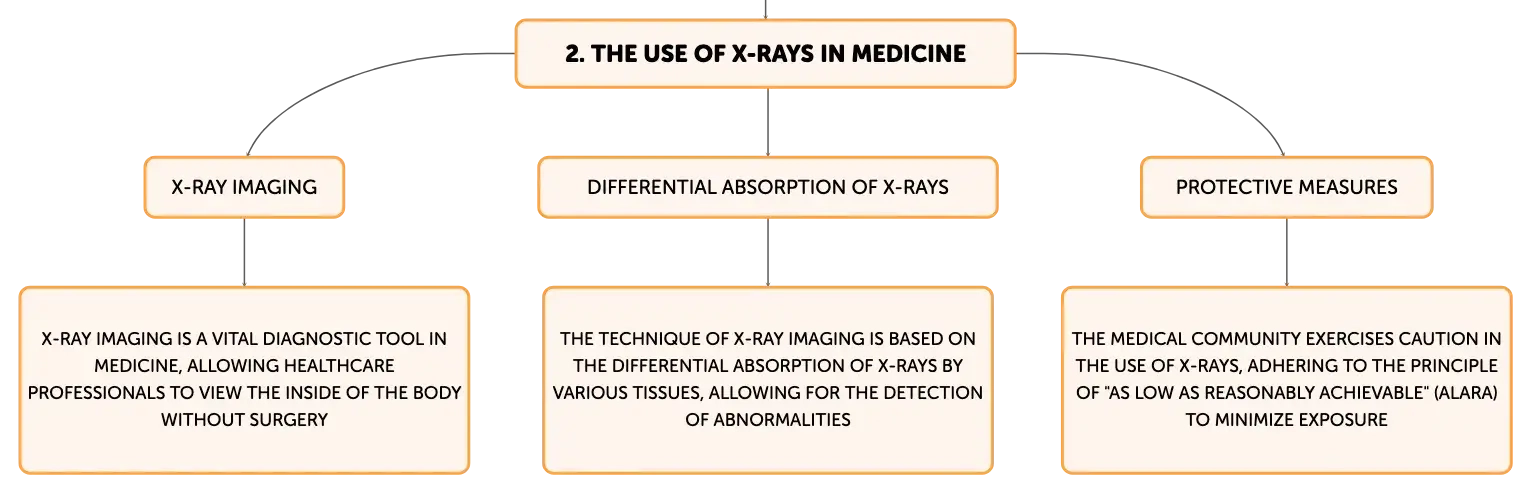

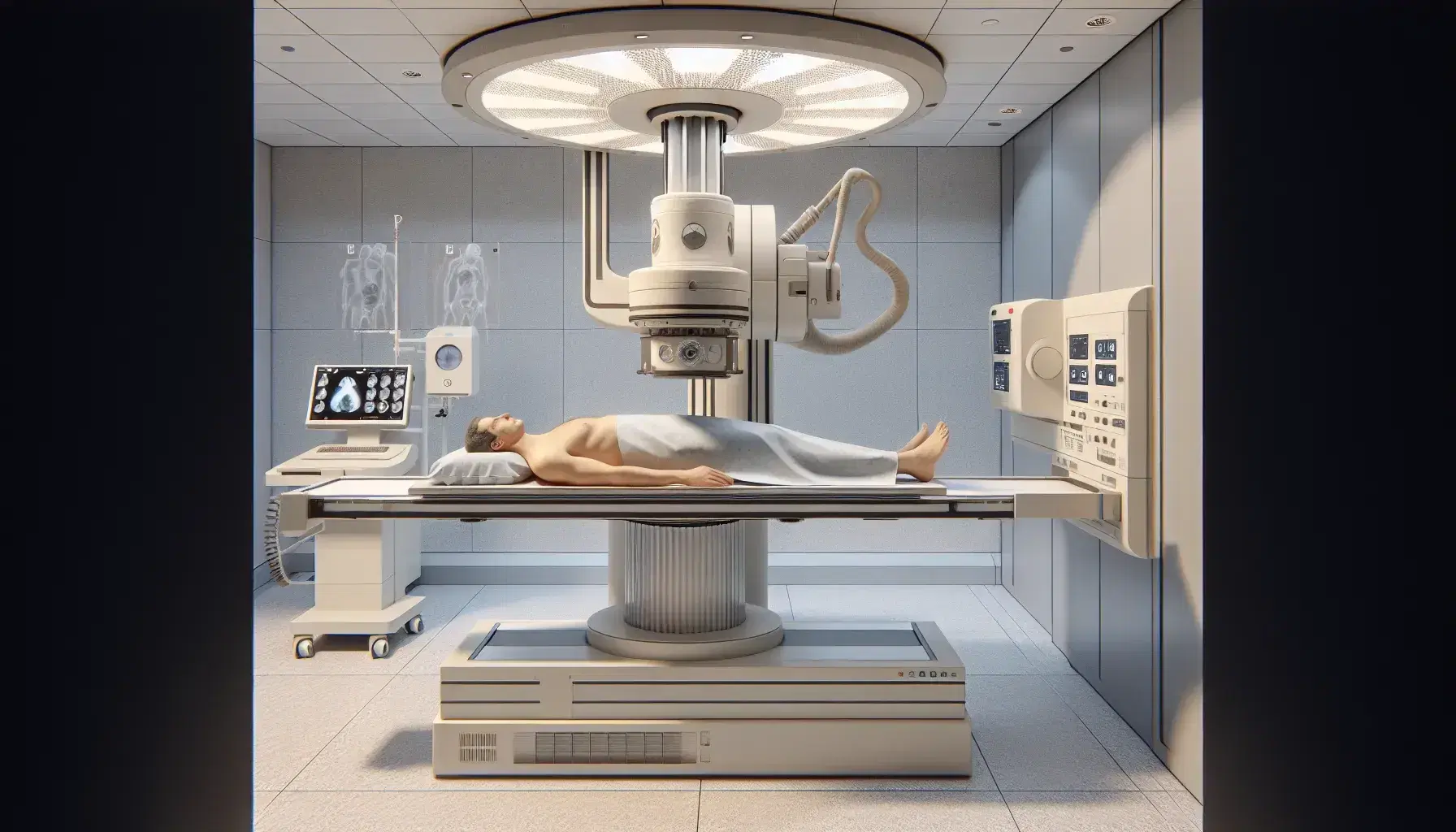

X-ray imaging is a vital diagnostic tool in medicine, allowing healthcare professionals to view the inside of the body without surgery. The technique is based on the differential absorption of X-rays by various tissues: soft tissues allow more X-rays to pass through and appear darker, while denser tissues like bone absorb more X-rays and appear lighter. To obtain a clear image, the patient is positioned between the X-ray source and a detector, such as a digital sensor or photographic film. The resulting image, known as a radiograph, can reveal fractures, infections, and other abnormalities.Evaluating the Health Risks of X-Ray Exposure
While X-rays are invaluable in medical diagnosis, their ionizing nature means they can potentially cause cellular and genetic damage, increasing the risk of cancer. The medical community exercises caution in the use of X-rays, adhering to the principle of "As Low As Reasonably Achievable" (ALARA) to minimize exposure. Protective measures, such as lead aprons and thyroid shields, are used to protect patients and staff from unnecessary exposure. Radiation doses are measured in millisieverts (mSv), and the average background radiation exposure from natural and man-made sources is typically around 3 mSv per year, though this can vary by location and individual circumstances.Expanding the Medical Applications of X-Ray Technology

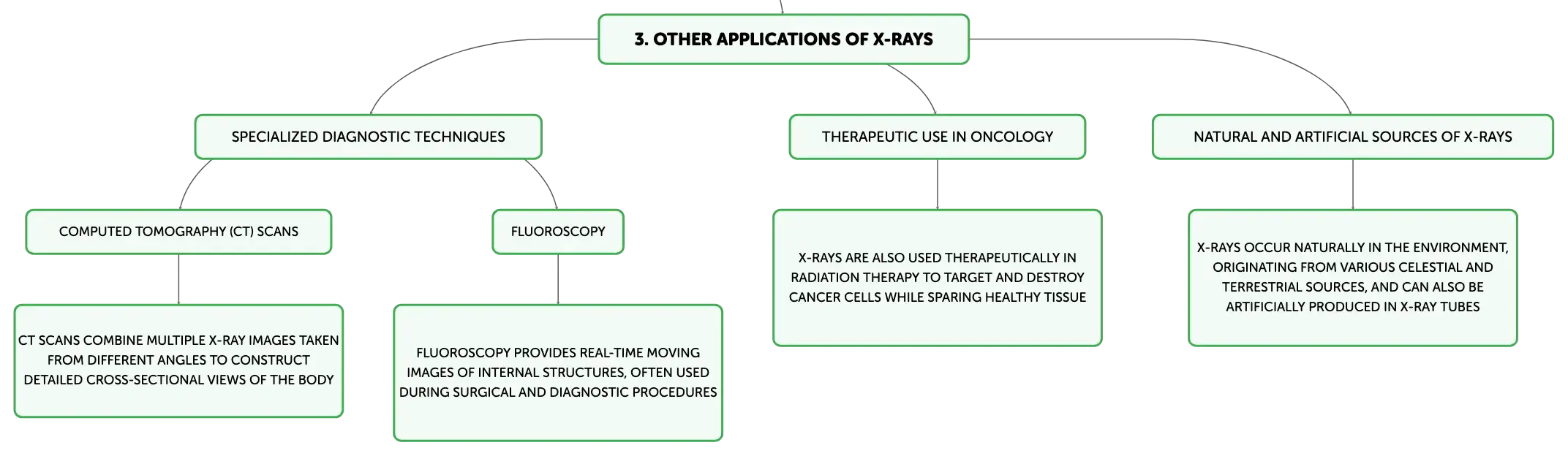

Beyond basic radiography, X-ray technology has evolved to include a variety of specialized diagnostic techniques. Computed Tomography (CT) scans combine multiple X-ray images taken from different angles to construct detailed cross-sectional views of the body. Fluoroscopy provides real-time moving images of internal structures, often used during surgical and diagnostic procedures. Mammography utilizes low-dose X-rays for early detection of breast cancer. In the field of oncology, X-rays are also used therapeutically in radiation therapy to target and destroy cancer cells while sparing healthy tissue. The versatility of X-ray technology continues to make it an indispensable tool in modern medicine.Want to create maps from your material?
