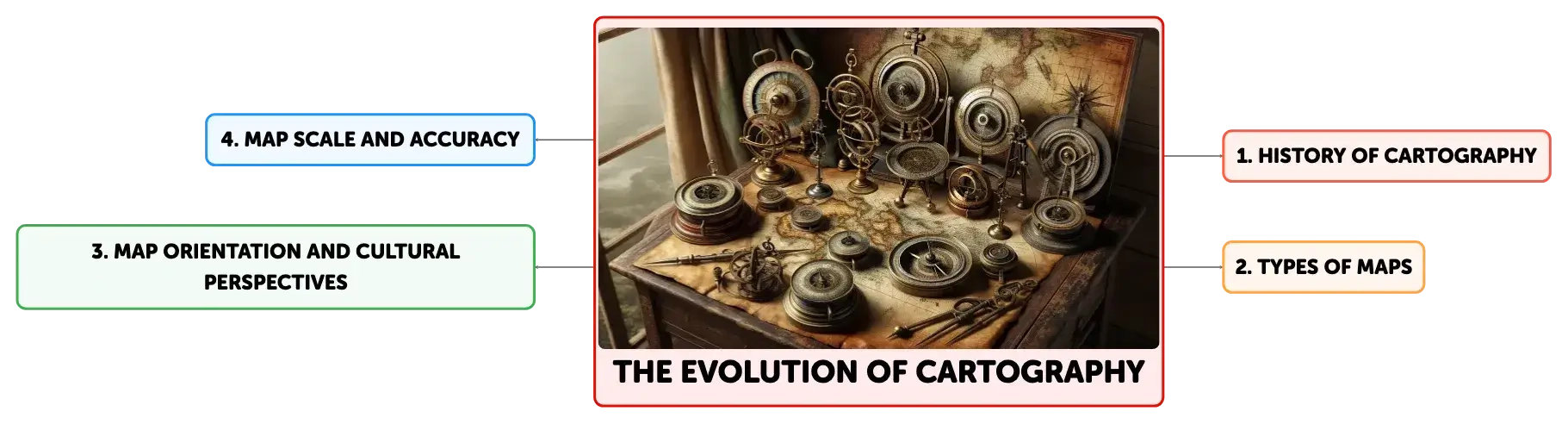

Concept Map
Exploring the evolution of cartography, this overview delves into the art and science of map-making from ancient times to the present. It highlights the diverse roles of contemporary maps, including navigation and planning, and discusses the cultural perspectives influencing map orientation. The text also examines map scale and accuracy, the challenges of cartographic projections and distortions, and the language of maps through symbols and symbology.
Summary
Outline
The Evolution of Cartography
Cartography, the art and science of creating maps, has been integral to human progress, facilitating exploration, commerce, and the dissemination of geographic information. The earliest maps date back to prehistoric cave drawings, with significant advancements made by ancient civilizations such as the Babylonians, Greeks, Romans, Chinese, and Indians. These maps progressed from rudimentary sketches to sophisticated representations, including the advent of the globe by the Greeks. The 16th-century Mercator Projection, devised by Gerardus Mercator, revolutionized mapmaking with its ability to depict straight navigational lines. Mercator also introduced the term "atlas" for a collection of maps, a term still in use today.The Role and Variety of Modern Maps
Contemporary maps fulfill diverse roles beyond geographic representation. They include road maps, aeronautical and nautical charts, and topographical maps for navigation and planning. Local governments and utility companies conduct surveys that contribute to the extensive production of maps, while national military surveys, such as the British Ordnance Survey, are renowned for their precision. Modern maps can also illustrate various thematic layers, such as elevation, climate, and precipitation, offering essential data for research and industry applications.Map Orientation and Cultural Perspectives
Map orientation, which aligns a map's cardinal directions with actual compass bearings, varies globally. Medieval T and O maps, for instance, placed east at the top, centering Jerusalem, reflecting the period's religious and cultural views. The reintroduction of Ptolemy's "Geography" to Europe standardized the north-up orientation, but alternative orientations remain, such as city maps prioritizing water features, route maps aligned with travel direction, and polar maps centered on the poles. Some cultures, including ancient African societies and certain Brazilian traditions, prefer a south-up orientation. Innovations like Buckminster Fuller's Dymaxion map challenge conventional orientations by presenting a less distorted view of the world.Understanding Map Scale and Accuracy
The scale of a map indicates the ratio of a distance on the map to the corresponding distance on the ground. Small-scale maps, such as those of cities, can maintain a consistent scale throughout, but larger-scale maps must use projections to address the Earth's curvature, resulting in variable scales. World maps, in particular, cannot have a uniform scale due to the Earth's spherical shape. Nevertheless, maps generally strive to minimize scale discrepancies and provide a nominal scale that offers reasonable accuracy for users.Cartographic Projections and Distortions
Cartographic projections are techniques for depicting the Earth's three-dimensional surface on a two-dimensional plane, which inherently causes distortions. Numerous projections exist, each with a unique approach to managing these distortions, and the choice of projection is contingent on the map's purpose. Some projections conserve areas, others maintain angular relationships, and some attempt to balance various distortions for versatile use.The Language of Maps: Symbols and Symbology
Maps convey information through an array of symbols and color codes, usually clarified in a map legend. These symbols denote diverse features such as transportation routes, physical terrain, and political divisions. Cartographers employ techniques to declutter maps, enhancing legibility by omitting or simplifying details. Some maps also include insets or ancillary maps to provide additional context or detailed views of particular areas, accommodating limitations of the primary map's scale or scope.
Show More

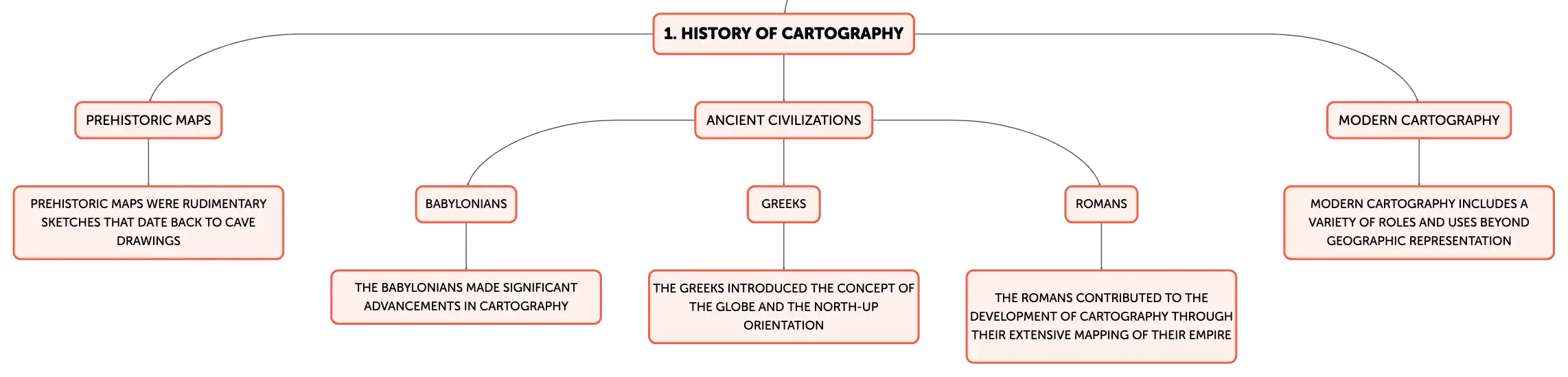

History of Cartography
Prehistoric Maps
Prehistoric maps were rudimentary sketches that date back to cave drawings
Ancient Civilizations
Babylonians
The Babylonians made significant advancements in cartography
Greeks
The Greeks introduced the concept of the globe and the north-up orientation
Romans
The Romans contributed to the development of cartography through their extensive mapping of their empire
Modern Cartography
Modern cartography includes a variety of roles and uses beyond geographic representation
Types of Maps
Navigation Maps
Navigation maps, such as road maps and aeronautical charts, are used for planning and travel
Survey Maps
Survey maps are created by local governments and utility companies, while national military surveys are known for their precision
Thematic Maps
Thematic maps display specific data, such as elevation and climate, for research and industry purposes

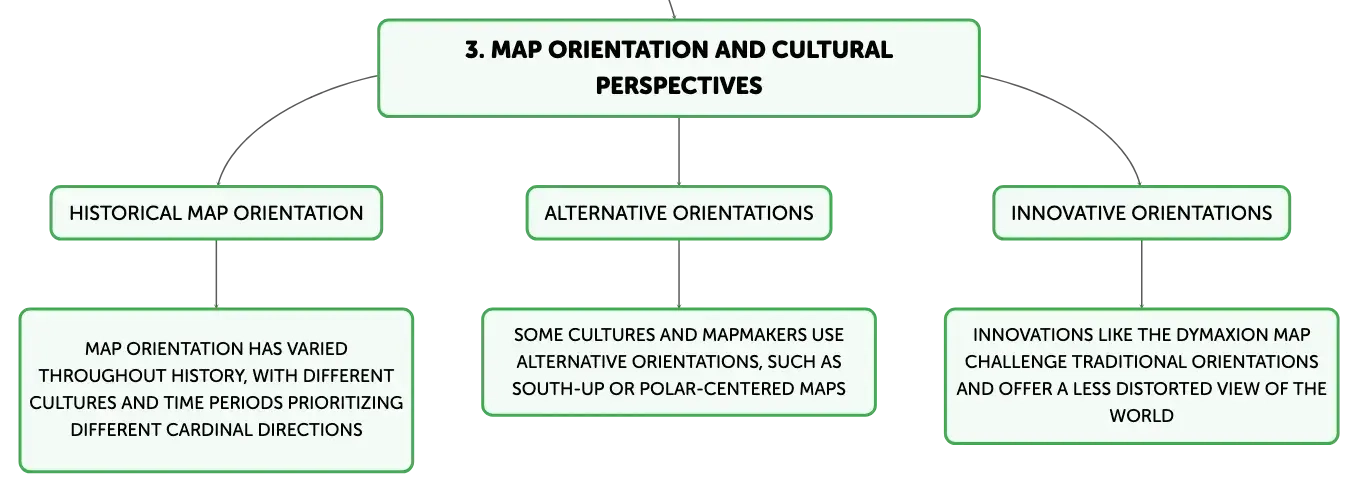

Map Orientation and Cultural Perspectives
Historical Map Orientation
Map orientation has varied throughout history, with different cultures and time periods prioritizing different cardinal directions
Alternative Orientations
Some cultures and mapmakers use alternative orientations, such as south-up or polar-centered maps
Innovative Orientations
Innovations like the Dymaxion map challenge traditional orientations and offer a less distorted view of the world

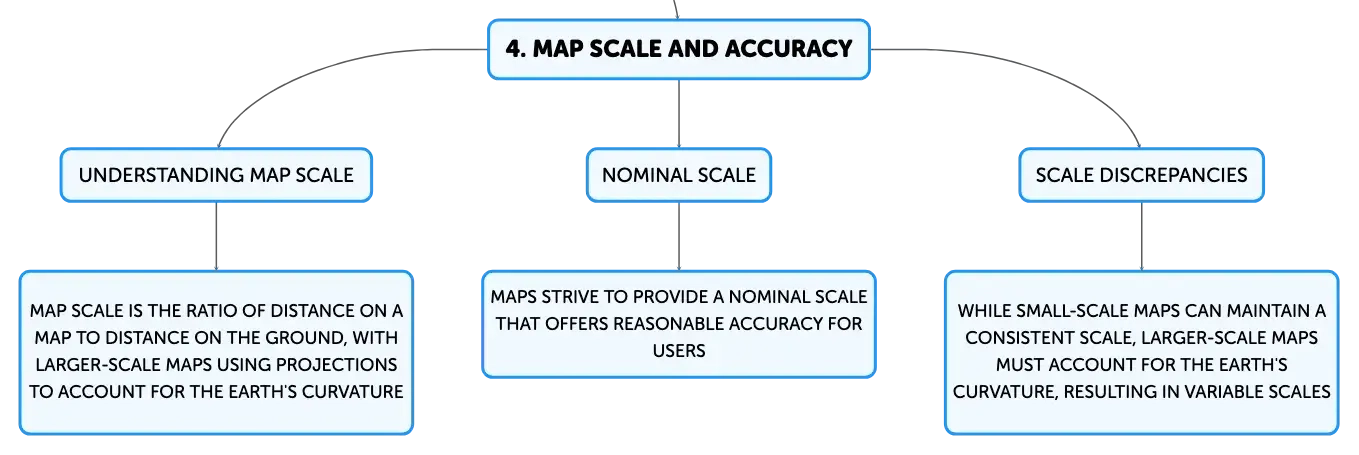

Map Scale and Accuracy
Understanding Map Scale
Map scale is the ratio of distance on a map to distance on the ground, with larger-scale maps using projections to account for the Earth's curvature
Nominal Scale
Maps strive to provide a nominal scale that offers reasonable accuracy for users
Scale Discrepancies
While small-scale maps can maintain a consistent scale, larger-scale maps must account for the Earth's curvature, resulting in variable scales
The Evolution of Cartography
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Definition of Cartography
Cartography is the art and science of map creation, crucial for exploration, trade, and sharing geographic data.
01
Earliest Known Maps
The earliest maps are prehistoric cave drawings, showing that mapping has ancient origins.
02
Mercator Projection Importance
The Mercator Projection allowed for straight navigational lines on maps, aiding maritime navigation significantly.
