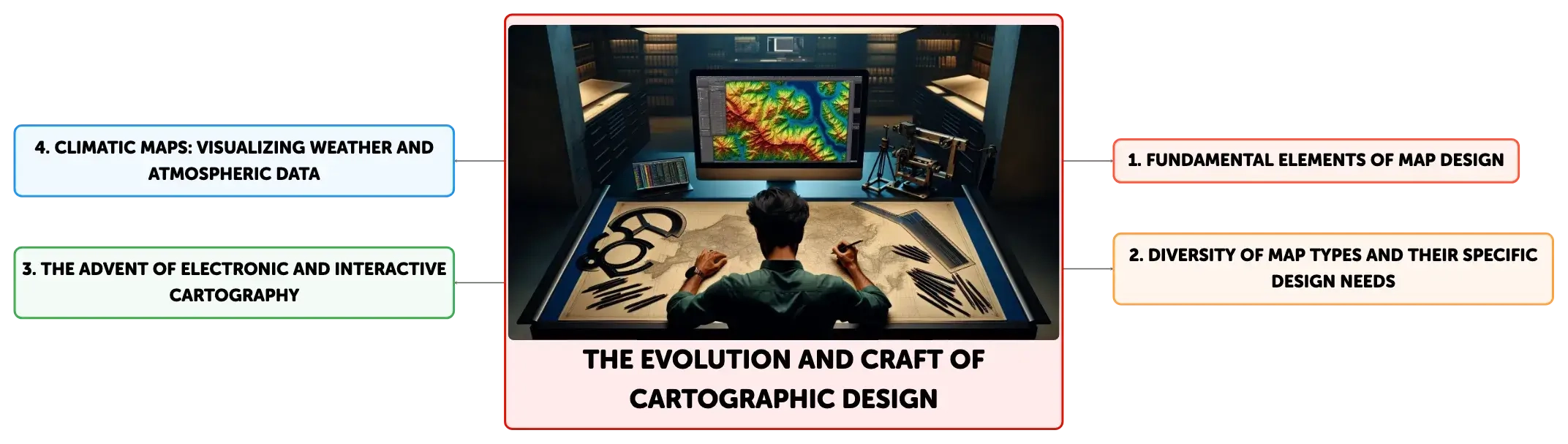

The Evolution and Craft of Cartographic Design

Exploring the evolution of cartography, this overview delves into the art and science of map-making. It covers the transition from early sketches to advanced digital maps, highlighting the role of map projections, generalization, symbology, typography, and layout in creating informative and engaging maps. The text also discusses the diversity of map types, the rise of electronic and interactive cartography, climatic maps, legal issues in map publishing, and the educational use of maps.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ is both an art and a science focused on the creation of maps, evolving from simple drawings to today's sophisticated digital versions.

Click to check the answer

Cartography

2

In ______, mapmakers must decide on projections to represent the Earth in two dimensions and use ______ to depict various features.

Click to check the answer

cartography symbology

3

The design of maps involves ______, which reduces complexity based on scale, and careful ______ to make the map clear for users.

Click to check the answer

generalization composition

4

Map Projections: Purpose & Distortion Balance

Click to check the answer

Chosen based on map's purpose; balance distortions in shape, area, distance, direction.

5

Generalization in Map Making

Click to check the answer

Reduces complexity by removing minor details, highlighting key features for clarity at various scales.

6

Symbology's Role in Maps

Click to check the answer

Uses color, shape, size to represent geographic phenomena; crucial for map readability and effectiveness.

7

Importance of Typography in Maps

Click to check the answer

Arranges type to convey information; must be legible and suited to map's content and audience.

8

Political maps emphasize ______ and ______ subdivisions.

Click to check the answer

human-made boundaries political

9

Physical maps display features like ______, ______, and ______.

Click to check the answer

mountains rivers ecosystems

10

______ maps depict the terrain's shape and ______ using contour lines.

Click to check the answer

Topographic elevation

11

Geological maps illustrate the ______ and ______ of rocks and earth materials.

Click to check the answer

types structures

12

Thematic maps convey specific topics such as ______ distribution or ______ trends.

Click to check the answer

population economic

13

GIS in modern cartography

Click to check the answer

GIS allows layering of datasets on spatial frameworks, enabling complex spatial analyses.

14

Interactive map features

Click to check the answer

Users can zoom, pan, and toggle layers for enhanced data exploration in interactive maps.

15

Vector vs. Raster graphics

Click to check the answer

Vector graphics are scalable, clear at any zoom; raster graphics have fixed pixels, suited for detailed imagery.

16

These maps can show variations in ______, ______, ______, and ______ across different regions.

Click to check the answer

temperature precipitation wind pressure

17

Climatic maps can represent averages for ______ or ______ or show longer-term climatic ______.

Click to check the answer

monthly seasonal trends

18

They are vital for ______, ______, and the public, helping to understand climate ______ and ______.

Click to check the answer

meteorologists climatologists variability change

19

Climatic maps are crucial in ______, ______, and ______ planning, influencing weather-related decisions.

Click to check the answer

agriculture transportation urban

20

Map publication laws by country

Click to check the answer

Maps must comply with the laws of the country where they are published, affecting border depictions.

21

Impact of contested territories on maps

Click to check the answer

Contested areas like Jammu and Kashmir lead to varying international map representations due to differing claims.

22

Cartographer's challenge with geopolitics

Click to check the answer

Cartographers must carefully navigate geopolitical sensitivities to avoid controversies and ensure map compliance.

23

They enable users to ______ the world visually and comprehend ______ relationships and ______.

Click to check the answer

explore spatial patterns

24

Maps can be ______, showing a broad range of details, or ______, concentrating on a specific ______ or ______.

Click to check the answer

general specialized theme subject

25

The ______ of a map significantly influences its ______ value, as it needs to be ______ and ______ for its audience.

Click to check the answer

design educational clear accessible

26

Maps are used in various settings such as ______, ______, and for ______, showcasing the effectiveness of ______ communication.

Click to check the answer

the classroom research public dissemination visual

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Civic Education

The Federal Structure of the United States

View document

Geography

Overview of U.S. States and Their Distinctive Features

View document

Geography

The Evolution of Cartography

View document

The Evolution and Craft of Cartographic Design

Cartography, the art and science of creating maps, has a rich history that spans thousands of years, evolving from rudimentary sketches on cave walls to the advanced digital maps of today. Modern cartography is a complex discipline that merges technical skill in geographic data representation with aesthetic design principles to produce maps that are both informative and engaging. The cartographic process involves a series of decisions about map projections, which translate the three-dimensional Earth onto a two-dimensional surface; generalization, which simplifies details to match the map's scale; symbology, which uses visual symbols to represent different features; and the thoughtful arrangement of these elements through composition, typography, and layout to ensure the map is easily understood by its intended audience.
South Asian man sitting at a modern drawing table, with precision tools and monitor with colorful topographic map, in bright environment.

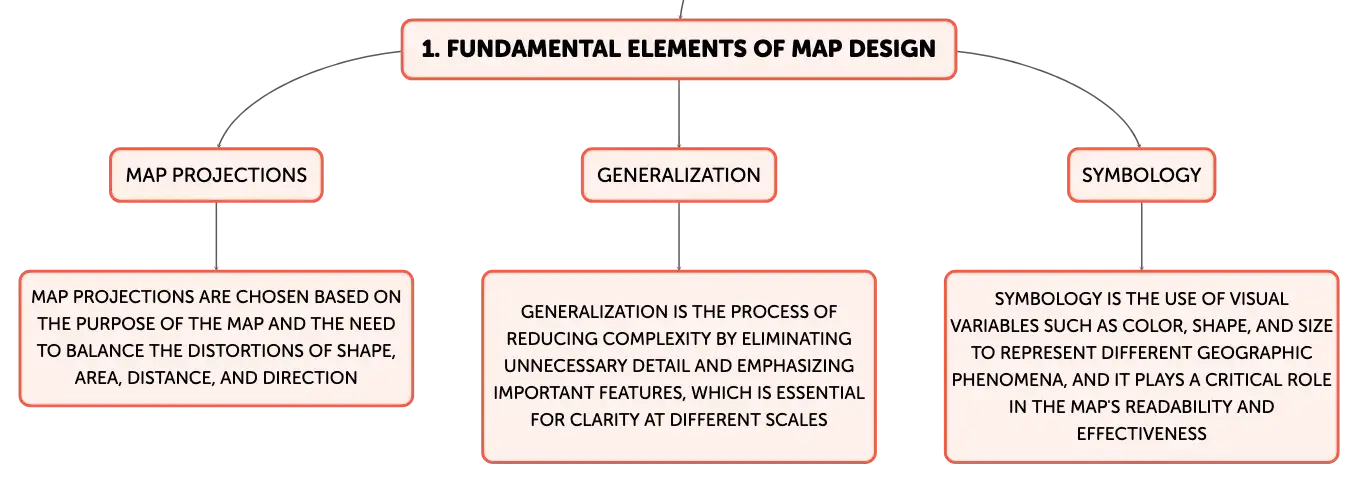

Fundamental Elements of Map Design

The creation of a map is a deliberate process that requires the careful manipulation of several fundamental elements. Map projections are chosen based on the purpose of the map and the need to balance the distortions of shape, area, distance, and direction that result from flattening the Earth's surface. Generalization is the process of reducing complexity by eliminating unnecessary detail and emphasizing important features, which is essential for clarity at different scales. Symbology is the use of visual variables such as color, shape, and size to represent different geographic phenomena, and it plays a critical role in the map's readability and effectiveness. Typography, the art of arranging type, is vital for conveying information clearly and must be legible and appropriate for the map's content and audience. Finally, the layout is the overall design of the map, including the placement of the map itself, legends, scales, and other elements, all of which must be organized in a way that guides the viewer's understanding.

Diversity of Map Types and Their Specific Design Needs

Maps vary widely in their purpose and content, necessitating different design approaches. Political maps focus on human-made boundaries and political subdivisions, while physical maps showcase the natural landscape, such as mountains, rivers, and ecosystems. Topographic maps represent the terrain's shape and elevation through contour lines or other methods, and geological maps detail the types and structures of rocks and earth materials. Thematic maps are designed to communicate specific topics, such as population distribution or economic trends, and require a design that highlights the theme without obscuring the underlying geography. Each type of map demands a unique set of design choices to effectively communicate its particular message.

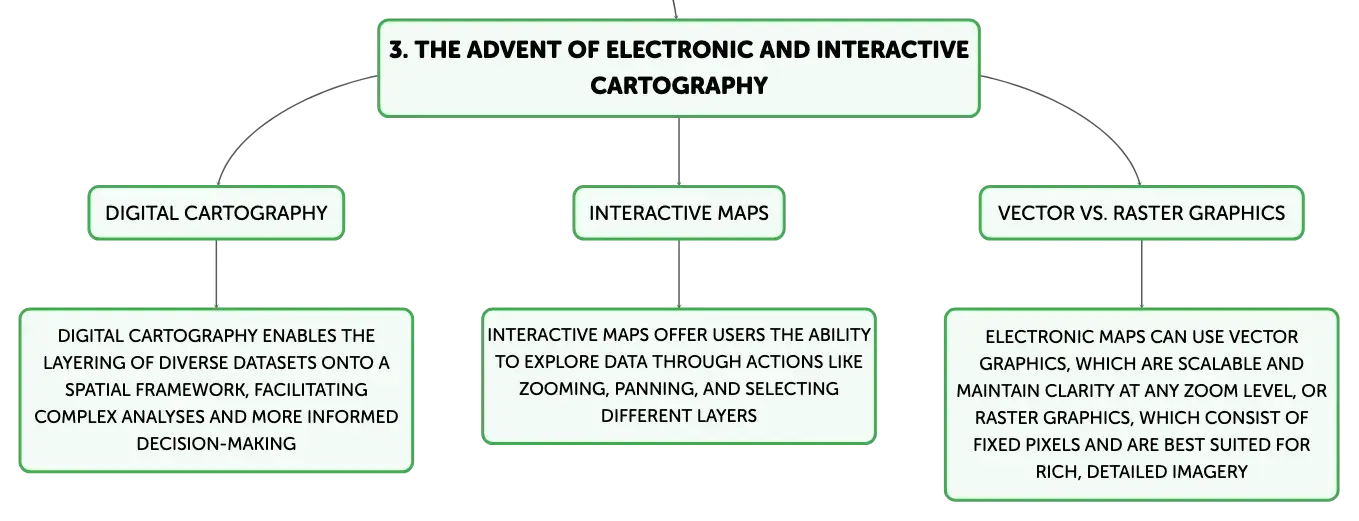

The Advent of Electronic and Interactive Cartography

The introduction of computers and Geographic Information Systems (GIS) has transformed cartography into a dynamic field that extends far beyond traditional paper maps. Digital cartography enables the layering of diverse datasets onto a spatial framework, facilitating complex analyses and more informed decision-making. Interactive maps have become commonplace, offering users the ability to explore data through actions like zooming, panning, and selecting different layers. The detail in electronic maps can be represented through vector graphics, which are scalable and maintain clarity at any zoom level, or raster graphics, which consist of fixed pixels and are best suited for rich, detailed imagery. This technological evolution has expanded the accessibility and utility of maps, making them more integral to daily life and various professional fields.

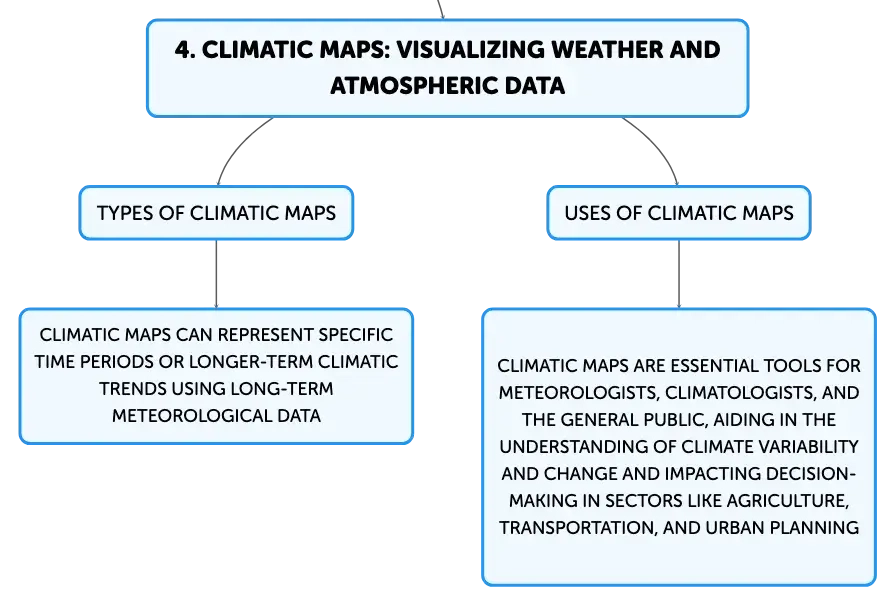

Climatic Maps: Visualizing Weather and Atmospheric Data

Climatic maps are a type of thematic map that illustrate the spatial distribution of weather and climate patterns. They are created using long-term meteorological data to show variations in temperature, precipitation, wind, and pressure across different regions. These maps can represent specific time periods, such as monthly or seasonal averages, or longer-term climatic trends. Climatic maps are essential tools for meteorologists, climatologists, and the general public, aiding in the understanding of climate variability and change. They also play a crucial role in sectors like agriculture, transportation, and urban planning, where weather and climate impact decision-making.

Legal Regulations and the Impact on Map Publishing

The publication of maps is often regulated by legal frameworks, particularly in areas where territorial sovereignty is contested. Maps must adhere to the laws of the country in which they are published, which can lead to discrepancies in international representations of borders and territories. For example, maps produced in India must depict the entire region of Jammu and Kashmir as part of India, while Pakistan and China have their own territorial claims. These legal requirements underscore the political nature of maps and the importance of understanding the context in which they are produced and distributed. As such, cartographers and publishers must navigate these regulations carefully to ensure compliance and avoid geopolitical controversies.

The Role of Maps in Education and Communication

Maps are invaluable educational resources that facilitate the comprehension of geographical, social, and environmental concepts. They provide a visual means to explore the world, allowing learners to grasp spatial relationships and patterns that would be difficult to understand through text alone. Maps can be general, displaying a wide array of information, or specialized, focusing on a particular theme or subject. The design of a map is critical to its educational value, as it must present information in a clear, accessible manner suitable for its intended audience. Whether used in the classroom, in research, or for public dissemination, maps are a testament to the power of visual communication in bridging the gap between complex data and widespread understanding.
