Introduction to First Order Circuits

First order circuits are a fundamental concept in electrical engineering, providing a foundational understanding of how electrical systems respond to various inputs. These circuits are defined by the presence of a single energy storage element, which can be either a capacitor or an inductor, in combination with resistive elements. The behavior of first order circuits during transient events, such as the application or removal of a voltage source, is governed by the interaction between the resistor and the energy storage component. The resistor influences the flow of electric current, while the capacitor or inductor stores energy in the form of an electric or magnetic field, respectively. This interplay determines the time-dependent responses of first order circuits, making them a key area of study for those interested in electronics and electrical engineering.
Close-up view of a breadboard with a blue capacitor, resistor with red-green-yellow bands, green LED, and red-black wires, arranged neatly.

Fundamental Components of First Order Circuits

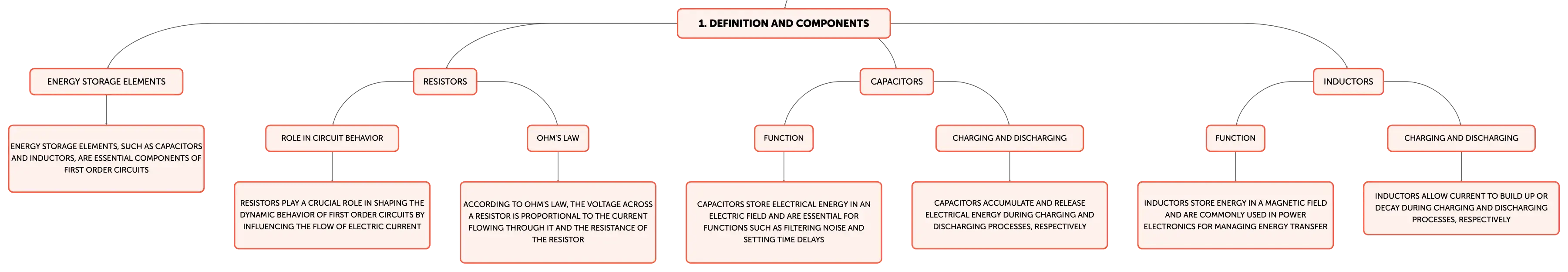

In first order circuits, resistors, capacitors, and inductors play pivotal roles. Resistors are responsible for limiting the flow of current and establishing voltage drops in accordance with Ohm's Law, which states that the voltage (V) across a resistor is proportional to the current (I) flowing through it and the resistance (R) of the resistor. Capacitors are devices that store electrical energy in an electric field and are essential for functions such as filtering noise from signals and setting time delays. Inductors store energy in a magnetic field and are commonly used in power electronics to manage energy transfer. The rate at which a capacitor charges or discharges, or an inductor allows current to build up or decay, is critically influenced by the resistance in the circuit, highlighting the resistor's role in shaping the circuit's dynamic behavior.

Transient Response and Time Constants of First Order Circuits

The transient response of first order circuits is a key area of analysis, focusing on how circuits react when subjected to sudden changes, such as switching on or off. The time constant, symbolized by \( \tau \), is a measure of how quickly a circuit responds to these changes. It is calculated as the product of resistance and capacitance (RC) in RC circuits, or resistance and inductance (L/R) in RL circuits. The time constant is indicative of the time it takes for the circuit to settle to a steady state after a transient event. This concept is crucial in the design of electronic components such as filters, control systems, and circuits involving pulse-width modulation, where precise timing is required.

Charging and Discharging Processes in RC and RL Circuits

The charging and discharging of energy storage elements are central behaviors in first order circuits. During charging, capacitors accumulate electrical energy, and inductors build up magnetic energy. Conversely, during discharging, these elements release their stored energy. The mathematical description of these processes is given by exponential functions that model the rate of change of voltage across a capacitor or current through an inductor over time. The resistor in the circuit plays a crucial role in moderating these rates, preventing excessive currents or voltages that could potentially damage components or affect the circuit's performance.

Importance of Initial Conditions in Circuit Analysis

Accurate prediction of a first order circuit's transient response requires knowledge of the initial conditions, which are the states of the circuit elements at the instant of switching. These conditions determine the starting points for the exponential curves that describe the charging or discharging of the circuit. For example, the initial charge on a capacitor will affect the voltage across it and the current through the circuit during the transient phase. Recognizing and accounting for these initial states is essential for the design and analysis of circuits, ensuring that they operate as intended under various conditions.

Characteristics of First Order RC and RL Circuits

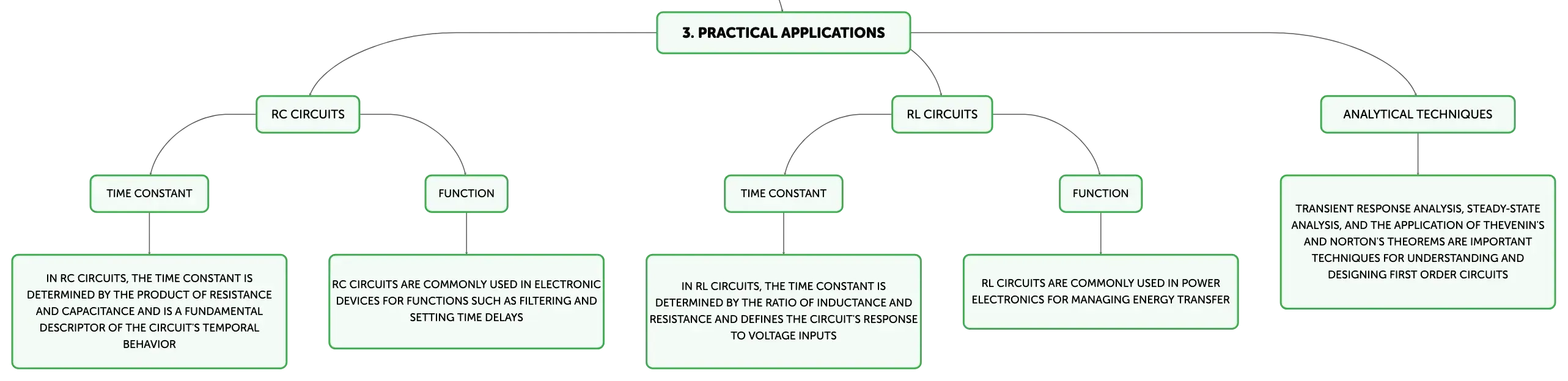

RC circuits, composed of a resistor and capacitor, are ubiquitous in electronic devices. The resistance dictates the rate at which the capacitor charges and discharges, with the time constant \( \tau = RC \) being a fundamental descriptor of the circuit's temporal behavior. RL circuits, which include a resistor and inductor, are governed by a first order differential equation that characterizes the current's time evolution. The time constant for RL circuits, \( \tau = \frac{L}{R} \), similarly defines the circuit's response to voltage inputs. These time constants are integral to understanding and predicting the performance of first order circuits in practical applications.

Analytical Techniques for First Order Circuits

A variety of analytical techniques are employed to understand the behavior of first order circuits. These include transient response analysis, which examines the circuit's immediate reaction to changes; steady-state analysis, which describes the circuit's behavior after transients have subsided; and the application of Thevenin's and Norton's theorems to simplify complex circuits into equivalent circuits with a single voltage or current source and a single resistance. Mastery of these techniques is crucial for electrical engineers to thoroughly comprehend circuit functionality and to design circuits that are both effective and efficient.

Real-World Applications of First Order Circuits

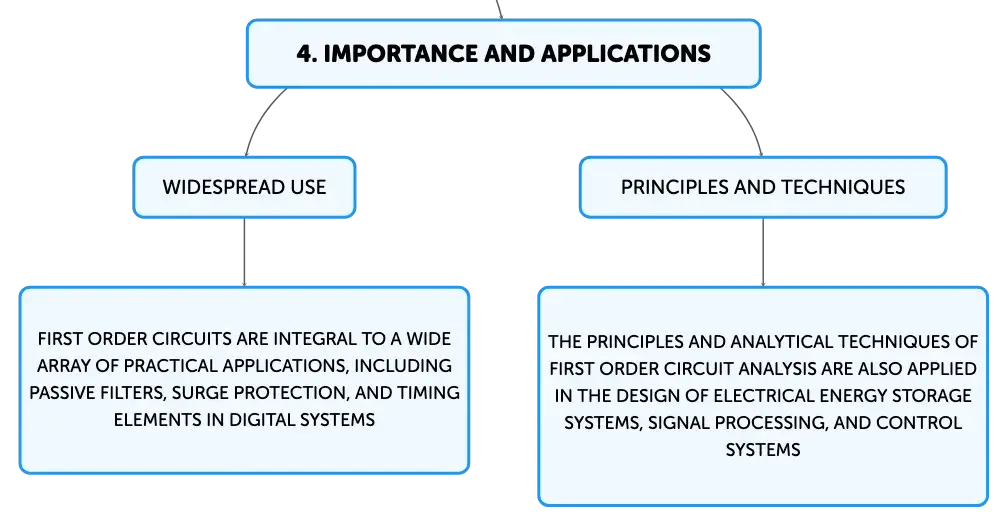

First order circuits are integral to a wide array of practical applications, such as passive filters in audio equipment, surge protection in automotive electronics, and the timing elements in digital systems. The principles and analytical techniques of first order circuit analysis are also applied in the design of electrical energy storage systems, signal processing, and control systems. The widespread use of these circuits in various engineering fields underscores the importance of a solid understanding of first order circuit principles for students and professionals alike.
