Vibrating Strings

Fundamentals of Vibrating Strings in Physics

In the realm of physics, the study of vibrating strings is pivotal for understanding wave motion and energy transfer in systems. When a string is disturbed, it vibrates and generates a standing wave pattern due to the superposition of two identical waves traveling in opposite directions. The vibration's frequency, the number of oscillations per second, is measured in Hertz (Hz). The amplitude is the peak displacement from the string's rest position, and the wavelength is the length of one complete wave cycle. These properties are interconnected through the wave equation \(f = \frac{v}{2L}\), where \(f\) is the frequency, \(v\) represents the speed of the wave on the string, and \(L\) is the length of the string.

The Dynamics of String Vibration

The dynamics of string vibration encompass the conversion between potential and kinetic energy. Displacing a string stores potential energy due to the tension force, which is then transformed into kinetic energy as the string returns to equilibrium. This oscillatory motion results in a wave that reflects within the string's boundaries, described by the wave equation. The speed of the wave is a function of the string's tension (T) and linear density (μ), expressed as \(v = \sqrt{\frac{T}{\mu}}\). The formation of standing waves and the string's natural vibrational modes are dictated by boundary conditions and the wave's reflections.

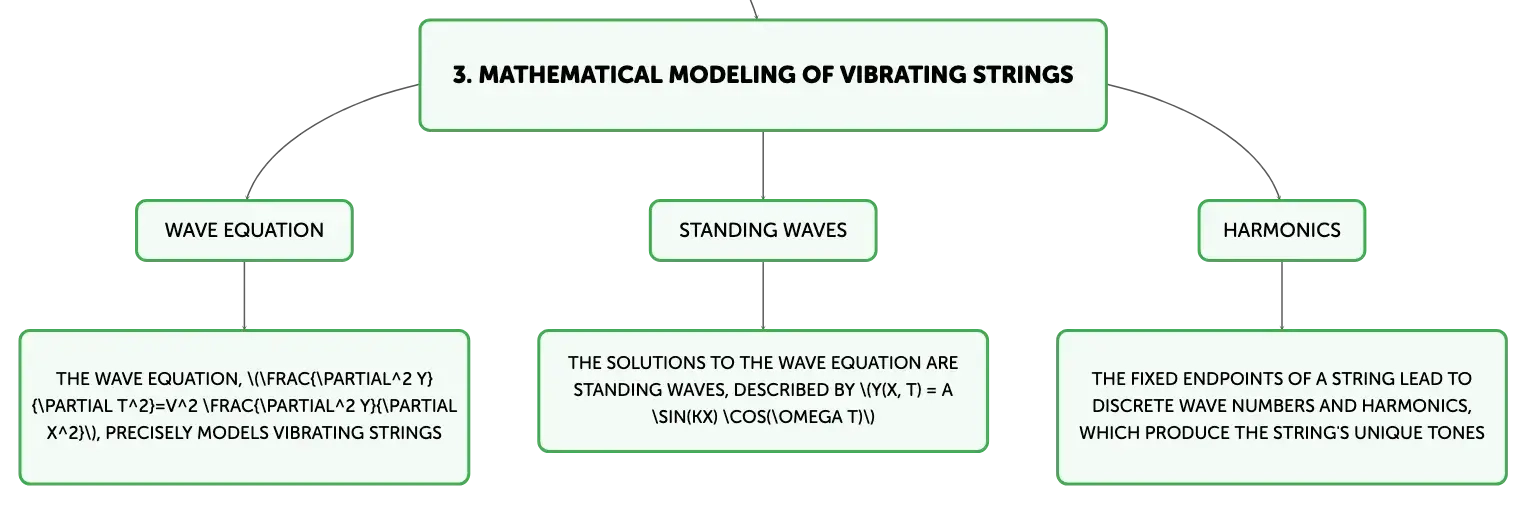

Mathematical Modeling of Vibrating Strings

Mathematics precisely models vibrating strings through the wave equation, \(\frac{\partial^2 y}{\partial t^2}=v^2 \frac{\partial^2 y}{\partial x^2}\), where \(y\) is the transverse displacement, \(x\) is the position along the string, \(t\) is time, and \(v\) is the wave speed. The solutions to this equation are standing waves, described by \(y(x, t) = A \sin(kx) \cos(\omega t)\), with \(A\) as amplitude, \(k\) as the wave number, \(\lambda\) as the wavelength, \(\omega\) as the angular frequency, and \(f\) as the frequency. The fixed endpoints of the string lead to discrete wave numbers and harmonics, which are the characteristic frequencies of vibration that produce the string's unique tones.

Applications of Vibrating Strings

Vibrating strings have numerous practical applications. In musical instruments like guitars and violins, the principles of string vibration determine the pitch, loudness, and quality of sound. Seismographs, which record earth tremors, employ vibrating strings to detect ground movements. In sports, the vibration of strings in tennis rackets affects the force transmitted to the ball. Additionally, string theory, a theoretical framework in physics, suggests that fundamental particles are akin to minuscule vibrating strings, with their vibrations defining the particles' attributes.

Energy Dynamics and Theoretical Principles of Vibrating Strings

Understanding vibrating strings requires a grasp of the underlying theoretical principles and energy dynamics. The motion of a string is a form of harmonic motion, characterized by fundamental and overtone vibrations that produce harmonics. Theoretical concepts such as Hooke's law, which correlates the force on a string to its displacement, and the wave equation, which describes the string's motion, are fundamental. The energy of a vibrating string alternates between potential energy, when the string is maximally displaced, and kinetic energy, when it is moving. This energy exchange is governed by the conservation of energy principle, which is central to the behavior of vibrating strings and the sounds they emit.
