CPU Buses and Their Role in Computer Architecture

Exploring the Central Processing Unit (CPU) and Its Integral Buses

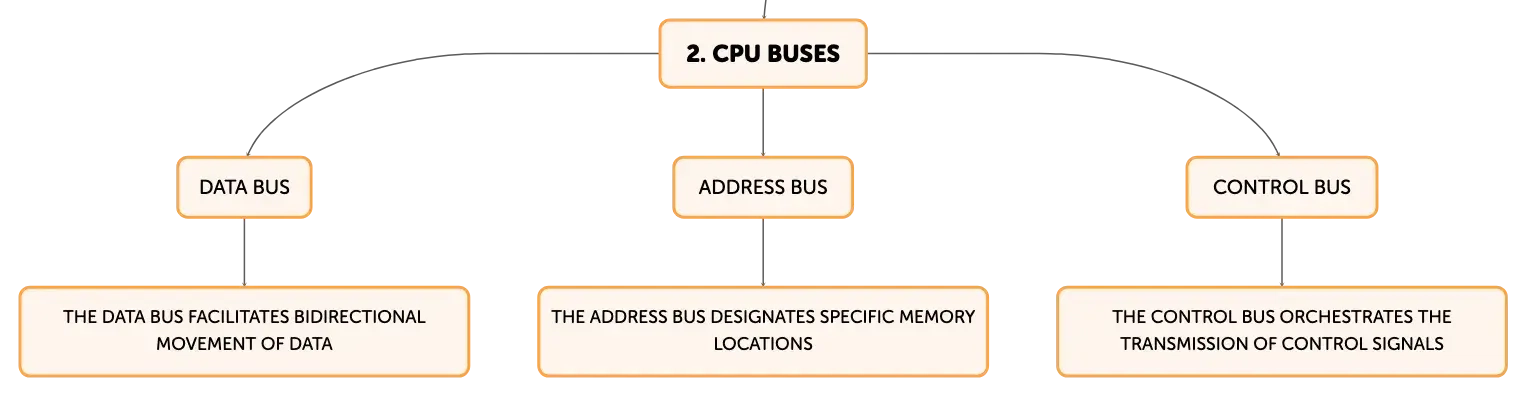

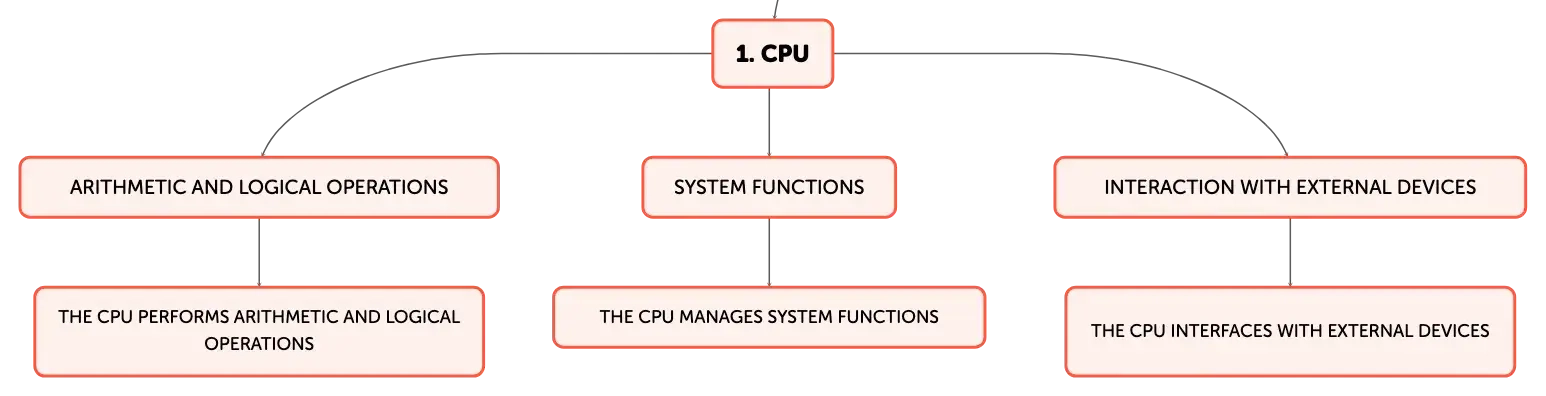

The Central Processing Unit (CPU) is the pivotal component of a computer, often likened to its brain, and it operates in conjunction with a network of buses that enable communication and data exchange within the system. These buses, comprising the Data Bus, Address Bus, and Control Bus, are crucial for the CPU's interaction with the system's memory and input/output (I/O) devices. The Data Bus facilitates the bidirectional movement of data, the Address Bus designates the data's specific location, and the Control Bus orchestrates the transmission of control signals. Collectively, they establish the foundational communication framework necessary for the CPU to execute its tasks efficiently.

Essential Elements and Operations of CPU Buses

The architecture of CPU buses encompasses the CPU, the Data Bus, Address Bus, Control Bus, system memory, and I/O devices. The CPU is responsible for performing arithmetic and logical operations and managing system functions. The Data Bus enables the movement of data between the CPU, memory, and I/O devices. The Address Bus, which operates unidirectionally, permits the CPU to identify specific memory addresses or I/O device registers. The Control Bus transmits signals that synchronize the operations of the system. System memory serves as the repository for data and instructions that the CPU requires, while I/O devices provide the means for interaction with the external environment.

The Functionality of Data, Address, and Control Buses in Data Exchange

The CPU buses play a pivotal role in orchestrating the data exchange process within a computer. When data transfer is needed, the CPU dispatches the target memory address through the Address Bus and issues control signals via the Control Bus to commence the operation. The Data Bus then conveys the data to or from the CPU, depending on whether the operation is a read or write action. This streamlined data exchange is vital for the computer to execute tasks promptly, underscoring the significance of comprehending the CPU buses' roles in the realm of computer science.

Varieties of CPU Buses and Their Influence on System Performance

The design and implementation of a CPU's buses are determinants of its performance. The width of the Data and Address Buses affects the data transfer rate and the scope of addressable memory, respectively. A broader Data Bus can enhance data throughput, while an expansive Address Bus can accommodate a larger memory space. The Control Bus, by relaying a variety of control signals, ensures the harmonious operation of the CPU, memory, and I/O devices. Effective signal management is essential to prevent performance bottlenecks and to sustain optimal data throughput.

Enabling CPU-Memory Interactions

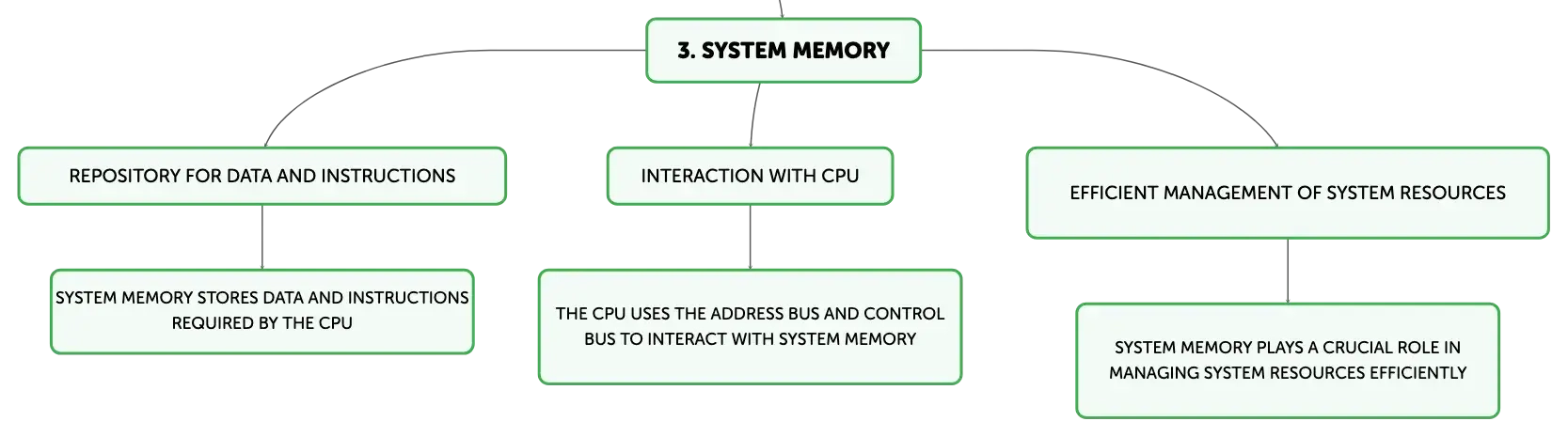

The interaction between the CPU and system memory is a fundamental operation within a computer. The CPU utilizes the Address Bus to pinpoint the memory location and the Control Bus to issue read or write commands. Subsequently, the Data Bus transports the actual data between the CPU and memory. This interaction is crucial for loading data into the CPU for processing, storing computational results, and efficiently managing system resources, thereby emphasizing the buses' role in ensuring a seamless CPU-memory relationship.

CPU Communication with External Devices via Buses

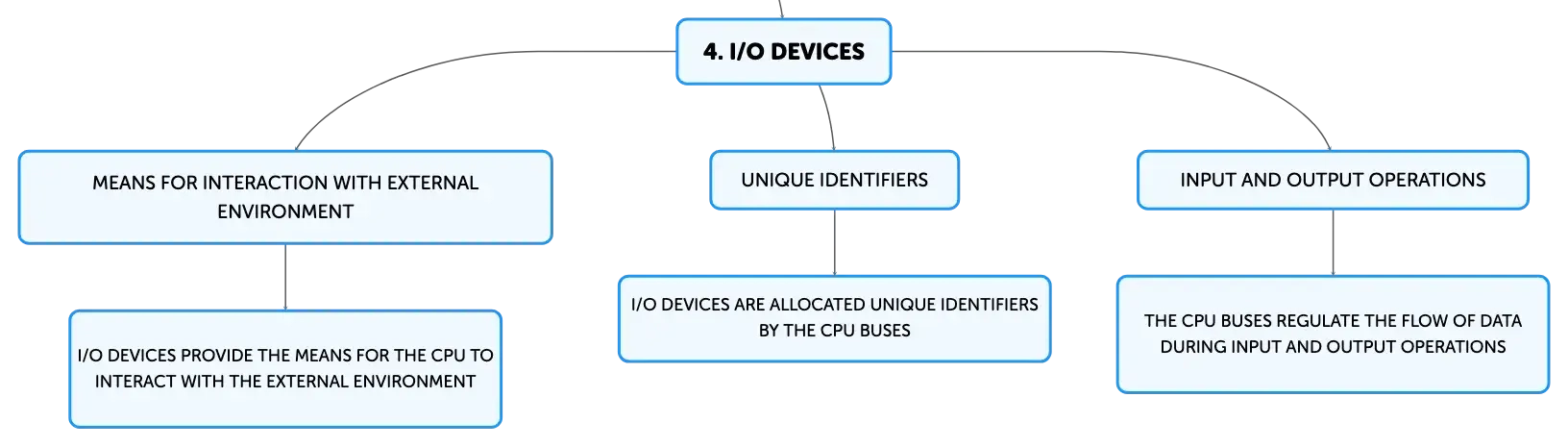

The CPU's capability to interface with external devices is orchestrated through the collaborative use of the Data, Address, and Control Buses. These buses allocate unique identifiers to I/O devices, regulate the flow of data during input and output operations, and manage interrupts and control signals. This coordination ensures that the CPU can effectively communicate with and control external devices, facilitating a smooth and integrated user experience with the computer system.

Conclusion: The Crucial Role of Buses in CPU Architecture

In conclusion, the buses within CPU architecture are indispensable to its operation and efficiency. They empower the CPU to perform effectively by enabling data transfers, facilitating memory access, and ensuring communication with external devices. A thorough understanding of the Data Bus, Address Bus, and Control Bus, and their respective roles and functions, is vital for those aspiring to excel in computer architecture and the broader field of computer science.
