Surface Area Integrals: Calculating the Area of Complex Surfaces
Surface area integrals in calculus are crucial for measuring complex surfaces by integrating over small patches. They're used in physics for gravitational fields, in engineering for fluid dynamics, and in electromagnetism for computing fluxes. Techniques range from simple formulas for spheres and cylinders to advanced methods for three-dimensional shapes, aiding in fields like aerospace and biomedical engineering.
See moreFundamentals of Surface Area Integrals in Calculus
Surface area integrals are a fundamental aspect of calculus that facilitate the measurement of the total area of complex surfaces. This is achieved by integrating over infinitesimally small patches of area to approximate the whole. These integrals are not only pivotal in advanced mathematics but also find applications in various scientific disciplines. The calculation of a surface area integral involves a double integral over a region, which incorporates the curvature inherent to three-dimensional objects. For a surface represented by a vector function \(\vec{r}(u, v)\), the surface area \(A\) is given by the integral \(A = \int\!\!\!\int_{D} \|\vec{r}_u \times \vec{r}_v\| dA\), where \(\vec{r}_u\) and \(\vec{r}_v\) are the partial derivatives of \(\vec{r}\) with respect to the parameters \(u\) and \(v\), respectively, and \(D\) represents the domain of integration.Interdisciplinary Applications of Surface Area Integrals
Surface area integrals are instrumental across various fields due to their versatility in solving real-world problems. In physics, they are crucial for determining the gravitational fields of objects with non-uniform shapes, which is of particular importance in astrophysics and aerospace engineering. Engineers utilize these integrals to calculate the volumes of structures and to analyze fluid dynamics, which is vital in the design of aircraft and watercraft. In the realm of electromagnetism, surface area integrals are key to computing fluxes, a concept central to Maxwell's equations. The broad applicability of surface area integrals underscores their importance in the analysis of three-dimensional surfaces and their interactions with physical phenomena.Techniques for Computing Surface Area with Integrals

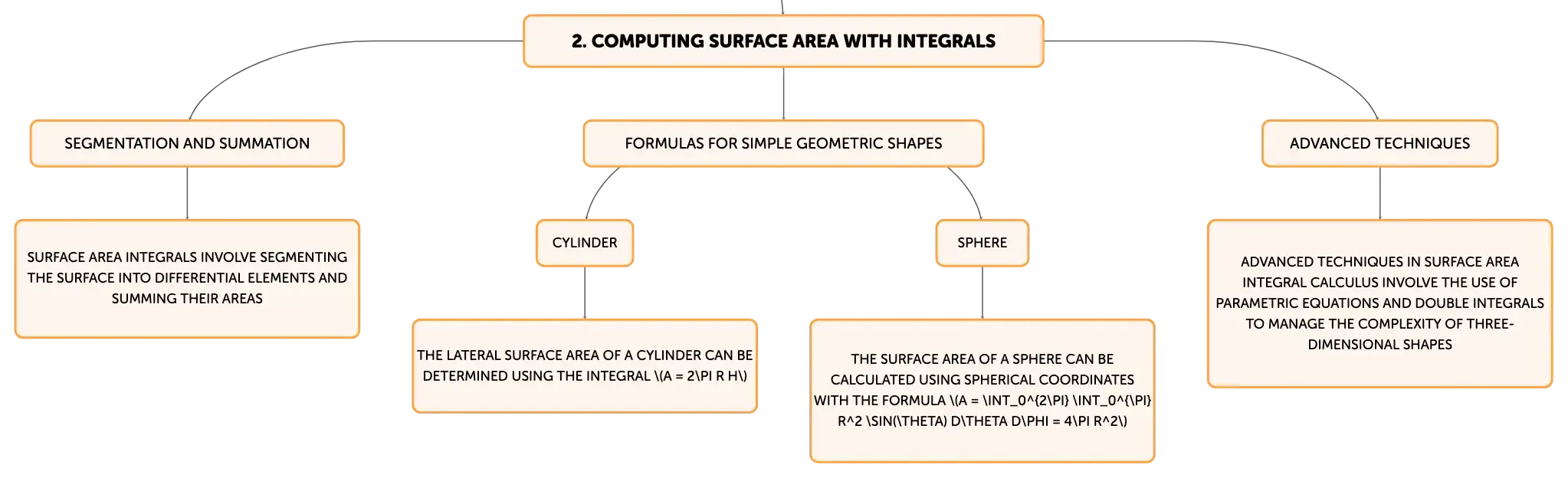

Computing surface area with integrals involves segmenting the surface into differential elements and summing their areas. The general formula for this is \(A = \int \int_{S} dA\), where \(S\) denotes the surface and \(dA\) is the differential element of area. For instance, the lateral surface area of a cylinder can be determined using the integral \(A = 2\pi r h\), which is derived from an integral over the cylindrical surface. The surface area of a sphere is calculated using spherical coordinates with the formula \(A = \int_0^{2\pi} \int_0^{\pi} r^2 \sin(\theta) d\theta d\phi = 4\pi r^2\), where \(r\) is the radius of the sphere. These formulas exemplify the application of integral calculus to find the areas of simple geometric shapes.Advanced Surface Area Integral Techniques
Advanced techniques in surface area integral calculus involve the use of parametric equations and double integrals to manage the complexity of three-dimensional shapes. For example, the surface area of a paraboloid can be determined by the integral \(A = \int\!\!\int_S \sqrt{1 + \left(\frac{\partial z}{\partial x}\right)^2 + \left(\frac{\partial z}{\partial y}\right)^2} \,dA\). These sophisticated methods are crucial in fields such as aerospace engineering, where accurate surface area calculations are imperative for optimizing performance, and in biomedical engineering for the design of prosthetics that conform to the intricate contours of the human body.Overcoming Challenges in Surface Area Integral Calculus

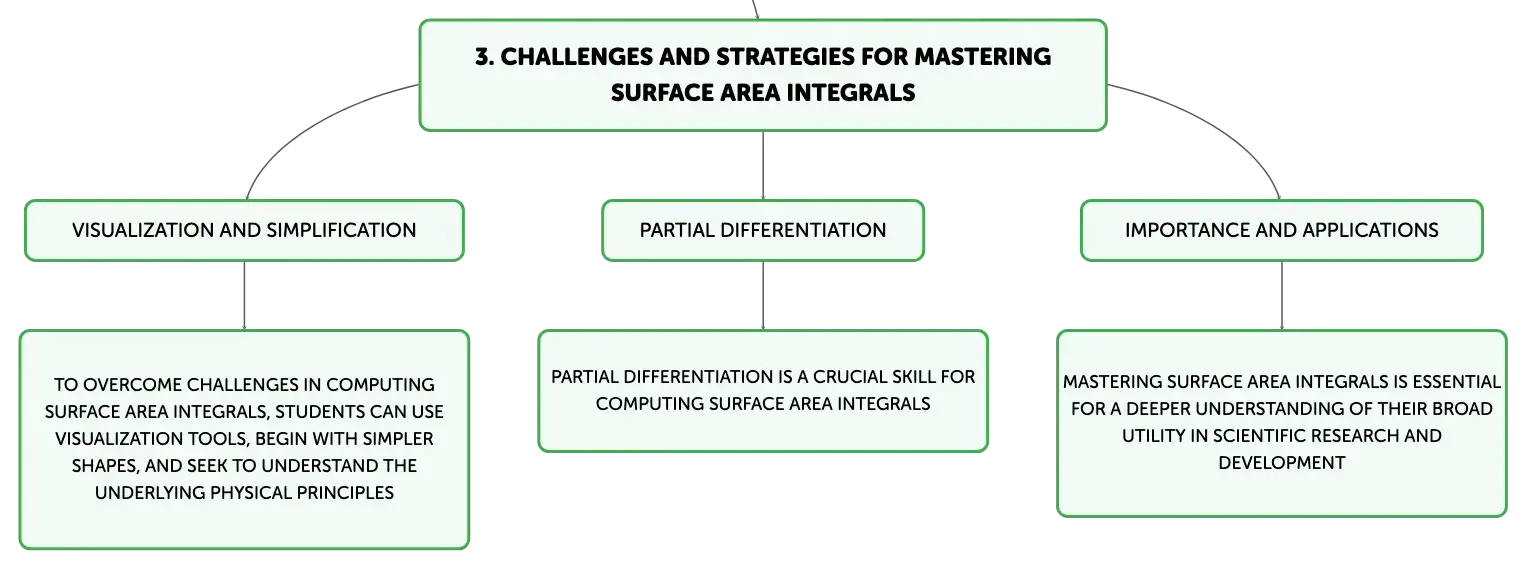

Mastering the computation of surface area integrals can be challenging due to the need to visualize complex three-dimensional surfaces, select the most effective integration techniques, and perform intricate partial differentiation. To surmount these obstacles, students are encouraged to employ visualization tools, begin with simpler shapes, practice sketching surfaces, and seek to comprehend the underlying physical principles of the integrals. For example, the symmetry of a sphere simplifies the integral required to calculate its surface area. By applying these strategies to a variety of shapes, students can gain a deeper understanding of the broad utility of surface area integrals in scientific research and development.Essential Insights into Surface Area Integral Calculus
In conclusion, surface area integrals are vital for determining the area of three-dimensional objects, with the double integral formula \(A = \int\!\!\!\int_{D} \|\vec{r}_u \times \vec{r}_v\| dA\) being central to this endeavor. The capability to compute the surface area of spheres and other complex geometries using integral calculus is an invaluable skill. The foundational formula \(A = \int \int_{S} dA\) underpins these calculations. Advanced techniques involving double integrals and parametric equations are essential for addressing the intricacies of three-dimensional shapes, with significant implications for a multitude of scientific and engineering fields.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Gravitational field calculation for non-uniform objects
Click to check the answer
2
Surface area integrals in fluid dynamics
Click to check the answer
3
Role of surface area integrals in electromagnetism
Click to check the answer
4
Surface area integral for a paraboloid formula
Click to check the answer
5
Role of parametric equations in surface integrals
Click to check the answer
6
Applications of surface area calculations in aerospace engineering
Click to check the answer
7
Calculating the ______ of complex 3D shapes can be tough due to the need for visualization, selecting integration methods, and intricate ______.
Click to check the answer
