Electric Fields and Capacitors

Understanding Electric Fields in Capacitors

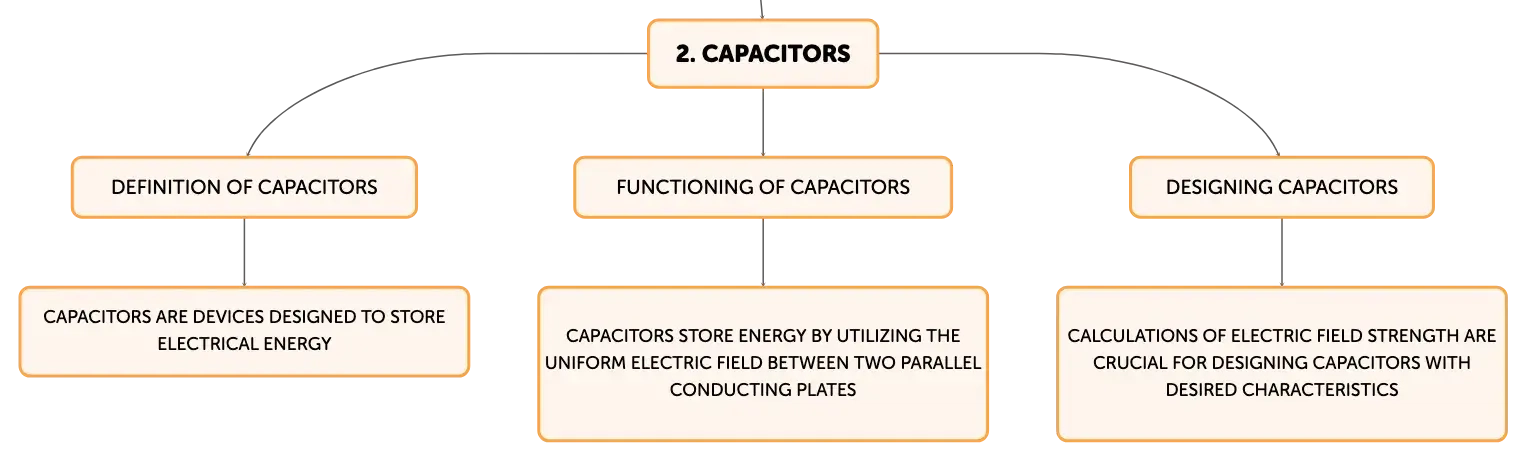

An electric field is a vector field that surrounds electric charges and exerts force on other electric charges within the field. In the context of capacitors, which are devices designed to store electrical energy, a uniform electric field is established between two parallel conducting plates. When these plates are charged with equal but opposite charges and separated by an insulating material (dielectric), the electric field in the region between the plates is uniform. This means that the electric field has the same magnitude and direction at every point between the plates. The uniform electric field is a key factor in the capacitor's ability to store energy and is utilized in various electronic components and systems.

Generation of a Uniform Electric Field

To generate a uniform electric field, two conductive plates are placed parallel to each other and connected to a source of voltage that applies an equal but opposite charge to each plate. The electric field between the plates is represented by lines of force that are equally spaced and parallel, indicating the direction and uniformity of the field. These lines extend from the positively charged plate to the negatively charged plate, showing the path that a positive test charge would take if free to move. The uniformity of the field is essential for the predictable operation of capacitors in circuits.

Calculating Electric Field Strength

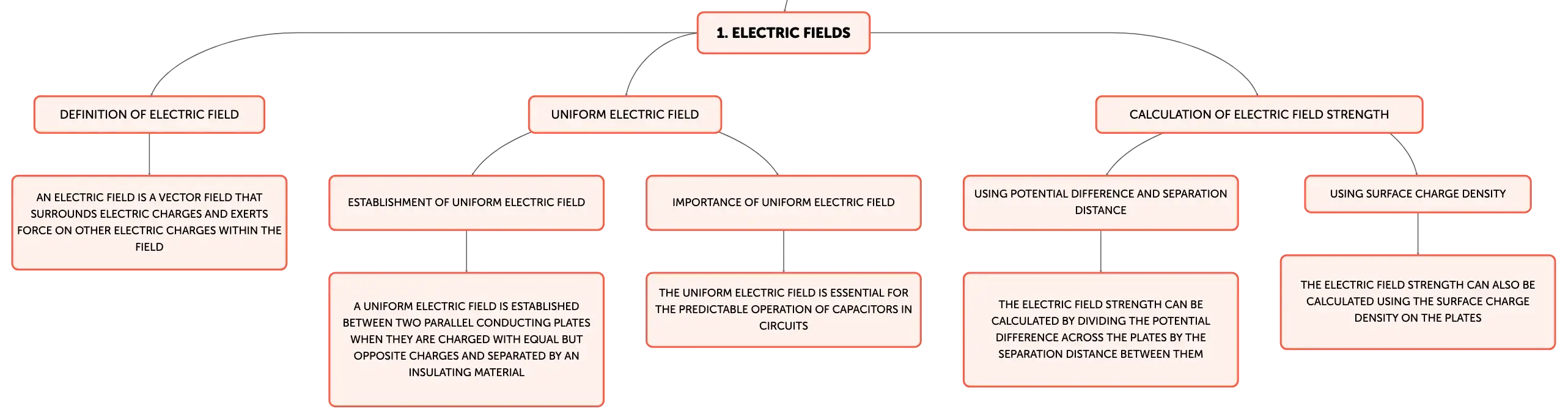

The electric field strength (E) in a uniform field, such as that between capacitor plates, is calculated by dividing the potential difference (V) across the plates by the separation distance (d) between them, yielding the equation E = V/d. The electric field strength is expressed in volts per meter (V/m). This relationship indicates that a larger potential difference or a smaller separation distance results in a stronger electric field. Alternatively, the electric field strength can be calculated using the surface charge density (σ), which is the charge (Q) per unit area (A) on the plate, with the equation E = σ/ε₀, where ε₀ is the permittivity of free space, a fundamental physical constant.

Derivation of Electric Field Strength Formula

The formula for electric field strength can be derived from the concept of electric potential energy. The work (W) done to move a charge (q) through a potential difference (V) is W = Vq. Since the electric field (E) is defined as the force (F) per unit charge exerted on a small positive test charge, and work is also force times distance (W = Fd), we can relate these concepts to derive E = V/d. This derivation provides a fundamental understanding of the relationship between potential difference, electric field strength, and the work done on charges in the field.

Electric Field Between Plates with Identical Charges

If both plates of a capacitor are given identical charges of the same polarity, the electric field between them would be non-uniform and complex, contrary to the initial summary's claim of zero electric field. The field lines would repel each other, creating a non-uniform field that is strongest near the edges of the plates and weaker in the center. This configuration is not typical for a functioning capacitor, as it would not store energy efficiently. Capacitors are designed with opposite charges on the plates to ensure a uniform electric field and optimal energy storage.

Practical Calculation of Electric Field Strength

In practical applications, the electric field strength can be calculated using known values of potential difference and plate separation, or charge and plate area. For instance, with a potential difference of 1200 V and a plate separation of 0.04 m (4.0 cm), the electric field strength is E = 1200 V / 0.04 m = 3.0 x 10^4 V/m. Similarly, for a charge of 5.0 x 10^-9 C (5.0 nC) on each plate and a plate area of 2.0 x 10^-4 m^2 (2.0 cm^2), the electric field strength using the charge density method is E = (5.0 x 10^-9 C) / (ε₀ x 2.0 x 10^-4 m^2). These calculations are crucial for designing capacitors with desired characteristics and for understanding the behavior of charges in electric fields.

Motion of Charged Particles in Uniform Electric Fields

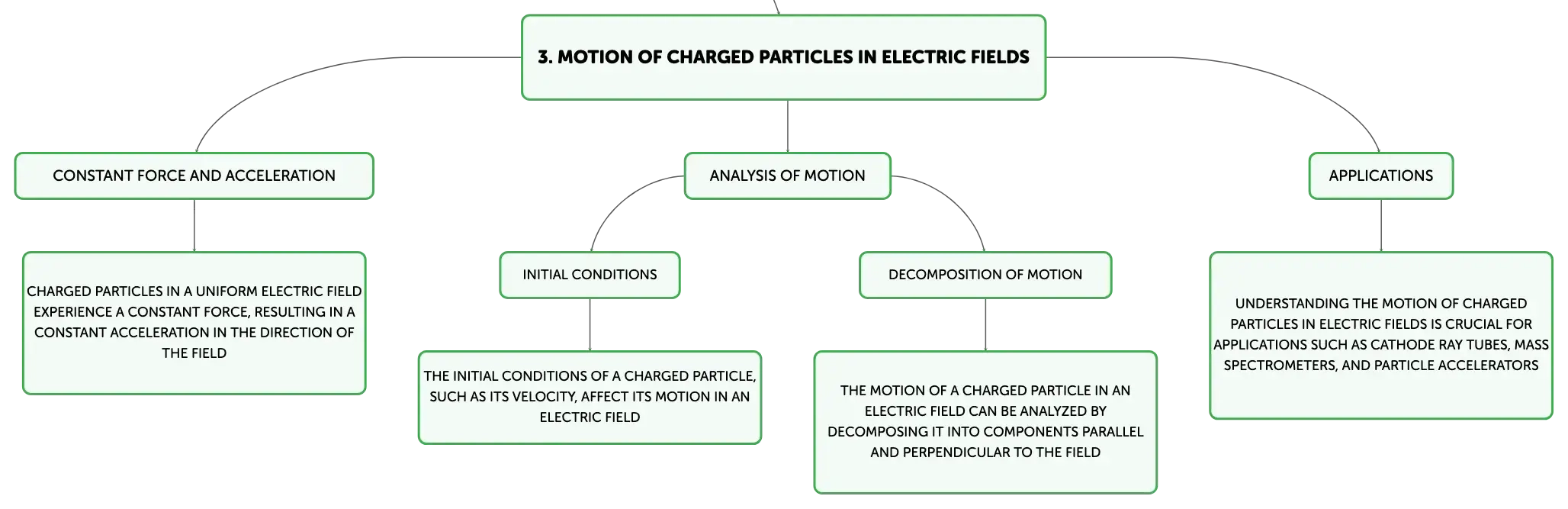

Charged particles in a uniform electric field experience a constant force, which imparts a constant acceleration to the particle in the direction of the field. This situation is analogous to the constant gravitational force acting on a projectile near Earth's surface. If the charged particle is initially at rest, it will accelerate in the direction of the electric force. If it has an initial velocity, its motion can be analyzed by decomposing it into components parallel and perpendicular to the field. Upon leaving the uniform field, the particle will move with a constant velocity in the absence of other forces. Understanding the motion of charged particles in electric fields is crucial for applications such as cathode ray tubes, mass spectrometers, and particle accelerators.
