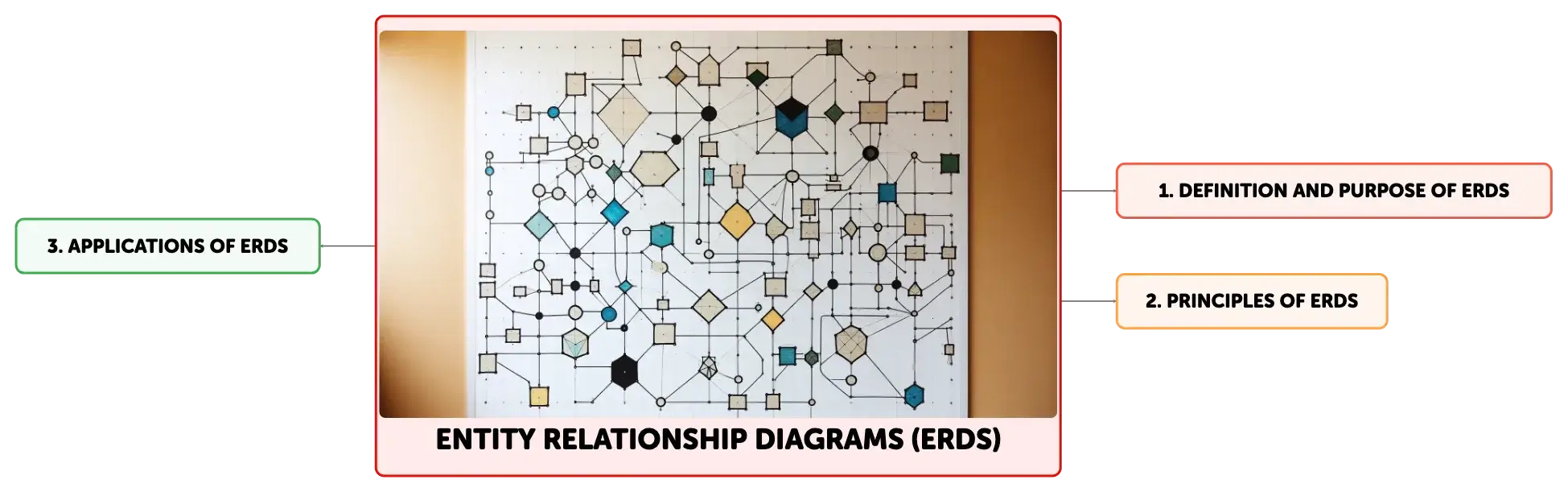

Entity Relationship Diagrams (ERDs)

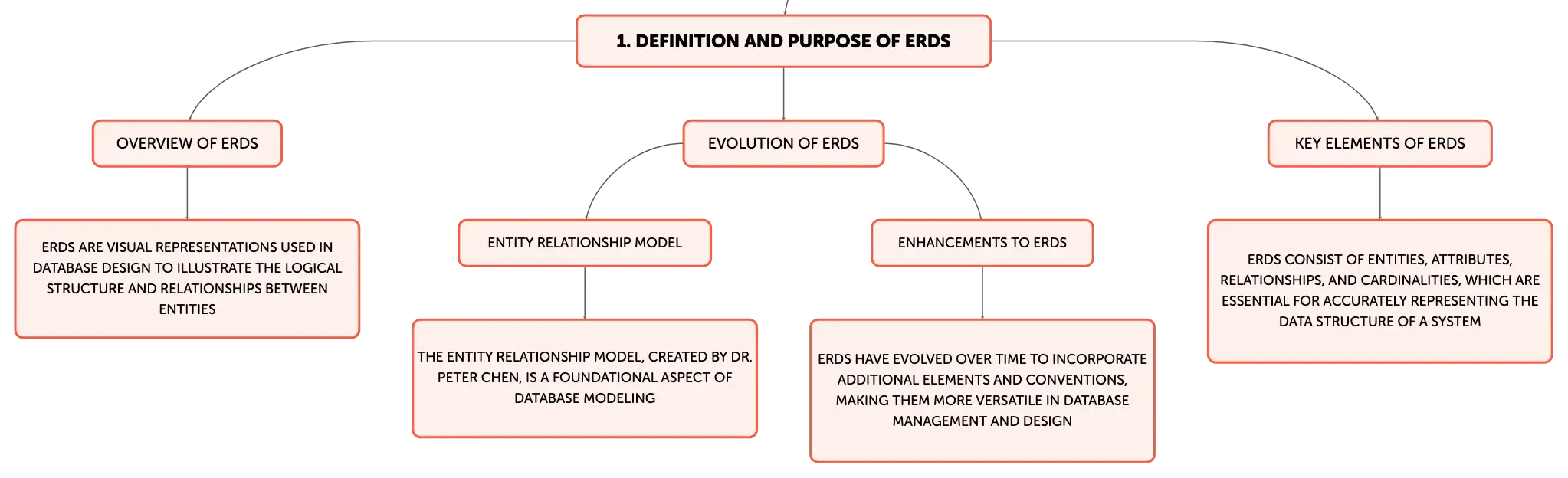

Entity Relationship Diagrams (ERDs) are vital tools for modeling the logical structure of databases, showing how entities like 'Student' or 'Course' are interconnected through attributes and relationships. They help in designing databases by illustrating entities, their properties, and the interactions between them, ensuring data integrity and system reliability. Enhanced ERDs offer a more sophisticated approach with concepts like inheritance and categorization.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

ERD Components: Entities

Click to check the answer

Entities are represented as rectangles and model real-world objects or concepts in an ERD.

2

ERD Components: Attributes

Click to check the answer

Attributes are shown as ovals and define properties or characteristics of an entity in an ERD.

3

ERD Components: Relationships

Click to check the answer

Relationships are denoted by diamonds and illustrate how entities are related to each other in an ERD.

4

ERDs, which stand for ______ ______ Diagrams, have evolved over time to include more elements, improving their ______ and ______ in database management.

Click to check the answer

Entity Relationship descriptive capabilities versatility

5

Define 'entities' in ERDs.

Click to check the answer

Entities represent real-world objects or concepts, like 'Student' or 'Course'.

6

Purpose of 'attributes' in ERDs.

Click to check the answer

Attributes detail properties of entities, e.g., 'Student_ID' for 'Student'.

7

Explain 'cardinalities' in ERDs.

Click to check the answer

Cardinalities specify numerical constraints on relationships, like 'one-to-many'.

8

In database design, the principle of ______ integrity mandates that every entity instance must have a unique ______, also known as a primary key.

Click to check the answer

entity identifier

9

The principle of ______ integrity ensures that foreign keys in a database must match an existing ______ in another entity.

Click to check the answer

referential record

10

Library ERD: 'Books' entity role

Click to check the answer

Represents individual titles; linked to 'Members' via 'Borrows' to track loans.

11

Cardinality of 'Borrows' in library ERD

Click to check the answer

Defines borrowing rules: one 'Member' can borrow multiple 'Books', each 'Book' borrowed by one 'Member' at a time.

12

In the database design process, ERDs help identify ______, primary and foreign keys, and how these elements are interrelated.

Click to check the answer

tables

13

EERDs vs traditional ERDs

Click to check the answer

EERDs include OO design concepts, complex rules; traditional ERDs are simpler, less detailed.

14

EERD advanced constructs

Click to check the answer

Specialization, generalization, categorization, inheritance enhance data representation.

15

EERD benefits for complex data

Click to check the answer

Facilitates representation of intricate relationships, hierarchies, improves database efficiency.

16

In ERDs, entities are organized by types and sets, while attributes are identified as ______, ______, or ______.

Click to check the answer

simple composite derived

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

The Significance of Terabytes in Digital Storage

Computer Science

Computer Memory

Computer Science

Understanding Processor Cores

Computer Science

Secondary Storage in Computer Systems

Introduction to Entity Relationship Diagrams

Entity Relationship Diagrams (ERDs) are fundamental tools in the field of computer science, specifically within the domain of database design and architecture. An ERD is a visual representation that models the logical structure of databases, illustrating how entities within a system are interconnected. These diagrams employ standardized symbols to represent entities (depicted as rectangles), attributes (shown as ovals), and relationships (denoted by diamonds). ERDs are invaluable not only for the initial design of a database but also for understanding and documenting complex information systems, thereby facilitating communication among stakeholders and developers.
Blackboard with connected geometric shapes: light blue rectangles, yellow diamonds and green ovals, without text, in an abstract network pattern.

Historical Development of Entity Relationship Diagrams

The Entity Relationship Model was pioneered by Dr. Peter Chen in 1976 as a method to provide a high-level view of data that is both intuitive and systematic. This model has since become a foundational aspect of database modeling, appreciated for its simplicity and clarity. Over the decades, ERDs have been refined to incorporate additional elements and conventions, enhancing their descriptive capabilities and making them more versatile in the realm of database management and design.

Core Elements of an Entity Relationship Diagram

An ERD is composed of several key elements: entities, attributes, relationships, and cardinalities. Entities are abstractions of real-world objects or concepts, such as 'Student' or 'Course'. Attributes, such as 'Student_ID' or 'Course_Name', specify the properties of these entities. Relationships depict the ways in which entities interact with one another, and cardinalities define the numerical constraints of these interactions. For instance, a 'Student' entity may be linked to a 'Course' entity through an 'Enrolls_In' relationship, indicating that a student can enroll in several courses, and a course can have many students enrolled in it.

Governing Principles of Entity Relationship Diagrams

The creation and interpretation of ERDs are guided by fundamental principles that ensure the integrity of the database design. The principle of entity integrity requires that each entity instance has a unique identifier, known as a primary key. Referential integrity stipulates that foreign keys, which are attributes that reference primary keys in other entities, must correspond to an existing record. These principles are vital for preserving the accuracy of data and preventing anomalies that could compromise the functionality and reliability of the database.

Examining Entity Relationship Diagram Examples

Studying examples of ERDs can deepen one's comprehension of database structures and facilitate the early detection of design issues. Consider a library management system ERD, which might include entities such as 'Books' and 'Members', connected by a 'Borrows' relationship. By analyzing the cardinality of this relationship, one can discern that a member may borrow several books, but each book can be borrowed by only one member at a time, mirroring the library's lending rules.

Significance of Database Entity Relationship Diagrams

ERDs act as architectural blueprints for databases, particularly in intricate systems where the visual depiction of data relationships is essential. They play a critical role in the database design phase, aiding in the identification of tables, primary and foreign keys, and the relationships between them. For example, a healthcare database ERD might represent entities such as 'Patients' and 'Doctors', and illustrate the multifaceted relationships between them, including appointments, treatments, and prescriptions.

Enhanced Entity Relationship Diagrams: A Sophisticated Modeling Approach

Enhanced Entity Relationship Diagrams (EERDs) build upon the foundation of traditional ERDs by integrating concepts from object-oriented design and more complex business rules. EERDs are capable of depicting intricate relationships and constraints, leading to more detailed and efficient database models. They introduce advanced modeling constructs such as specialization, generalization, categorization, and inheritance, which are particularly beneficial in representing complex data scenarios and hierarchies in databases.

Characteristics and Influence of Entity Relationship Diagrams

ERDs are defined by characteristics that determine their structure and influence on database modeling. Entities are categorized by entity types and sets, while attributes can be classified as simple, composite, or derived. Relationships are expressed through their cardinality, which illustrates the nature of the connections between entities. These characteristics are crucial for the ERD's capacity to accurately reflect the data structure of a system, ensuring that the database design is coherent, comprehensive, and effective. Mastery of these characteristics is essential for the effective use of ERDs in data modeling and database management.
