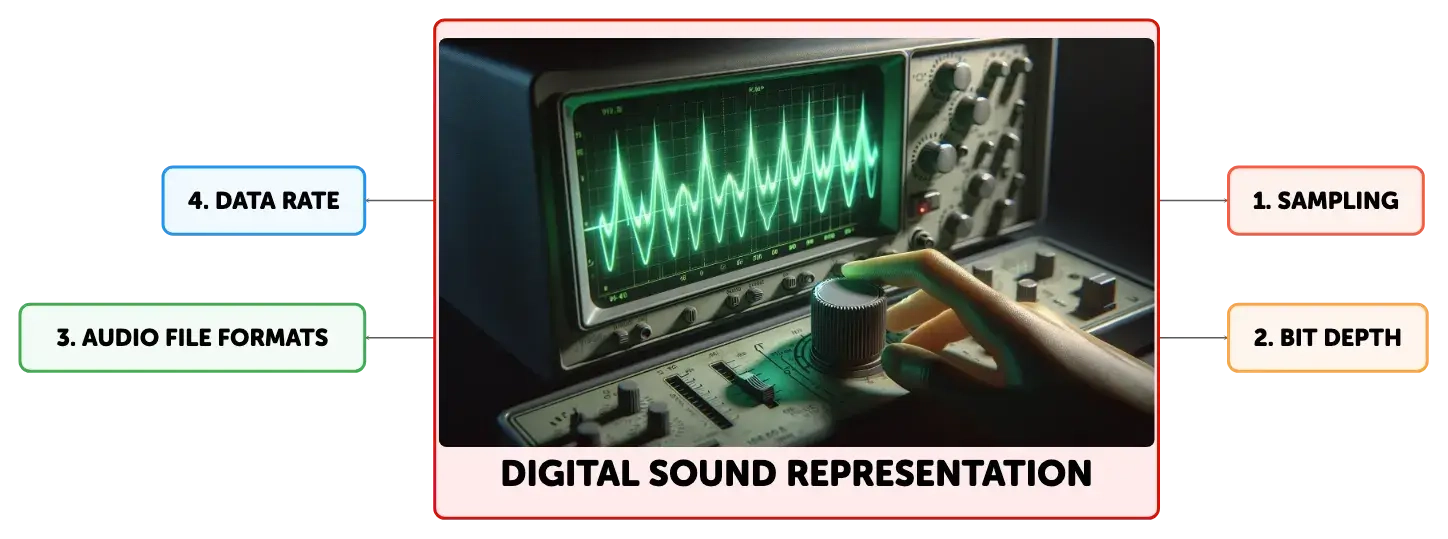

Digital Sound Representation

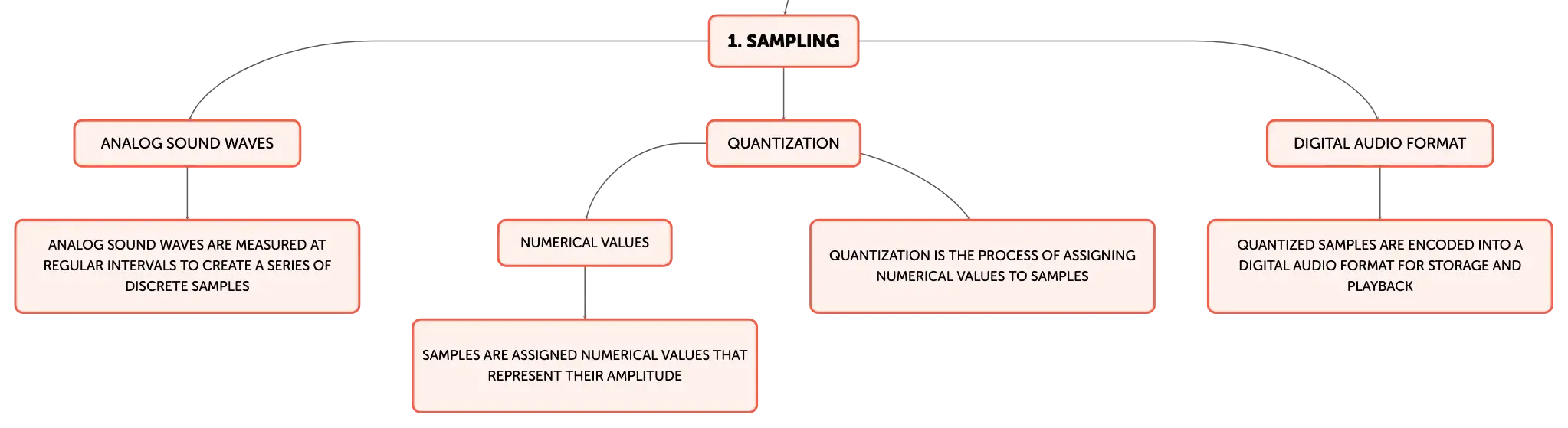

Fundamentals of Digital Sound Representation

Digital sound representation is an essential aspect of computer science that deals with how sound is captured, stored, and reproduced in a digital format. The process begins with sampling, where analog sound waves are measured at regular intervals to create a series of discrete samples. These samples are then quantized, meaning they are assigned numerical values that represent their amplitude. Finally, the quantized samples are encoded into a digital audio format for storage and playback. The fidelity of the resulting digital sound is influenced by the sampling rate, which determines how often samples are taken, and the bit depth, which dictates the precision of each sample's numerical value. Higher sampling rates and bit depths can capture more detail from the original sound, leading to higher quality audio reproduction.

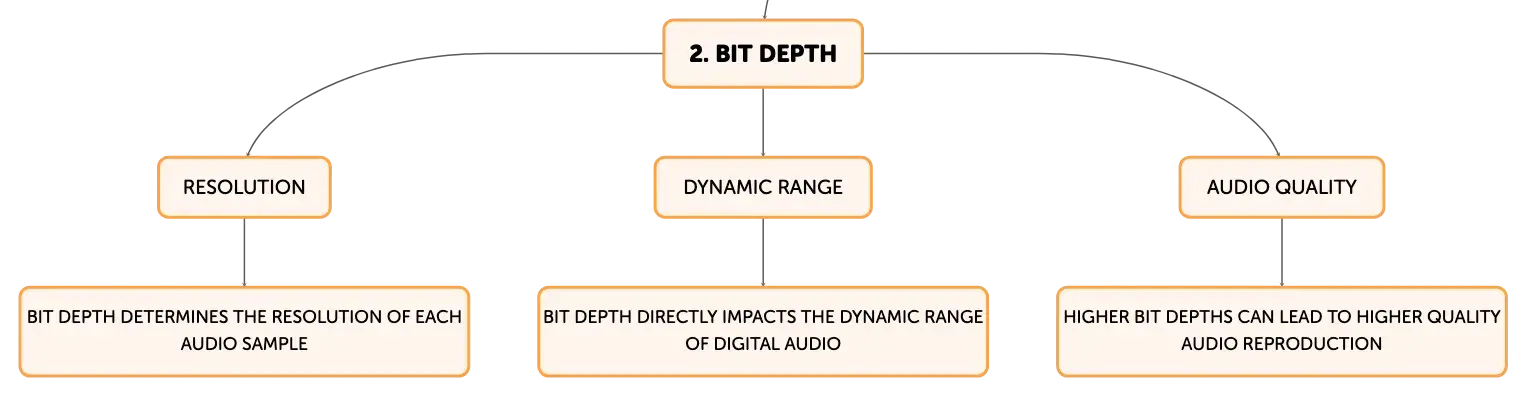

The Role of Bit Depth in Audio Quality

Bit depth is a crucial parameter in digital audio that determines the resolution of each audio sample. It defines the number of bits available to represent the amplitude of each sample, directly impacting the dynamic range—the difference between the softest and loudest sounds that can be accurately captured. A higher bit depth allows for a greater dynamic range and finer detail in the sound, which can lead to a more realistic and immersive listening experience. Standard CD audio uses a 16-bit depth, which provides a dynamic range of about 96 decibels. While higher bit depths can yield better sound quality, they also increase the file size, necessitating a trade-off between quality and storage efficiency.

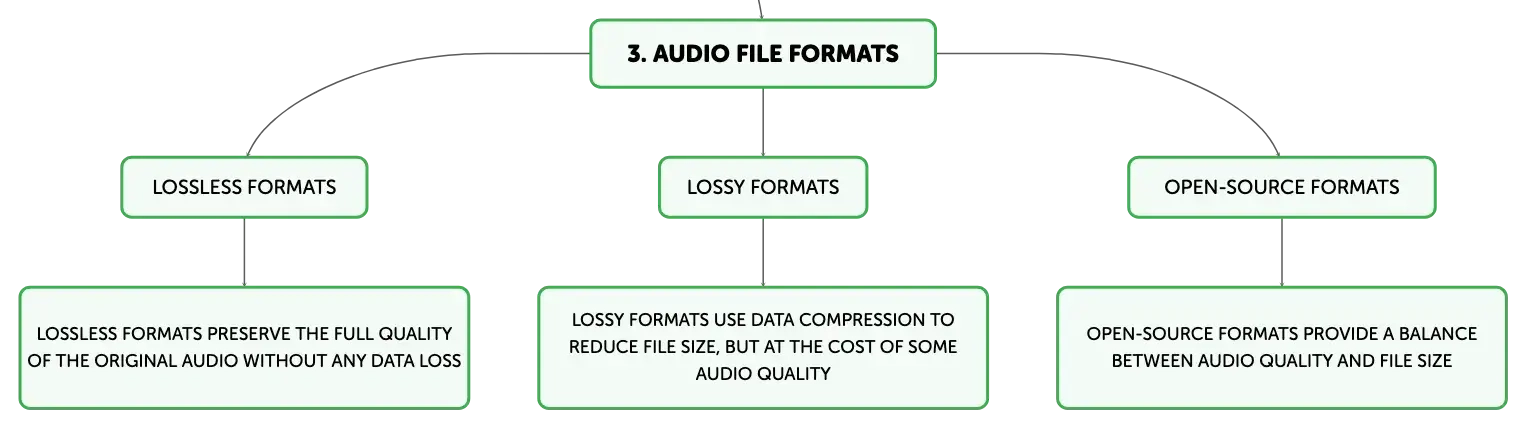

Audio File Formats and Their Properties

There are numerous audio file formats, each designed for specific purposes and offering different trade-offs between quality and file size. Lossless formats such as WAV and FLAC preserve the full quality of the original audio without any data loss, resulting in larger file sizes. Lossy formats like MP3 and AAC use data compression to significantly reduce file sizes, but this comes at the cost of some loss in audio quality. Open-source formats such as OGG Vorbis provide a balance between audio quality and file size and are favored for their versatility and support for patent-free codecs. The choice of audio file format is often dictated by the user's needs for audio fidelity, storage space, and compatibility with playback devices.

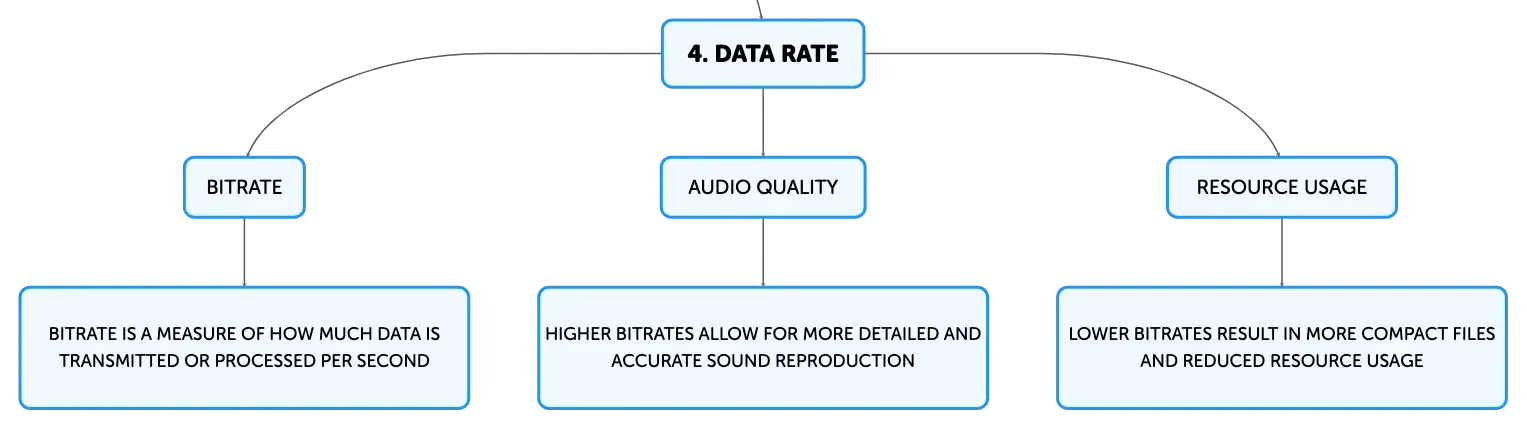

Balancing Data Rate and Audio Quality

The data rate, or bitrate, of an audio file is a measure of how much data is transmitted or processed per second. It is a key factor in determining the quality of digital audio, with higher bitrates allowing for more detailed and accurate sound reproduction. However, higher bitrates also mean larger file sizes and greater demands on storage, bandwidth, and processing power. Conversely, lower bitrates result in more compact files and reduced resource usage but can compromise audio quality. The optimal balance between data rate and audio quality is influenced by the sampling rate, bit depth, and the chosen audio file format, and must be carefully considered based on the intended use and available resources.

Analog to Digital Conversion of Sound

The transformation of analog sound into a digital representation is a pivotal process in audio technology. This conversion involves sampling the analog signal at consistent intervals and then quantizing these samples to assign digital values. Digital audio offers several advantages over analog, including less susceptibility to noise and distortion, consistent quality over multiple reproductions, and the ability to store and transmit sound without degradation. Digital audio files can be edited and processed with sophisticated software, allowing for enhanced sound quality and creative manipulation. This digital format has revolutionized the way we create, distribute, and consume audio content.

Digital Audio Formats and the Importance of Bit Depth

Digital audio files are available in a variety of formats, each with its own set of benefits tailored to different applications. Uncompressed formats like WAV provide the highest fidelity, replicating the original sound without any loss. Compressed lossless formats such as FLAC offer a compromise, maintaining the original audio quality while reducing file size. Lossy compression formats like MP3 and Ogg Vorbis achieve much smaller file sizes by discarding some audio information, which can affect sound quality. MIDI files, which store musical notation rather than sampled sound, are extremely compact but require synthesis for playback. The choice of audio format often hinges on the balance between the need for audio quality, file size, and compatibility with playback systems. Bit depth is a key factor in these formats, affecting the dynamic range and the potential for capturing detail in the audio. While professional audio recording may utilize higher bit depths to preserve sound integrity, a 16-bit depth is typically adequate for most listeners to enjoy high-quality audio.
