Exploring the Nature of Cathode Rays and the Discovery of the Electron

Cathode rays are streams of electrons that were first observed in the late 19th century within vacuum tubes, also known as discharge tubes. These tubes allow for the passage of electric current between two electrodes in a high vacuum when a voltage is applied. The cathode, which is connected to the negative terminal of the power source, emits electrons that travel towards the anode, the positive electrode. This electron stream produces a characteristic glow, often seen on the glass wall opposite the cathode. The study of cathode rays by scientists such as Julius Plücker, Johann Wilhelm Hittorf, and Eugen Goldstein, who coined the term, led to significant advancements in atomic physics, including the groundbreaking discovery of the electron by Sir J.J. Thomson in 1897.

Vintage laboratory with a large glass vacuum tube, high-voltage generator, mechanical balance scale, and shelves of glassware in soft lighting.

Characteristics and Experimental Observations of Cathode Rays

Cathode rays exhibit several notable characteristics: they are negatively charged, travel in straight lines, and have the ability to ionize gases. These properties are consistent across different gases used in the vacuum tube. The cathode ray tube, also known as a Crookes tube after its inventor, Sir William Crookes, is a sealed glass container with metal electrodes and a small amount of gas at low pressure. When a high voltage is applied, the cathode emits electrons that accelerate towards the anode, colliding with gas atoms and causing them to emit light, thereby making the electron path visible. Crookes's experiments revealed that cathode rays have mass and can be deflected by magnetic fields, providing early insights into the physical nature of electrons.

J.J. Thomson's Groundbreaking Experiments with Cathode Rays

J.J. Thomson's experiments built upon the work of his predecessors and provided crucial evidence for the existence of electrons. He showed that cathode rays could be deflected by both magnetic and electric fields, and by capturing the rays in a Faraday cup, he was able to measure an excess of negative charge. Through precise measurements and calculations, Thomson determined the charge-to-mass ratio of the electron, which was significantly higher than that of any known ion, suggesting the existence of particles much smaller than atoms. His experiments were instrumental in the recognition of the electron as a fundamental constituent of matter.

Measuring the Charge-to-Mass Ratio of the Electron

The charge-to-mass ratio (qe/me) of the electron was determined by J.J. Thomson through careful experimentation. The force (F) exerted on an electron in an electric field (E) is F = qe * E. Since the electron's mass (me) was unknown, Thomson used the electron's acceleration (a), which is related to the force by the equation a = F/me. By rearranging these equations, he obtained qe/me = a/E. By measuring the deflection of the electron beam in both electric and magnetic fields and knowing the strength of these fields, Thomson calculated the charge-to-mass ratio to be approximately -1.76 ⋅ 10^-11 C/kg. This value indicated that the electron was much lighter than any known atom, suggesting it was a fundamental particle.

The Impact of Thomson's Discovery on Physics

The discovery of the electron and its charge-to-mass ratio by J.J. Thomson had profound implications for the field of physics. It challenged the then-accepted model of the atom as the smallest indivisible unit of matter and introduced the concept of subatomic particles. Thomson's consistent experimental results, including his work on the photoelectric effect, solidified the electron's status as an elementary particle. This discovery was a cornerstone in the development of atomic and quantum physics, revolutionizing our understanding of the structure of matter.

Key Insights from the Study of Cathode Rays

Cathode rays, or electron beams, have played a pivotal role in the development of atomic physics, leading to the identification of the electron as a fundamental particle. The consistent behavior of these electron streams in vacuum tubes has been essential in advancing our knowledge of electric currents and the nature of subatomic particles. The pioneering work of scientists like J.J. Thomson, who used cathode rays to determine the electron's charge-to-mass ratio, has been fundamental in establishing the electron as a key building block of matter and has profoundly influenced our understanding of the atomic world.

The Discovery of the Electron and its Charge-to-Mass Ratio

Concept Map

Summary

Outline

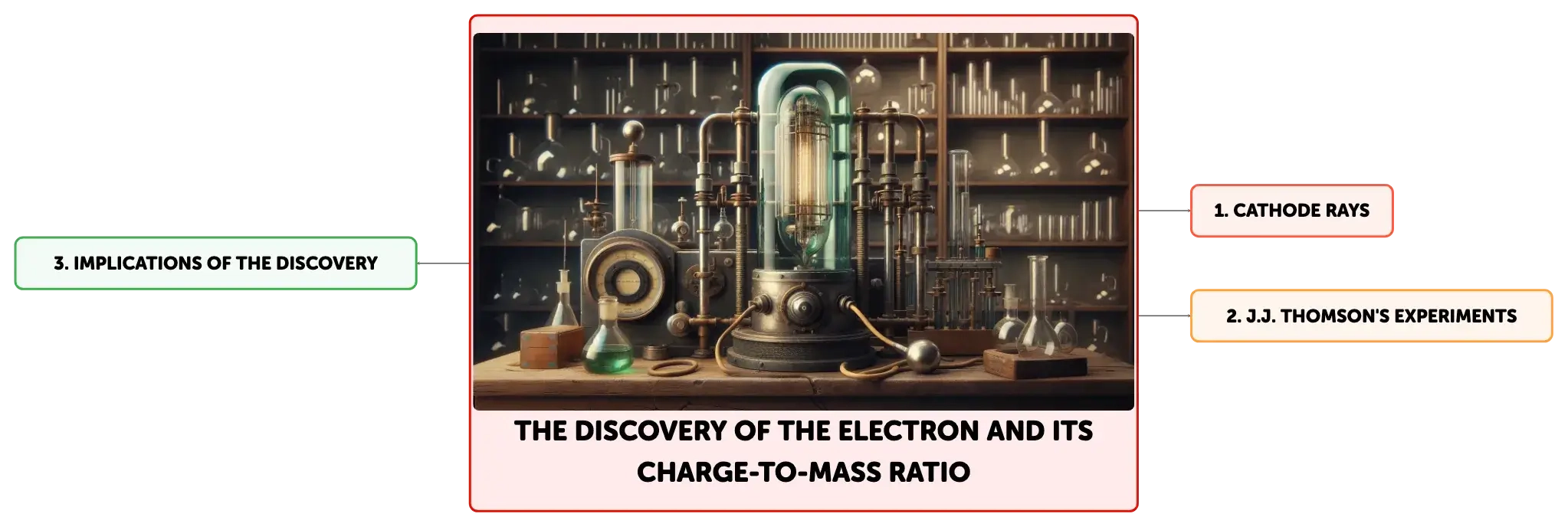

The Discovery of the Electron and its Charge-to-Mass Ratio

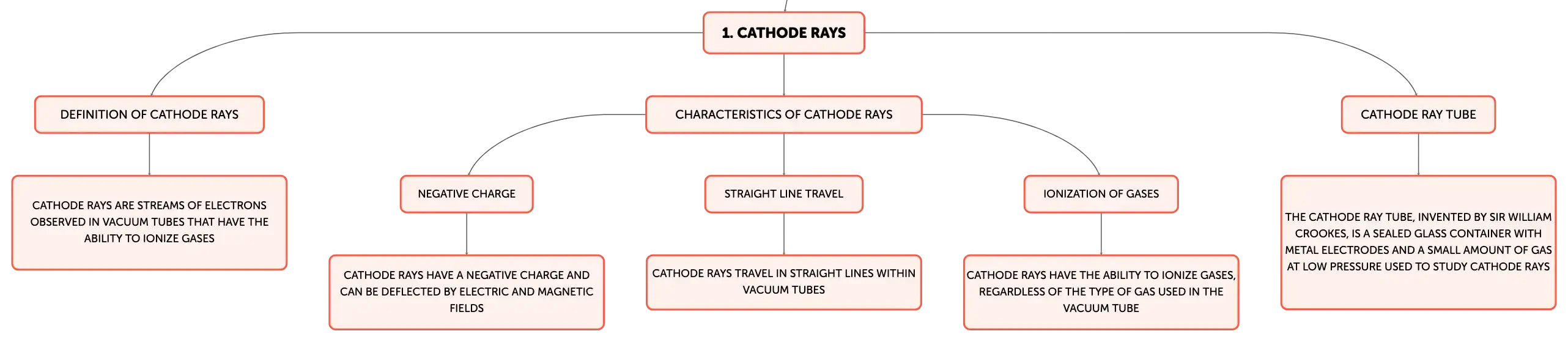

Cathode Rays

Definition of Cathode Rays

Characteristics of Cathode Rays

Cathode Ray Tube

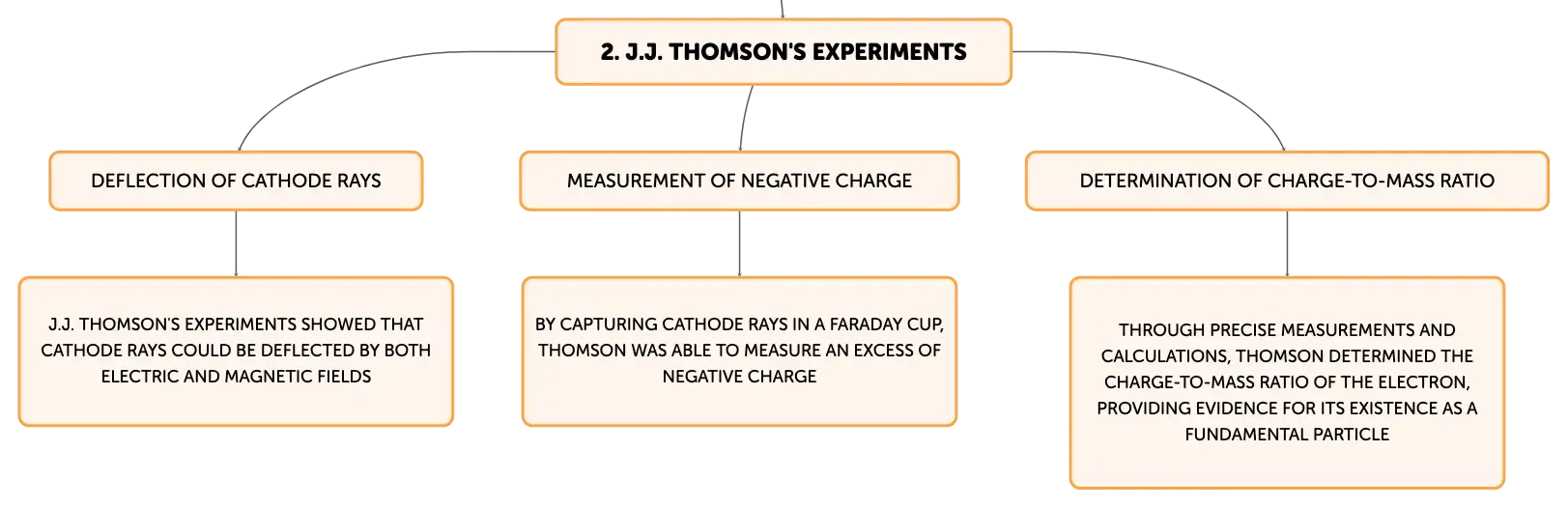

J.J. Thomson's Experiments

Deflection of Cathode Rays

Measurement of Negative Charge

Determination of Charge-to-Mass Ratio

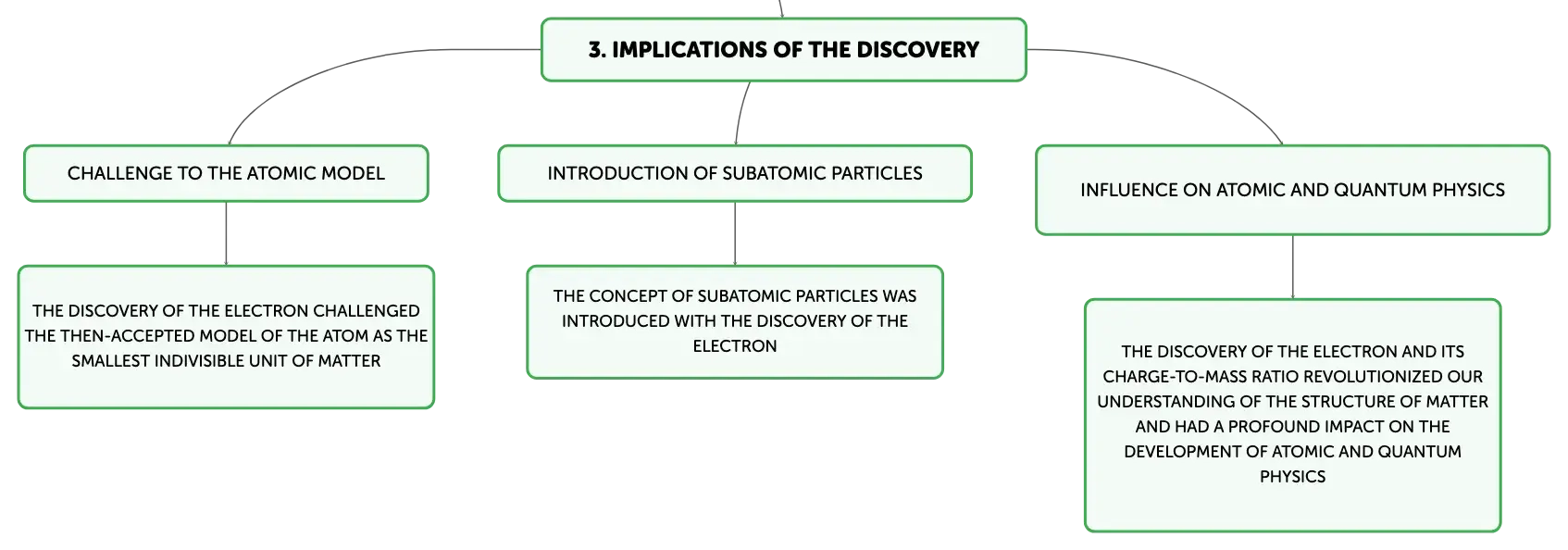

Implications of the Discovery
