Analytical Techniques for Organic Compounds
Concept Map
Analytical techniques for organic compounds are essential for understanding their composition and purity. Methods like chromatography, including HPLC and GC, and spectroscopic techniques such as NMR and mass spectrometry, provide detailed molecular characterization. The text also discusses the importance of physical properties like melting and boiling points, solubility, and solid-state properties in the identification and application of organic materials.
Summary
Outline
Analytical Techniques for Organic Compounds
Organic compounds, which are often complex mixtures, necessitate sophisticated analytical techniques to determine their composition and purity. Chromatography, including High-performance liquid chromatography (HPLC) and gas chromatography (GC), is central to these methods, enabling the separation of compounds based on their physical and chemical properties. Other traditional separation techniques such as distillation, crystallization, and solvent extraction are also employed to isolate and purify organic substances. Spectroscopic methods, including Nuclear magnetic resonance (NMR) and mass spectrometry (MS), have largely supplanted classical wet chemical tests, providing rapid and detailed molecular characterization with minimal sample preparation.Spectroscopic Methods and Elemental Analysis
Nuclear magnetic resonance (NMR) spectroscopy is a cornerstone technique in organic chemistry, providing detailed information on molecular structure, including atom connectivity and stereochemistry. The technique is particularly effective due to the prevalence of NMR-active isotopes in organic molecules, such as 1H and 13C. Elemental analysis, while a destructive technique, is crucial for determining the elemental composition of organic compounds. Mass spectrometry complements this by offering insights into molecular weight and structure through analysis of fragmentation patterns. High-resolution mass spectrometry can precisely determine molecular formulas, serving as a contemporary alternative to elemental analysis. X-ray crystallography is invaluable when single crystals are available, allowing for the elucidation of three-dimensional molecular structures.Traditional Spectroscopic Techniques and Physical Properties
Traditional spectroscopic techniques, including infrared (IR) spectroscopy and UV/Visible (UV/VIS) spectroscopy, remain useful for providing general structural information about organic compounds. The physical properties of these compounds, such as melting point, boiling point, solubility, and refractive index, are critical for identification and purity assessment. Qualitative properties like odor, texture, and color also provide important clues to a compound's identity and can be indicative of its purity.Melting and Boiling Characteristics of Organic Compounds
The melting and boiling points of organic compounds are characteristic physical properties that can be used to identify and assess the purity of these substances. These thermal properties are influenced by molecular structure, including polarity and molecular weight. Sublimation is a process observed in some symmetrical organic compounds, such as para-dichlorobenzene. However, many organic compounds decompose before reaching high temperatures, typically above 300°C, with some notable exceptions that are thermally stable.Solubility of Organic Compounds
The solubility of organic compounds is primarily governed by their molecular structure and polarity. Generally, organic compounds are less soluble in water and more soluble in non-polar organic solvents. However, compounds with ionizable functional groups or those capable of hydrogen bonding, such as low molecular weight alcohols, amines, and carboxylic acids, may exhibit increased solubility in water. The solubility profile of an organic compound is an important consideration in its application and can vary widely depending on the nature of both the solute and the solvent.Solid State Properties and Applications
The solid-state properties of organic materials, including molecular crystals and polymers with conjugated systems, are of significant interest for their technological applications. These properties encompass thermo-mechanical and electro-mechanical characteristics, such as piezoelectricity, electrical conductivity, and electro-optical properties. These attributes are critical in the fields of polymer science and materials science, and understanding them is essential for the development and application of new materials in various technological domains.
Show More

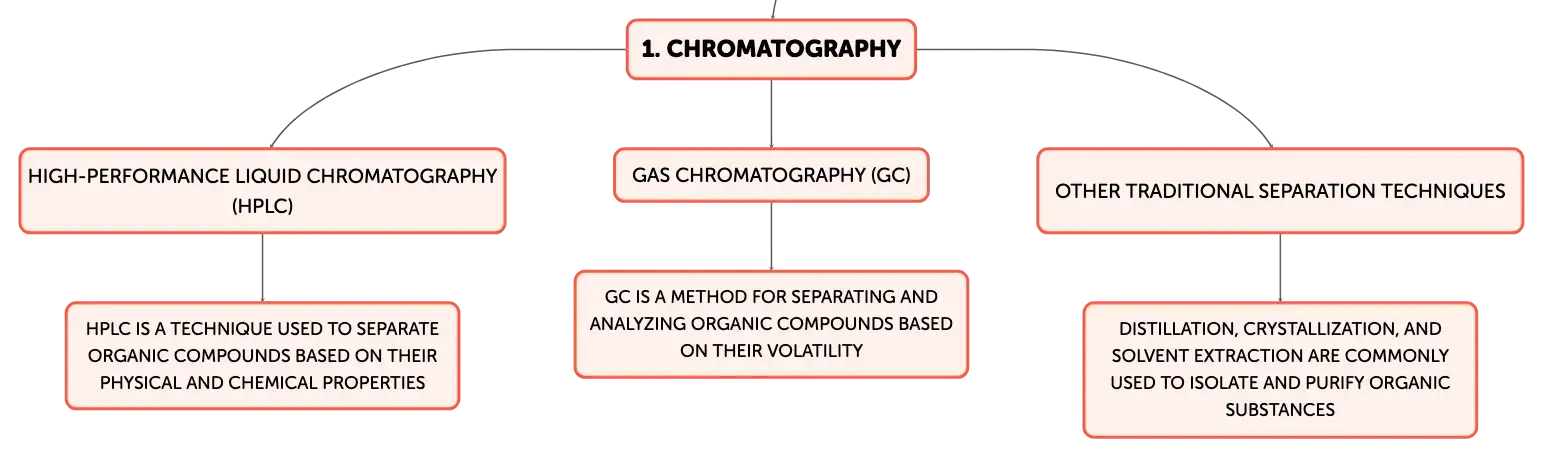

Chromatography
High-performance liquid chromatography (HPLC)
HPLC is a technique used to separate organic compounds based on their physical and chemical properties
Gas chromatography (GC)
GC is a method for separating and analyzing organic compounds based on their volatility
Other traditional separation techniques
Distillation, crystallization, and solvent extraction are commonly used to isolate and purify organic substances

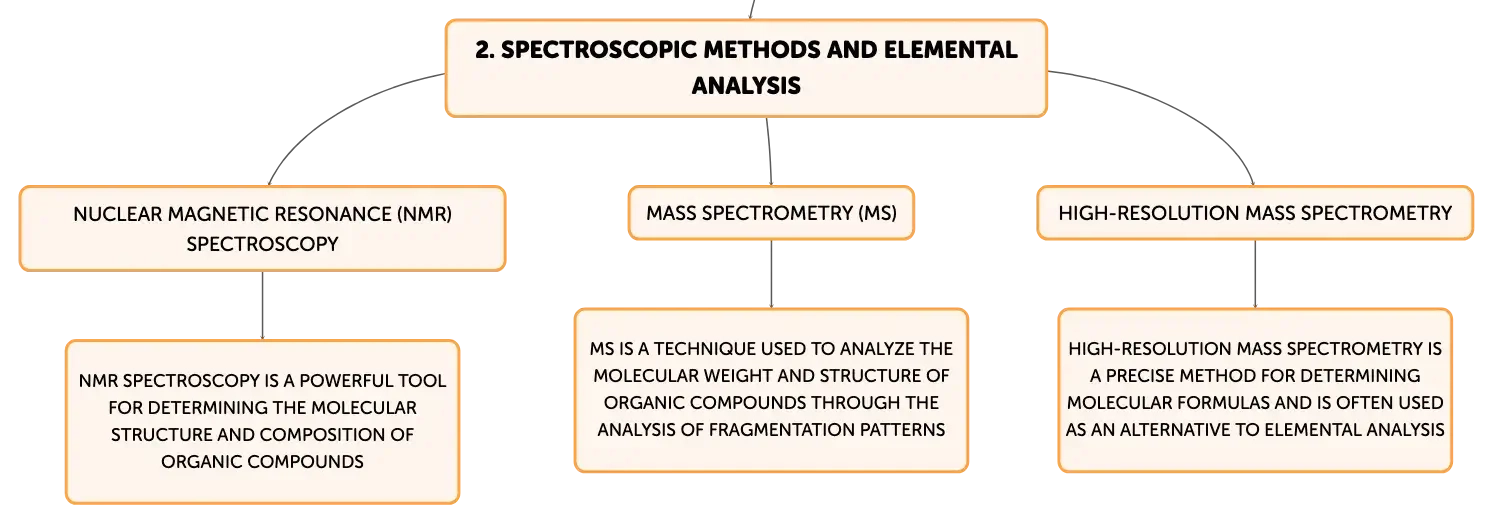

Spectroscopic Methods and Elemental Analysis
Nuclear magnetic resonance (NMR) spectroscopy
NMR spectroscopy is a powerful tool for determining the molecular structure and composition of organic compounds
Mass spectrometry (MS)
MS is a technique used to analyze the molecular weight and structure of organic compounds through the analysis of fragmentation patterns
High-resolution mass spectrometry
High-resolution mass spectrometry is a precise method for determining molecular formulas and is often used as an alternative to elemental analysis

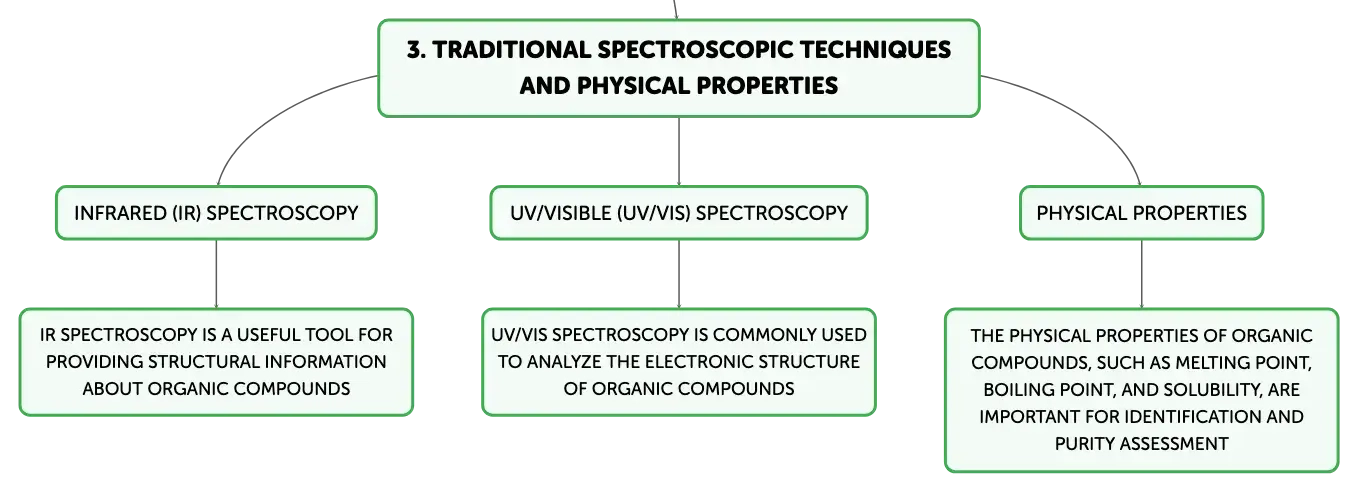

Traditional Spectroscopic Techniques and Physical Properties
Infrared (IR) spectroscopy
IR spectroscopy is a useful tool for providing structural information about organic compounds
UV/Visible (UV/VIS) spectroscopy
UV/VIS spectroscopy is commonly used to analyze the electronic structure of organic compounds
Physical properties
The physical properties of organic compounds, such as melting point, boiling point, and solubility, are important for identification and purity assessment

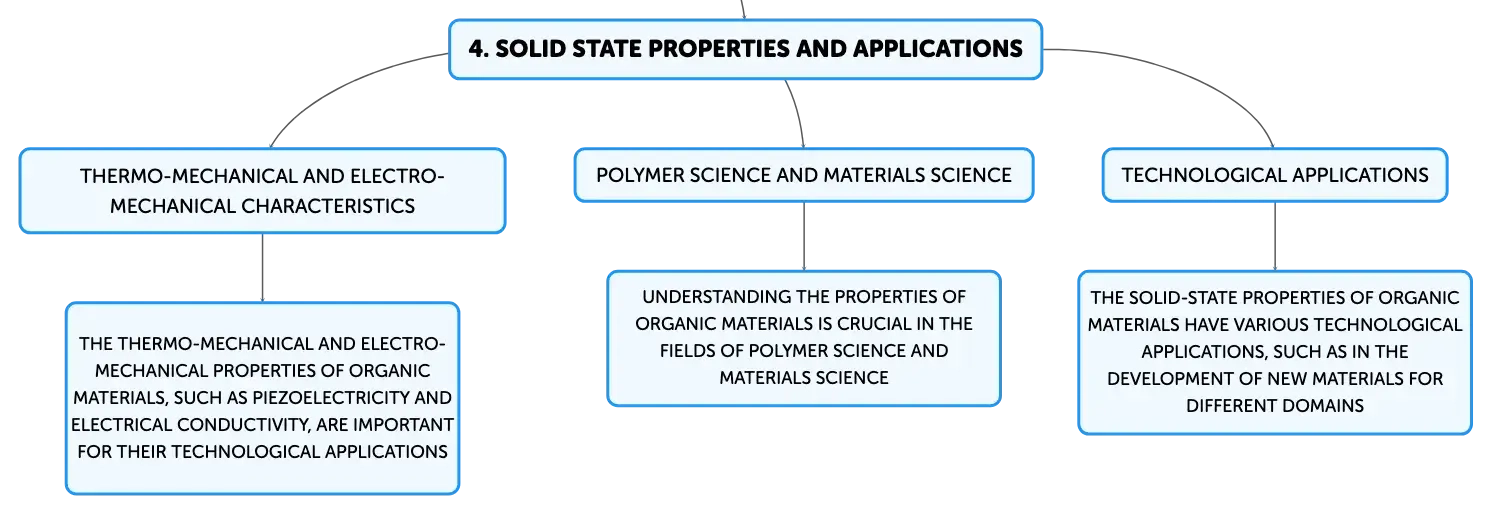

Solid State Properties and Applications
Thermo-mechanical and electro-mechanical characteristics
The thermo-mechanical and electro-mechanical properties of organic materials, such as piezoelectricity and electrical conductivity, are important for their technological applications
Polymer science and materials science
Understanding the properties of organic materials is crucial in the fields of polymer science and materials science
Technological applications
The solid-state properties of organic materials have various technological applications, such as in the development of new materials for different domains
Analytical Techniques for Organic Compounds
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Techniques for separating organic compounds
Distillation, crystallization, solvent extraction; used to isolate/purify substances.
01
HPLC vs GC
HPLC uses liquid mobile phase, suitable for non-volatile compounds; GC uses gas phase, ideal for volatile substances.
02
Advantages of NMR and MS over classical tests
Provide rapid, detailed molecular characterization; minimal sample prep required.
