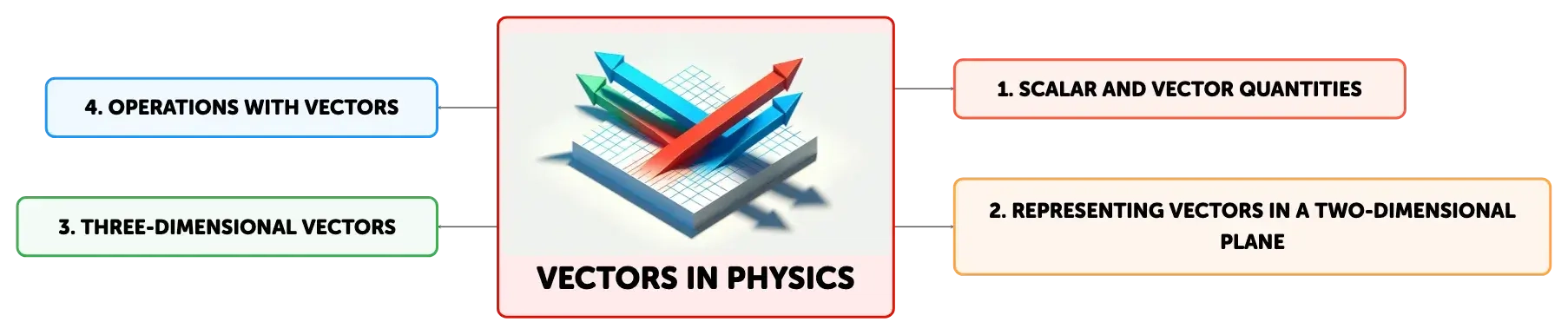

Concept Map
Algorino
Edit available
Understanding scalar and vector quantities is fundamental in physics and geometry. Scalars have magnitude only, like temperature and mass, while vectors have both magnitude and direction, such as displacement and force. This text delves into graphical vector representation in planes, calculating vector magnitude and direction, vector operations like addition and subtraction, and their applications in solving geometric and physical problems.
Summary
Outline
Distinguishing Scalar and Vector Quantities
In the realm of physics, it is crucial to differentiate between scalar and vector quantities to understand the nature of various physical phenomena. Scalar quantities are defined solely by a magnitude, which is a numerical value representing size or amount, without any associated direction. Examples of scalar quantities include temperature, mass, and distance. On the other hand, vector quantities are characterized by both a magnitude and a direction. For instance, displacement, force, and acceleration are vector quantities because they describe not only how much and how large but also in which direction the quantity acts.Graphical Representation of Vectors in a Plane
When representing vectors in a two-dimensional plane, we use a coordinate system, typically the Cartesian xy-plane, to specify their direction and magnitude. A vector in this plane can be depicted as an arrow pointing from one point to another, with its length proportional to the vector's magnitude. Mathematically, a two-dimensional vector can be expressed as an ordered pair (x, y) or in terms of unit vectors \(\vec{i}\) and \(\vec{j}\), where \(\vec{i}\) is a unit vector in the direction of the x-axis and \(\vec{j}\) is a unit vector in the direction of the y-axis. Thus, a vector can be written as \(x\vec{i} + y\vec{j}\), with the coordinates x and y determining the vector's horizontal and vertical components, respectively.Three-Dimensional Vector Representation
Extending the principles of two-dimensional vectors, three-dimensional vectors include an additional component along the z-axis, which is perpendicular to both the x and y axes. A three-dimensional vector is represented by an ordered triplet (x, y, z) and can also be expressed in terms of the unit vectors \(\vec{i}\), \(\vec{j}\), and \(\vec{k}\), where \(\vec{k}\) is a unit vector along the z-axis. Thus, a three-dimensional vector can be written as \(x\vec{i} + y\vec{j} + z\vec{k}\), providing a complete description of its orientation in space.Calculating Vector Magnitude and Direction
The magnitude of a vector, which is a measure of its length, can be calculated using the Pythagorean theorem. For a two-dimensional vector \(\vec{a}\), the magnitude is found by the formula \(|\vec{a}| = \sqrt{x^2 + y^2}\). This extends to three dimensions for a vector \(\vec{a}\) as \(|\vec{a}| = \sqrt{x^2 + y^2 + z^2}\). The direction of a vector is typically described by the angle it makes with a reference axis or line. In two dimensions, this is often the positive x-axis, and the angle can be found using trigonometric functions. In three dimensions, the direction can be described by the angles the vector makes with each of the three principal axes, which can also be determined using trigonometry.Operations with Vectors: Addition and Subtraction
Vector addition and subtraction are fundamental operations that combine vectors to produce a new vector. To add vectors geometrically, one aligns the tail of one vector to the head of another and draws a vector from the free tail to the free head; this new vector is the resultant. Algebraically, vector addition is performed by adding the corresponding components of the vectors. Subtraction is similar but involves reversing the direction of the vector being subtracted before performing the addition process. Algebraically, this is done by subtracting the corresponding components. These operations are consistent in both two and three-dimensional spaces.Scalar Multiplication and Distance Between Points
Multiplying a vector by a scalar changes the magnitude of the vector but not its direction. Geometrically, this can be visualized as stretching or compressing the vector's length, while algebraically, it involves multiplying each component of the vector by the scalar. To determine the distance between two points represented by position vectors, one subtracts one vector from the other to obtain the displacement vector between the points and then calculates the magnitude of this displacement vector.Vector Applications in Geometry and Physics
Vectors play a pivotal role in geometric proofs and the study of physical systems. They are used to demonstrate geometric properties such as parallelism and perpendicularity, and to solve problems involving points, lines, and planes. In physics, vectors are essential for describing quantities that have both magnitude and direction, such as displacement, velocity, acceleration, and force. These vector quantities are integral to the analysis of motion and the application of Newton's laws of motion. Vectors are also employed in operations such as translations and rotations in geometry, aiding in the determination of the positions of shapes and the coordinates of missing vertices.
Show More

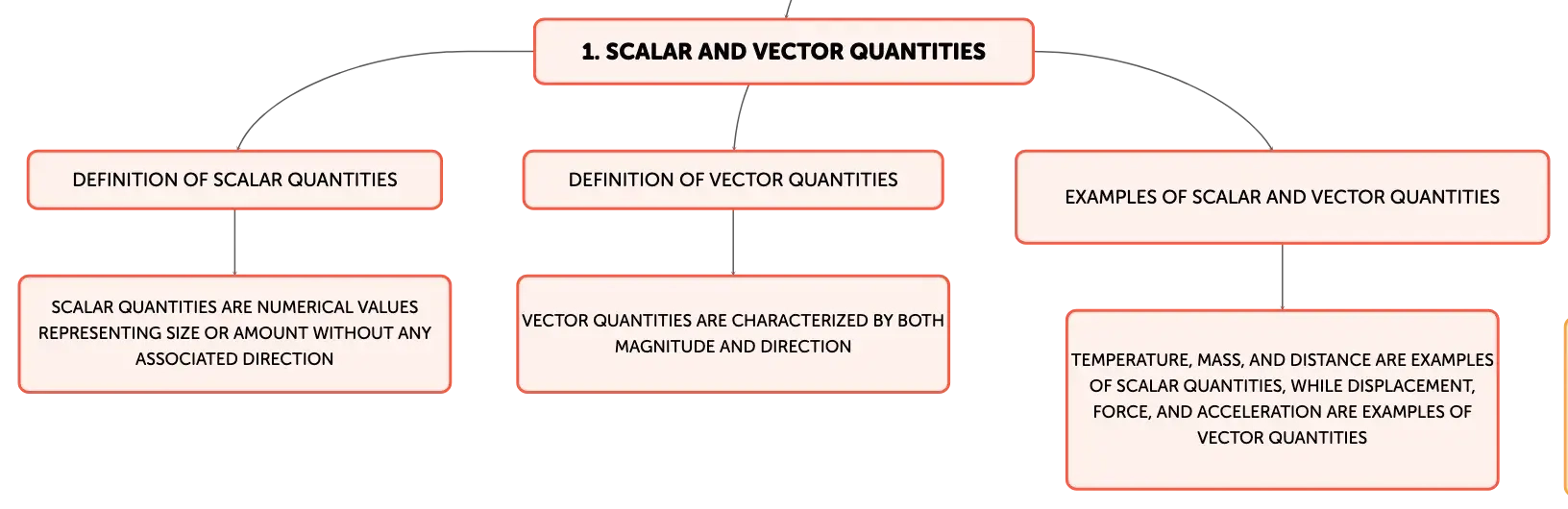

Scalar and Vector Quantities
Definition of Scalar Quantities
Scalar quantities are numerical values representing size or amount without any associated direction
Definition of Vector Quantities
Vector quantities are characterized by both magnitude and direction
Examples of Scalar and Vector Quantities
Temperature, mass, and distance are examples of scalar quantities, while displacement, force, and acceleration are examples of vector quantities

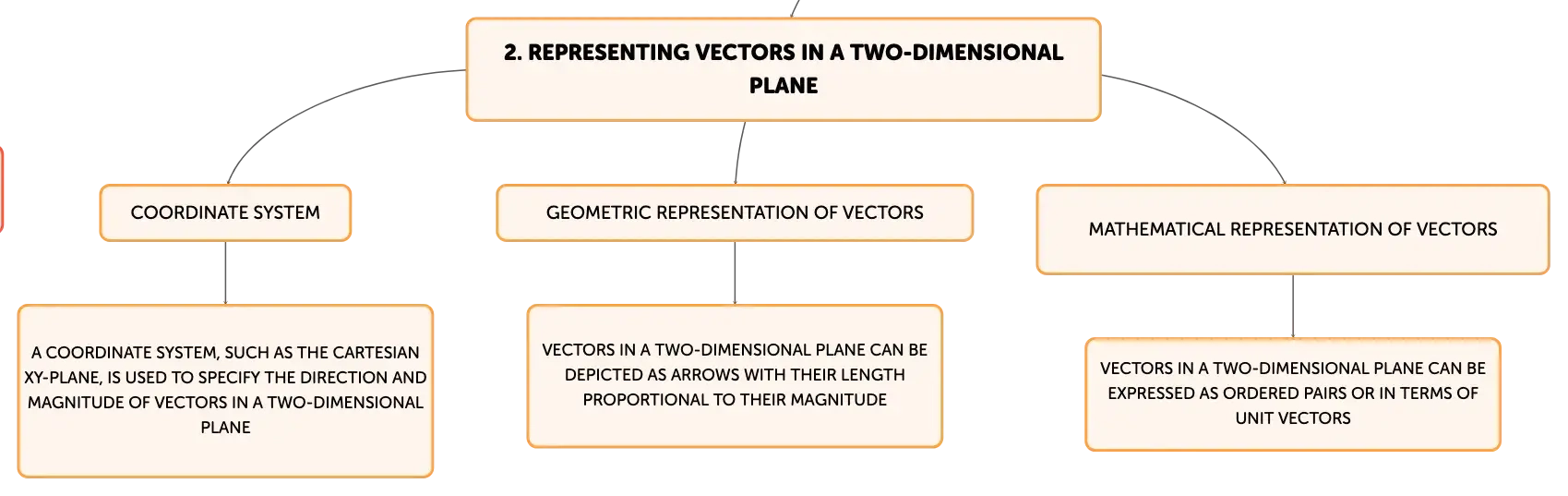

Representing Vectors in a Two-Dimensional Plane
Coordinate System
A coordinate system, such as the Cartesian xy-plane, is used to specify the direction and magnitude of vectors in a two-dimensional plane
Geometric Representation of Vectors
Vectors in a two-dimensional plane can be depicted as arrows with their length proportional to their magnitude
Mathematical Representation of Vectors
Vectors in a two-dimensional plane can be expressed as ordered pairs or in terms of unit vectors

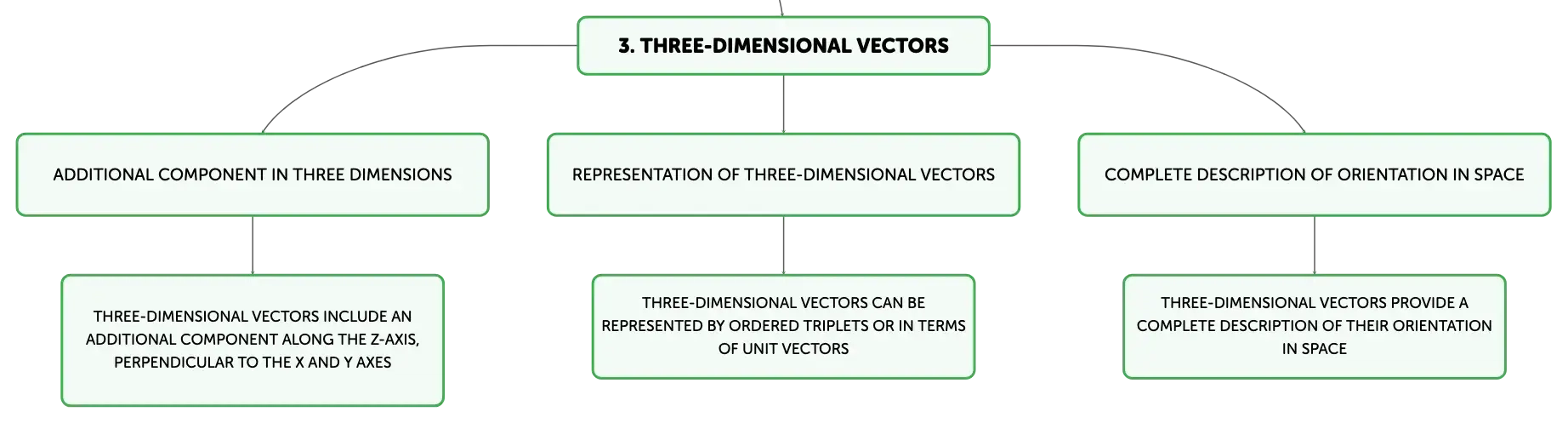

Three-Dimensional Vectors
Additional Component in Three Dimensions
Three-dimensional vectors include an additional component along the z-axis, perpendicular to the x and y axes
Representation of Three-Dimensional Vectors
Three-dimensional vectors can be represented by ordered triplets or in terms of unit vectors
Complete Description of Orientation in Space
Three-dimensional vectors provide a complete description of their orientation in space

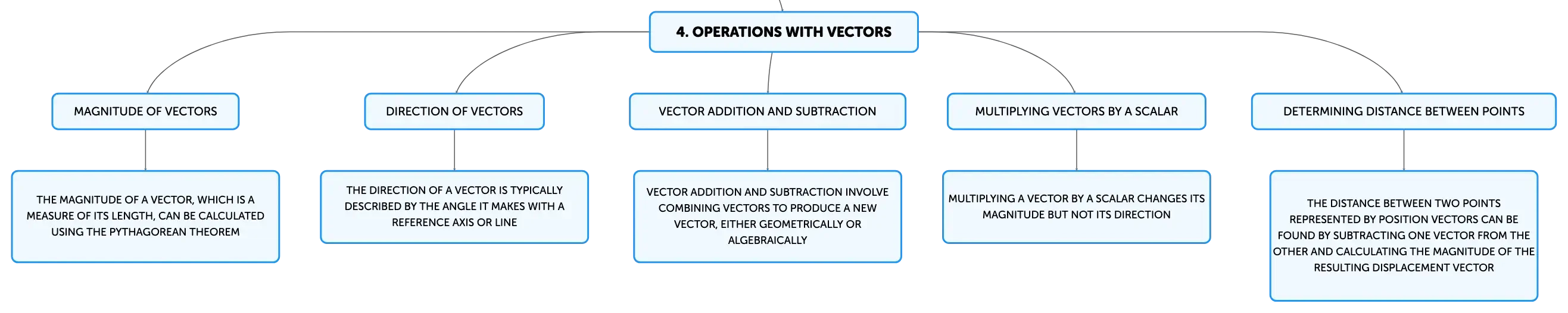

Operations with Vectors
Magnitude of Vectors
The magnitude of a vector, which is a measure of its length, can be calculated using the Pythagorean theorem
Direction of Vectors
The direction of a vector is typically described by the angle it makes with a reference axis or line
Vector Addition and Subtraction
Vector addition and subtraction involve combining vectors to produce a new vector, either geometrically or algebraically
Multiplying Vectors by a Scalar
Multiplying a vector by a scalar changes its magnitude but not its direction
Determining Distance between Points
The distance between two points represented by position vectors can be found by subtracting one vector from the other and calculating the magnitude of the resulting displacement vector
Vectors in Physics
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
______, force, and acceleration are examples of ______ quantities, having both magnitude and direction.
Displacement
vector
01
A 3D vector is denoted by an ordered set of values (______, ______, ______) and can be described using the unit vectors i, j, and k.
x
y
z
02
In geometry, to combine two vectors, one must align the tail of the first vector to the ______ of the second and draw a new vector from the free tail to the free ______.
head
head
