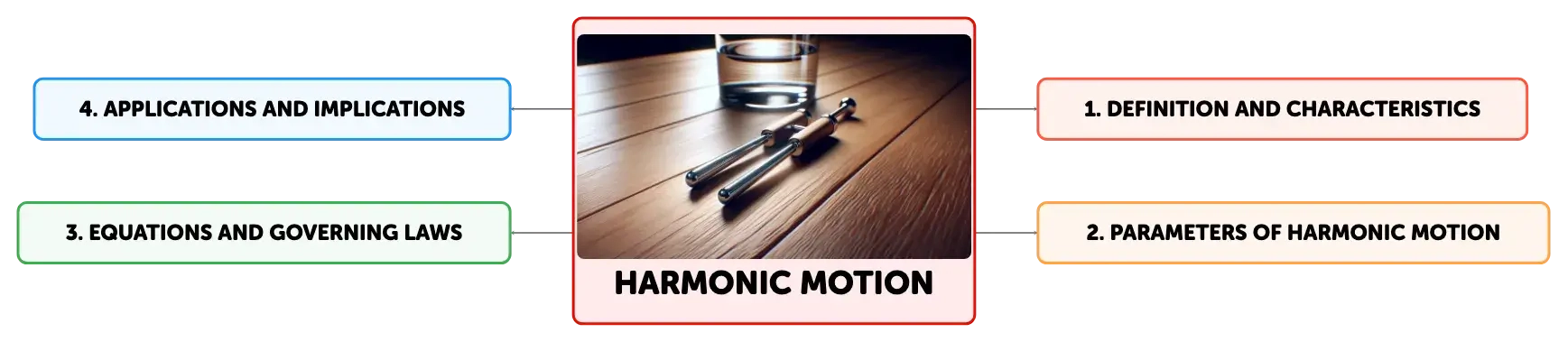

Harmonic Motion

Harmonic motion is a periodic oscillation observed in various natural and technological contexts. Simple harmonic motion (SHM) is a key type where the restoring force is proportional to displacement. This concept extends to damped and forced harmonic motion, with applications in engineering, physics, and medicine. Understanding these motions is crucial for analyzing vibrations, electrical circuits, and wave propagation, impacting fields from quantum mechanics to seismic engineering.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

An object in ______ motion repeatedly moves back and forth around a stable point due to a force related to its position.

Click to check the answer

harmonic

2

Define SHM.

Click to check the answer

Simple Harmonic Motion (SHM) is periodic motion where restoring force is proportional to displacement and directed towards equilibrium.

3

Role of harmonic vibration in musical instruments.

Click to check the answer

Harmonic vibration causes strings and air columns in instruments to resonate, producing musical notes.

4

Harmonic motion in AC circuits.

Click to check the answer

In AC circuits, electrons flow back and forth periodically, demonstrating harmonic motion similar to mechanical systems.

5

MRI technology, which produces detailed images of the human body, employs oscillating magnetic fields based on ______ ______.

Click to check the answer

harmonic motion

6

Understanding ______ ______ motion is vital for studying systems affected by restorative and resistive forces, impacting fields like engineering and biophysics.

Click to check the answer

damped harmonic

7

Definition of Harmonic Motion

Click to check the answer

Oscillatory movement where displacement is a sinusoidal function of time.

8

Simple Harmonic Motion and Hooke's Law

Click to check the answer

Special case of harmonic motion where force is directly proportional to negative displacement.

9

Damped vs Forced Harmonic Motion

Click to check the answer

Damped motion includes frictional forces reducing amplitude over time; forced motion has external energy sustaining oscillations.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Field Theory: A Fundamental Framework for Mathematics and Physics

View document

Physics

Operator Algebras: Bridging the Gap between Mathematics and Quantum Physics

View document

Physics

Measurement Systems

View document

Physics

Vectors in Physics

View document

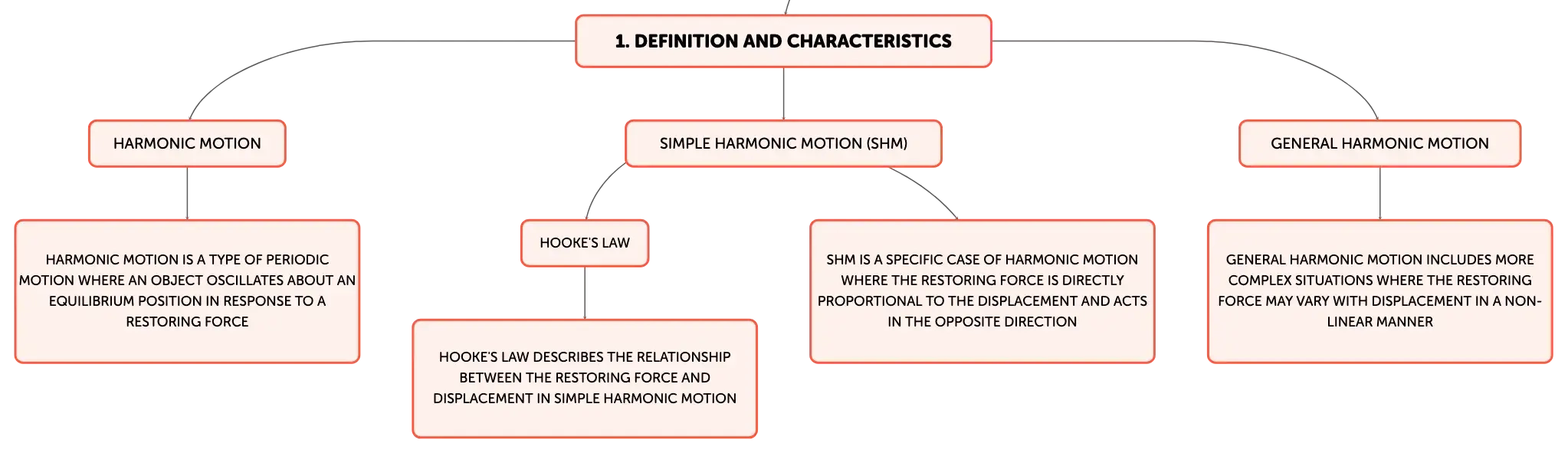

Exploring the Fundamentals of Harmonic Motion

Harmonic motion is a type of periodic motion where an object oscillates about an equilibrium position in response to a restoring force that is proportional to its displacement. This motion is a foundational concept in physics, evident in a wide range of natural phenomena and technological applications. Simple harmonic motion (SHM) is a specific case of harmonic motion where the restoring force is directly proportional to the displacement and acts in the opposite direction, as described by Hooke's Law. General harmonic motion includes more complex situations where the restoring force may vary with displacement in a non-linear manner.
Close-up of a shiny metallic tuning fork on a wooden table with a half-filled beaker of clear water in the background, soft lighting enhancing textures.

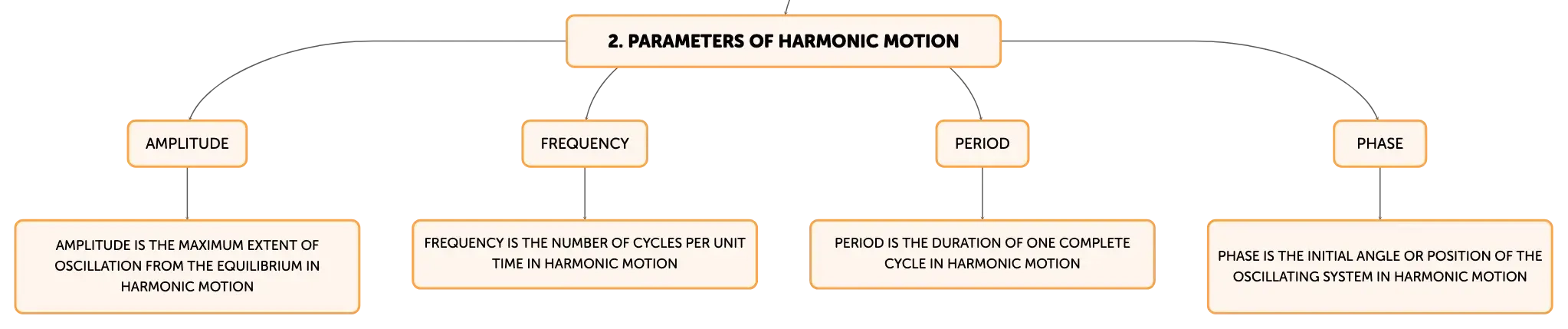

Essential Principles and Mathematical Descriptions of Harmonic Motion

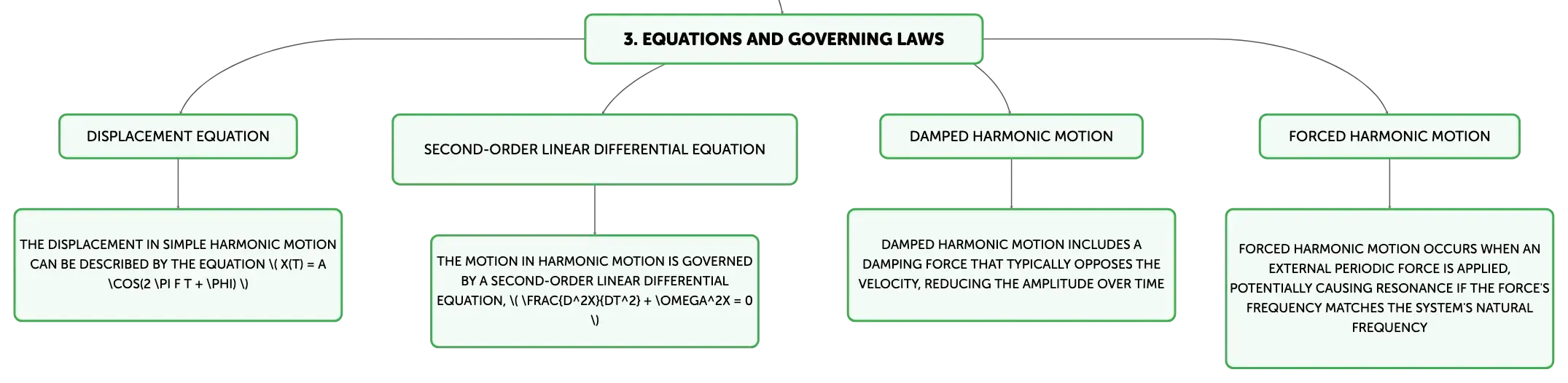

Harmonic motion is characterized by several critical parameters: amplitude (the maximum extent of oscillation from the equilibrium), frequency (the number of cycles per unit time), period (the duration of one complete cycle), and phase (the initial angle or position of the oscillating system). The displacement in SHM can be described by the equation \( x(t) = A \cos(2 \pi f t + \phi) \), where \(x(t)\) represents the displacement at time \(t\). The motion is governed by a second-order linear differential equation, \( \frac{d^2x}{dt^2} + \omega^2x = 0 \), where \(\omega\) is the angular frequency, linking displacement, velocity, and acceleration in a precise mathematical framework.

Complexities of Damped and Forced Harmonic Motion

Real-world applications often involve damped and forced harmonic motion, which introduce additional forces to the system. Damped harmonic motion includes a damping force that typically opposes the velocity, reducing the amplitude over time. Its governing equation is \( \frac{d^2x}{dt^2} + 2 \beta \frac{dx}{dt} + \omega^2x = 0 \), where \(\beta\) represents the damping coefficient. Forced harmonic motion occurs when an external periodic force is applied, potentially causing resonance if the force's frequency matches the system's natural frequency. The equation for forced motion is \( \frac{d^2x}{dt^2} + 2 \beta \frac{dx}{dt} + \omega^2x = F_0 \cos(\omega_D t) \), where \(F_0\) is the amplitude and \(\omega_D\) the angular frequency of the external force.

Harmonic Motion in the Natural and Engineered World

Harmonic motion manifests in various forms around us. Pendulums and masses on springs demonstrate SHM, while musical instruments depend on the harmonic vibration of strings and air columns to produce sound. Electrical phenomena such as the alternating current in AC circuits exhibit harmonic behavior in the flow of electrons. Moreover, many natural processes, including the propagation of waves in water, sound, and light, can be modeled using the principles of harmonic motion, reflecting its pervasive influence in our environment.

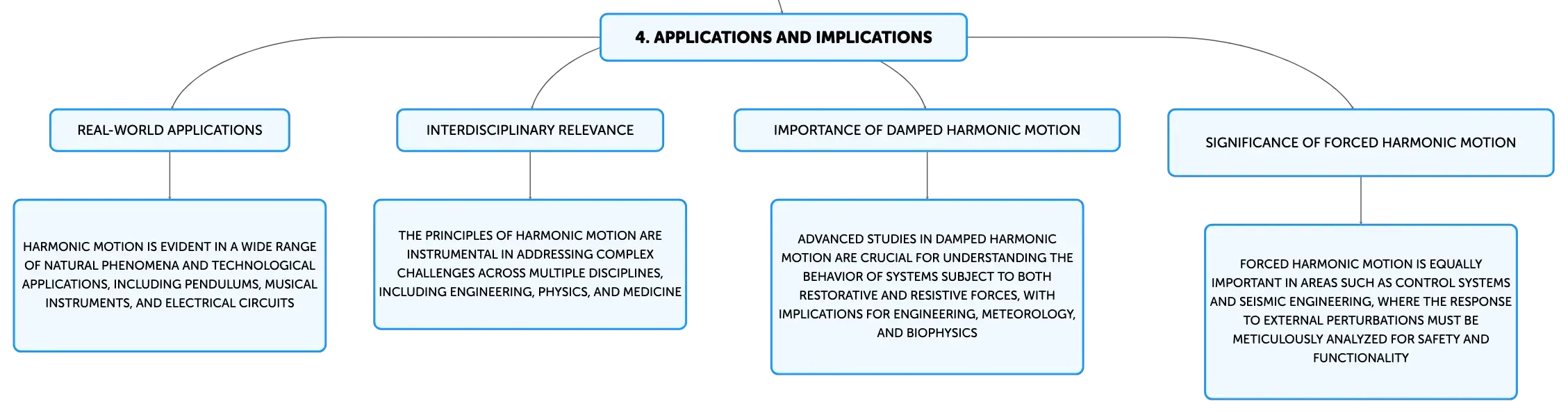

Practical Applications and Advanced Studies in Harmonic Motion

The principles of harmonic motion are instrumental in addressing complex challenges across multiple disciplines. Engineers leverage these principles for vibration analysis in mechanical and structural systems, while physicists apply them to quantum mechanics and materials science. In the medical field, MRI technology utilizes oscillating magnetic fields, which are based on harmonic motion, to produce high-resolution images of the human body. Advanced studies in damped harmonic motion are crucial for understanding the behavior of systems subject to both restorative and resistive forces, with implications for engineering, meteorology, and biophysics. Forced harmonic motion is equally important in areas such as control systems and seismic engineering, where the response to external perturbations must be meticulously analyzed for safety and functionality.

Concluding Insights on Harmonic Motion

Harmonic motion is a fundamental oscillatory phenomenon integral to a multitude of scientific and engineering fields. It is defined by the relationship between displacement and restoring force, with simple harmonic motion as a special case obeying Hooke's Law. The study of harmonic motion encompasses a variety of concepts, mathematical formulations, and types, including damped and forced motion, each with its unique equations and practical implications. From the simple pendulum to the complexities of electrical circuits and celestial mechanics, harmonic motion is a ubiquitous and vital concept that deepens our comprehension of both the natural and the constructed world.
