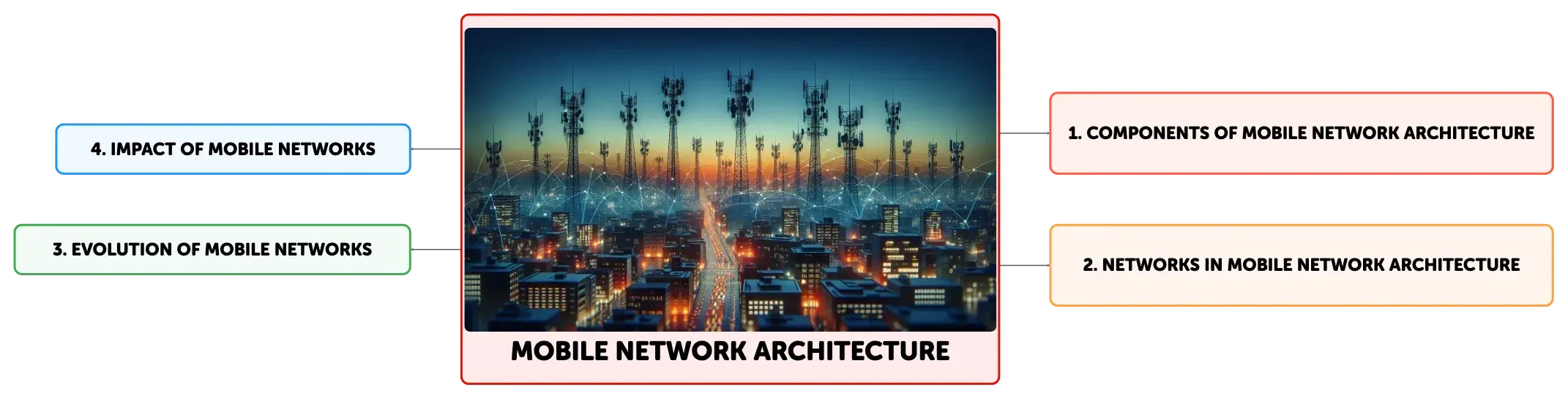

Mobile Network Architecture is integral to mobile communications, encompassing devices, base stations, and MSCs. It has evolved from 1G to 5G, enhancing speed, capacity, and functionality. This evolution has enabled ubiquitous computing, with 5G promising IoT and smart cities. Advanced technologies like FDMA, TDMA, CDMA, QAM, and OFDM optimize network performance.
Show More

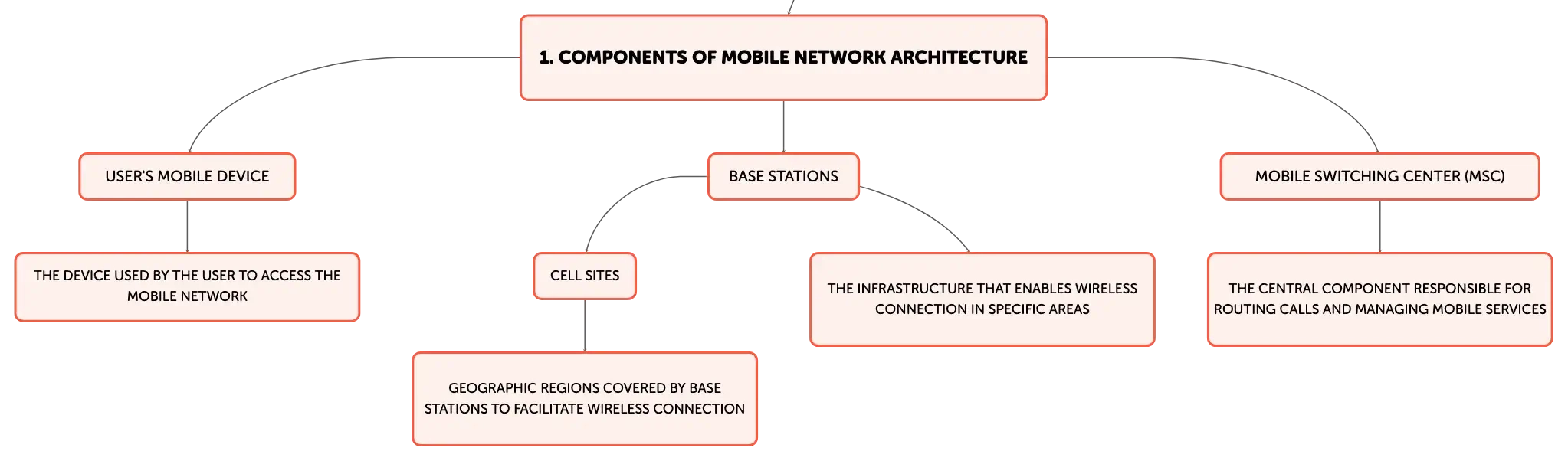

The device used by the user to access the mobile network
Cell Sites
Geographic regions covered by base stations to facilitate wireless connection
The infrastructure that enables wireless connection in specific areas
The central component responsible for routing calls and managing mobile services

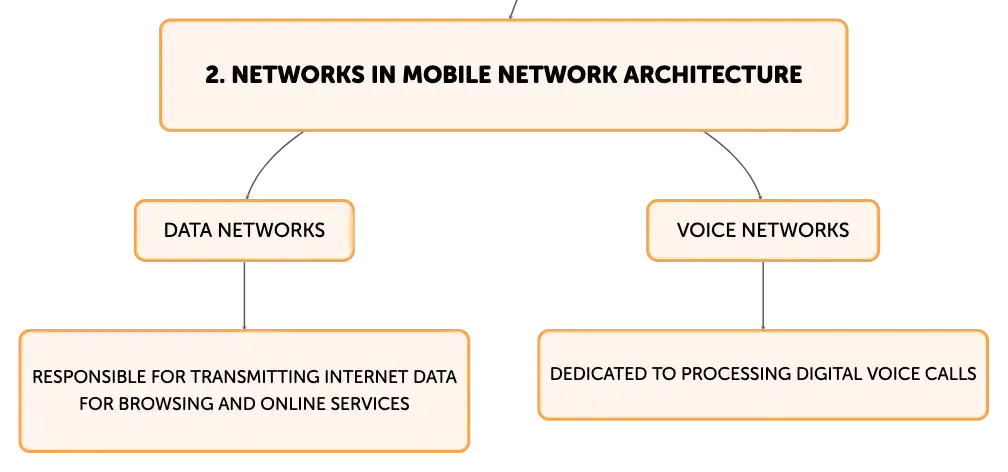

Responsible for transmitting internet data for browsing and online services
Dedicated to processing digital voice calls

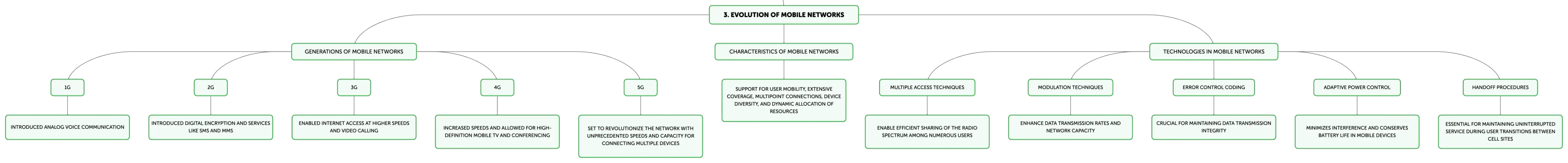

1G
Introduced analog voice communication
2G
Introduced digital encryption and services like SMS and MMS
3G
Enabled internet access at higher speeds and video calling
4G
Increased speeds and allowed for high-definition mobile TV and conferencing
5G
Set to revolutionize the network with unprecedented speeds and capacity for connecting multiple devices
Support for user mobility, extensive coverage, multipoint connections, device diversity, and dynamic allocation of resources
Multiple Access Techniques
Enable efficient sharing of the radio spectrum among numerous users
Modulation Techniques
Enhance data transmission rates and network capacity
Error Control Coding
Crucial for maintaining data transmission integrity
Adaptive Power Control
Minimizes interference and conserves battery life in mobile devices
Handoff Procedures
Essential for maintaining uninterrupted service during user transitions between cell sites

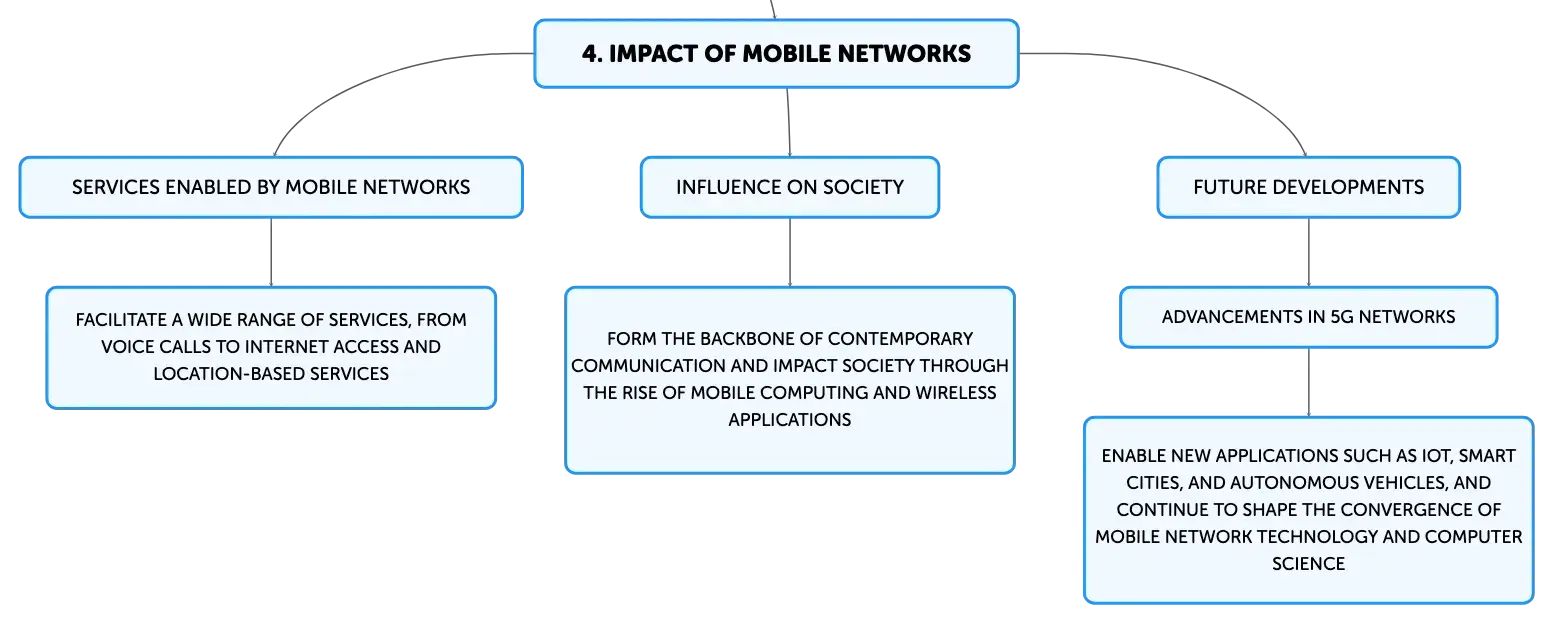

Facilitate a wide range of services, from voice calls to internet access and location-based services
Form the backbone of contemporary communication and impact society through the rise of mobile computing and wireless applications
Advancements in 5G Networks
Enable new applications such as IoT, smart cities, and autonomous vehicles, and continue to shape the convergence of mobile network technology and computer science
00
Function of Base Stations
Base stations, or cell sites, provide wireless connectivity and cover specific geographic areas.
01
Role of Mobile Switching Center
The MSC routes calls, manages mobile services, and ensures network connectivity.
02
Difference between Data and Voice Networks
Data networks handle internet data for web browsing and online services; voice networks process digital voice calls.
