Projectile Motion and Energy Transformation
Concept Map
Exploring projectile motion, this content delves into the bouncing ball analogy to illustrate the concept. It covers the ball's trajectory phases, energy transformations between potential and kinetic energy, and the use of geometric sequences to model bounce heights. The analysis includes graphical representations of displacement, velocity, and acceleration over time, highlighting the effects of gravity and energy conservation in motion.
Summary
Outline
Exploring Projectile Motion with the Bouncing Ball Analogy
Projectile motion is a key concept in classical mechanics, involving the movement of objects that are launched or thrown in the air and are subject to gravitational forces. A bouncing ball serves as an illustrative example of this phenomenon. When a ball is dropped, it follows a parabolic path due to the acceleration of gravity. Upon contact with the ground, the ball undergoes deformation and exerts a force on the ground, which in turn exerts an equal and opposite force on the ball, as per Newton's third law of motion. The coefficient of restitution, which quantifies the elasticity of the collision, determines the height to which the ball rebounds. In the absence of non-conservative forces such as air resistance, the ball's motion is predominantly influenced by gravity.Stages of a Bouncing Ball's Trajectory
The trajectory of a bouncing ball is characterized by several phases. The ascent phase begins with the ball's launch, during which it rises to its maximum height, momentarily coming to rest with maximum potential energy and zero kinetic energy. The descent phase follows, with the ball accelerating under gravity's influence until it contacts the ground, converting its potential energy to kinetic energy. The impact phase involves the ball's collision with the ground, where kinetic energy is partially converted back into potential energy, propelling the ball upward. Each bounce results in a reduced maximum height due to energy losses from air resistance, internal friction, and other factors, which are often neglected in simplified physics models.Graphical Analysis of Bouncing Ball Dynamics
The motion of a bouncing ball can be effectively visualized using displacement-time, velocity-time, and acceleration-time graphs. The displacement-time graph depicts the ball's periodic rise and fall, with peaks representing the maximum heights. The velocity-time graph illustrates changes in the ball's speed, which reaches a maximum just before impact and becomes zero at the apex of each bounce. The acceleration-time graph consistently shows the acceleration due to gravity, with sharp changes at the moments of impact, indicating the abrupt reversal of velocity. These graphical representations are crucial for analyzing and comprehending the principles of projectile motion.Energy Exchange in a Bouncing Ball
The bouncing ball's motion involves continuous energy transformations between potential and kinetic energy. As the ball descends, gravitational potential energy is transformed into kinetic energy, which is then partially reconverted into potential energy as the ball ascends post-impact. The principle of energy conservation allows for the calculation of the ball's velocity at any point in its trajectory, given the initial height. For instance, a ball dropped from a height of three meters would reach a velocity of approximately 7.67 meters per second just before striking the ground, as determined by the conservation of mechanical energy.Modeling Bounce Heights with Geometric Sequences
The successive peak heights of a bouncing ball form a geometric sequence, where each height is a constant fraction of the height of the previous bounce, known as the common ratio. In real-world conditions, the ball's bounce heights decrease progressively until motion ceases, represented by a finite geometric sequence. In an idealized, frictionless environment, the ball would continue to bounce indefinitely, with the sum of the infinite series representing the total vertical distance traveled by the ball.Educational Insights from the Bouncing Ball Phenomenon
The bouncing ball is a practical example that encapsulates several fundamental concepts in physics, such as projectile motion, the conservation of energy, and the application of Newton's laws of motion. It demonstrates the semi-elliptical trajectory of a ball under the influence of gravity and the exchange of energy between kinetic and potential forms. While ideal models predict perpetual motion, real-world factors introduce damping effects that eventually halt the ball's movement. Analyzing the bouncing ball through graphical methods and mathematical sequences offers a comprehensive understanding of the mechanics of motion and energy.
Show More

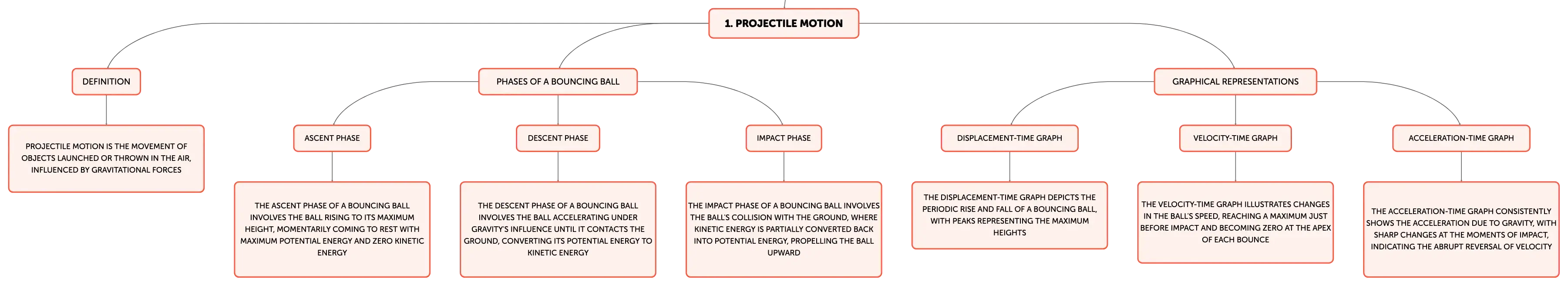

Projectile Motion
Definition
Projectile motion is the movement of objects launched or thrown in the air, influenced by gravitational forces
Phases of a Bouncing Ball
Ascent Phase
The ascent phase of a bouncing ball involves the ball rising to its maximum height, momentarily coming to rest with maximum potential energy and zero kinetic energy
Descent Phase
The descent phase of a bouncing ball involves the ball accelerating under gravity's influence until it contacts the ground, converting its potential energy to kinetic energy
Impact Phase
The impact phase of a bouncing ball involves the ball's collision with the ground, where kinetic energy is partially converted back into potential energy, propelling the ball upward
Graphical Representations
Displacement-Time Graph
The displacement-time graph depicts the periodic rise and fall of a bouncing ball, with peaks representing the maximum heights
Velocity-Time Graph
The velocity-time graph illustrates changes in the ball's speed, reaching a maximum just before impact and becoming zero at the apex of each bounce
Acceleration-Time Graph
The acceleration-time graph consistently shows the acceleration due to gravity, with sharp changes at the moments of impact, indicating the abrupt reversal of velocity

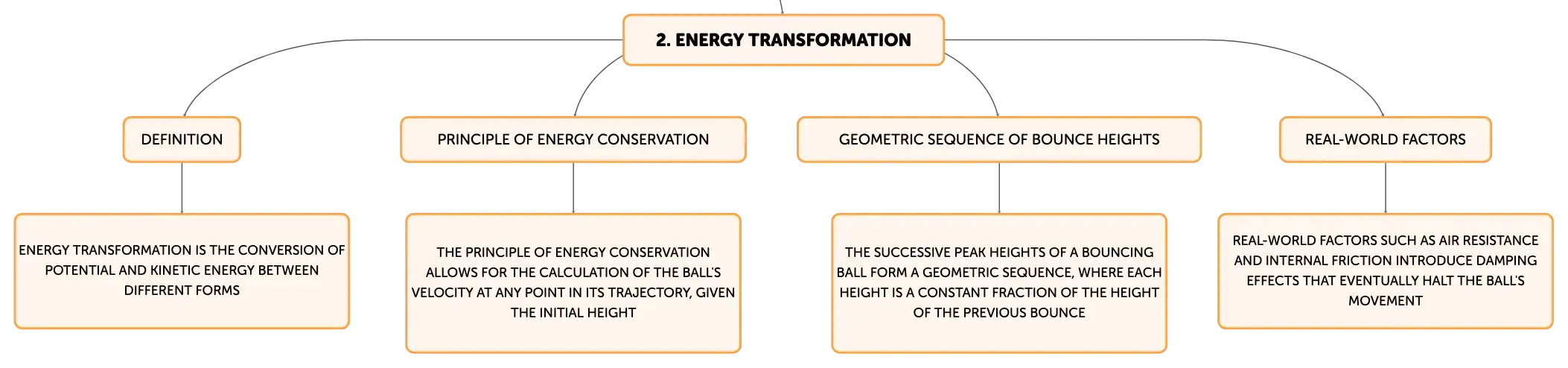

Energy Transformation
Definition
Energy transformation is the conversion of potential and kinetic energy between different forms
Principle of Energy Conservation
The principle of energy conservation allows for the calculation of the ball's velocity at any point in its trajectory, given the initial height
Geometric Sequence of Bounce Heights
The successive peak heights of a bouncing ball form a geometric sequence, where each height is a constant fraction of the height of the previous bounce
Real-World Factors
Real-world factors such as air resistance and internal friction introduce damping effects that eventually halt the ball's movement
Projectile Motion and Energy Transformation
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In ______ mechanics, the movement of objects thrown into the air, like a bouncing ball, is known as ______ motion.
classical
projectile
01
According to ______'s third law, when a ball hits the ground, it exerts a force that is met with an equal and opposite reaction, affecting the ball's ______.
Newton
rebound height
02
Ascent Phase Energy Transformation
Ball rises, potential energy increases, kinetic energy decreases to zero at peak.
