Runtime Systems and Their Role in Software Engineering
Concept Map
Runtime systems are essential in software engineering, bridging the gap between application code and hardware. They manage memory, handle exceptions, and ensure efficient program operation. Key components like the Java Runtime Environment and Python's interpreter are discussed, highlighting their impact on software performance through tasks like garbage collection and just-in-time compilation.
Summary
Outline
Exploring the Role of Runtime Systems in Program Execution
Runtime systems play a pivotal role in the field of software engineering, providing a set of services that are crucial for the execution of programs. These systems act as a bridge between the application code and the underlying hardware, ensuring that the program operates efficiently and without error. Key functions of a runtime system include memory management, type checking, exception handling, and facilitating interaction with the operating system. By managing these tasks, the runtime system enables the smooth operation of software applications during their execution phase.Differentiating Runtime Systems from Compilers
Runtime systems and compilers are distinct components that contribute to different stages of the software development process. A compiler is a tool that translates source code written in a high-level programming language into machine code, creating an executable file before the program is run. On the other hand, a runtime system comes into play after compilation, providing ongoing support and services to the executable program while it is running. This includes managing resources, optimizing performance, and ensuring that the program interacts correctly with the hardware.The Functionality of Runtime Systems Across Programming Languages
Various programming languages rely on runtime systems to execute applications. The Java Runtime Environment (JRE), for example, includes the Java Virtual Machine (JVM) and essential libraries that enable Java applications to run on any device with the JRE installed. The JVM is responsible for interpreting bytecode, performing just-in-time (JIT) compilation, and managing memory, among other tasks. Similarly, Python's runtime system consists of an interpreter that executes code line by line and a set of standard libraries that provide additional functionality, such as input/output operations and memory management.The Importance of Memory Management in Runtime Systems
Memory management is a fundamental aspect of runtime systems, tasked with the efficient allocation, use, and deallocation of memory during a program's execution. This includes the process of garbage collection, which automatically identifies and frees memory occupied by objects that are no longer needed, thereby preventing memory leaks and optimizing the use of system resources. Effective memory management is vital for maintaining the stability and performance of applications, as it involves monitoring the lifecycles of objects and efficiently recycling memory.Distinguishing Between Runtime and Compile Time in Software Development
It is crucial to understand the distinction between runtime and compile time within the realm of software development. Compile time refers to the phase in which a compiler transforms source code into executable code. In contrast, runtime denotes the period when the program is in execution, with the runtime system actively managing various tasks such as memory allocation, input/output processing, and dynamic code execution. Errors encountered at compile time are typically related to syntax or type mismatches, while runtime errors may arise from logical flaws or issues with external resources that are only accessible during program execution.The Influence of Runtime Systems on Software Performance
The performance of a software program during execution is significantly affected by the underlying runtime system. Elements such as garbage collection algorithms, JIT compilation, and strategies for resource allocation can greatly impact the efficiency and responsiveness of a program. For instance, the Android Runtime (ART) enhances performance through the use of ahead-of-time (AOT) compilation, which translates bytecode into machine code at the time of application installation, rather than during execution, as was the case with its predecessor, the Dalvik virtual machine.Concluding Insights on Runtime Systems
To conclude, runtime systems are indispensable for the execution of software programs, providing a range of services that include but are not limited to memory management, input/output operations, and execution of code. Examples of runtime systems include the JRE for Java applications and the Python interpreter for Python scripts. The process of garbage collection within these systems is critical for efficient memory utilization. Additionally, understanding the differences between runtime and compile time is fundamental for developers who aim to enhance the performance and reliability of software applications.
Show More

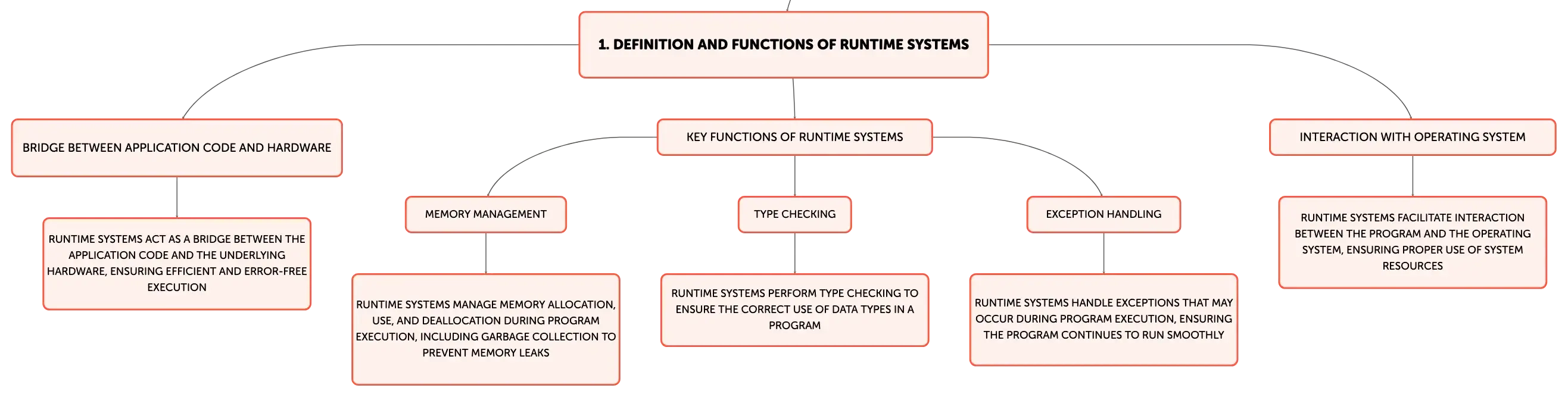

Definition and Functions of Runtime Systems
Bridge between application code and hardware
Runtime systems act as a bridge between the application code and the underlying hardware, ensuring efficient and error-free execution
Key functions of runtime systems
Memory management
Runtime systems manage memory allocation, use, and deallocation during program execution, including garbage collection to prevent memory leaks
Type checking
Runtime systems perform type checking to ensure the correct use of data types in a program
Exception handling
Runtime systems handle exceptions that may occur during program execution, ensuring the program continues to run smoothly
Interaction with operating system
Runtime systems facilitate interaction between the program and the operating system, ensuring proper use of system resources

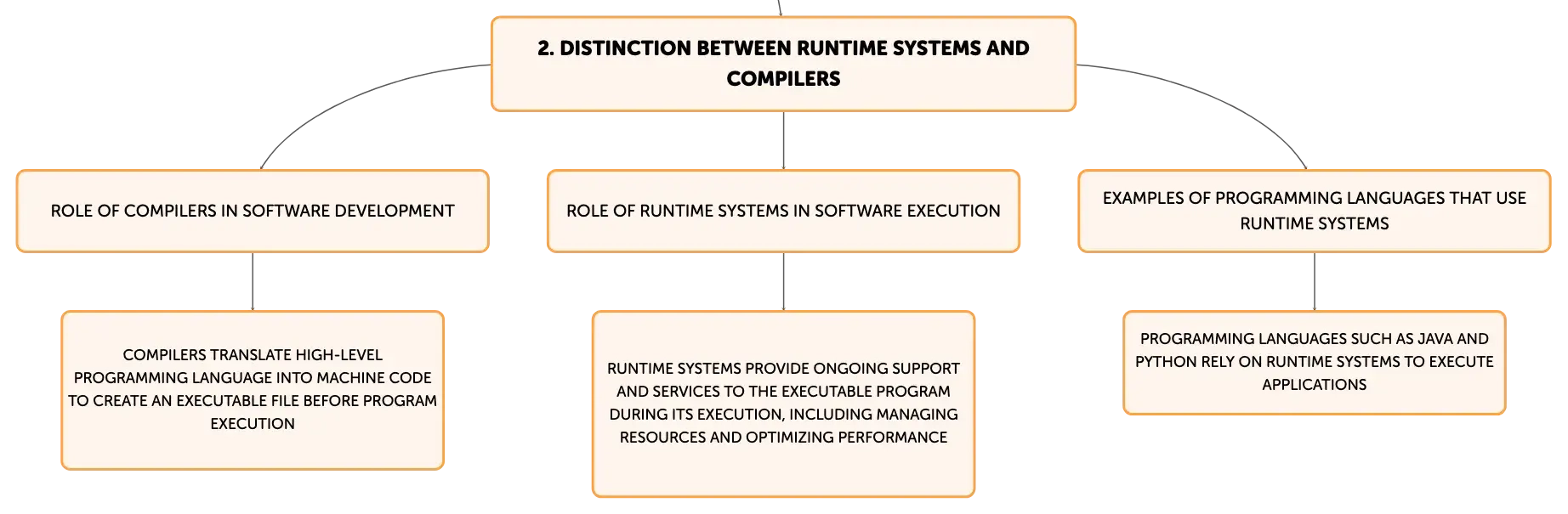

Distinction between Runtime Systems and Compilers
Role of compilers in software development
Compilers translate high-level programming language into machine code to create an executable file before program execution
Role of runtime systems in software execution
Runtime systems provide ongoing support and services to the executable program during its execution, including managing resources and optimizing performance
Examples of programming languages that use runtime systems
Programming languages such as Java and Python rely on runtime systems to execute applications

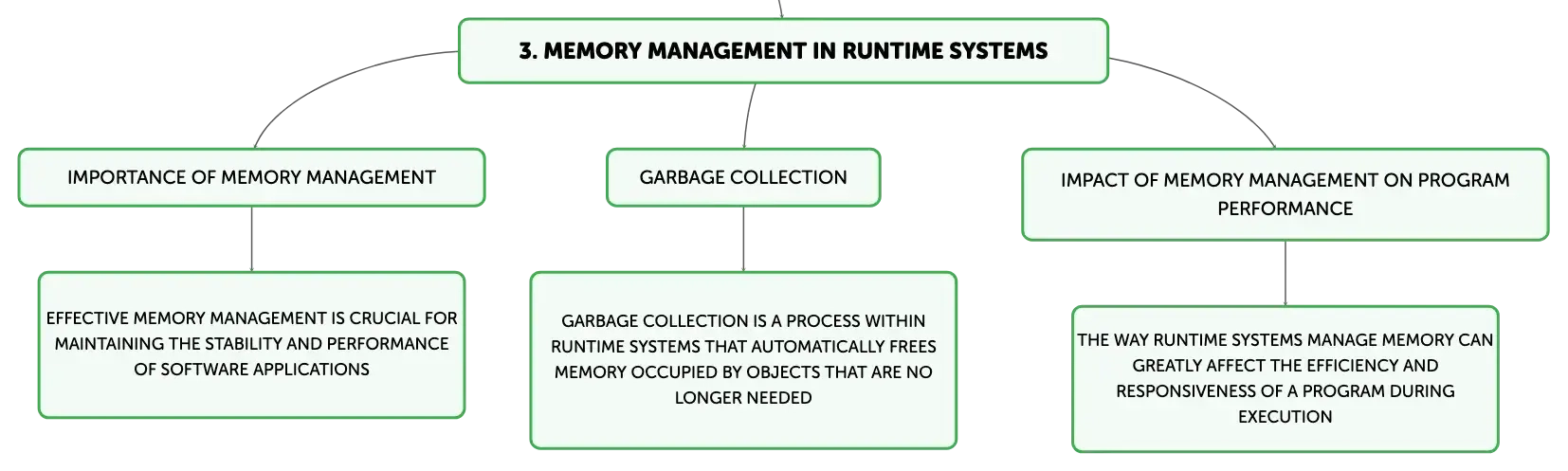

Memory Management in Runtime Systems
Importance of memory management
Effective memory management is crucial for maintaining the stability and performance of software applications
Garbage collection
Garbage collection is a process within runtime systems that automatically frees memory occupied by objects that are no longer needed
Impact of memory management on program performance
The way runtime systems manage memory can greatly affect the efficiency and responsiveness of a program during execution
Runtime Systems and Their Role in Software Engineering
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In software engineering, ______ systems are essential for program execution, acting as a mediator between ______ code and the hardware.
Runtime
application
01
Compiler Function
Translates high-level language to machine code; creates executable before runtime.
02
Runtime System Role
Provides support/services during program execution; manages resources, optimizes performance.
