Scalars and Vectors in Physics

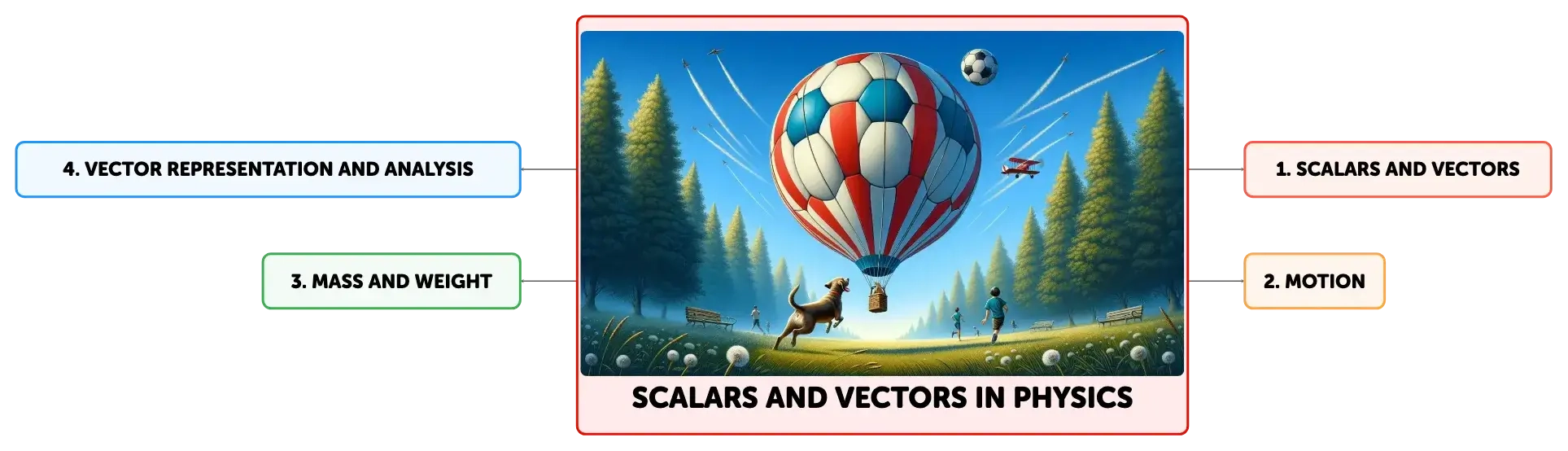

Concept Map

This content delves into the core principles of scalars and vectors in physics, highlighting their importance in understanding motion. Scalars, with only magnitude, include mass and speed, while vectors, with both magnitude and direction, encompass force and velocity. The piece also covers graphical vector representation, vector addition and subtraction, components resolution, and force equilibrium.

Summary

Outline

Scalars and Vectors in Physics

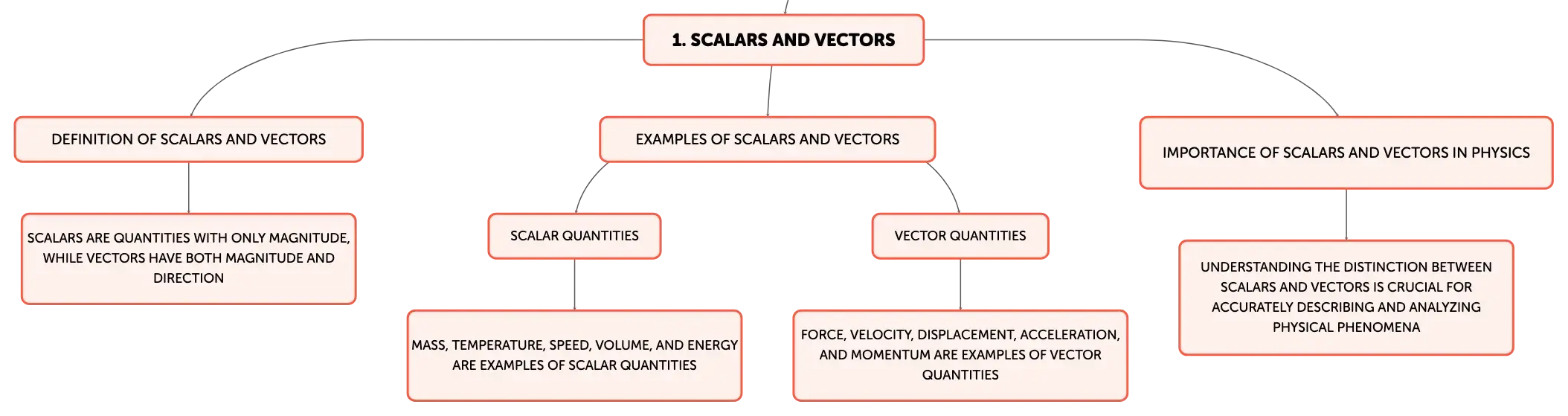

Scalars and Vectors

Definition of Scalars and Vectors

Scalars are quantities with only magnitude, while vectors have both magnitude and direction

Examples of Scalars and Vectors

Scalar Quantities

Mass, temperature, speed, volume, and energy are examples of scalar quantities

Vector Quantities

Force, velocity, displacement, acceleration, and momentum are examples of vector quantities

Importance of Scalars and Vectors in Physics

Understanding the distinction between scalars and vectors is crucial for accurately describing and analyzing physical phenomena

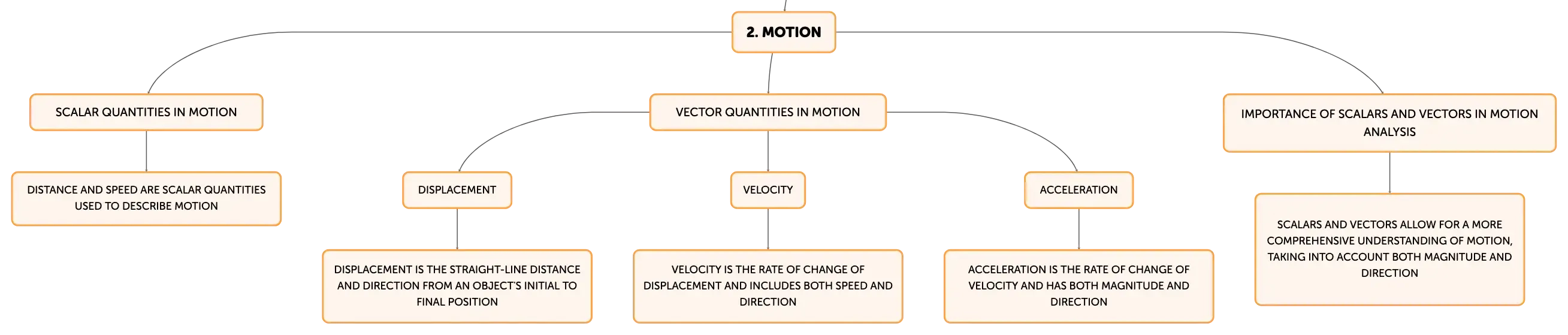

Motion

Scalar Quantities in Motion

Distance and speed are scalar quantities used to describe motion

Vector Quantities in Motion

Displacement

Displacement is the straight-line distance and direction from an object's initial to final position

Velocity

Velocity is the rate of change of displacement and includes both speed and direction

Acceleration

Acceleration is the rate of change of velocity and has both magnitude and direction

Importance of Scalars and Vectors in Motion Analysis

Scalars and vectors allow for a more comprehensive understanding of motion, taking into account both magnitude and direction

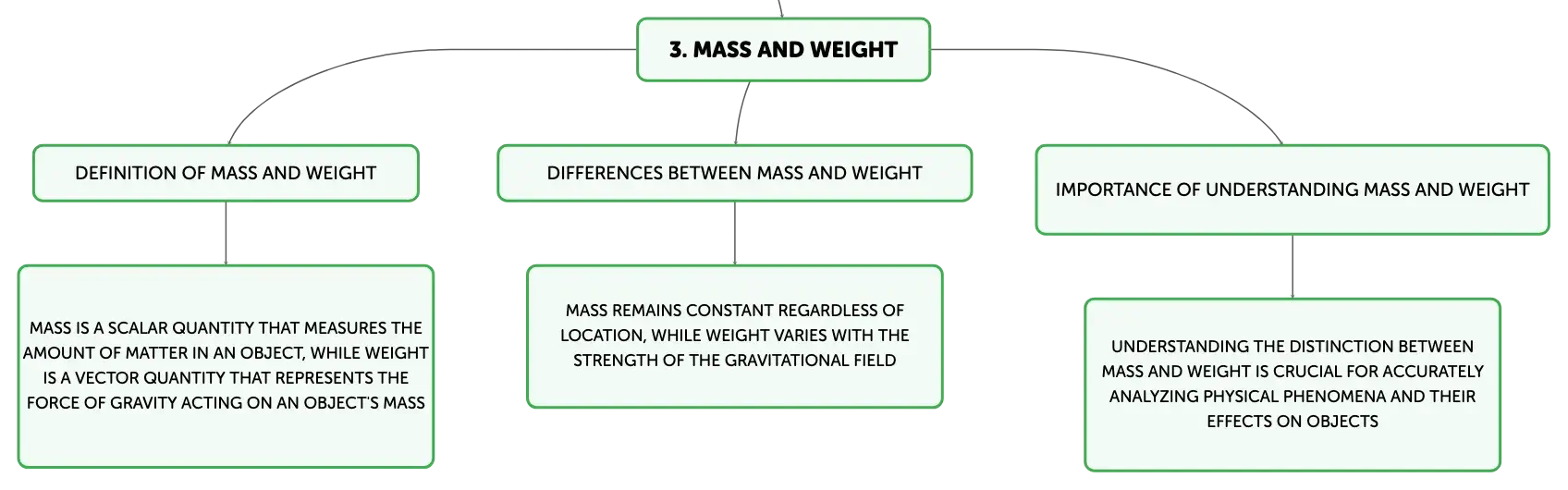

Mass and Weight

Definition of Mass and Weight

Mass is a scalar quantity that measures the amount of matter in an object, while weight is a vector quantity that represents the force of gravity acting on an object's mass

Differences between Mass and Weight

Mass remains constant regardless of location, while weight varies with the strength of the gravitational field

Importance of Understanding Mass and Weight

Understanding the distinction between mass and weight is crucial for accurately analyzing physical phenomena and their effects on objects

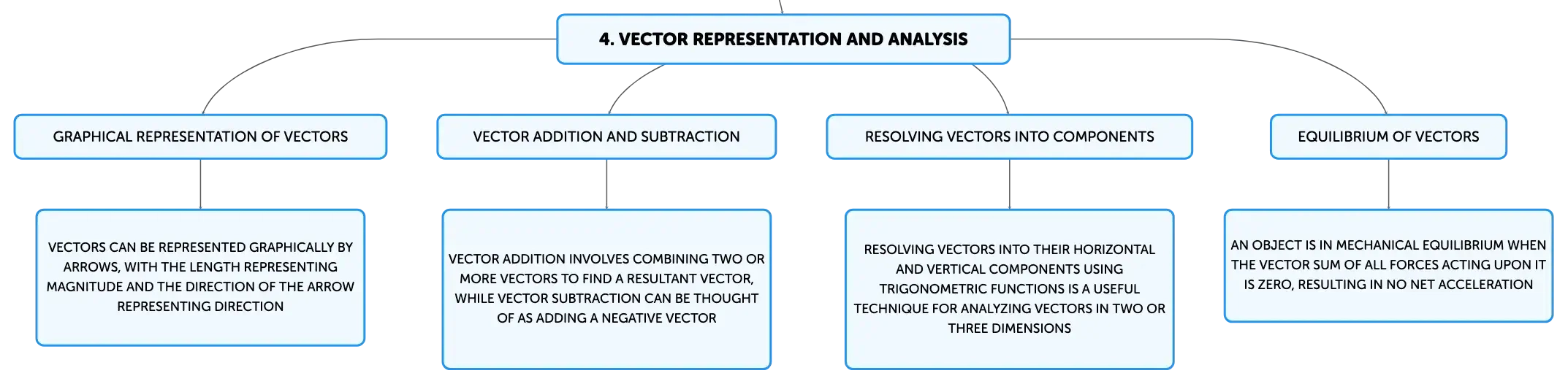

Vector Representation and Analysis

Graphical Representation of Vectors

Vectors can be represented graphically by arrows, with the length representing magnitude and the direction of the arrow representing direction

Vector Addition and Subtraction

Vector addition involves combining two or more vectors to find a resultant vector, while vector subtraction can be thought of as adding a negative vector

Resolving Vectors into Components

Resolving vectors into their horizontal and vertical components using trigonometric functions is a useful technique for analyzing vectors in two or three dimensions

Equilibrium of Vectors

An object is in mechanical equilibrium when the vector sum of all forces acting upon it is zero, resulting in no net acceleration

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

In physics, quantities like ______ and ______ are considered scalars because they only have magnitude.

mass

temperature

______ and ______ are examples of vector quantities, which have both magnitude and direction.

Force

velocity

Definition of distance in motion

Total path length an object travels, measured in meters or kilometers, lacking directional info.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Ripple tank experiment showing concentric circular water ripples from a dropped metal ball, with wave patterns projected as light and shadow.

Wave Equations and Their Applications

$Biconvex lens on white background refracting light into a spectrum, demonstrating light dispersion with a subtle rainbow effect and lens reflection.$

The Thick Lens Formula: A Cornerstone of Optical Science

$Optical bench setup with a large convex lens and a concave mirror demonstrating light refraction and reflection in a physics lab.$

Optical Aberrations

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Vectors in Motion: Displacement, Velocity, and Acceleration

Displacement, velocity, and acceleration are vector quantities that are crucial in the analysis of motion. Displacement is the straight-line distance from an object's initial to its final position, and it includes direction. Velocity is the rate of change of displacement and is a vector because it specifies both how fast an object is moving and in which direction. Acceleration is the rate at which an object's velocity changes over time, and it too has both magnitude and direction. These vector quantities allow for a more comprehensive understanding of motion, taking into account not just how much and how fast, but also in which direction an object moves.

Mass and Weight: Scalar and Vector Quantities

Mass and weight are distinct concepts in physics, often misunderstood. Mass is a scalar quantity that measures the amount of matter in an object, and it remains constant regardless of the object's location in the universe. It is measured in units such as kilograms or grams. Weight, on the other hand, is a vector quantity that represents the force of gravity acting on an object's mass. It varies with the strength of the gravitational field and thus changes with location. For example, an object's mass is the same on Earth and on the Moon, but its weight is less on the Moon due to the weaker gravitational pull.

Representing Vectors Graphically

Vectors are often represented graphically by arrows in diagrams to illustrate their magnitude and direction. The length of the arrow is proportional to the vector's magnitude, and the arrow points in the direction of the vector. The starting point of the arrow is known as the tail, and the point where the arrowhead indicates is the terminal point or head. This graphical representation is a powerful tool for visualizing and solving problems involving vectors in physics, such as when determining the resultant of multiple forces acting on an object.

Vector Addition and Subtraction

The process of vector addition involves combining two or more vectors to find a single vector, known as the resultant vector. This is done by placing the tail of one vector at the head of another and then drawing a vector from the tail of the first vector to the head of the last. If vectors are in opposite directions, their magnitudes are subtracted to find the resultant. For example, if two forces of 10 N and 15 N act in the same direction, their resultant is a single force of 25 N in that direction. If they act in opposite directions, the resultant is a force of 5 N in the direction of the larger force. Vector subtraction can be thought of as adding a negative vector.

Resolving Vectors into Components

Resolving vectors into their components is a technique used to simplify the analysis of vectors that are not aligned with the standard coordinate axes. This involves breaking a vector into perpendicular components, typically horizontal and vertical. The original vector can be reconstructed from these components using vector addition. The components are found using trigonometric functions, with the cosine function giving the horizontal component and the sine function giving the vertical component. This method is particularly useful in physics for analyzing forces, velocities, and other vector quantities in two or three dimensions.

Equilibrium of Forces

An object is said to be in mechanical equilibrium when the vector sum of all forces acting upon it is zero, resulting in no net acceleration. This state can be static, with the object at rest, or dynamic, with the object moving at constant velocity. For equilibrium to occur, the forces must be balanced both in magnitude and direction, and they must act in such a way that their lines of action do not create any net torque on the object. Analyzing situations of equilibrium is fundamental in many areas of physics, including statics, dynamics, and engineering, to ensure the stability and safety of structures and systems.
