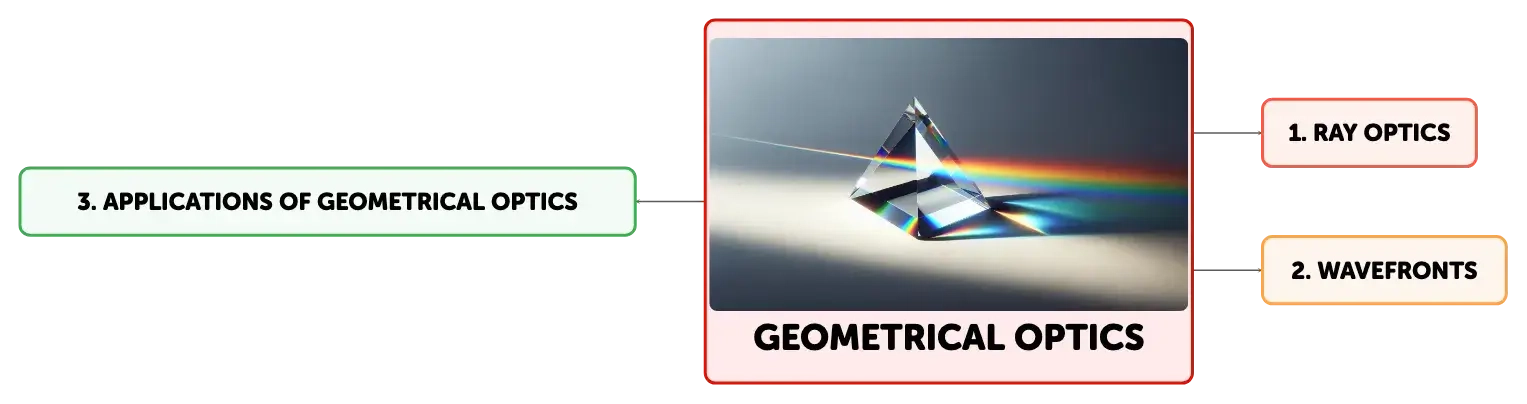

Concept Map
Geometrical Optics is a branch of physics that explains light propagation using rays, ideal for situations where light's wavelength is much smaller than optical elements. It covers reflection, refraction, and dispersion, and is fundamental in designing lenses and mirrors for devices like eyeglasses and cameras. Understanding these principles is crucial for advancements in technology and science.
Summary
Outline
Understanding the Basics of Geometrical Optics
Geometrical Optics, or ray optics, is a model of optics that describes the propagation of light in terms of rays, which are idealized straight lines along which light travels. This model is particularly useful when dealing with problems where the wavelength of light is much smaller than the dimensions of the optical elements involved. It encompasses the study of how light is reflected, refracted, and dispersed when it encounters different materials. Reflection occurs when light bounces off a surface, and is described by the law of reflection, which states that the angle of incidence is equal to the angle of reflection (\(\theta_{i}=\theta_{r}\)). Refraction is the change in direction of light as it passes from one medium to another, governed by Snell's Law (\(n_{1} \sin(\theta_{1}) = n_{2}\sin(\theta_{2})\)), which relates the angles of incidence and refraction to the refractive indices of the two media. Dispersion is the phenomenon where light separates into its component colors due to varying degrees of refraction for different wavelengths.The Conceptual Framework of Light as Rays
In Geometrical Optics, light is treated as a collection of rays that travel in straight paths when moving through a homogeneous medium. This simplification is valid under the assumption that the optical systems being analyzed have features much larger than the wavelength of light. The term 'wavefront' refers to a surface over which the light wave has the same phase of oscillation; these can be planar, spherical, or cylindrical, depending on the source of light. While Geometrical Optics does not delve into the wave or particle nature of light, it provides a practical approach for understanding and predicting the behavior of light in many everyday situations.Fundamental Principles and Applications in Geometric Optics
The foundational principles of Geometric Optics—reflection, refraction, and dispersion—are critical for analyzing how light interacts with different materials and interfaces. These principles are also essential for the design and understanding of optical devices such as lenses and mirrors, which form the basis of many optical instruments. By constructing ray diagrams, one can trace the paths of light rays and predict the formation of images, which is vital for the functionality of devices like eyeglasses, cameras, telescopes, and microscopes. The study of these optical elements and their applications illustrates the practical importance of Geometric Optics in various technological and scientific fields.Mathematical Descriptions in Geometric Optics
Geometric Optics is underpinned by mathematical relationships that describe the behavior of light. The law of reflection and Snell's Law provide the foundation for these relationships. Mirror and lens equations, such as the mirror equation (1/f = 1/v + 1/u) and the lensmaker's equation (1/F = (n-1)(1/R1 - 1/R2)), where f is the focal length, v is the image distance, u is the object distance, F is the lens's focal length, n is the refractive index, and R1 and R2 are the radii of curvature of the lens surfaces, allow for the calculation of image properties. These equations are crucial for the design and analysis of optical systems and for understanding how images are formed.Everyday Implications of Geometric Optics
The principles of Geometric Optics are integral to many devices and technologies that impact our daily lives. Corrective lenses are designed to modify the path of light to compensate for the imperfections in the eye's optics, thereby improving vision. Cameras utilize lenses to focus light onto a sensor to capture images, while telescopes and microscopes use combinations of lenses and mirrors to magnify distant or small objects. The widespread applications of Geometric Optics in fields such as astronomy, medicine, photography, and communication highlight its significance and the necessity of understanding its principles.Deepening Comprehension of Geometric Optics
A comprehensive understanding of Geometric Optics extends beyond memorizing laws and equations; it requires visualizing and applying these concepts to real-world situations. Advanced topics, such as the study of thick lens systems, prisms, and optical aberrations, provide a more complete picture of how light behaves. Effective learning strategies include focusing on conceptual understanding, engaging in problem-solving exercises, utilizing visual aids like ray diagrams, leveraging simulation software, and connecting optical phenomena to everyday experiences. A profound knowledge of Geometric Optics not only supports academic endeavors but also enriches our perception of the world through the lens of light.
Show More
Ray Optics
Propagation of light
Light travels in straight lines called rays
Reflection
Law of reflection
The angle of incidence is equal to the angle of reflection
Reflection off a surface
Light bounces off a surface
Refraction
Snell's Law
The angle of incidence and refraction are related to the refractive indices of the two media
Change in direction of light
Light changes direction as it passes from one medium to another
Dispersion
Light separates into its component colors due to varying degrees of refraction for different wavelengths

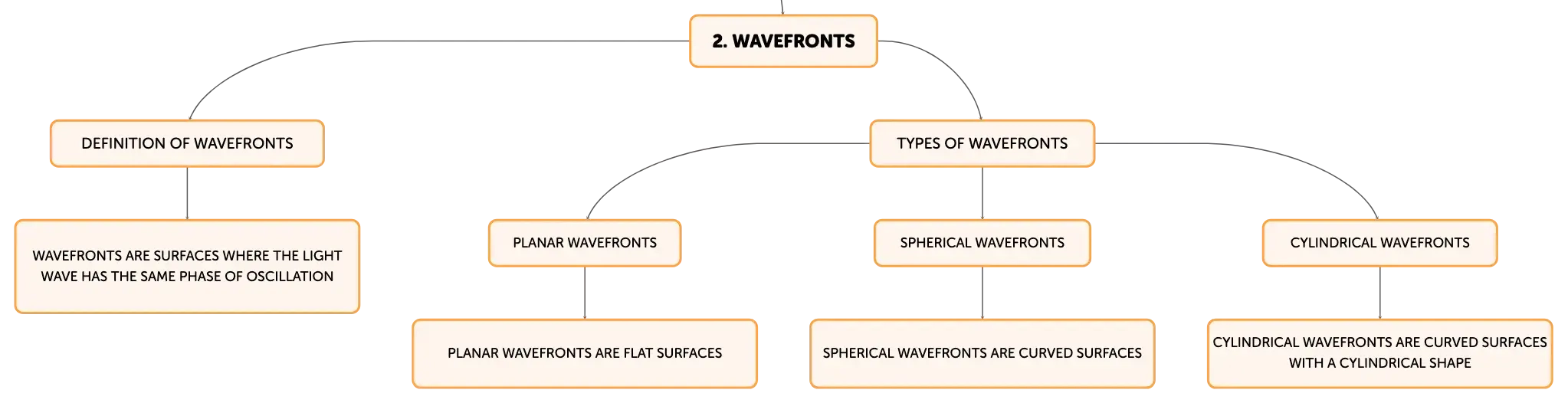

Wavefronts
