Triple Integrals in Cylindrical Coordinates

Triple integrals in cylindrical coordinates are crucial for calculating volumes and properties of 3D objects with cylindrical symmetry. This system uses radial distance, angle, and height to simplify complex integrations, especially for bodies with rotational symmetry. Understanding the setup, including the Jacobian factor r, and correct limits of integration is key to solving problems in multivariable calculus.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Define cylindrical coordinates.

Click to check the answer

Cylindrical coordinates are a 3D coordinate system with radial distance (r), angle (θ), and height (z).

2

General form of triple integral in cylindrical coordinates.

Click to check the answer

Expressed as ∫∫∫_V f(r, θ, z)r dz dr dθ, integrates function f over volume V.

3

Purpose of triple integrals in cylindrical coordinates.

Click to check the answer

Used to calculate volumes and integral properties of objects with cylindrical symmetry.

4

In three dimensions, a point's location can be described using ______ coordinates, which include radial distance, azimuthal angle, and axial height.

Click to check the answer

cylindrical

5

When to use cylindrical coordinates over Cartesian in integration?

Click to check the answer

Use when dealing with volumes/shapes with circular or cylindrical symmetry to simplify calculations.

6

Benefits of cylindrical coordinates in finding properties of symmetric bodies?

Click to check the answer

Facilitates calculation of volume, mass, center of mass for cylindrically symmetric bodies, avoiding Cartesian complications.

7

Impact of cylindrical coordinates on understanding spatial relationships?

Click to check the answer

Enhances conceptual grasp of 3D spatial relationships by aligning with object's symmetry.

8

When setting up a triple integral in ______ coordinates, it's crucial to include the ______ to account for the change in volume element.

Click to check the answer

cylindrical Jacobian r

9

To calculate a cone's volume using cylindrical coordinates, one would integrate r from ______ to the cone's ______, θ from ______ to ______, and z from ______ to the cone's slant height as a function of r.

Click to check the answer

0 radius 0 2π 0

10

Order of Integration Reevaluation

Click to check the answer

Reassess integration limits for each variable when changing integration order to match region accurately.

11

Importance of Geometry in Integration

Click to check the answer

Understand geometry of region to set correct bounds and apply transformations like Cartesian to cylindrical.

12

Applying the Jacobian in Coordinate Transitions

Click to check the answer

Include Jacobian 'r' when converting from Cartesian to cylindrical coordinates to account for area element change.

13

The volume of a ______ or the mass of a cylindrical tank can be calculated using triple integrals in ______ coordinates.

Click to check the answer

sphere cylindrical

14

When solving problems involving triple integrals in cylindrical coordinates, the angular coordinate θ usually spans from ______ to ______ for a full rotation.

Click to check the answer

0 2π

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Trigonometry: Exploring Angles and Sides of Triangles

View document

Mathematics

Understanding the Vertex in Quadratic Functions

View document

Mathematics

Rearrangement in Mathematics

View document

Mathematics

Algebraic Expressions and Equations

View document

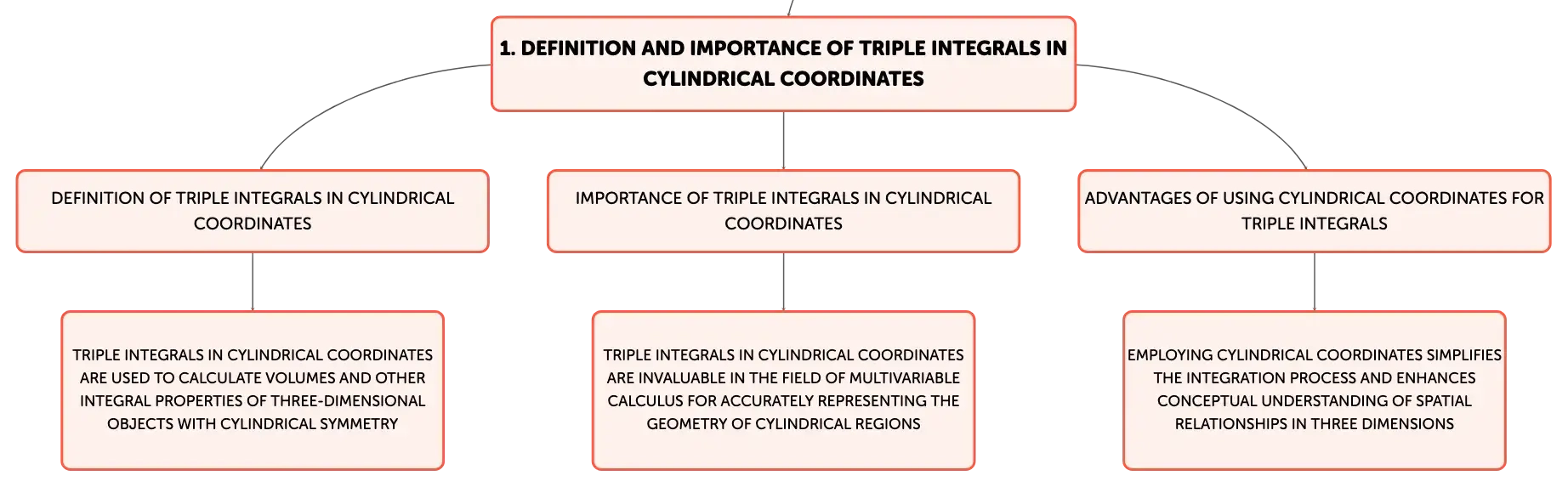

Understanding Triple Integrals in Cylindrical Coordinates

Triple integrals in cylindrical coordinates are invaluable in the field of multivariable calculus for calculating volumes and other integral properties of three-dimensional objects with cylindrical symmetry. This coordinate system is defined by a radial distance from a central axis (r), an angle around the axis (θ), and a vertical height (z). The general form of a triple integral in cylindrical coordinates is ∫∫∫_V f(r, θ, z)r dz dr dθ, where the function f is evaluated over a volume V. The presence of the term r in the integrand reflects the cylindrical volume element, which is crucial for accurately representing the geometry of cylindrical regions.
Transparent acrylic cylinder on a matte black surface with colorful strings outlining a cylindrical coordinate system, under soft lighting.

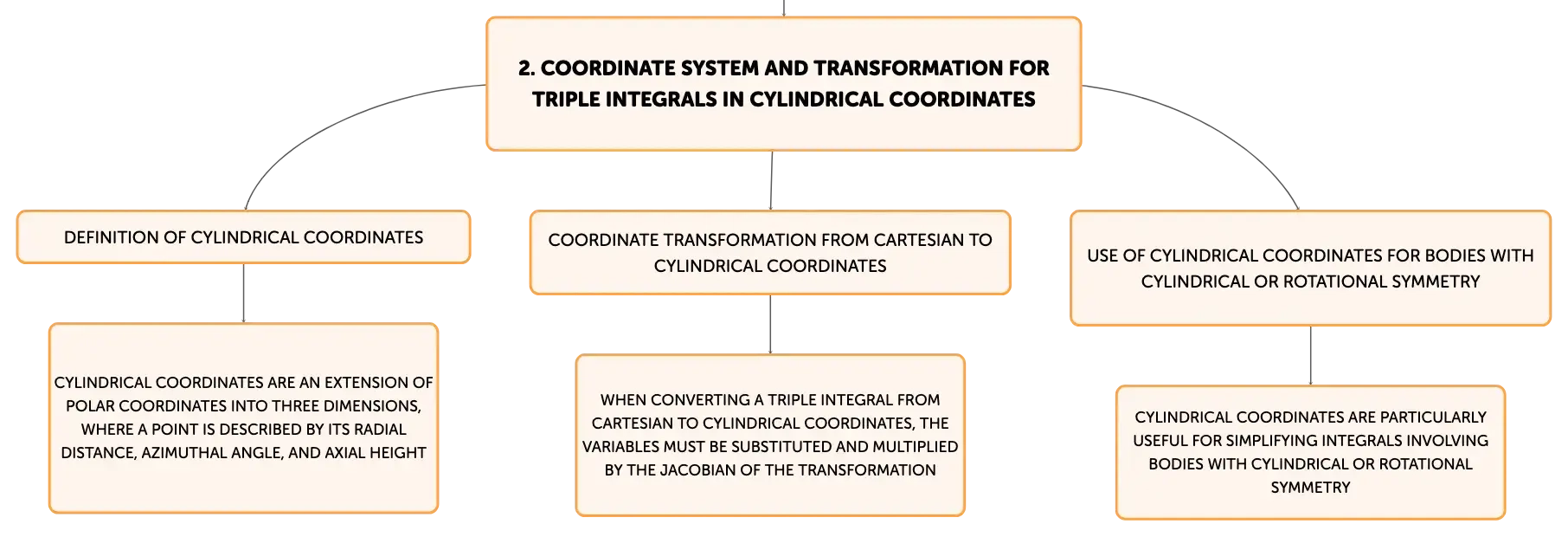

The Basics of Cylindrical Coordinates and Their Application in Triple Integrals

Cylindrical coordinates are an extension of polar coordinates into three dimensions, where a point is described by its radial distance (r), azimuthal angle (θ), and axial height (z). When converting a triple integral from Cartesian to cylindrical coordinates, it is necessary to substitute the Cartesian variables (x, y, z) with their cylindrical counterparts and to multiply by the Jacobian of the transformation, which is r in this case. This results in the integral ∫∫∫ f(r,θ,z)r dz dr dθ, where r is the radius, θ is the angular coordinate, and z is the height. This coordinate transformation is particularly useful for simplifying integrals that involve bodies with cylindrical or rotational symmetry.

Advantages of Cylindrical Coordinates in Solving Triple Integrals

Employing cylindrical coordinates to solve triple integrals confers distinct advantages when dealing with volumes and shapes that exhibit circular or cylindrical symmetry. This method aligns with the inherent symmetry of such objects, thereby simplifying the integration process and often reducing the complexity of the calculations. It is particularly effective for determining properties like volume, mass, and the center of mass of cylindrically symmetric bodies, as it avoids the complications that can arise when using Cartesian coordinates. This approach not only facilitates computational efficiency but also enhances conceptual understanding of spatial relationships in three dimensions.

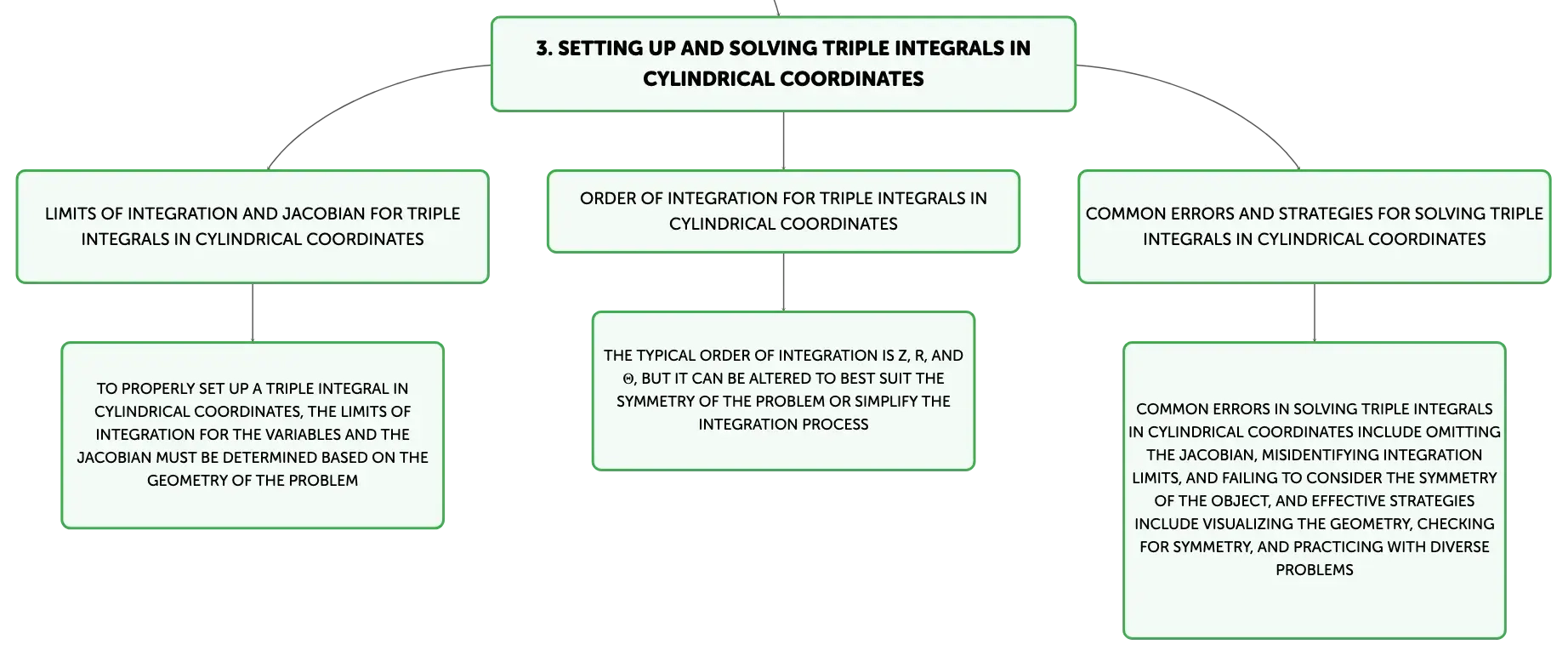

Setting Up and Solving Triple Integrals in Cylindrical Coordinates

To properly set up a triple integral in cylindrical coordinates, one must first establish the limits of integration for the variables r, θ, and z, which are determined by the specific geometry of the problem. The integrand function must be expressed in terms of r, θ, and z, and it is essential to include the Jacobian r in the integrand to account for the change in volume element. Although the typical order of integration is z, r, and θ, this sequence can be altered to best suit the symmetry of the problem or to simplify the integration process. For instance, to find the volume of a cone, one would integrate with r ranging from 0 to the cone's radius, θ from 0 to 2π, and z from 0 to a function representing the cone's slant height as a function of r.

Changing the Order of Integration and Common Mistakes to Avoid

Altering the order of integration in triple integrals can sometimes make the calculations more straightforward. This requires a careful reevaluation of the integration limits for each variable to ensure they accurately represent the region of integration. However, common errors such as omitting the Jacobian r, misidentifying the integration limits, or failing to consider the symmetry of the object can result in incorrect solutions. It is imperative to have a clear understanding of the geometry involved, to correctly apply the Jacobian when transitioning from Cartesian to cylindrical coordinates, and to meticulously determine the appropriate bounds for integration.

Practical Examples and Problem-Solving Strategies

Practical applications, such as computing the volume of a sphere or the mass of a cylindrical tank, illustrate the utility of triple integrals in cylindrical coordinates. These examples underscore the importance of recognizing the symmetry inherent in the object to streamline the setup of the integral. Effective problem-solving strategies include visualizing the spatial geometry, starting with simpler shapes, checking for symmetry, and practicing with diverse problems. It is also helpful to remember that the angular coordinate θ typically ranges from 0 to 2π for a complete revolution around the axis. By employing these strategies, students can improve their skills in formulating and solving triple integrals in cylindrical coordinates.
