Measurement Units in Physics
Concept Map
Exploring the significance of measurement units in physics, this overview discusses the universal language they provide for scientists, the historical evolution from non-standard to standardized units, and the introduction of the SI system. It highlights the necessity of unit conversion in scientific accuracy and problem-solving, the redefinition of SI units for precision, and the use of non-SI units and temperature scales in specific contexts. The text also touches on the use of prefixes in the metric system to handle a wide range of scales.
Summary
Outline
The Importance of Measurement Units in Physics
Measurement units are fundamental in physics, providing a universal language for scientists around the world to communicate and compare results. Units give meaning to numerical values, distinguishing between different types of physical quantities. Basic units, such as the kilogram for mass, are defined by physical constants and can be directly measured. Derived units, like meters per second for velocity, are combinations of these basic units. Additionally, vector quantities, which have both magnitude and direction, are often represented using unit vectors. For example, a velocity vector could be expressed as \(3 \;\hat{\textbf{i}}\text{ m/s }\), signifying a speed of \(3\text{ m/s}\) in the direction of the x-axis in Cartesian coordinates.The Historical Development of Measurement Units
The history of measurement units is rich and varied, with many units like the 'foot' and 'inch' originating from everyday objects and human body parts. The inch was once based on the width of a thumb. Over centuries, the lack of standardization led to confusion and difficulties in trade and science. The introduction of the metric system after the French Revolution marked a significant step towards standardization. Although the metric system has been widely adopted globally, the United States has retained its customary system due to a combination of historical, cultural, and political factors. The UK uses a mix of metric and imperial units, with road signs still displaying distances in miles.Contemporary Units of Measurement and Conversion
The International System of Units (SI) is the modern form of the metric system and is composed of seven base units: the meter, kilogram, second, ampere, kelvin, mole, and candela. These base units are used to derive other units, such as the newton for force, which is defined as \(1\text{N} = 1 \text{kg m/s}^2\). The United States Customary System (USCS), which evolved from English units, includes units like feet, pounds, and gallons. Converting between SI and USCS requires precise conversion factors, which are essential for scientific communication and practical applications across different regions and industries.The Practice of Unit Conversion
Unit conversion is an essential skill in physics and engineering, often performed using dimensional analysis, also known as the factor-label method. This approach treats units as algebraic quantities that can cancel out or combine to ensure the correct conversion. For instance, to convert from pounds to kilograms, one would use the factor \(1\text{ kg } = 2.20462\text{ lb}\). Converting from miles per hour to meters per second involves a multi-step process that includes factors for both length and time. Proficiency in unit conversion is crucial for scientific accuracy and practical problem-solving.Universal Constants and Dimensional Analysis in Physics
Universal constants, such as the speed of light in a vacuum, \( c\), and the gravitational constant, \( G\), are integral to the structure of physical laws and equations. Dimensional analysis is a powerful technique for checking the consistency of equations, ensuring that the units on both sides of an equation match. This method can also help in deriving formulas and identifying potential errors in calculations, making it an invaluable tool for students and professionals alike.The Redefinition of SI Units for Enhanced Precision
The SI units were redefined in 2019 to be based on fixed values of fundamental physical constants, such as the Planck constant and the elementary charge. This shift from artifact-based definitions, like the platinum-iridium kilogram, to constant-based definitions aims to ensure long-term stability and accuracy of measurements. These changes reflect the dynamic nature of science and the continuous improvement of measurement techniques, which are critical for advancing research and technology.Non-SI Units and Temperature Measurement in Physics
While the SI system is the standard for scientific measurement, certain non-SI units remain in use for their practicality in specific fields. For example, the electronvolt is commonly used in particle physics, and the bar is used in atmospheric pressure measurements. Temperature is often measured in degrees Celsius or Kelvin in scientific contexts, while the Fahrenheit scale is still used in the United States. Understanding how to convert between these temperature scales is important for global scientific communication and education.The Use of Prefixes and Powers of Ten in Metric Measurements
The metric system employs prefixes and powers of ten to express the magnitude of units, simplifying calculations and the representation of very large or small quantities. Prefixes such as micro (one-millionth), mega (one million), and giga (one billion) are combined with base units to cover the extensive range of scales encountered in physics. This systematic approach allows for straightforward scaling and conversion within the metric system, facilitating its use in scientific research, education, and everyday life.
Show More

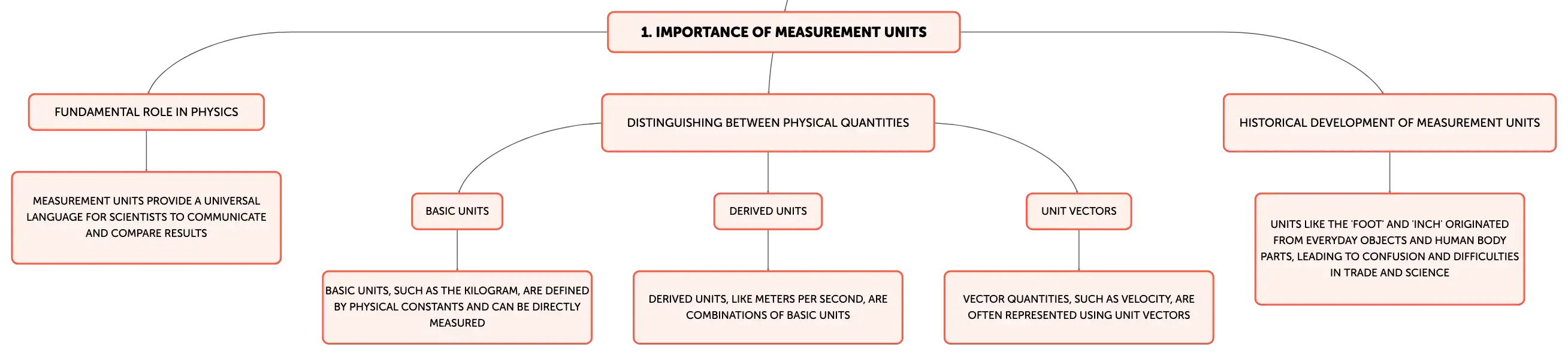

Importance of Measurement Units
Fundamental role in physics
Measurement units provide a universal language for scientists to communicate and compare results
Distinguishing between physical quantities
Basic units
Basic units, such as the kilogram, are defined by physical constants and can be directly measured
Derived units
Derived units, like meters per second, are combinations of basic units
Unit vectors
Vector quantities, such as velocity, are often represented using unit vectors
Historical development of measurement units
Units like the 'foot' and 'inch' originated from everyday objects and human body parts, leading to confusion and difficulties in trade and science

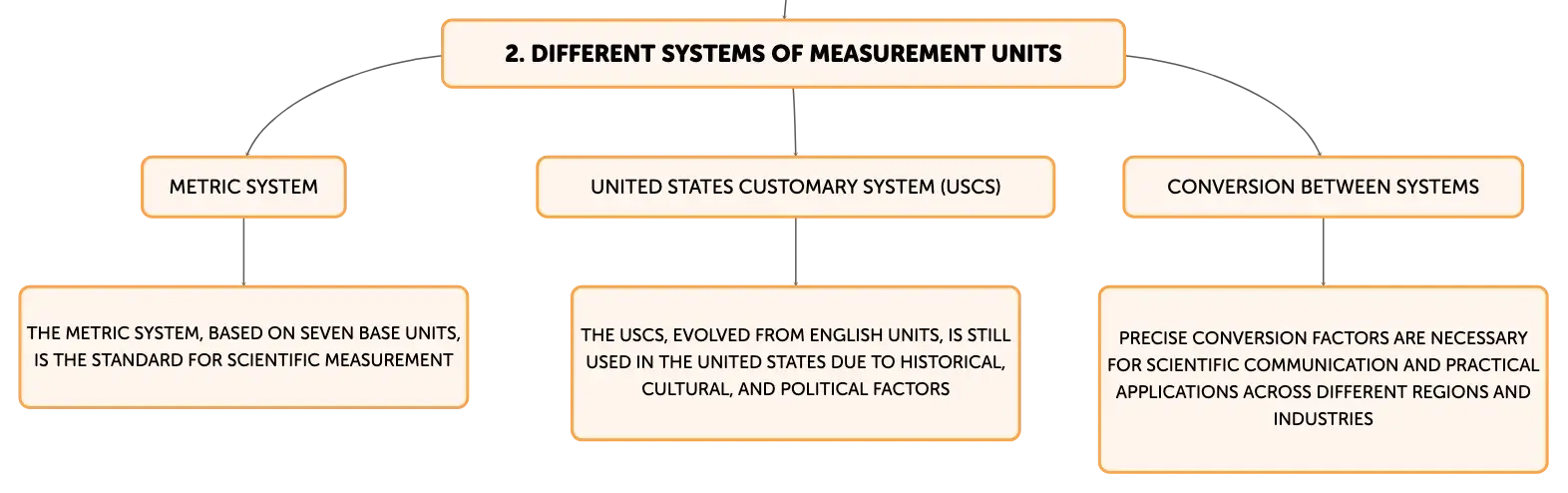

Different Systems of Measurement Units
Metric system
The metric system, based on seven base units, is the standard for scientific measurement
United States Customary System (USCS)
The USCS, evolved from English units, is still used in the United States due to historical, cultural, and political factors
Conversion between systems
Precise conversion factors are necessary for scientific communication and practical applications across different regions and industries

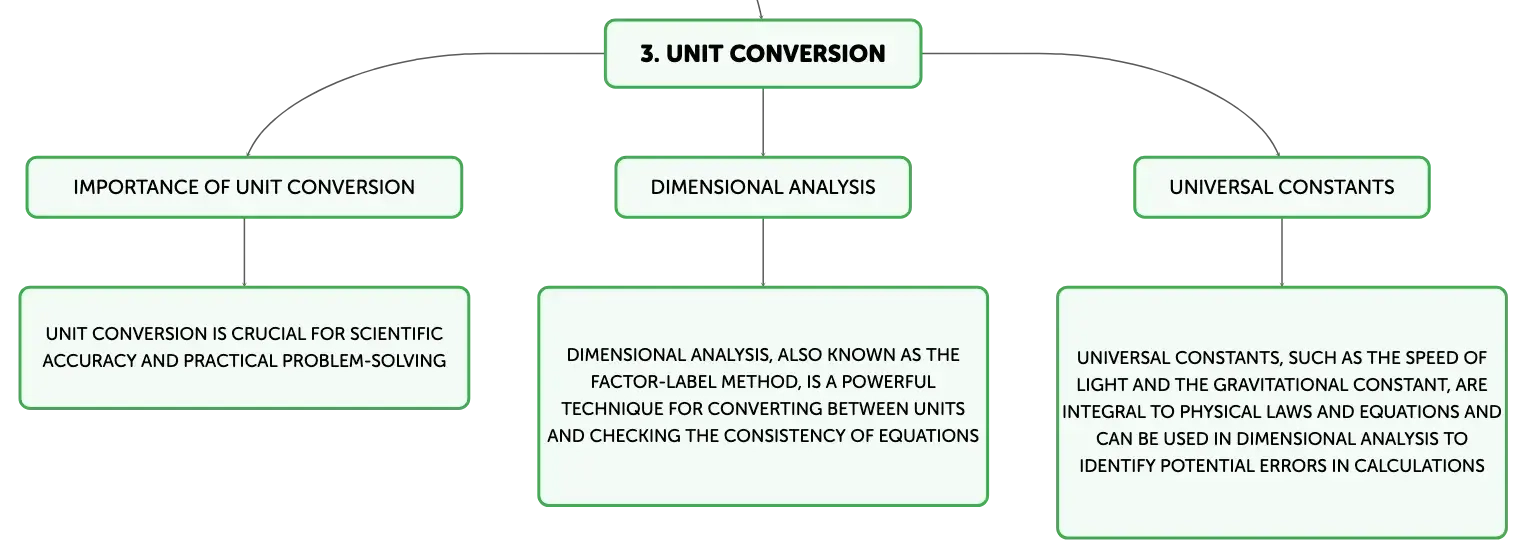

Unit Conversion
Importance of unit conversion
Unit conversion is crucial for scientific accuracy and practical problem-solving
Dimensional analysis
Dimensional analysis, also known as the factor-label method, is a powerful technique for converting between units and checking the consistency of equations
Universal constants
Universal constants, such as the speed of light and the gravitational constant, are integral to physical laws and equations and can be used in dimensional analysis to identify potential errors in calculations

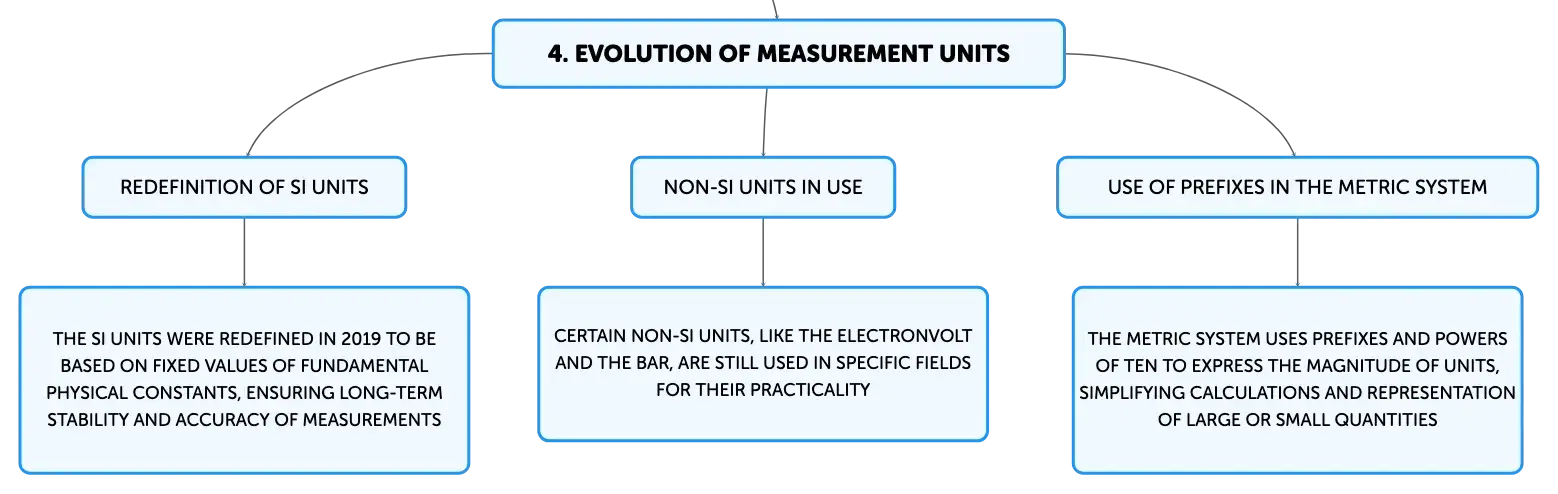

Evolution of Measurement Units
Redefinition of SI units
The SI units were redefined in 2019 to be based on fixed values of fundamental physical constants, ensuring long-term stability and accuracy of measurements
Non-SI units in use
Certain non-SI units, like the electronvolt and the bar, are still used in specific fields for their practicality
Use of prefixes in the metric system
The metric system uses prefixes and powers of ten to express the magnitude of units, simplifying calculations and representation of large or small quantities
Measurement Units in Physics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The '______' was historically based on the width of a human thumb.
inch
01
Derived unit for force in SI
Newton (N), defined as 1 kg m/s^2.
02
Primary difference between SI and USCS
SI is a modern metric system; USCS is based on English units.
