Exploring the Graphs of Trigonometric Functions

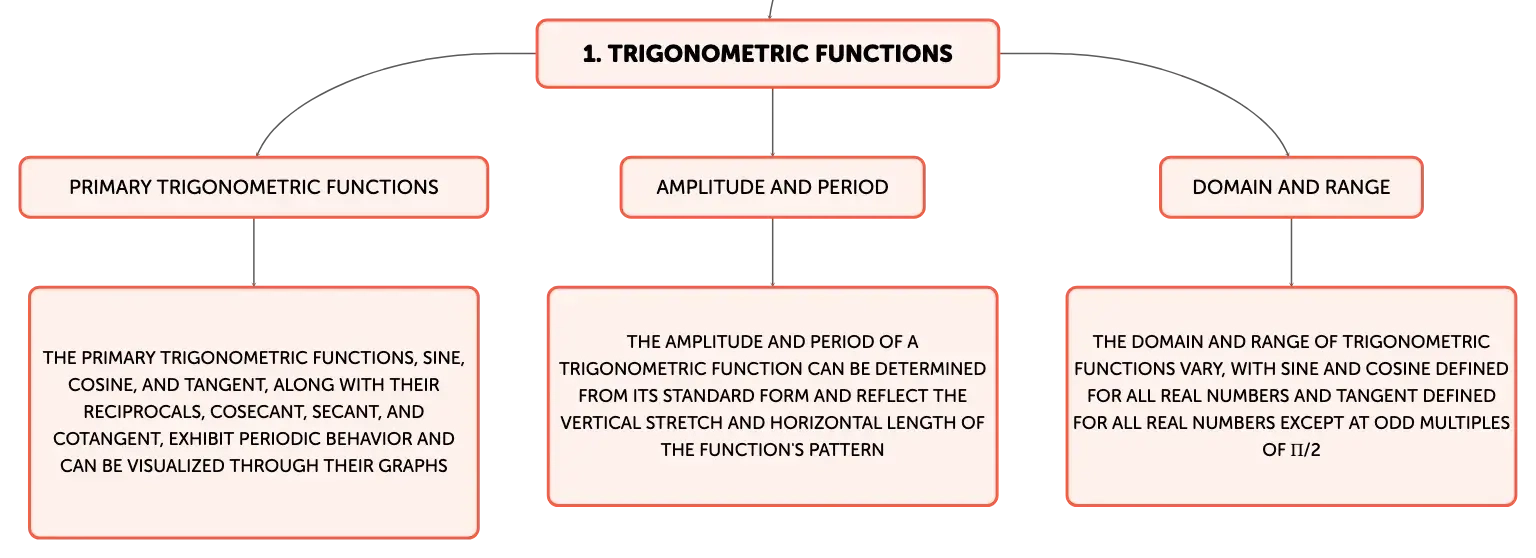

Trigonometric functions are a cornerstone of mathematical analysis, encapsulating the relationships between angles and lengths in right-angled triangles. The primary trigonometric functions—sine (sin), cosine (cos), and tangent (tan)—along with their reciprocals—cosecant (csc), secant (sec), and cotangent (cot)—exhibit periodic behavior that can be visualized through their graphs on a coordinate plane. These graphs are distinguished by features such as amplitude, the vertical stretch of the graph, and period, the horizontal length over which the function's values repeat. The amplitude is determined by the maximum vertical distance from the midline of the graph, while the period is the interval required for one complete cycle of the function's pattern.

Close-up view of a scientific calculator's matte gray trigonometric function keys, neatly arranged with subtle shadows, against a blurred background.

Characteristics of Trigonometric Function Graphs

The sine and cosine functions are characterized by an amplitude of 1, as they oscillate between -1 and 1. When expressed in the form y=a sin(bx) or y=a cos(bx), the amplitude is |a|, and the period is 2π/b, reflecting the frequency of oscillation. The tangent function, which does not have a maximum or minimum, has a period of π/b. The domain of sine and cosine encompasses all real numbers, with a range from -1 to 1, while tangent is defined for all real numbers except where it is undefined at odd multiples of π/2, and its range is all real numbers. The reciprocal functions, csc, sec, and cot, have domains that exclude the zeros of their corresponding functions and ranges that are all real numbers except the interval (-1, 1).

Graphing Trigonometric Functions Step by Step

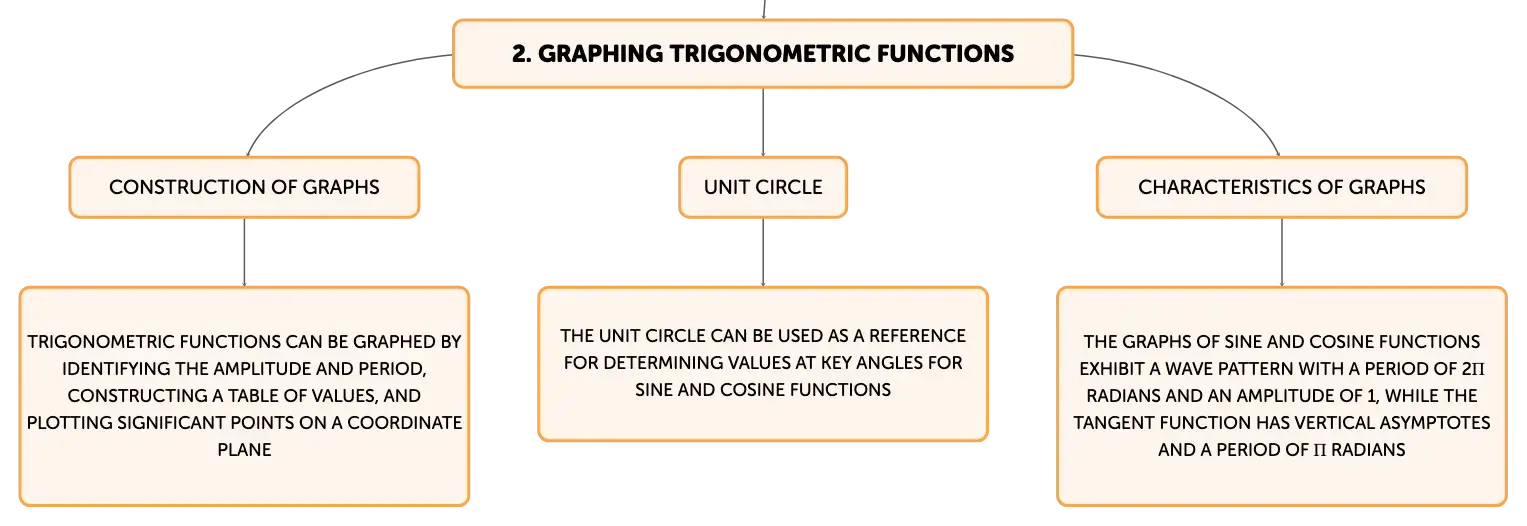

Graphing trigonometric functions begins with identifying the amplitude and period from the coefficients a and b in the function's standard form. A table of values is then constructed, plotting significant points that correspond to the function's values at specific intervals. These points are marked on a coordinate plane, and a smooth curve is drawn to represent at least one complete cycle of the function. For sine and cosine, the unit circle provides a convenient reference for determining the values at key angles. The sine function intersects the x-axis at integer multiples of π and reaches its peak and trough at π/2 and 3π/2, respectively.

Graphical Depictions of Sine, Cosine, and Tangent

The sine function graphically manifests as a wave with a period of 2π radians and an amplitude of 1, crossing the x-axis at integer multiples of π. The cosine graph exhibits a similar wave pattern but is phase-shifted π/2 radians to the right. The tangent function presents a distinct graph with a period of π radians and vertical asymptotes at odd multiples of π/2, where the function is undefined. It intersects the x-axis at integer multiples of π and extends indefinitely in the vertical direction, indicating its unbounded range.

Graphing the Reciprocal Trigonometric Functions

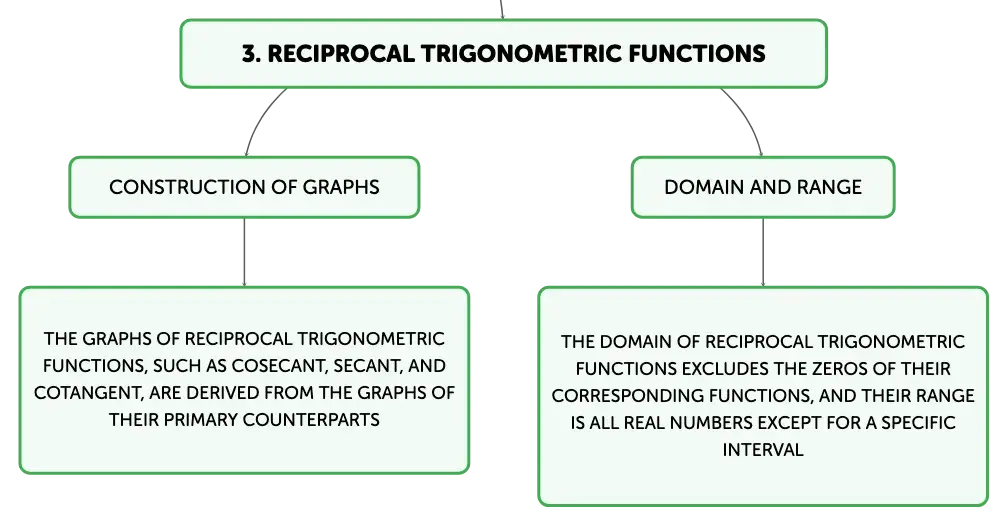

The graphs of the reciprocal trigonometric functions—cosecant, secant, and cotangent—are constructed using the sine, cosine, and tangent graphs, respectively, as foundations. The cosecant graph is formed by plotting vertical asymptotes at the zeros of the sine function and sketching arcs that correspond to the reciprocal of the sine values at their peaks and troughs. The secant graph is similarly derived from the cosine function. These reciprocal function graphs maintain the same period as their primary counterparts but lack a defined amplitude due to their unbounded nature. The cotangent graph, akin to the tangent, features vertical asymptotes and a period of π radians, but it decreases as the input angle increases.

Inverse Trigonometric Functions and Graphical Interpretations

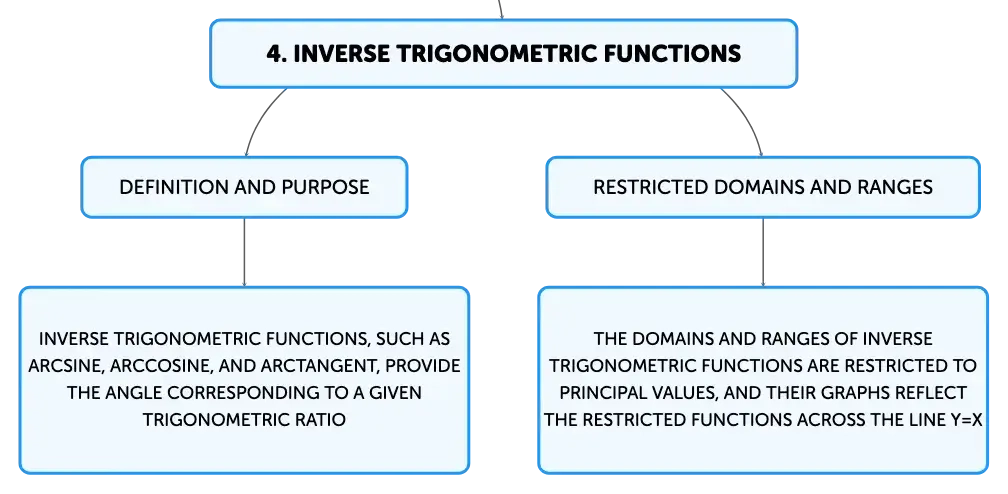

The inverse trigonometric functions—arcsine (Arcsin), arccosine (Arccos), and arctangent (Arctan)—serve as the functional inverses of sine, cosine, and tangent, respectively. They provide the angle corresponding to a given trigonometric ratio. To function as true inverses, their domains are restricted to principal values. The graph of the arcsine function, which has a domain of [-1, 1] and a range of [-π/2, π/2], mirrors the restricted sine function across the line y=x. The arccosine graph, with the same domain but a range of [0, π], similarly reflects the restricted cosine function. The arctangent function, with an unrestricted domain and a range of (-π/2, π/2), provides a visual representation of the angle associated with a given tangent value, reflecting the original tangent function across y=x.
