The Physics of Solar Flares and Magnetic Reconnection

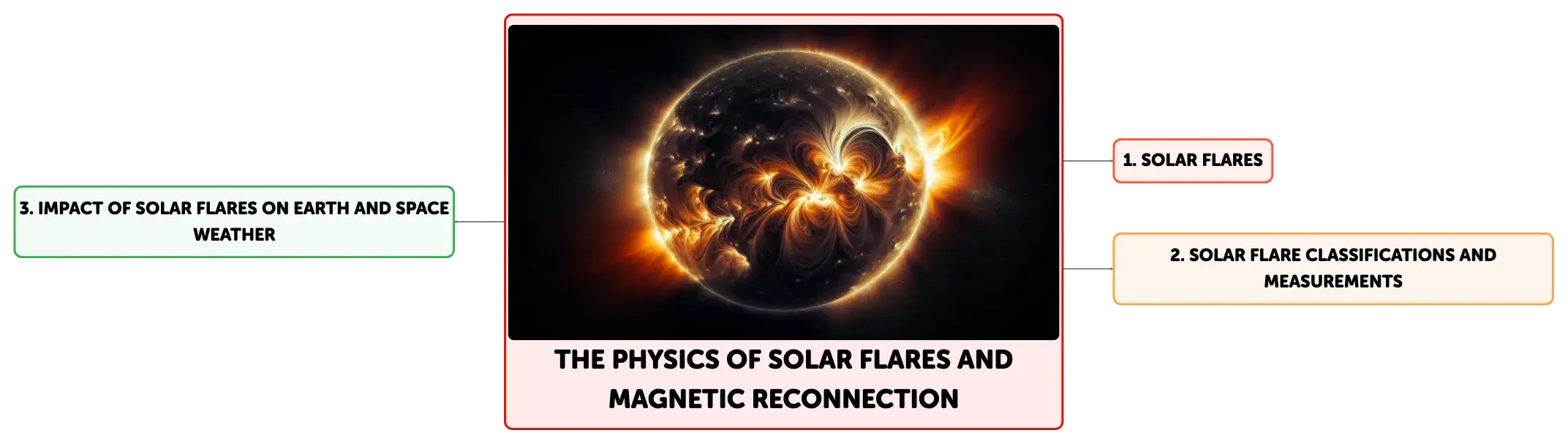

Concept Map

Algorino

Edit available

Solar flares are intense bursts of electromagnetic radiation from the Sun, resulting from magnetic reconnection in the solar atmosphere. These flares are classified by X-ray brightness, with categories ranging from A to X. The article delves into the effects of solar flares on Earth, including communication disruptions and geomagnetic storms, and the importance of understanding their characteristics for space weather prediction.

The Physics of Solar Flares and Magnetic Reconnection

Solar flares are powerful bursts of electromagnetic radiation from the Sun, caused by the sudden release of energy from the solar atmosphere. This energy release is due to magnetic reconnection, a physical process in which magnetic field lines from different magnetic domains are forced together, break apart, and reconnect in a new configuration. This occurs in areas of complex magnetic fields, such as solar arcades—series of magnetic loops anchored to the Sun's surface. The reconnection process can rapidly convert magnetic energy into kinetic and thermal energy, propelling charged particles to near-light speeds and producing intense radiation. The restructured magnetic fields can also drive coronal mass ejections (CMEs), which are massive bursts of solar wind and magnetic fields rising above the solar corona or being released into space.
Explosion of a solar flare on the surface of the sun, with a brightly colored luminous arc on a black space background.

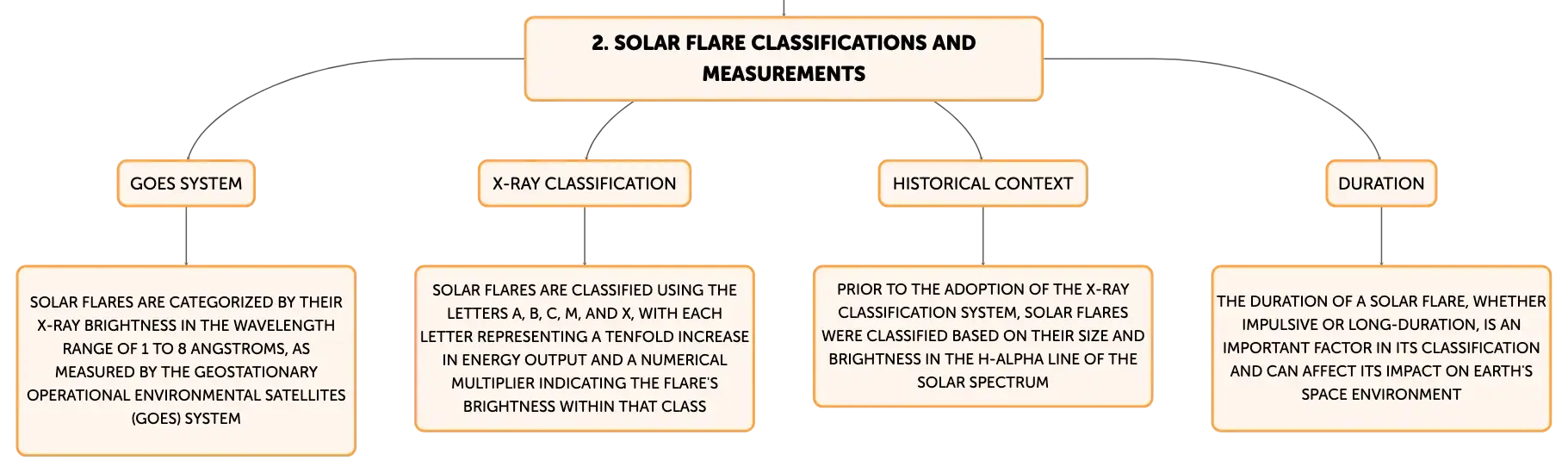

Understanding Solar Flare Classifications and Measurements

Solar flares are categorized by their X-ray brightness in the wavelength range of 1 to 8 Angstroms, as measured by the Geostationary Operational Environmental Satellites (GOES) system. The classification scheme uses the letters A, B, C, M, and X, with A being the least intense and X the most intense. Each letter represents a tenfold increase in energy output, and is followed by a numerical multiplier that indicates the flare's brightness within that class. For instance, an X2 flare is twice as intense as an X1 flare. X-class flares can have significant effects on Earth, including disruptions to communication and navigation systems, and are therefore closely monitored by scientists and space weather forecasters.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

______ are intense emissions of ______ radiation from the Sun, triggered by energy release in the solar atmosphere.

Solar flares

electromagnetic

01

Coronal mass ejections (CMEs) are huge expulsions of solar wind and magnetic fields, often driven by the restructured magnetic fields from ______.

solar flares

02

Measuring unit for solar flare brightness

X-ray brightness in the 1 to 8 Angstroms range measured by GOES.
