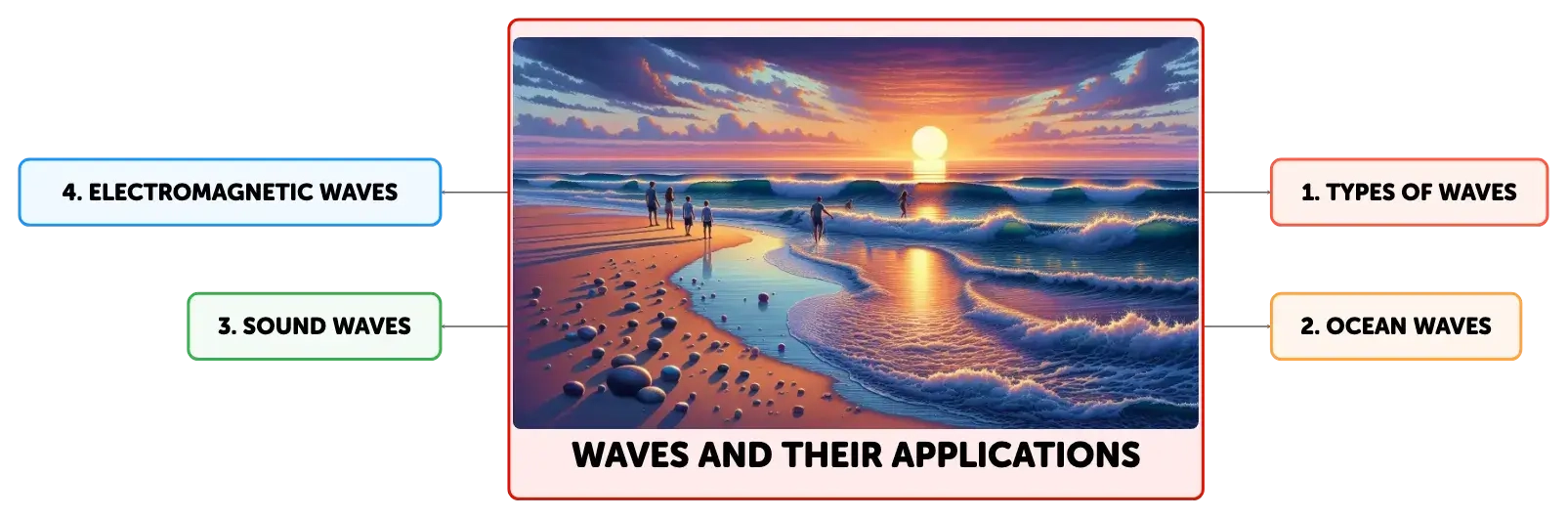

Waves and Their Applications

Concept Map

Algorino

Edit available

Exploring the dynamics of waves, this overview covers mechanical and electromagnetic waves, their properties, and applications. It delves into tidal energy from ocean waves, the use of sound waves in communication and sonar technology, the medical applications of ultrasound imaging, the significance of radio waves in communication and radar systems, and the pervasive role of light waves in vision and various technologies.

Summary

Outline

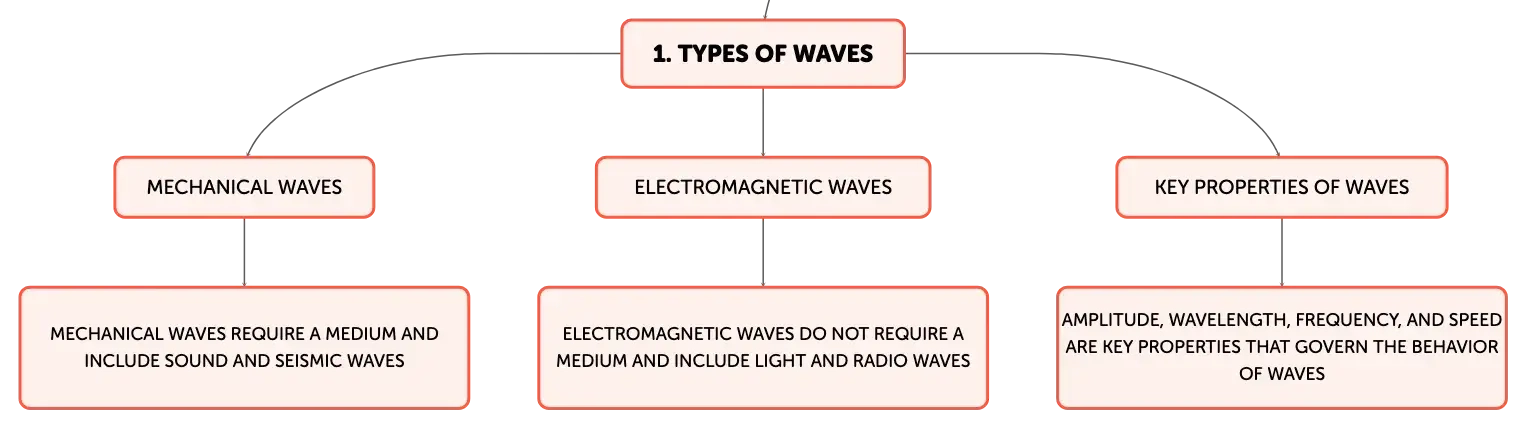

Wave Fundamentals and Their Characteristics

Waves are oscillations or vibrations that carry energy across space or through a medium without causing permanent displacement of the particles in the medium. They are categorized into two main types: mechanical waves, which require a medium (such as sound or seismic waves), and electromagnetic waves, which do not require a medium and can travel through a vacuum (such as light or radio waves). Key properties of waves include amplitude, wavelength, frequency, and speed. The behavior of waves, such as reflection, refraction, interference, and diffraction, is governed by these properties and is essential to understanding the various applications of wave phenomena in the natural and technological world.

Serene sunset beach scene with gentle waves, three people at the shore, a seagull in flight, and a colorful sky reflecting the setting sun.

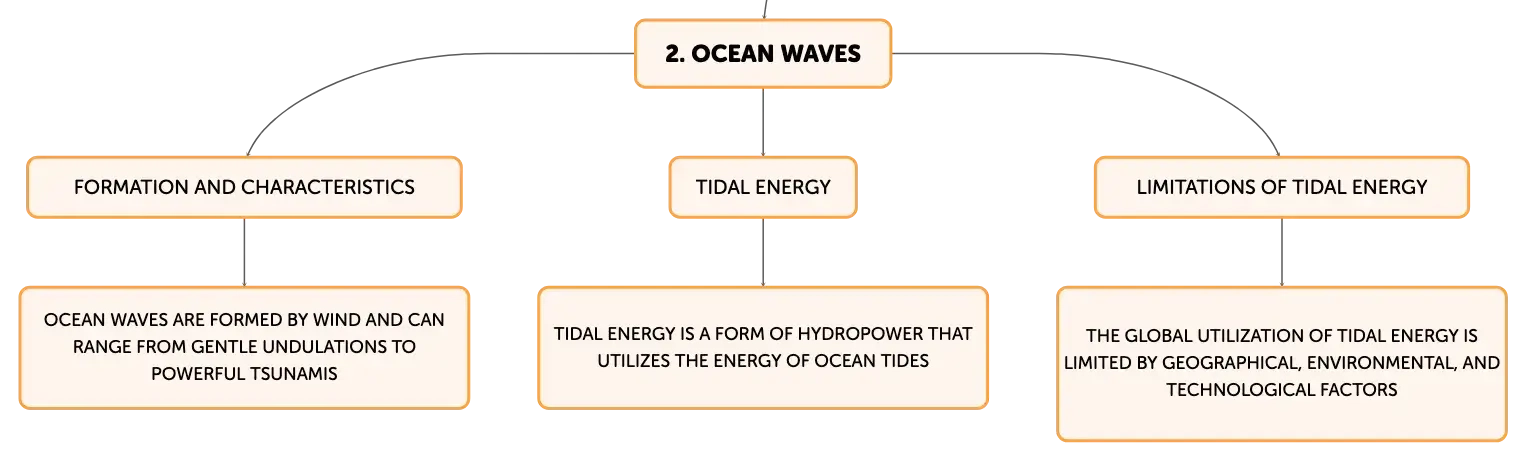

Tidal Energy from Ocean Waves

Ocean waves, formed by the interaction of wind with the surface of the sea, exhibit a range of sizes and energies, from gentle undulations to powerful tsunamis. Tidal energy is a form of hydropower that exploits the kinetic and potential energy of ocean tides, caused primarily by the gravitational pull of the moon and sun. Tidal power plants, often situated at estuaries or coastal areas with significant tidal ranges, convert the energy of rising and falling tides into electricity. While tidal energy is a renewable and predictable source of power, its global utilization is limited by geographical and environmental constraints, as well as technological and economic factors.

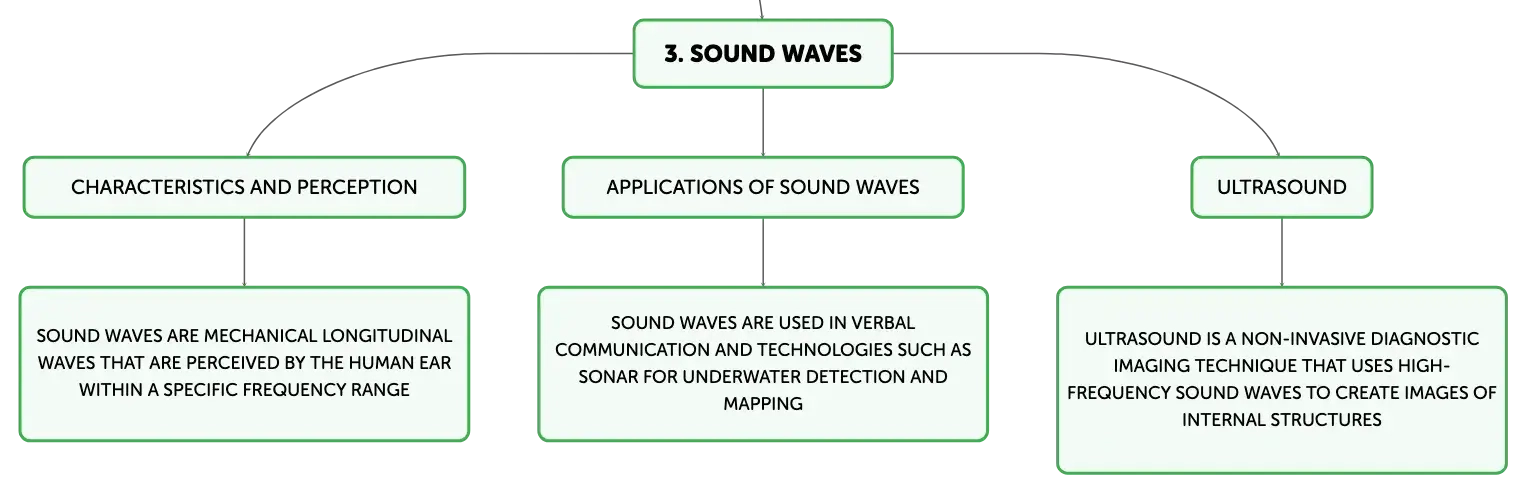

Sound Waves: Communication and Technological Uses

Sound waves are mechanical longitudinal waves that travel through mediums by the successive compression and rarefaction of particles. The human ear perceives sound within a frequency range of approximately 20 Hz to 20 kHz. Sound waves facilitate verbal communication and are also harnessed in various technologies. For instance, sonar (Sound Navigation and Ranging) systems emit sound pulses into water and measure the time it takes for the echoes to return after bouncing off objects, enabling the detection and mapping of underwater features or navigation of vessels.

Diagnostic Imaging with Ultrasound

Ultrasound is a diagnostic imaging technique that uses high-frequency sound waves to create images of the internal structures of the body. The transducer, which both emits and receives the ultrasound waves, is placed on the skin and moved over the area of interest. The waves reflect off the boundaries between different types of tissues and are then processed to form images. This non-invasive method is particularly useful for examining soft tissues and is widely used in obstetrics, cardiology, and other medical fields to monitor health and diagnose conditions.

Radio Waves in Communication and Radar Systems

Radio waves are a form of electromagnetic radiation with wavelengths longer than infrared light. They are used extensively in communication systems due to their ability to travel long distances and penetrate through the atmosphere and other obstacles. Radio waves are the basis for television and radio broadcasting, mobile phone networks, and wireless internet. In radar (Radio Detection and Ranging) systems, radio waves are transmitted towards an object, and the time delay of the returning signals is used to determine the object's position, speed, and other characteristics.

The Pervasive Role of Light Waves

Light waves are a portion of the electromagnetic spectrum visible to the human eye. They are essential for vision and play a significant role in various technologies. For example, in flash photography, a camera's flash emits a brief, intense burst of light to illuminate a subject. Light waves are also integral to optical instruments like microscopes and telescopes, and they are the basis for fiber optic communication systems. The study of light waves, or optics, encompasses the behavior and properties of light, including its interactions with matter, which is fundamental to understanding phenomena such as color, mirages, and the bending of light through lenses.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

______ are disturbances that transmit ______ without permanently moving the medium's particles.

Waves

energy

01

There are two primary categories of waves: ______ waves, needing a medium, and ______ waves, which do not.

mechanical

electromagnetic

02

Ocean waves origin

Formed by wind interacting with sea surface, varying in size and energy.
