Branch and Bound Algorithm
Concept Map
The Branch and Bound algorithm is a pivotal technique in computer science for tackling combinatorial optimization challenges. It involves branching to create subproblems, bounding to eliminate non-optimal solutions, and selection to prioritize subproblems. This method is crucial in solving the Travelling Salesman Problem and integer programming tasks, where it determines the most efficient solutions by systematically exploring and evaluating possibilities.
Summary
Outline
Exploring the Branch and Bound Algorithm in Optimization Problems
The Branch and Bound algorithm is a systematic method used in computer science to solve combinatorial optimization problems. It works by partitioning the original problem into a series of subproblems (branching), assessing these subproblems to eliminate those that cannot lead to an optimal solution (bounding), and strategically choosing which subproblems to examine next based on the most promising lower bound (selection). This algorithm is particularly effective for complex problems such as the Travelling Salesman Problem (TSP) and the knapsack problem, where it is employed to identify the most efficient solutions.Fundamental Concepts of the Branch and Bound Technique
The Branch and Bound technique is underpinned by three fundamental concepts: branching, bounding, and selection. Branching is the process of splitting a problem into a set of subproblems. Bounding involves computing lower and upper bounds to discard subproblems that cannot improve upon the current best solution. Selection is the strategy for deciding which subproblem to explore next, typically based on the lowest bound. The algorithm constructs a search tree and traverses it in a strategic manner, aiming to find the optimal solution with the least computational effort.Branch and Bound's Application in Integer Programming
In integer programming, where solutions are constrained to integer values, the Branch and Bound algorithm plays a critical role. It efficiently sifts through potential solutions, pruning suboptimal ones to focus the search on the most promising candidates. The algorithm branches to generate subproblems and employs bounding to evaluate and eliminate those that do not meet the criteria. Various strategies, such as depth-first, best-first, and breadth-first search, are used to select the next node to explore, balancing between memory usage and computational speed.Real-World Uses of the Branch and Bound Approach
The Branch and Bound approach is applied in practical integer programming challenges, including resource allocation, logistics, and scheduling tasks. Its adaptability and effectiveness are showcased in its consistent methodology and implementation across different industries. For example, in resource allocation, decision variables may represent the assignment of tasks to resources. The algorithm explores permutations of these variables, discards non-viable options, and methodically searches through the feasible combinations to determine the most effective allocation.Solving the Travelling Salesman Problem with Branch and Bound
The application of the Branch and Bound method to the Travelling Salesman Problem (TSP) is a prime example of its importance in computer algorithms. TSP is a notorious optimization challenge that seeks the shortest possible route visiting a set of cities and returning to the origin. The Branch and Bound algorithm uses a cost matrix to record the travel costs between cities and identifies the minimum-cost circuit. Branching generates subproblems with specific constraints on the sequence of cities, while bounding provides an estimate of the minimum cost that can be achieved from a given node, adhering to the problem's restrictions.Decision Trees and Branch and Bound in Complex Problem-Solving
The Branch and Bound algorithm is closely related to decision trees, which are essential for structuring and simplifying complex decision-making processes. A decision tree is a graphical representation where nodes symbolize decisions, branches represent possible actions or conditions, and leaves indicate the outcomes. Decision trees aid the Branch and Bound method by offering a visual means to organize and solve problems, as well as to facilitate the elimination of suboptimal paths through the decision-making process.Assessing the Complexity of the Branch and Bound Algorithm
The computational complexity of the Branch and Bound algorithm is determined by the branching factor and the effectiveness of the bounding process. The time complexity is generally expressed as \(O(b^d)\), where \(b\) is the branching factor and \(d\) is the depth of the optimal solution, while the space complexity is typically \(O(bd)\). Although the algorithm can be computationally intensive, strategic bounding can greatly reduce the number of calculations required. Techniques to manage complexity include improved bounding methods, efficient branching strategies, and the use of parallel processing.Practical Implementation of Branch and Bound
Practical implementations of the Branch and Bound algorithm, such as in the Travelling Salesman Problem and the knapsack problem, illustrate its applicability in real-world scenarios. For the TSP, the algorithm computes the total cost of various routes to find the shortest possible tour. In the knapsack problem, it determines the most valuable combination of items within a given weight constraint by branching on the inclusion or exclusion of each item and keeping track of the best combination found so far. These instances underscore the algorithm's utility as an effective tool for resolving intricate optimization challenges.
Show More

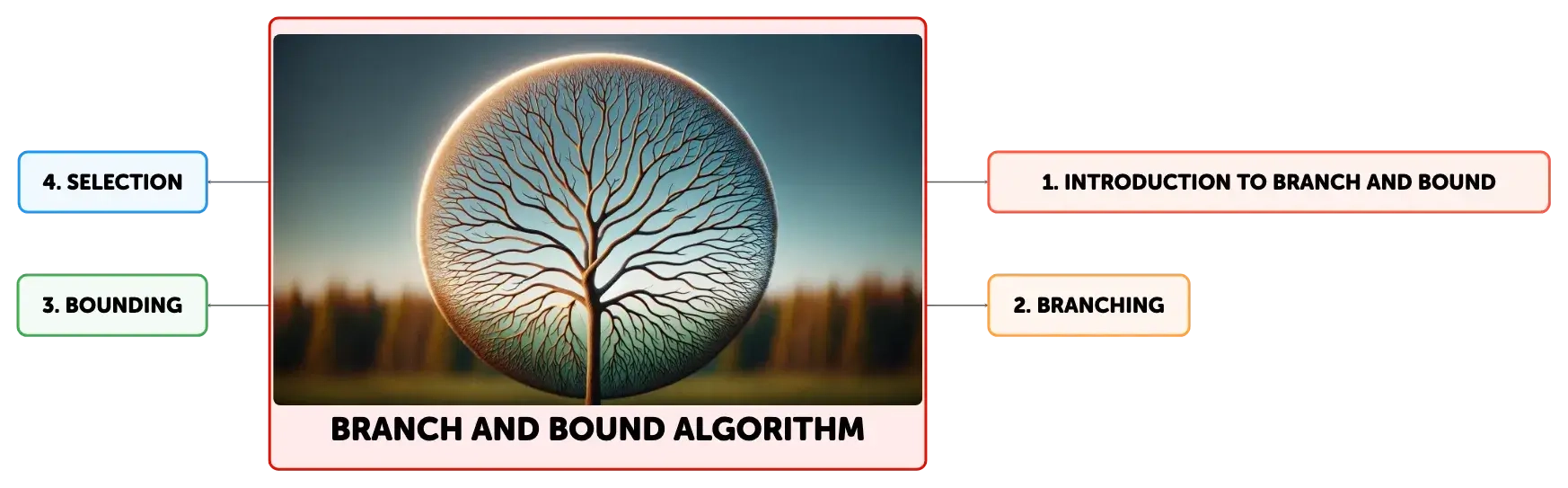

Introduction to Branch and Bound
Definition of Branch and Bound
The Branch and Bound algorithm is a systematic method used in computer science to solve combinatorial optimization problems
Applications of Branch and Bound
Travelling Salesman Problem (TSP)
The Branch and Bound algorithm is particularly effective for complex problems such as the TSP, where it is used to identify the most efficient solutions
Knapsack Problem
The Branch and Bound algorithm is also commonly used in the knapsack problem to find the most valuable combination of items within a given weight constraint
Fundamental Concepts of Branch and Bound
The Branch and Bound technique is underpinned by three fundamental concepts: branching, bounding, and selection

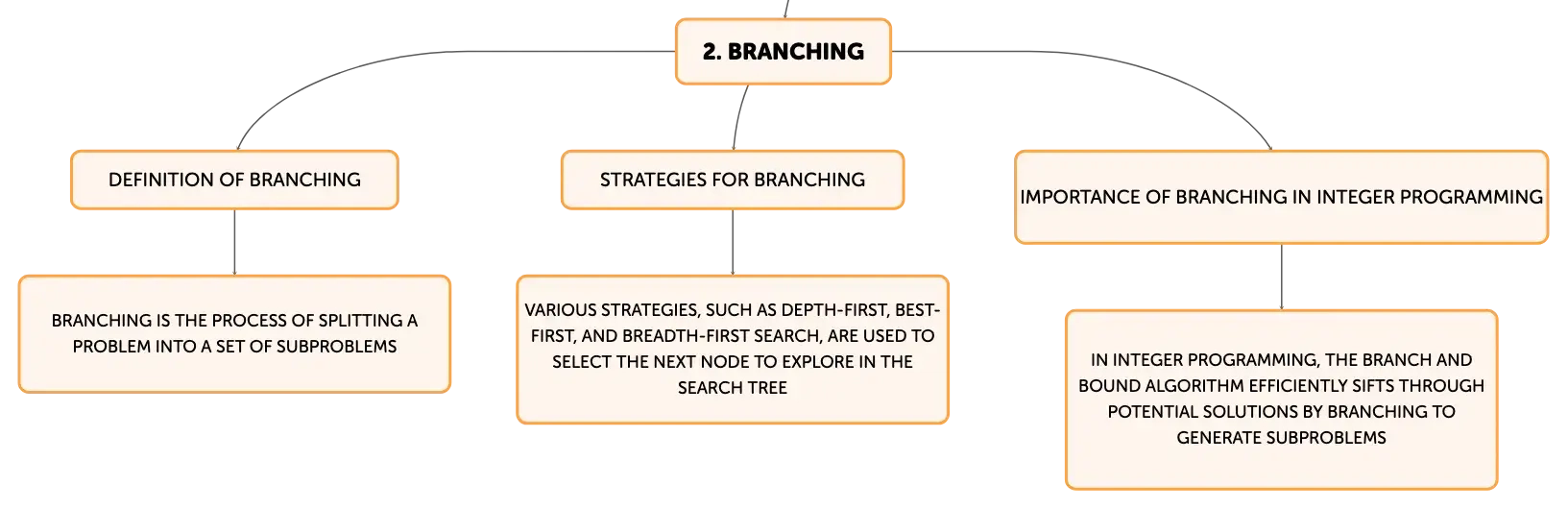

Branching
Definition of Branching
Branching is the process of splitting a problem into a set of subproblems
Strategies for Branching
Various strategies, such as depth-first, best-first, and breadth-first search, are used to select the next node to explore in the search tree
Importance of Branching in Integer Programming
In integer programming, the Branch and Bound algorithm efficiently sifts through potential solutions by branching to generate subproblems

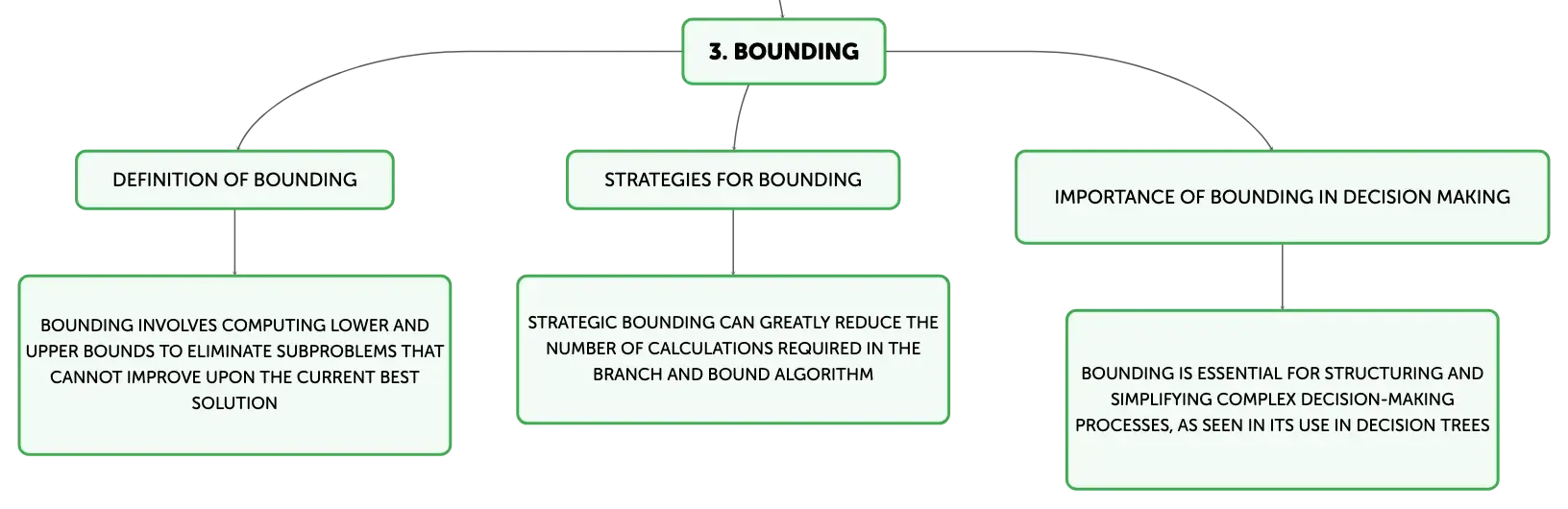

Bounding
Definition of Bounding
Bounding involves computing lower and upper bounds to eliminate subproblems that cannot improve upon the current best solution
Strategies for Bounding
Strategic bounding can greatly reduce the number of calculations required in the Branch and Bound algorithm
Importance of Bounding in Decision Making
Bounding is essential for structuring and simplifying complex decision-making processes, as seen in its use in decision trees

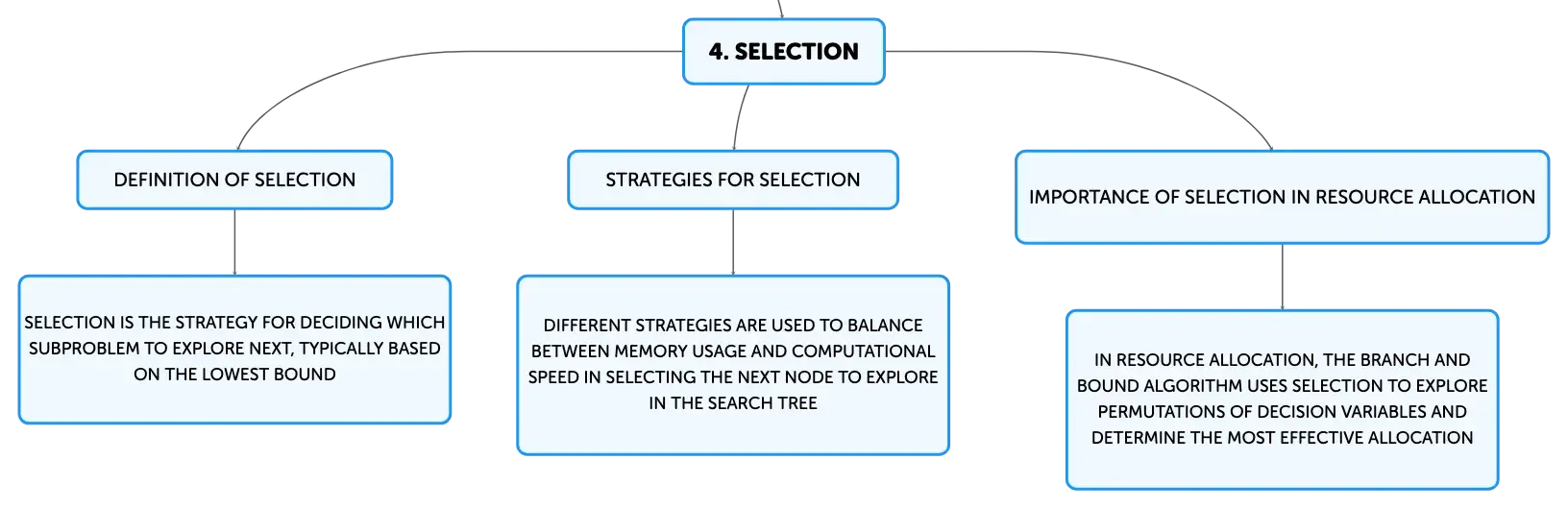

Selection
Definition of Selection
Selection is the strategy for deciding which subproblem to explore next, typically based on the lowest bound
Strategies for Selection
Different strategies are used to balance between memory usage and computational speed in selecting the next node to explore in the search tree
Importance of Selection in Resource Allocation
In resource allocation, the Branch and Bound algorithm uses selection to explore permutations of decision variables and determine the most effective allocation
Branch and Bound Algorithm
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
For intricate challenges like the ______ ______ Problem and the ______ problem, the algorithm is used to find the most efficient answers.
Travelling Salesman
knapsack
01
Branching in Branch and Bound
Process of dividing main problem into smaller subproblems.
02
Bounding in Branch and Bound
Calculation of lower and upper limits to eliminate non-optimal subproblems.
