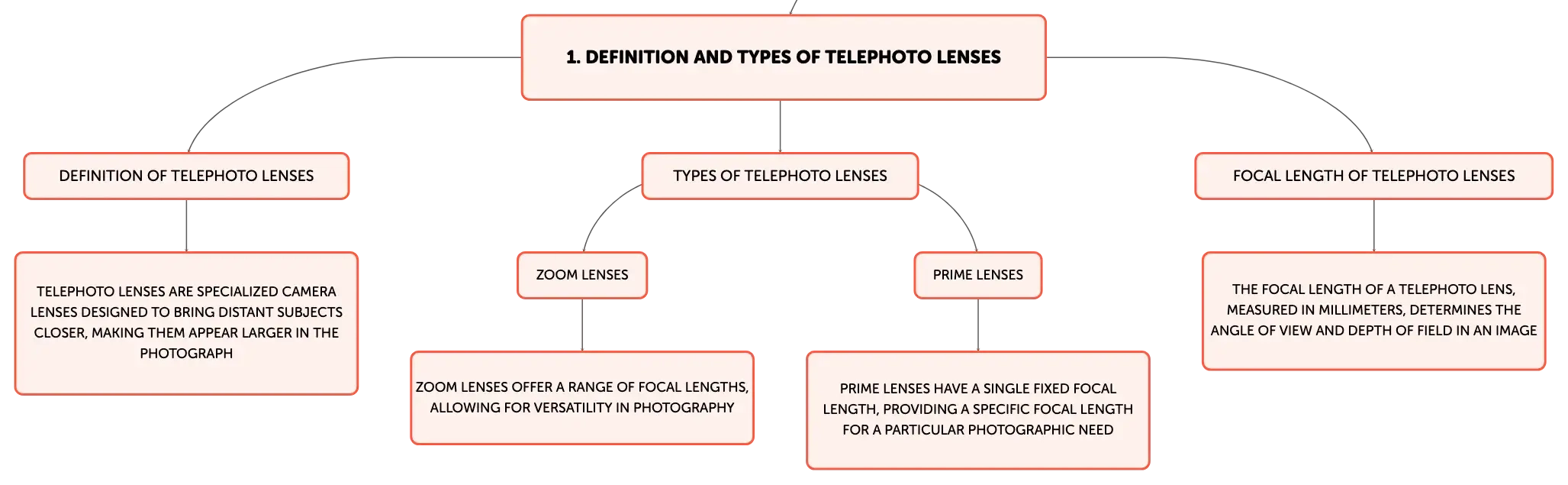

Exploring the Functionality of Telephoto Lenses in Photography

Telephoto lenses are specialized camera lenses designed to bring distant subjects closer, making them appear larger in the photograph. These lenses are indispensable in fields such as wildlife, sports, and portrait photography, where the subject is not physically close to the photographer. Telephoto lenses come in two main types: zoom lenses, which offer a range of focal lengths, and prime lenses, with a single fixed focal length. Typically, lenses with a focal length of 70mm or greater are classified as telephoto on a full-frame camera. The unique construction of telephoto lenses includes an internal lens group that extends the effective focal length without significantly increasing the physical length of the lens barrel, thus enabling the magnification of distant objects.

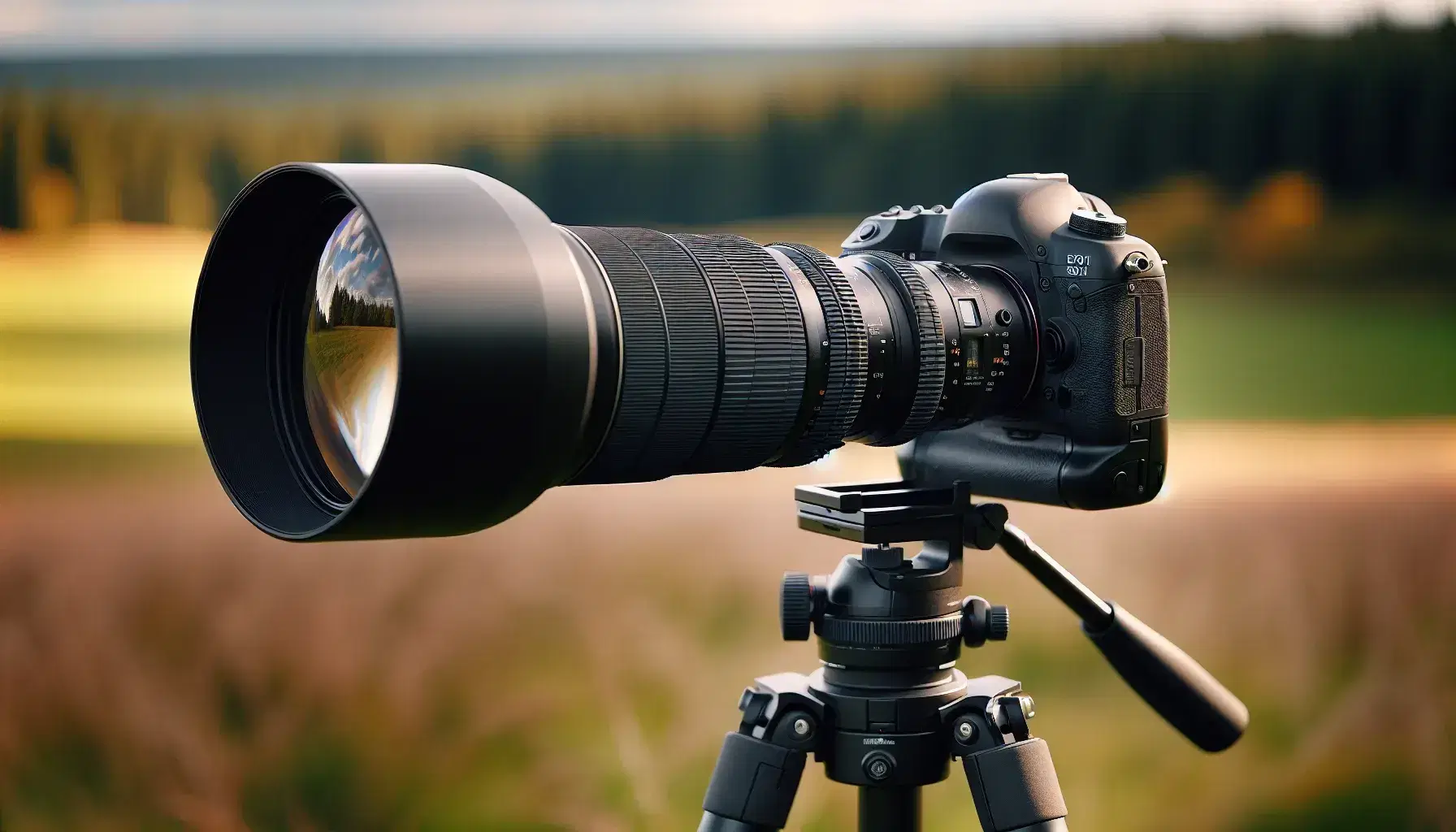

Close-up of a telephoto lens on a DSLR camera mounted on a tripod, with a blurred natural landscape and clear sky in the background.

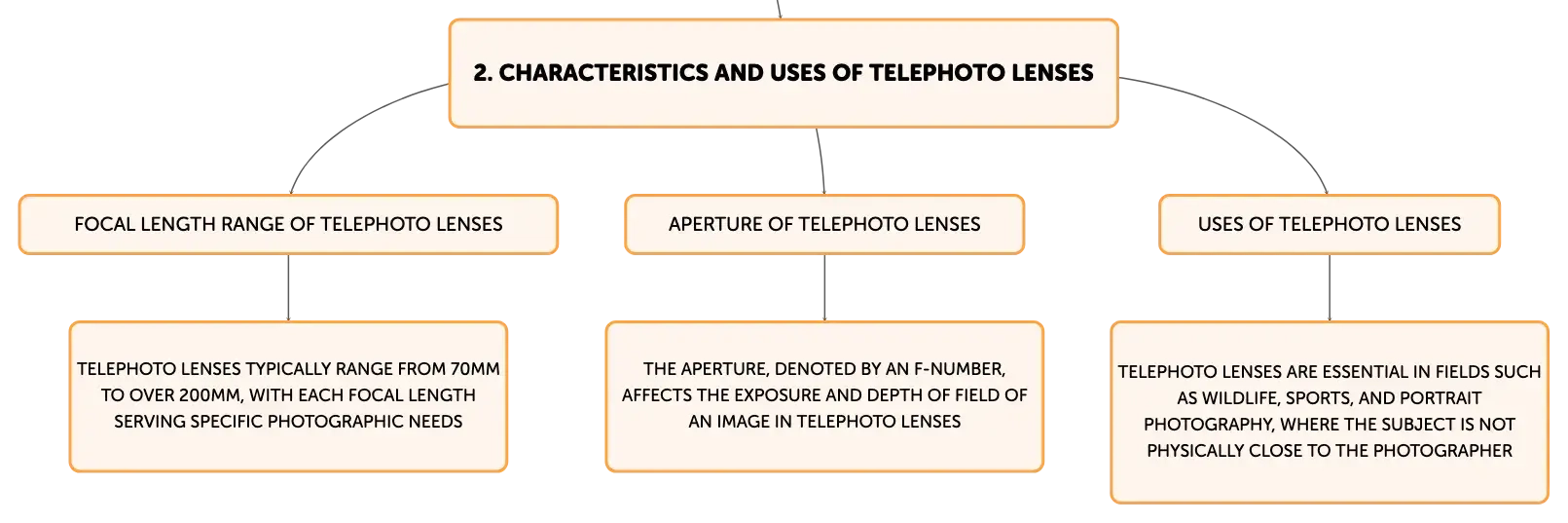

The Significance of Focal Length in Telephoto Lenses

The focal length of a lens, measured in millimeters, is the distance from the center of the lens to the image sensor when the lens is focused on a subject. It is a critical specification of telephoto lenses, determining both the angle of view and the depth of field—the range of distance within which objects appear acceptably sharp in an image. Telephoto lenses typically range from 70mm to over 200mm, with each focal length serving specific photographic needs. For instance, a 70-200mm lens is versatile for portraits and events, while lenses with focal lengths of 400mm or more are favored for wildlife and astronomical photography. As the focal length increases, the angle of view becomes narrower, allowing for a more significant magnification of distant subjects, but also a more restricted composition.

The Role of Aperture in Telephoto Lens Photography

Aperture, denoted by an f-number, is the size of the opening in the lens through which light passes. It is a fundamental aspect of lens design that affects both the exposure and depth of field of an image. A wide aperture (indicated by a smaller f-number, e.g., f/2.8) allows more light to reach the sensor, which is advantageous in low-light situations and also creates a shallow depth of field, isolating the subject from the background. Conversely, a narrow aperture (larger f-number, e.g., f/16) lets in less light, suitable for well-lit environments, and provides a greater depth of field. Telephoto lenses with large maximum apertures are often referred to as 'fast' because they can support faster shutter speeds, reducing motion blur and camera shake, which are particularly critical when shooting at long focal lengths.

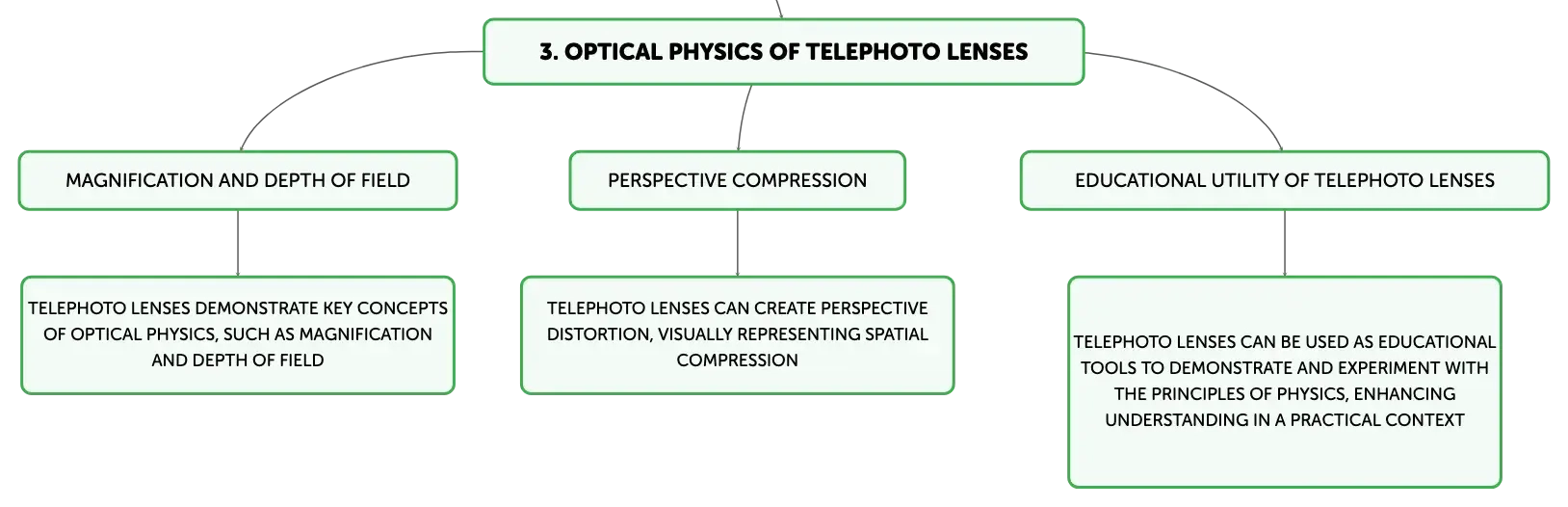

Telephoto Lenses as Demonstrative Tools in Physics

Telephoto lenses are practical examples of optical physics in action. They demonstrate key concepts such as magnification, depth of field, and perspective compression. The relationship between focal length and the diameter of the lens, for example, illustrates how magnification is achieved. Adjusting the aperture allows for the observation of changes in depth of field, providing a tangible experience of optical physics. Additionally, telephoto lenses can create perspective distortion, a phenomenon where objects at different distances appear closer together than they actually are, offering a visual representation of spatial compression.

Utilizing Telephoto Lenses for Physics Experiments

Telephoto lenses can be valuable tools for physics experiments, especially those exploring optics and the behavior of light. They can be used to measure the angular size of distant objects or to investigate how varying the aperture affects the depth of field. These experiments can solidify the understanding of abstract physics concepts. To ensure precise and reliable results, it is crucial to stabilize the camera with a tripod and use a remote shutter release to prevent camera shake. These methods highlight the educational utility of telephoto lenses in demonstrating and applying the principles of physics in a practical context.

Comprehensive Overview of Telephoto Lenses

To summarize, telephoto lenses are characterized by their long focal lengths, which allow photographers to capture distant subjects with increased size and detail. They are available as either zoom or prime lenses, each with its advantages. The focal length affects the composition of the photograph by influencing the angle of view and depth of field. Aperture settings play a critical role in controlling light and depth of field, affecting the overall exposure and clarity of the image. Beyond their photographic use, telephoto lenses serve as educational tools that can visually demonstrate and experiment with the principles of physics, enhancing both theoretical and practical understanding.

Telephoto Lenses

Concept Map

Summary

Outline

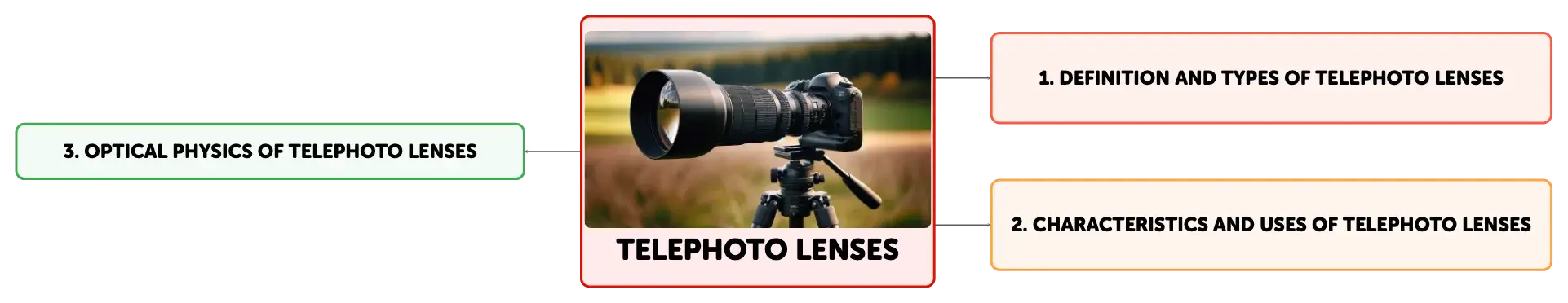

Telephoto Lenses
