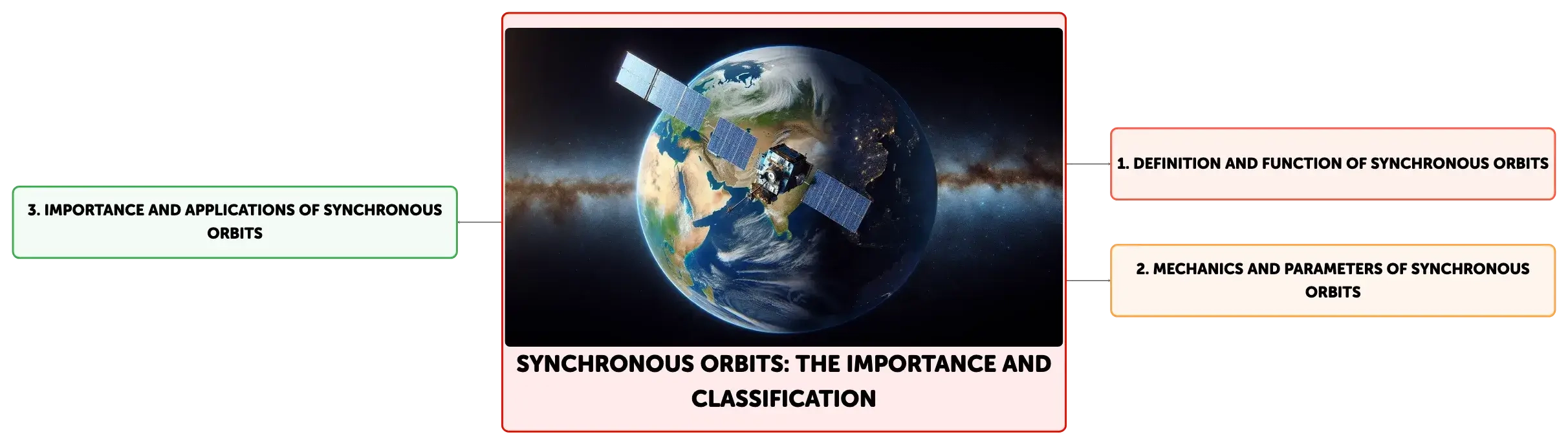

Synchronous Orbits: The Importance and Classification
Synchronous orbits are pivotal for satellites, ensuring they match Earth's rotation for stable communication and monitoring. Geostationary orbits, at about 35,786 km altitude, allow satellites to hover over a fixed point, ideal for weather and communication services. Semi-synchronous orbits, used by GPS systems, orbit every 12 hours at around 20,200 km, providing consistent global coverage. Understanding these orbits is key for satellite applications in various sectors.
see more1
4
Exploring Synchronous Orbits

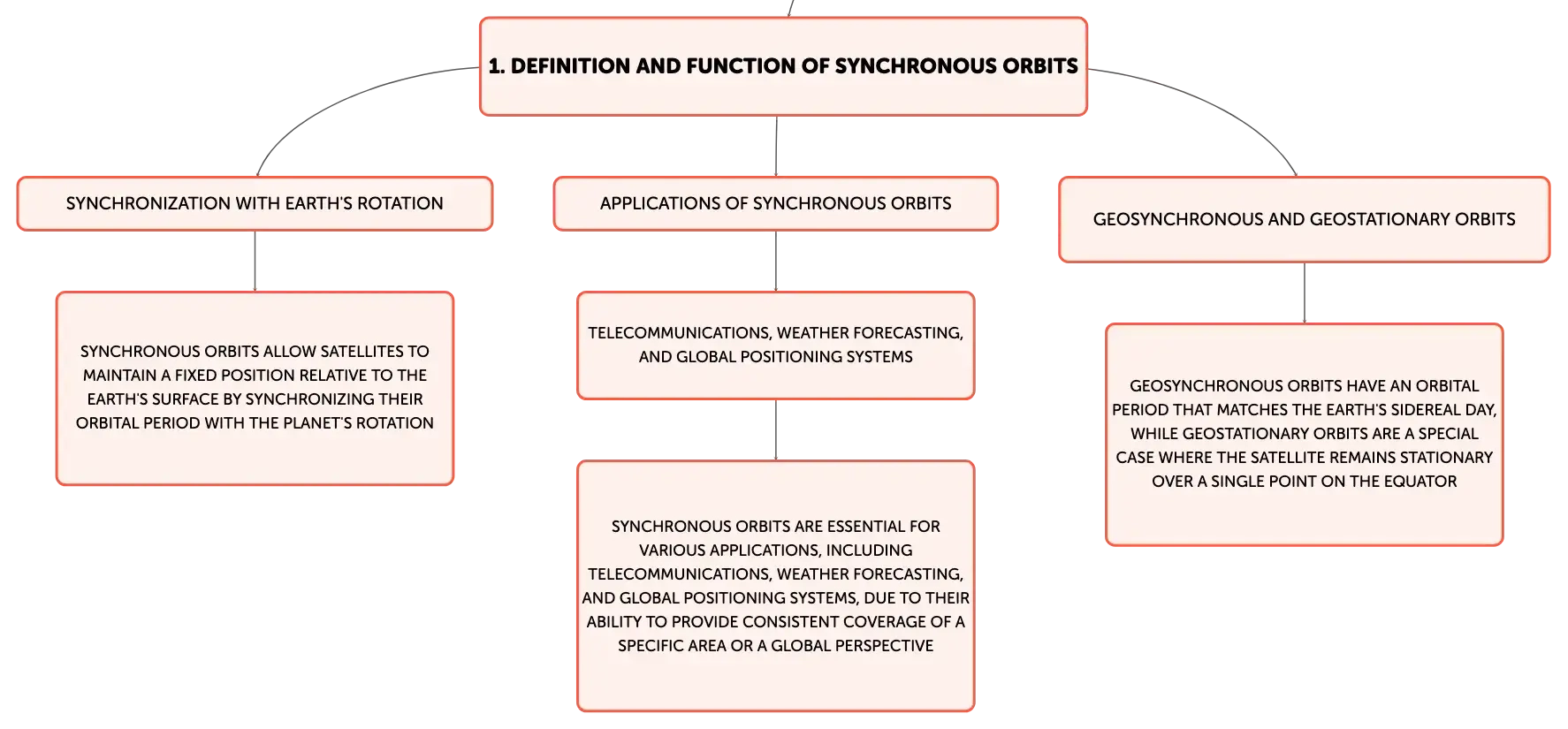

Synchronous orbits are a class of orbits where a satellite's orbital period is synchronized with the Earth's rotation period. This synchronization allows the satellite to maintain a fixed position relative to the Earth's surface, which is essential for applications such as telecommunications, weather forecasting, and global positioning systems. The satellite orbits the Earth in the same direction as the planet's rotation, and the orbital period is carefully matched to ensure consistent coverage of a particular area or to provide a global perspective.Distinction Between Geosynchronous and Geostationary Orbits
Geosynchronous orbits are characterized by an orbital period that is the same as the Earth's sidereal day, approximately 23 hours, 56 minutes, and 4 seconds. A satellite in a geosynchronous orbit appears to an observer on Earth to trace a path in the sky over the course of a day. Within this category, geostationary orbits are a special case where the satellite's orbit lies in the Earth's equatorial plane, and thus the satellite remains stationary over a single point on the equator. This unique property makes geostationary satellites highly valuable for continuous monitoring of weather patterns, broadcasting, and communication services.Calculating Geostationary Orbit Parameters

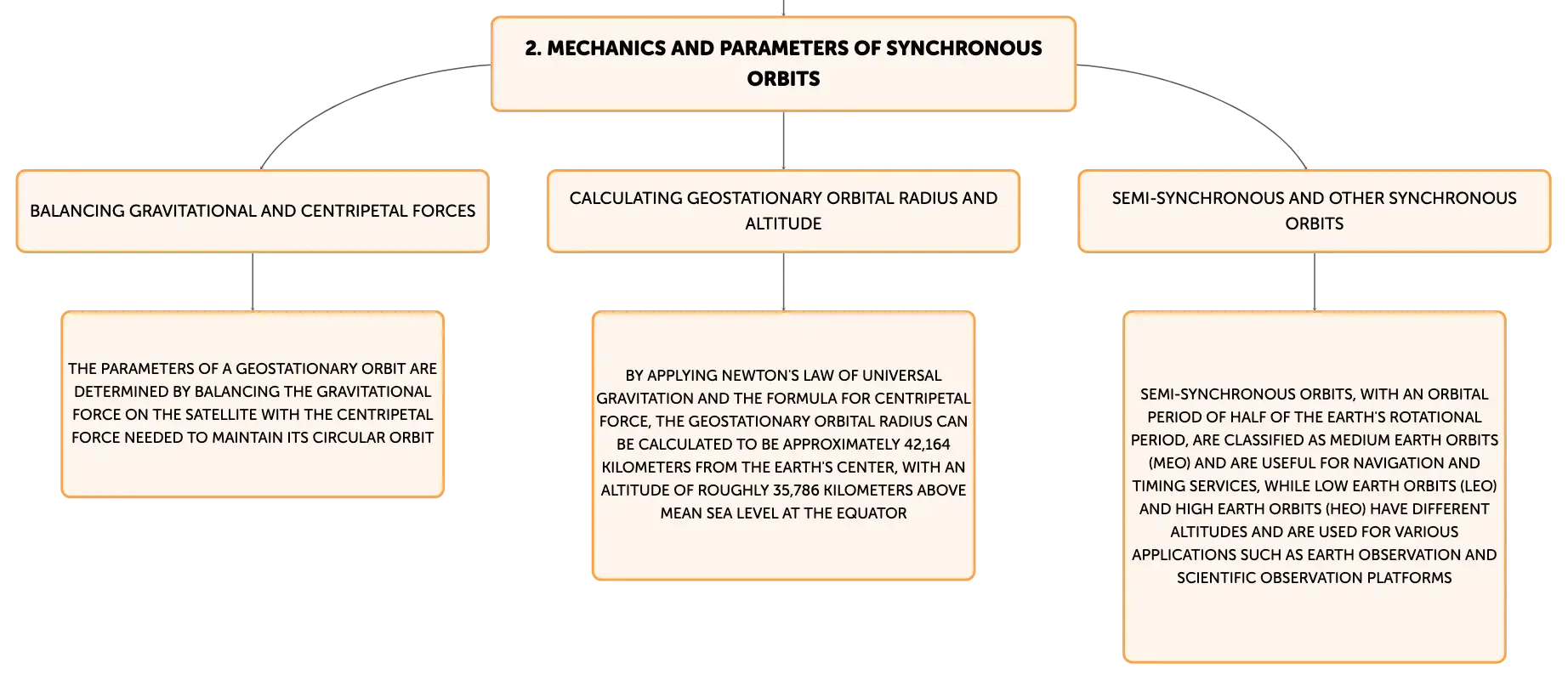

The parameters of a geostationary orbit are determined by balancing the gravitational force on the satellite with the centripetal force needed to maintain its circular orbit. By applying Newton's law of universal gravitation and the formula for centripetal force, one can calculate the geostationary orbital radius to be approximately 42,164 kilometers from the Earth's center. Subtracting the Earth's mean radius (about 6,371 kilometers) gives a geostationary orbital altitude of roughly 35,786 kilometers above mean sea level at the equator.Semi-Synchronous Orbits and Their Applications
Semi-synchronous orbits have an orbital period that is half of the Earth's rotational period, resulting in a 12-hour orbit. These orbits are generally at an altitude of approximately 20,200 kilometers and fall into the category of medium Earth orbits (MEO). Satellites in semi-synchronous orbits, such as the GPS constellation, are particularly useful for navigation and timing services because they provide consistent coverage and allow for accurate positioning by regularly passing over the same points on Earth's surface.Classifying Synchronous Orbits by Altitude

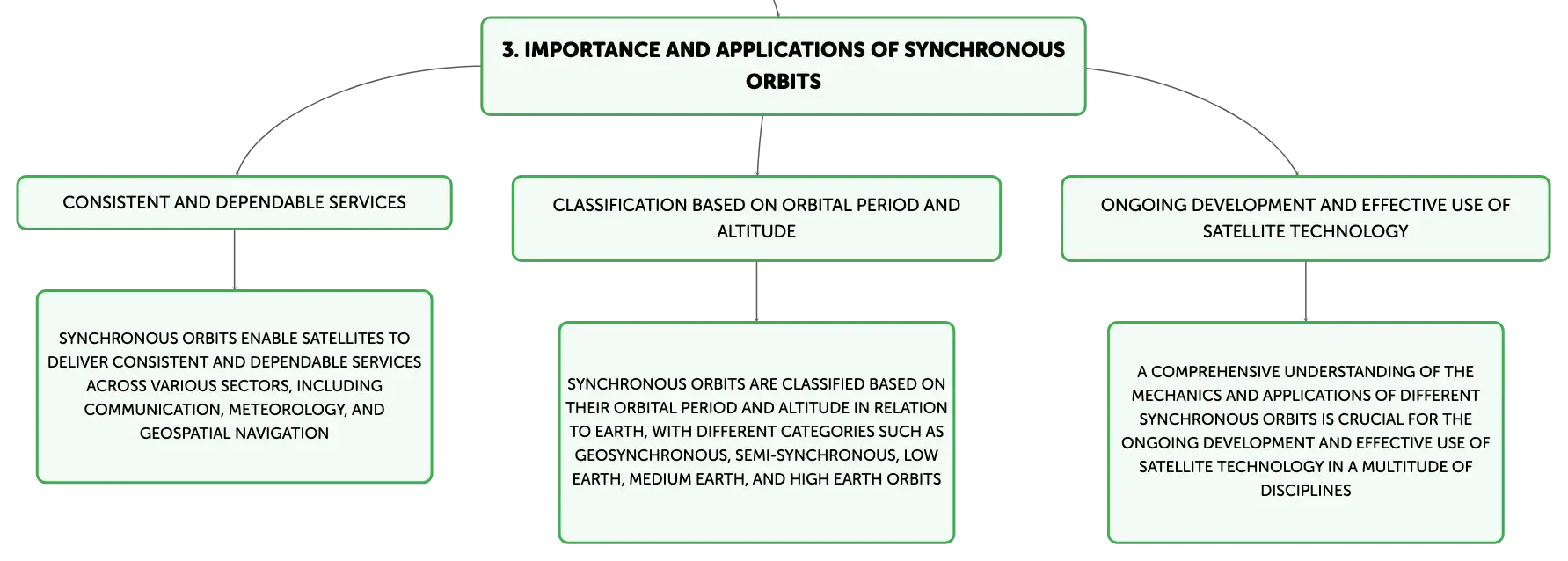

Synchronous orbits are also classified by their altitude above Earth's surface. Low Earth orbits (LEO) range from about 160 to 2,000 kilometers and are favored for applications requiring close proximity to the Earth, such as detailed Earth observation and certain communication services. Medium Earth orbits (MEO), which include semi-synchronous orbits, range from 2,000 to just below the geostationary altitude of 35,786 kilometers and are used for navigation and specialized communication systems. High Earth orbits (HEO), starting just above geostationary altitude, are utilized for services that benefit from a broader view of the Earth, such as meteorological satellites in geostationary orbits and certain scientific observation platforms.Key Insights into Synchronous Orbits
To conclude, synchronous orbits play a vital role in the functionality of modern satellite systems, with their classification based on the orbital period and altitude in relation to Earth. These orbits enable satellites to deliver consistent and dependable services across various sectors, including communication, meteorology, and geospatial navigation. A comprehensive understanding of the mechanics and applications of different synchronous orbits is crucial for the ongoing development and effective use of satellite technology in a multitude of disciplines.Want to create maps from your material?
Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Definition of Synchronous Orbit
Click to check the answer
2
Direction of Satellite in Synchronous Orbit
Click to check the answer
3
Orbital Period Matching in Synchronous Orbit
Click to check the answer
4
A ______ orbit has the same orbital period as the Earth's sidereal day, which is roughly 23 hours, 56 minutes, and 4 seconds.
Click to check the answer
5
Geostationary orbit radius from Earth's center
Click to check the answer
6
Forces balanced in geostationary orbit
Click to check the answer
7
Formulas for geostationary orbit calculation
Click to check the answer
8
Semi-synchronous orbits complete their cycle in ______ hours, which is ______ the rotational period of Earth.
Click to check the answer
9
The GPS constellation operates in ______ orbits, situated at an altitude of around ______ kilometers.
Click to check the answer
10
LEO Altitude Range
Click to check the answer
11
MEO Purpose
Click to check the answer
12
HEO Utilization
Click to check the answer
13
These orbits allow satellites to provide steady services in fields like ______, ______, and ______ navigation.
Click to check the answer
