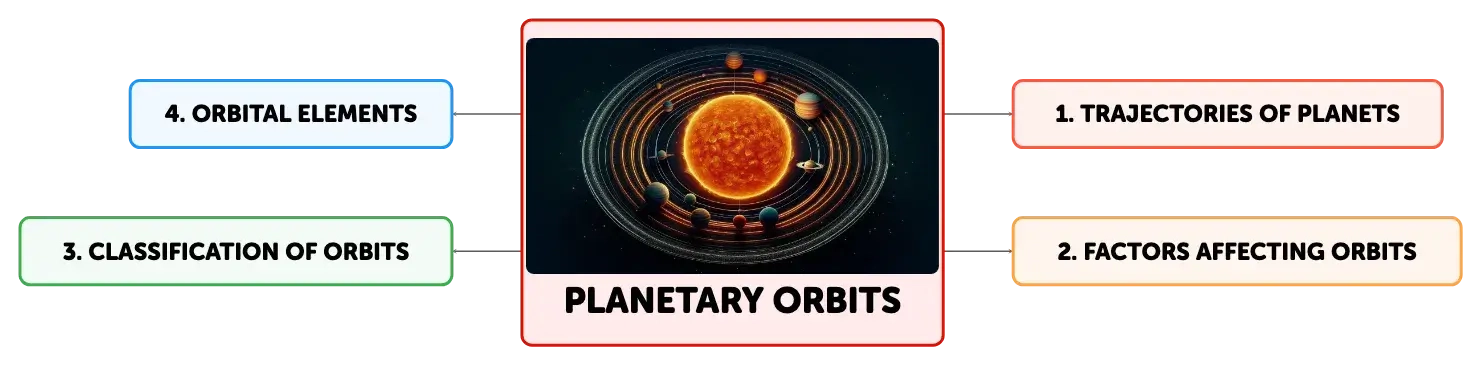

Concept Map

Algorino

Edit available

Exploring the fundamentals of planetary orbits, this overview delves into the elliptical paths planets take around stars, influenced by gravity. It highlights the importance of Kepler's laws in understanding orbital periods and the unique characteristics of each planet's trajectory, including shape, size, and inclination. These elements are crucial for astronomy and space exploration.

Summary

Outline

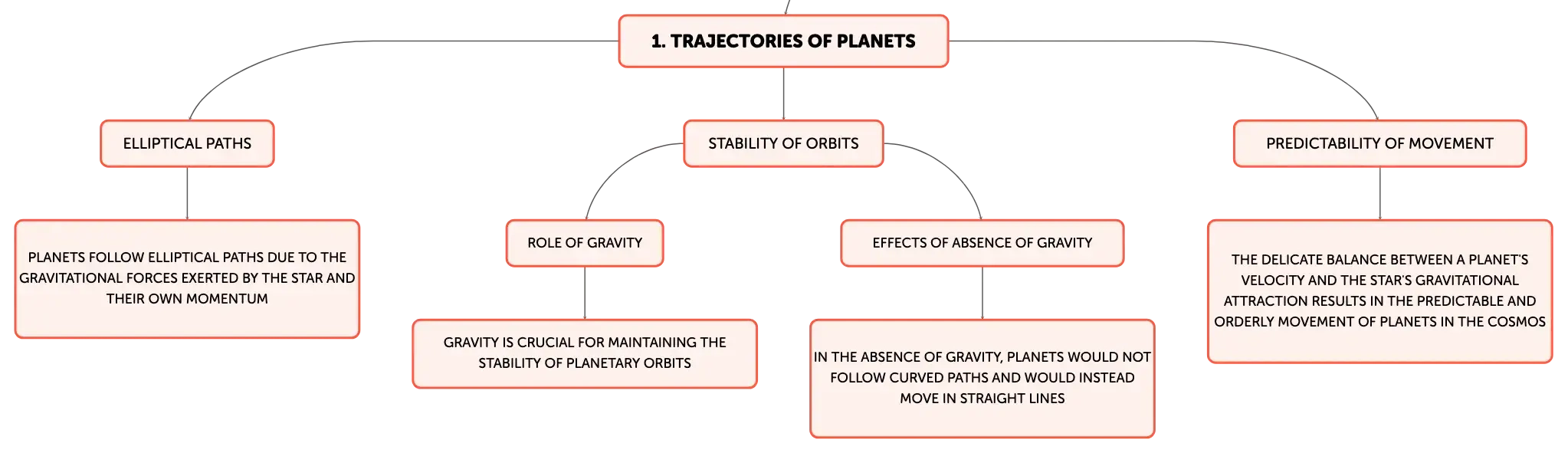

The Fundamentals of Planetary Orbits

Planetary orbits are the trajectories that planets trace as they revolve around a star, such as Earth's orbit around the Sun. These paths are primarily elliptical due to the gravitational forces exerted by the star and the planets' own momentum. Gravity, the force that draws masses together, is crucial for the stability of these orbits. In its absence, planets would not follow curved paths but would instead move in straight lines off into space. The delicate balance between the planet's velocity and the star's gravitational attraction results in the predictable and orderly movement of planets in the cosmos.

Detailed model of the solar system with the Sun at the center, eight orbiting planets on elliptical paths, set against a starry black background.

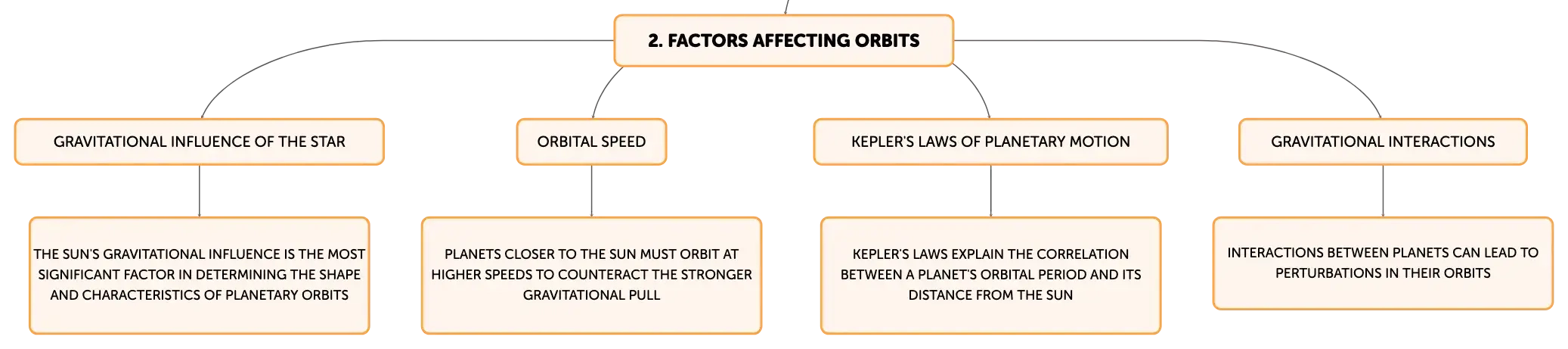

Gravity's Essential Role in Planetary Orbits

Gravity is the central force that maintains planets in their orbits, ensuring they do not drift into space. The Sun's gravitational influence is the most significant in our solar system, with its strength decreasing with distance. Planets closer to the Sun must orbit at higher speeds to counteract the stronger gravitational pull. This relationship is encapsulated in Kepler's laws of planetary motion, which articulate the correlation between a planet's orbital period and its distance from the Sun. Additionally, gravitational interactions between planets, particularly those with significant mass or in close proximity, can lead to perturbations in their orbits.

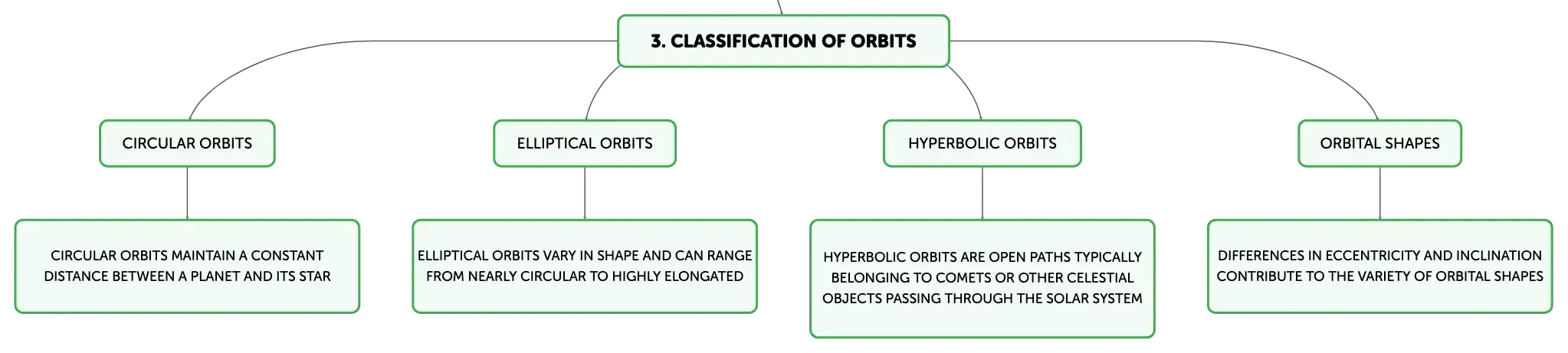

Categorizing Planetary Orbits

Planetary orbits are classified by their shape and characteristics. Circular orbits, which are rare, maintain a constant distance between a planet and its star, as seen in Venus's nearly circular orbit. Elliptical orbits, which are more common, vary in shape from nearly circular to highly elongated, or eccentric. Earth's orbit is a slightly elliptical path that keeps a relatively consistent distance from the Sun. Hyperbolic orbits are open paths that typically belong to comets or other celestial objects just passing through the solar system. The variety in orbital shapes is due to differences in eccentricity and inclination, with some planets, like Pluto, having orbits that are significantly tilted relative to the plane of the solar system.

Determining a Planet's Orbital Period

The orbital period of a planet, the time it takes to complete one revolution around its star, is primarily determined by its distance from the star. Kepler's third law of planetary motion states that the square of a planet's orbital period is directly proportional to the cube of the semi-major axis of its orbit. This law explains why Earth, which is approximately 150 million kilometers from the Sun, has an orbital period of about 365.25 days, whereas Mars, which is farther away, has a longer orbital period of around 687 Earth days. Understanding these orbital periods is crucial for comprehending the motion of celestial bodies and for the planning of space exploration missions.

Kepler's Laws of Planetary Motion

Kepler's laws are three principles that describe the motion of planets around a star. The first law states that planets orbit in ellipses with the star at one focal point. The second law, or the law of equal areas, indicates that a planet sweeps out equal areas in equal times, moving faster when it is closer to the star and slower when it is farther away. The third law connects the orbital period of a planet to its average distance from the star. These laws apply not only to the planets in our solar system but also to exoplanets orbiting other stars, allowing scientists to deduce their orbital characteristics.

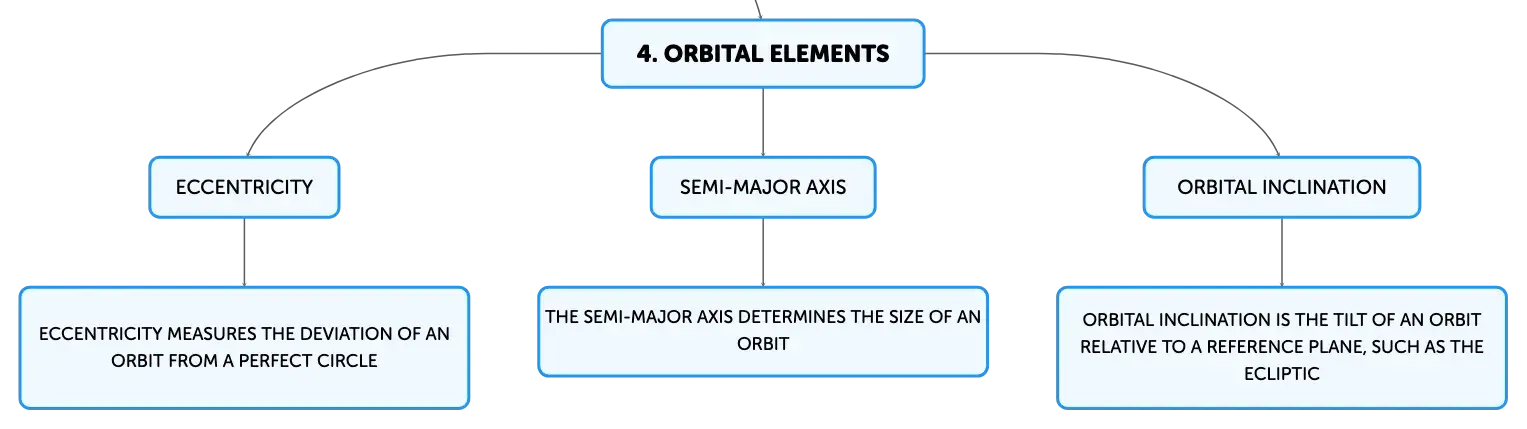

The Unique Orbital Paths of Planets

Each planet's orbit is distinct, influenced by a combination of gravitational forces from its star and other celestial bodies, its initial velocity, and the gravitational effects of nearby planets. The orbital elements that describe the shape, size, and orientation of an orbit include eccentricity, which measures the orbit's deviation from a perfect circle; the semi-major axis, which determines the orbit's size; and orbital inclination, which is the tilt of the orbit relative to a reference plane, such as the ecliptic. These elements contribute to the diversity of planetary orbits and can affect a planet's climate and the observation of celestial phenomena from its surface.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Nature of planetary orbits

Planetary orbits are primarily elliptical, shaped by gravitational forces and planetary momentum.

01

Role of gravity in orbits

Gravity is the force that maintains the stability of planetary orbits, keeping planets in curved paths around a star.

02

Result of velocity-gravity balance

The balance between a planet's velocity and a star's gravity leads to predictable, orderly planetary movement.
